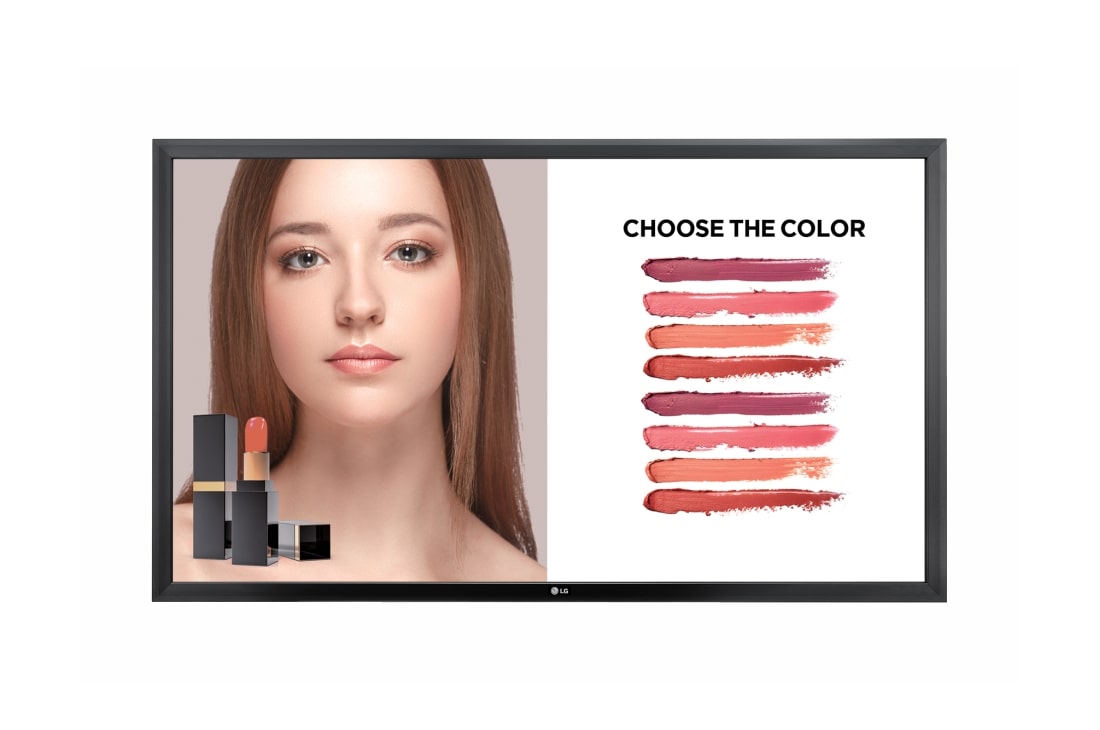

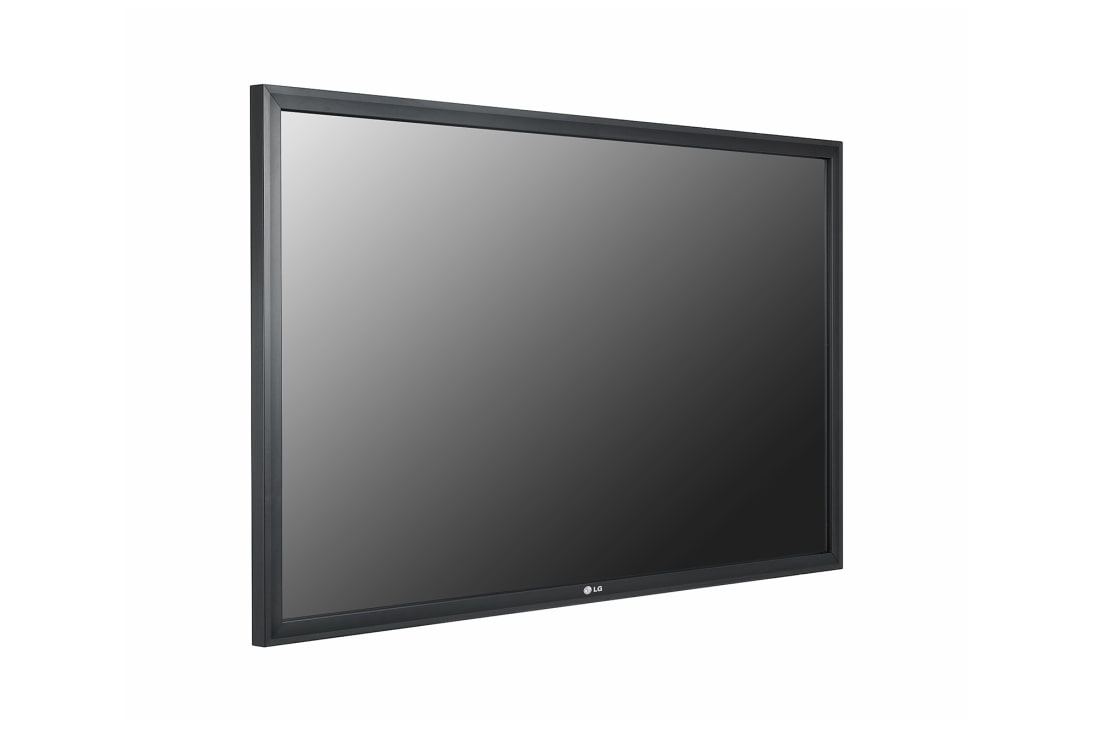

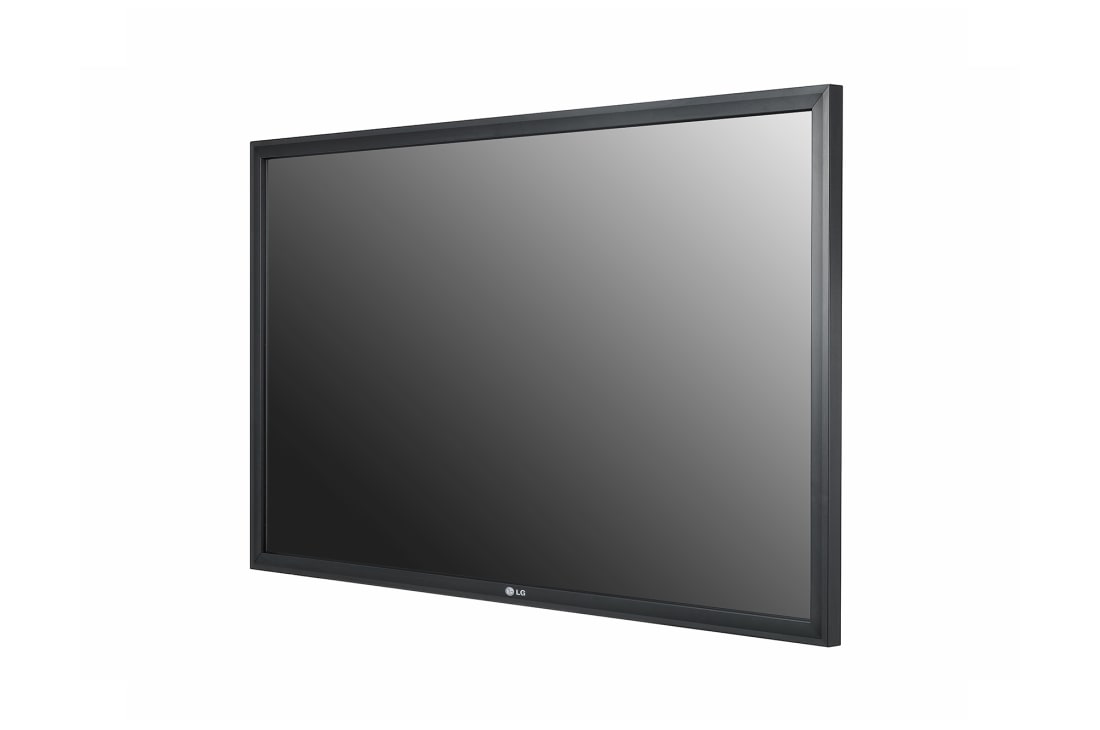

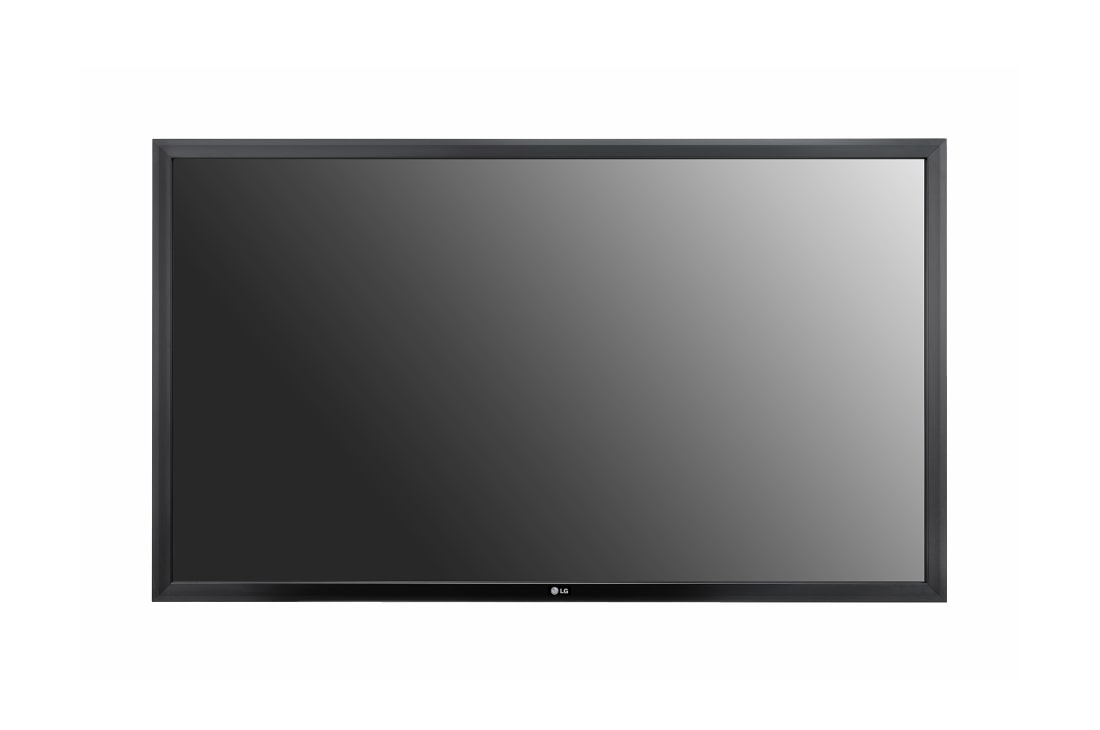

55TA3E
TA3E Series
  • Brightness(Typ.): 450 cd/m² *w/o protection glass
  • Touch Type: IR (Scattering)
  • Multi touch point: Max 10 Points
  • Interface: HDMI (2), DP, DVI-D, RGB, USB 3.0, RS232C, RJ45, IR Receiver, Pixer Sensor
TA3E Series
MSRP $

Panel

  • Screen Size
    55"
    Brightness (w/o Protection Glass, Typ., cd/m²)
    450

Connectivity

  • Input
    HDMI (2), DP, DVI-D, RGB, Audio In, USB 3.0
    Output
    DP, Audio Out

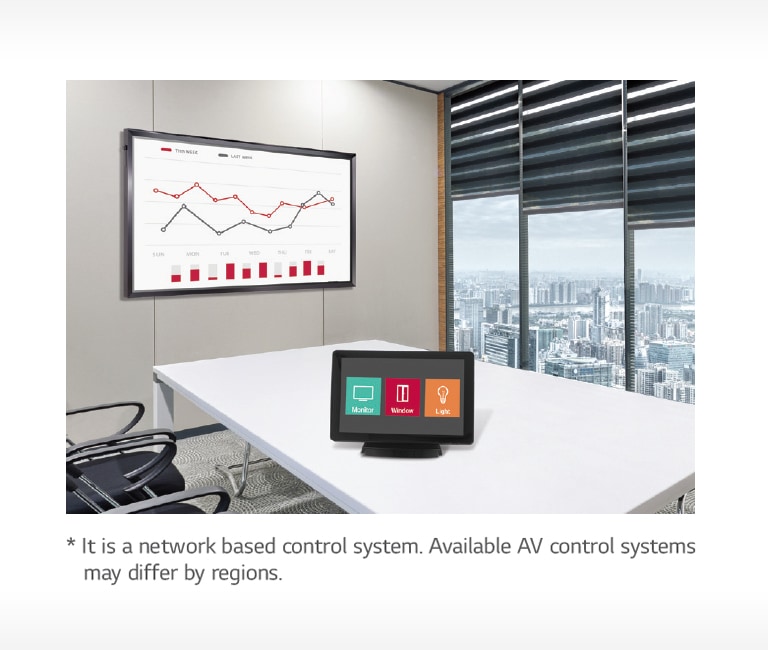

  • External Control
    RS232C In/out, RJ45 In, IR Receiver In, Pixer Sensor In

Physical Specification

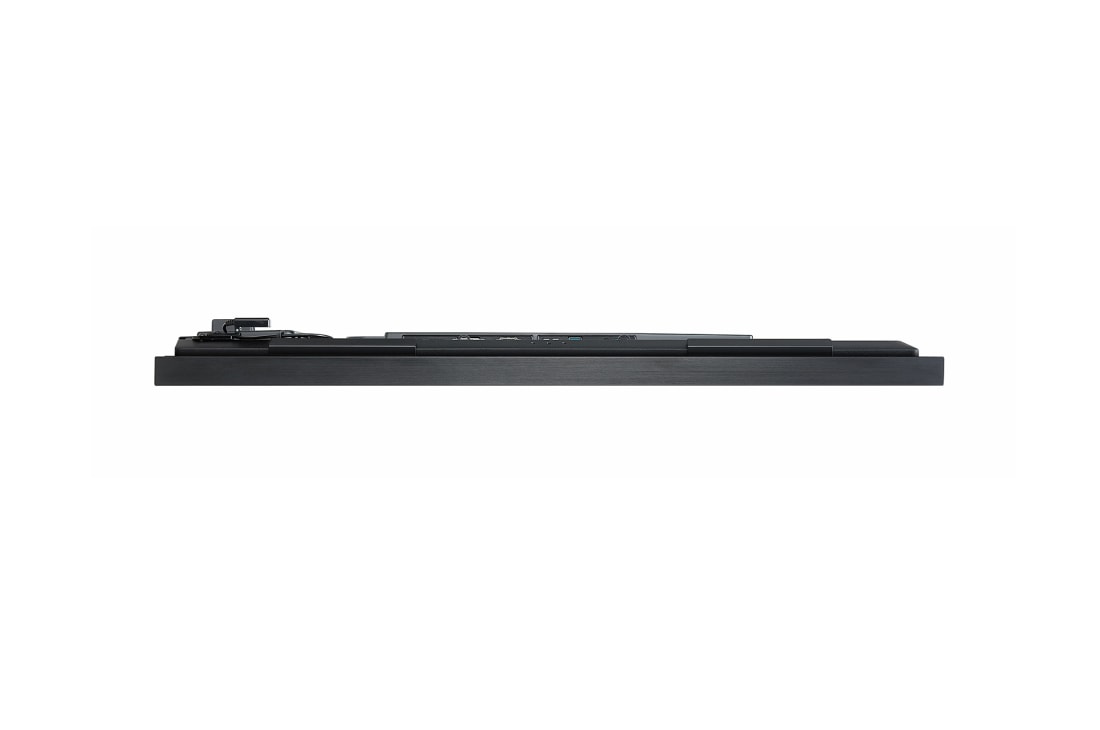

  • Bezel Width
    32.7 mm (Even)
    Monitor Dimension (W x H x D)
    1,278 x 748.8 x 71.4 mm
  • Weight (Head)
    28.0 kg
    Carton Dimensions (W x H x D)
    1,410 x 880 x 207 mm
  • Packed Weight
    33 kg

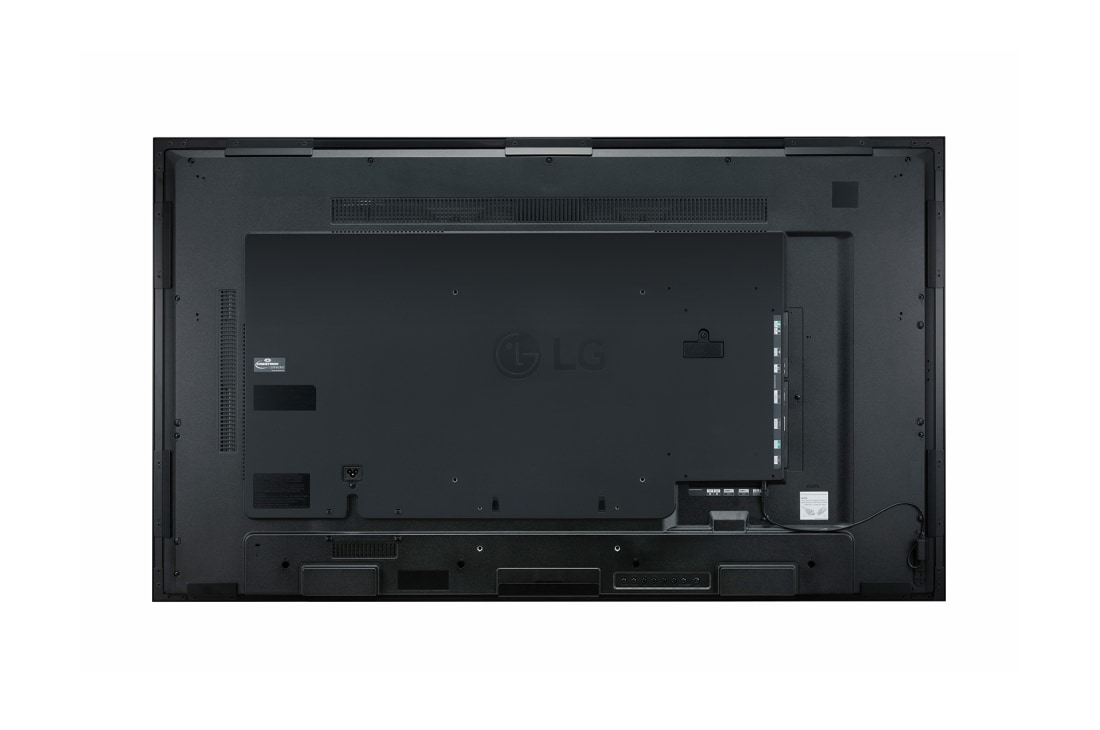

    VESA™ Standard Mount Interface
    300 x 300 mm

Environment Conditions

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %

Power

  • Power Type
    Built-In Power
    Power Supply
    100-240V~, 50/60Hz

Power Consumption

  • Typ. / Max.
    100 W / 120 W
    Smart Energy Saving
    70 W

Standard(Certification)

  • ErP / Energy Star
    Yes (EU Only) / N/A

Software Compatibility

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control+
    *Software compatibility may change over time.

Accessory

  • Basic
    Remote Controller (2ea batteries included), Power cord, QSG, RGB cable, Regulation book, Phone to RS232C gender, Memory cover
    Optional
    Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA)

Touch

  • Touch type
    IR (Scattering)
    Scan Time
    10 ms ↓
  • Interface
    USB 2.0
    Protection Glass Thickness
    2.8T (Anti-Glare)
  • Operating Systme Support
    Windows 7, Windows 8, Windows 8.1, Windows 10, Android (Kernel Version 3.5 Over), Linux(Kernel Version 3.5 Over), Mac OS X (10.9 Over), Chrome (39 Over)
    Multi touch point
    Max 10 Points
