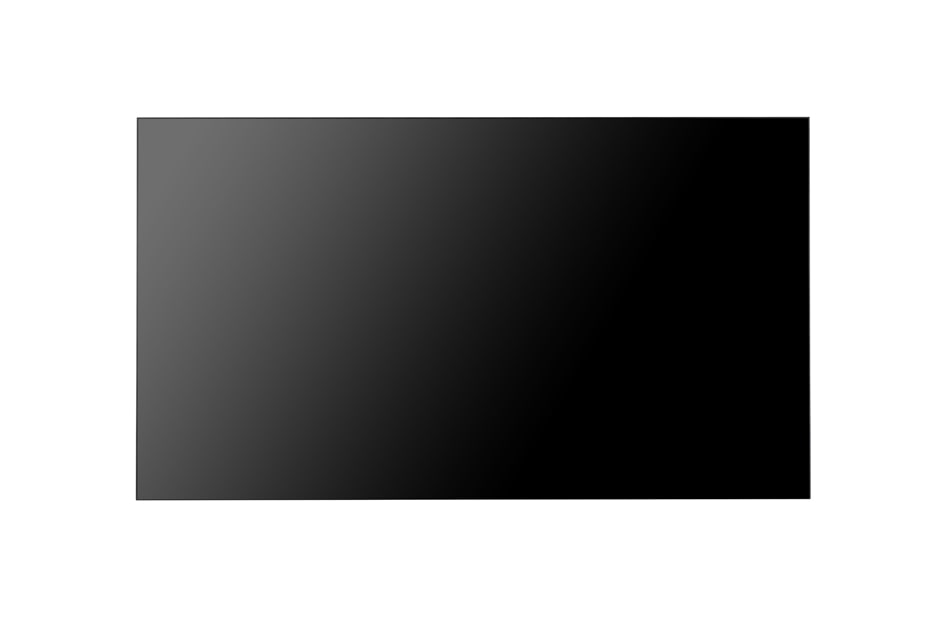

55VX1D
High Brightness Video Wall
55"

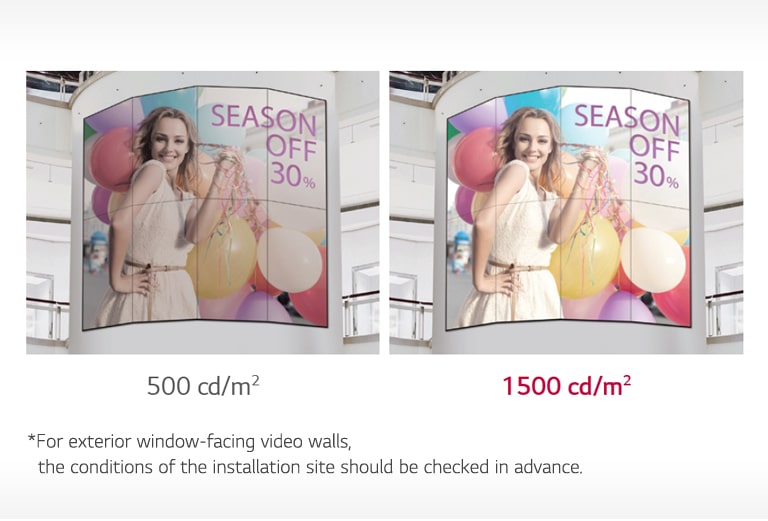

  • Brightness(Typ.): 1,500 cd/m²
  • Bezel: 2.25 mm (Top/Left), 1.25 mm (Bottom/Right)
  • Depth: 92.8mm
  • Interface: HDMI/DP/DVI-D/RGB/RS232C/RJ45/USB 3.0/IR Receiver/Audio
  • webOS 3.0+
High Brightness Video Wall
MSRP $

Summary

Panel

  • Screen Size
    55"
    Native Resolution
    1,920 x 1,080 (FHD)
  • Brightness (Module, Typ., cd/m²)
    1500
    Orientation
    Landscape & Portrait

Connectivity

  • Input
    HDMI, DP, DVI-D, RGB, Audio In, USB 3.0
    Output
    DP, Audio Out

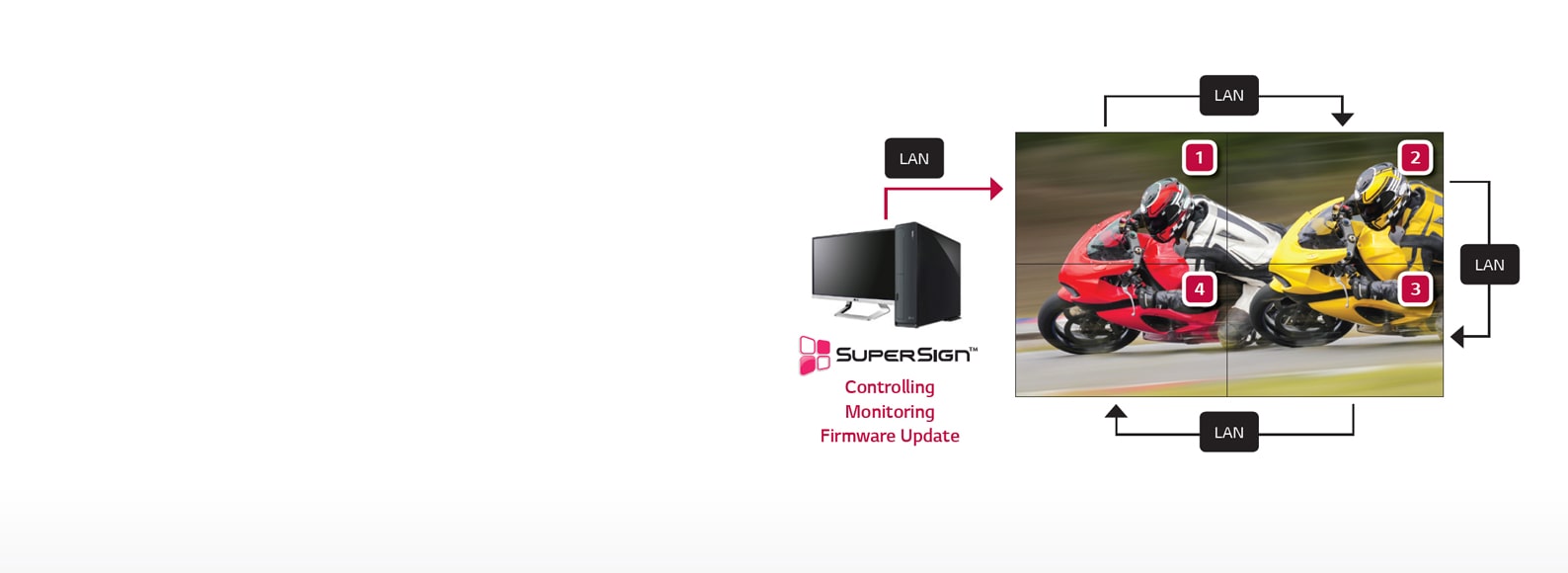

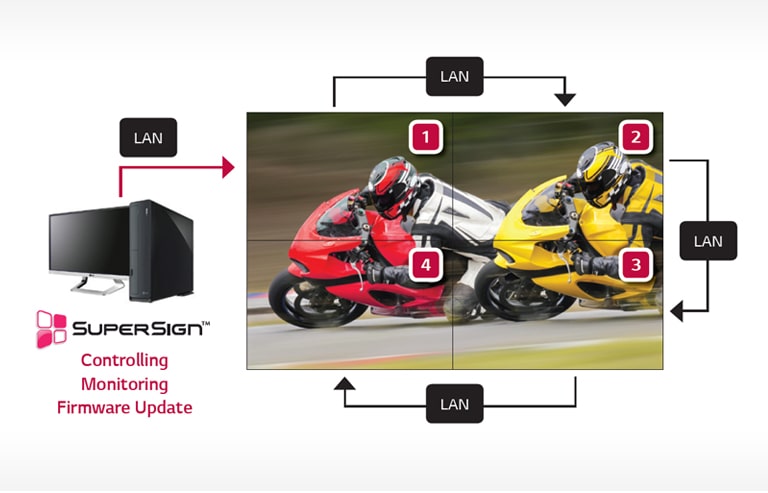

  • External Control
    RS232C In/Out, RJ45 In/Out, IR Receiver In

Physical Specification

  • Bezel Width
    2.25 mm (L/T) / 1.25 mm (R/B)
    Monitor Dimension (W x H x D)
    1,213.4 x 684.2 x 92.8 mm
  • Weight (Head)
    23.5 kg
    Carton Dimensions (W x H x D)
    1,353 x 855 x 263 mm
  • Packed Weight
    36.6 kg
    VESA™ Standard Mount Interface
    600 x 400 mm

Environment Conditions

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %

Power Consumption

  • Typ./Max
    250 W / 280 W
    Smart Energy Saving
    213 W

Standard(Certification)

  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class "A" / CE / KCC
  • ErP / Energy Star
    Yes (EU Only) / Yes (Energy Star 7.0)

Media Player Compatibility

  • OPS type compatible
    -
    External Media player Attatchable
    Yes (MP500/MP700)

Software Compatibility

  • Content Management Software
    SuperSign Premium
    Control and Monitoring Software
    SuperSign Link

Accessory

  • Basic
    Remote controller, Power cable, DP cable, Manual, IR receiver, RS-232C cable, LAN cable, Guide bracket, Screws
    Optional
    Wall mount (Landscape: WM-L640V, Portrait: WM-P640V)
