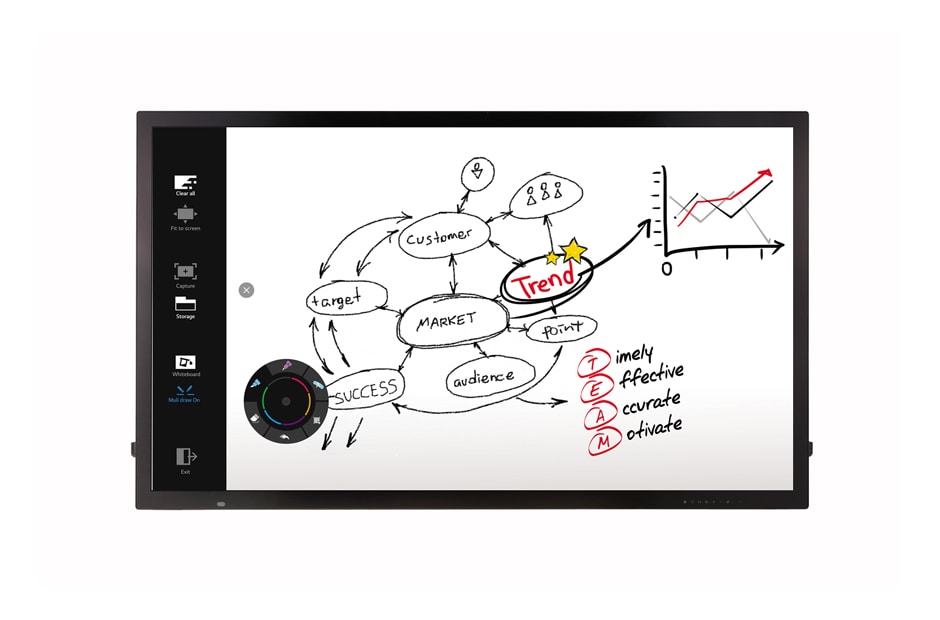

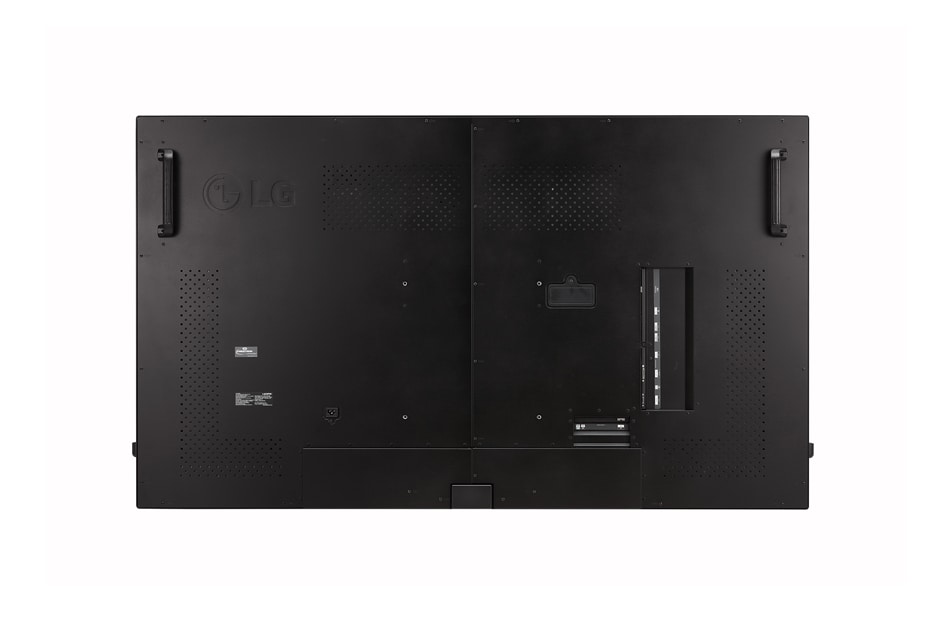

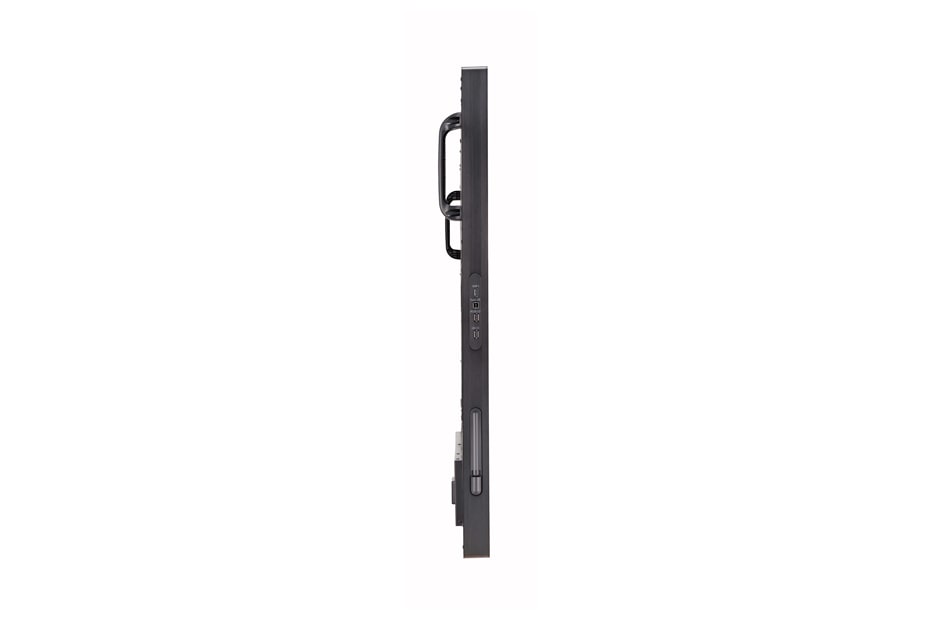

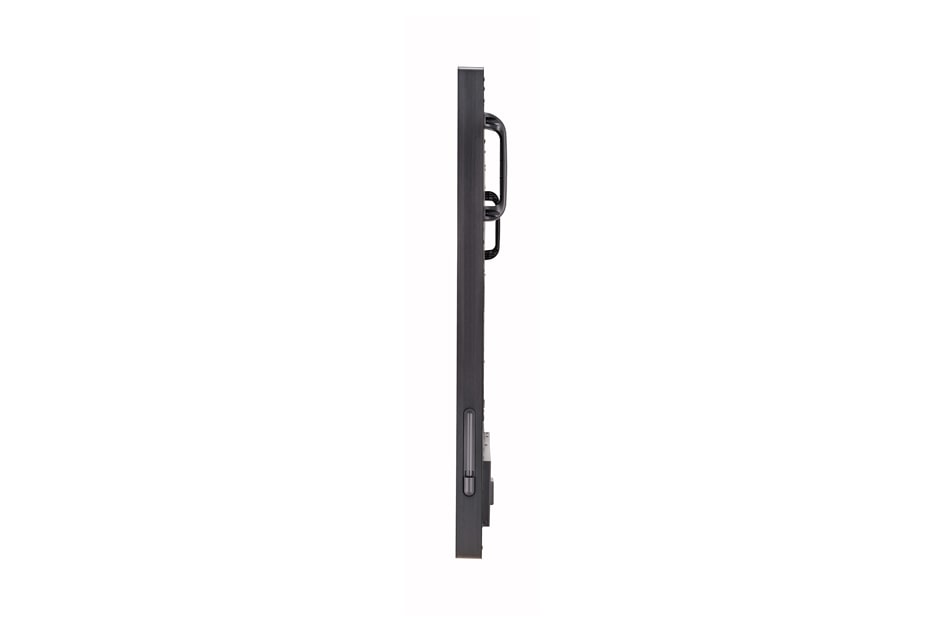

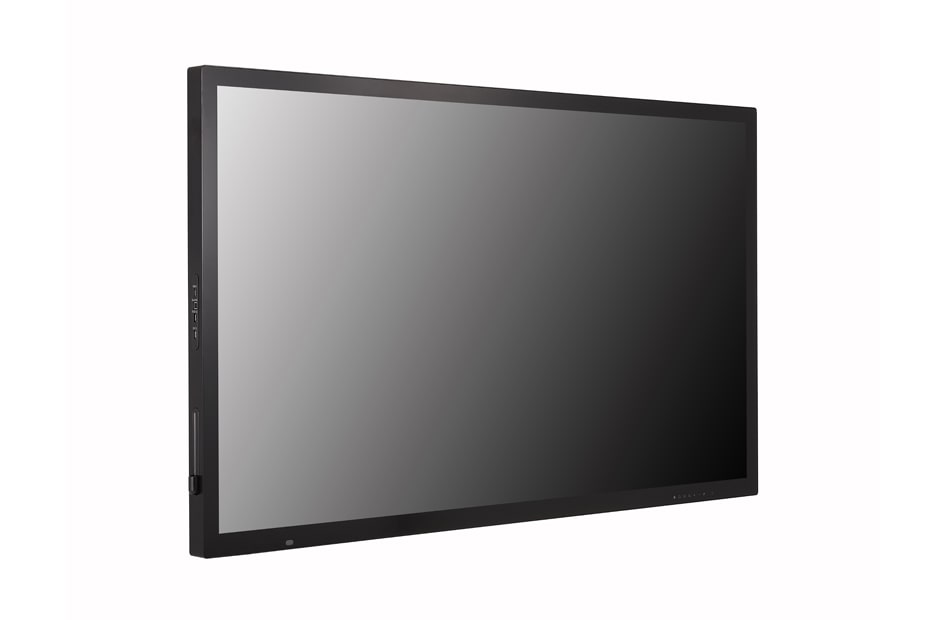

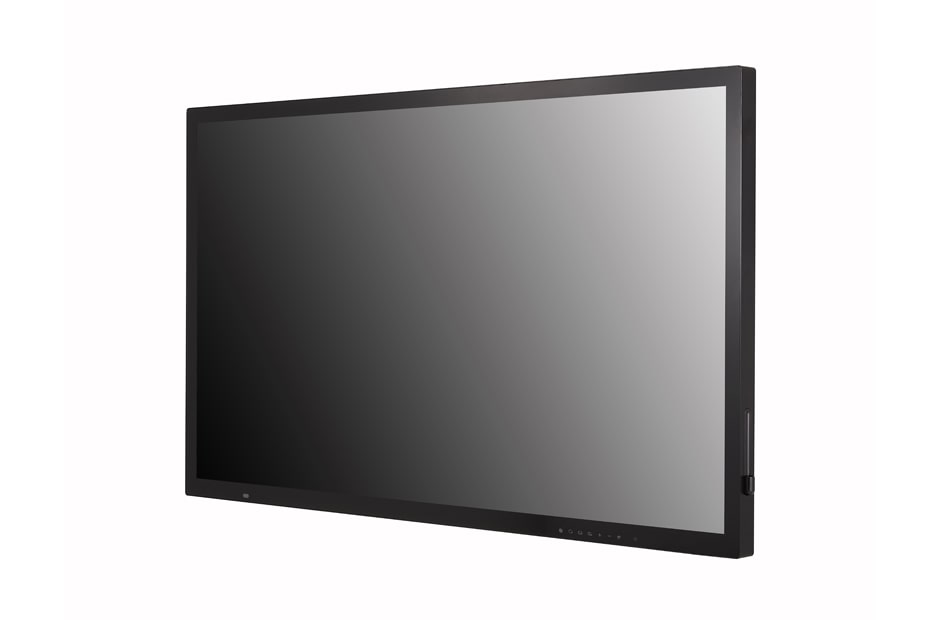

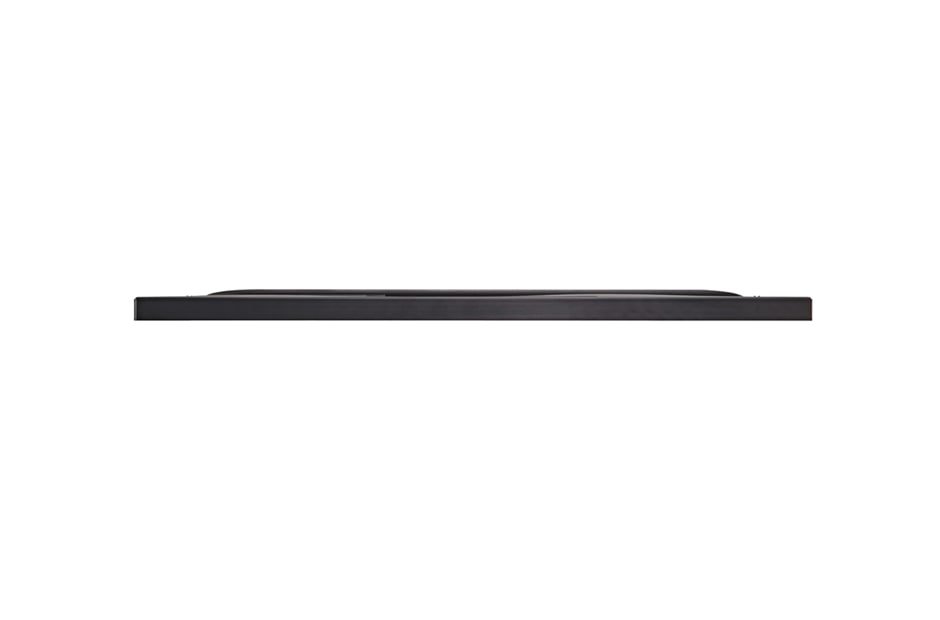

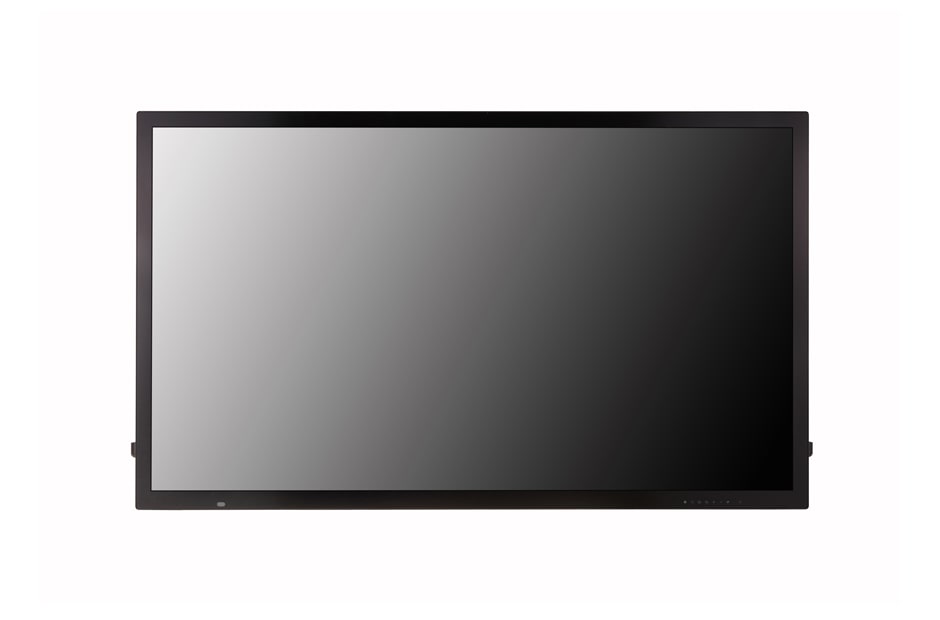

Interactive Digital Board

Key Features

component-OBScountrySelectDesc

Interactive Digital Board
Panel
  • Screen Size
    65”
    Native Resolution
    1,920 x 1,080 (FHD)
  • Brightness(Module, Typ., cd/m²)
    450
Connectivity
  • Input
    HDMI (3), DP, DVI-D, RGB, Audio in, USB 3.0, USB 2.0, OPS USB 2.0
    Output
    Touch USB 2.0 (2)
  • External Control
    RS232C in/out, RJ45 in
Physical Specification
  • Bezel Width
    36.1mm(T/L/R), 42.2mm(B)
    Monitor Dimension (W x H x D)
    1,530.8 x 883.8 x 71.7 mm(w/o Handle)
  • Weight (Head)
    51 kg
    Carton Dimensions (W x H x D)
    1,650 x 1,035 x 228 mm
  • Packed Weight
    59 kg
    VESA™ Standard Mount Interface
    300 x 300 mm
Environment Conditions
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
Power Consumption
  • Typ.
    ≤ 120 W
    Smart Energy Saving
    ≤ 85 W
Standard(Certification)
  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class “A” / CE / KCC
Software Compatibility
  • Content Management Software
    SuperSign Premium
    Control and Monitoring Software
    SuperSign Link
Minimum Requirements for LG IDB Duo
  • OS (Windows 32bit or 64bit)
    Windows 7, Windows 10
    OS (macOS)
    macOS 10.12 Sierra, MacOS 10.13 High Sierra
  • CPU (Windows)
    2.7GHz+ Dual Core Broadwell or higher
    CPU (macOS)
    Any CPU which supports Sierra or High Sierra
  • Memory
    4GB RAM
    Hard Drive
    1GB of free space
  • Graphics Hardware (Windows)
    Intel Iris or higher, Nvidia, ATI
    Graphics Hardware (macOS)
    Any GPU which supports Sierra or High Sierra
Accessory
  • Basic
    Remote Controller (include battery 2ea), Power Cord, QSG, HDMI (3M), Regulation Book, Phone to RS232C Gender, Touch Pen (2ea), Touch Pen Tip (1ea)
    Optional
    OPS Kit (KT-OPSA)
Touch
  • Touch type
    P-Cap(Ag Metal Mesh)
    Available object size for touch
    more than Ø 6 mm
  • Accuracy
    2 mm
    Interface
    USB 2.0
  • Protection Glass Thickness
    3.2T (Anti-Glare)
    Multi touch point
    Max. 40 Points
  • Dimension
    • 65TC3D_dimension.dwg
    • 65TC3D_dimension.pdf
  • Datasheet
    • 2018_LG_IDB_brochure_preview_11804.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
