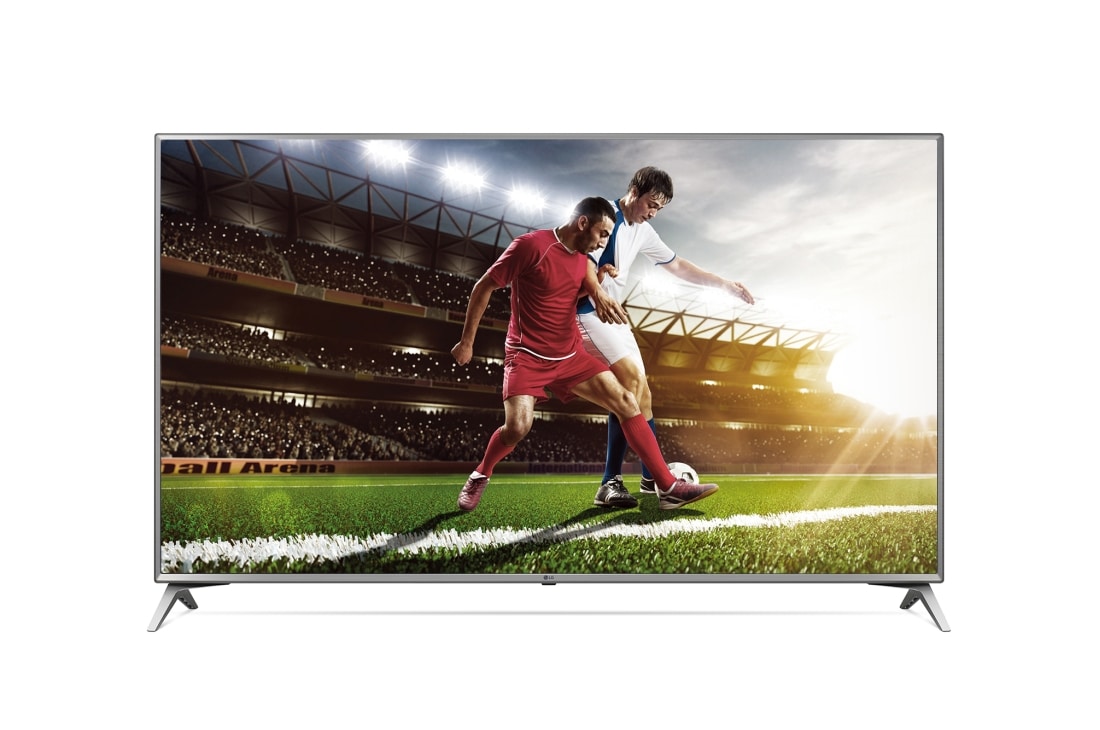

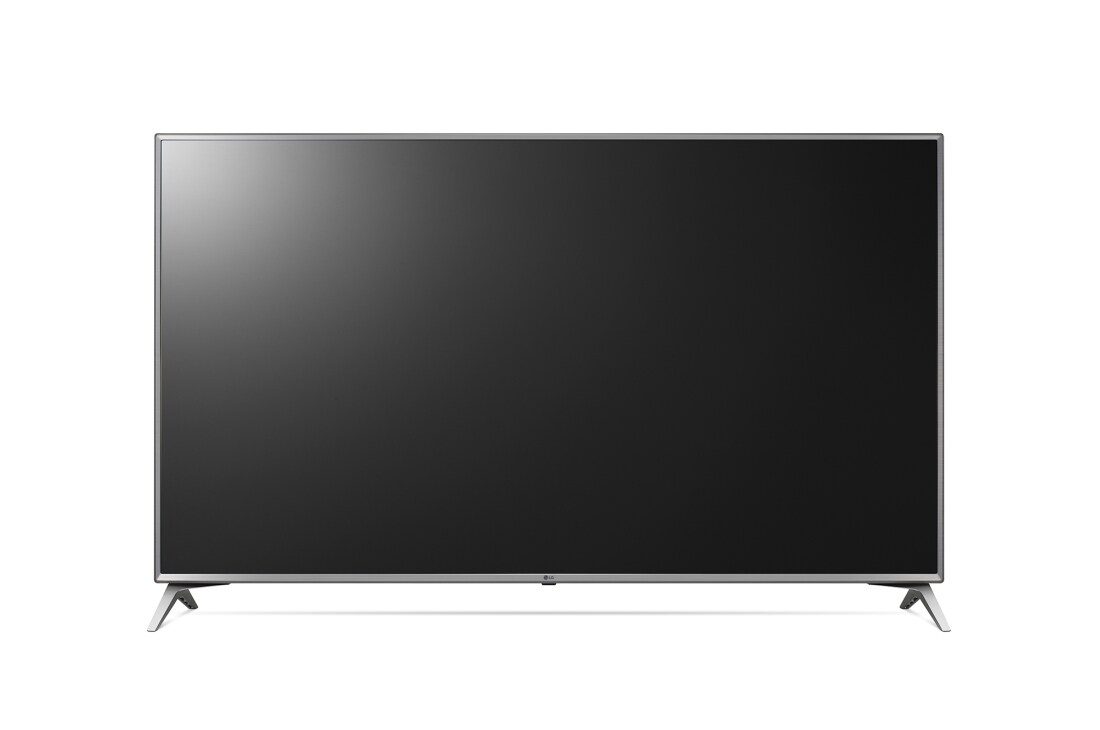

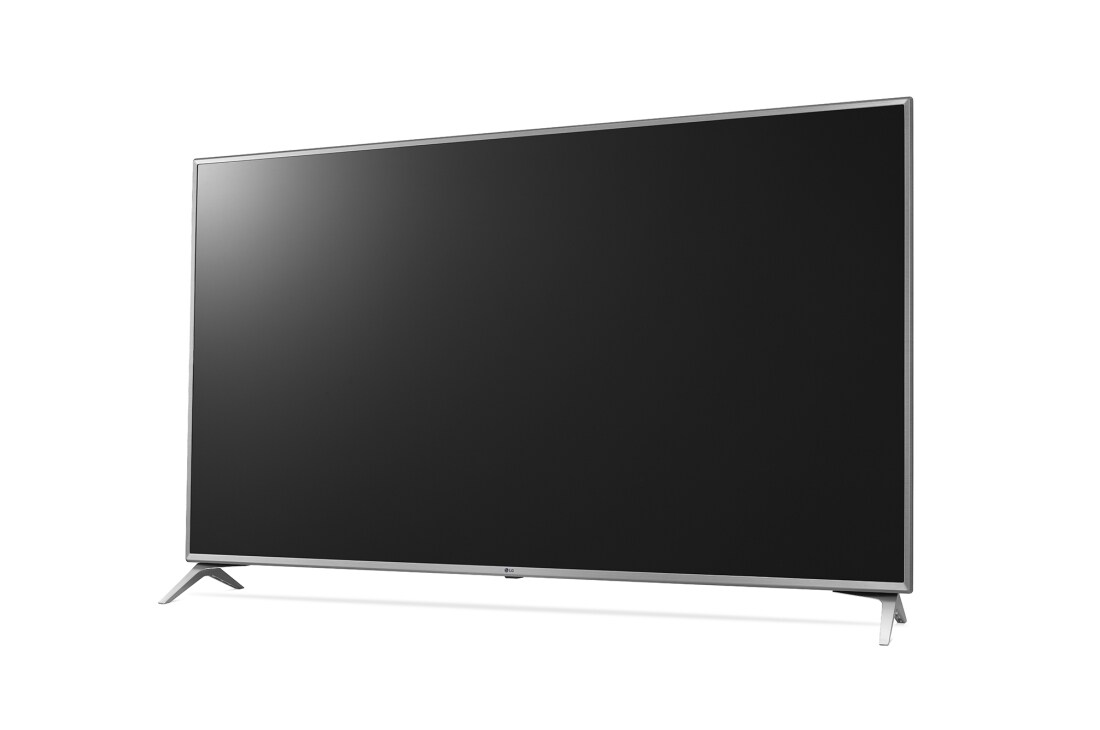

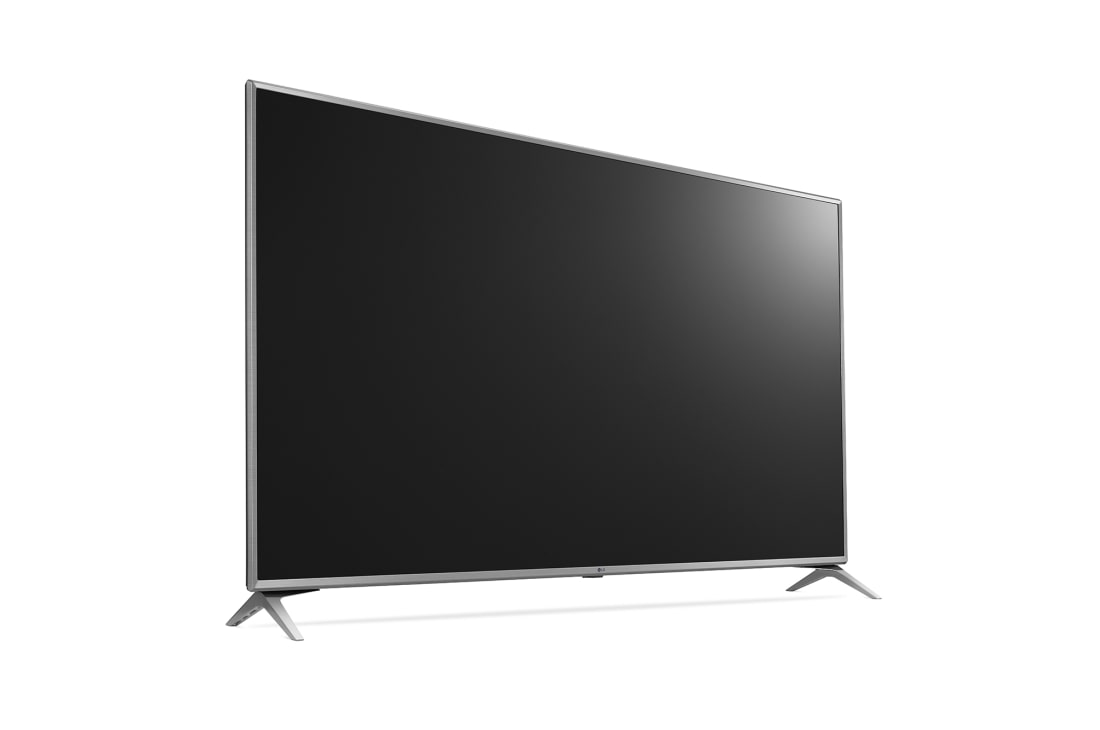

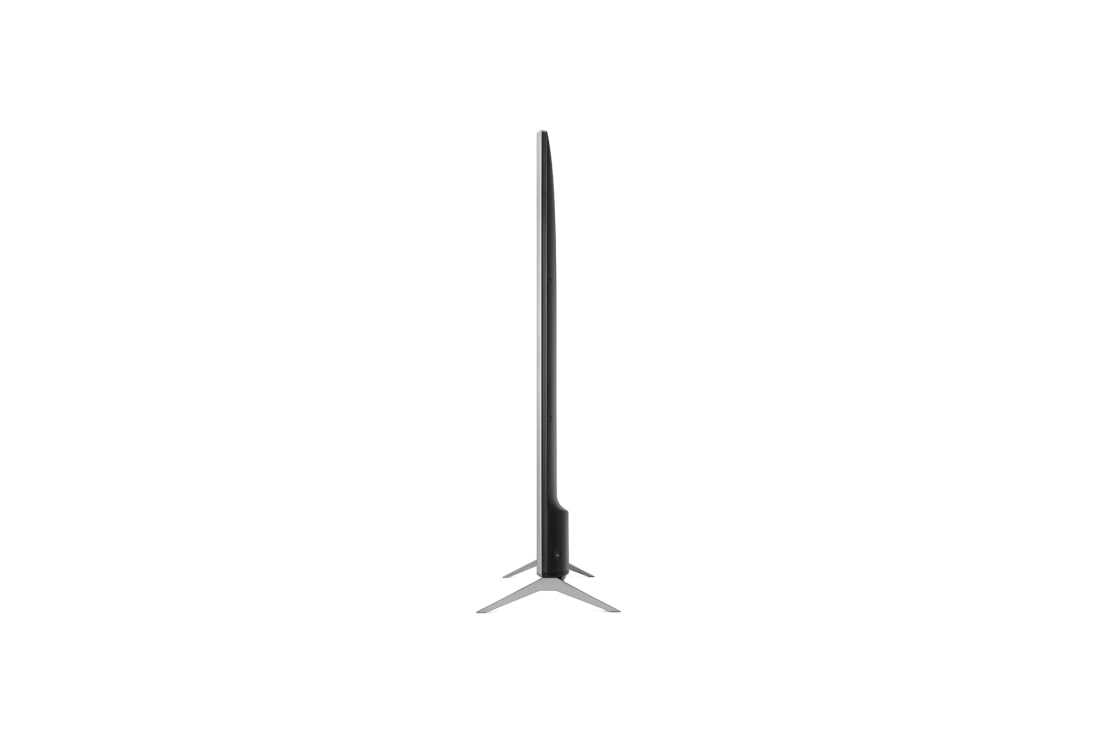

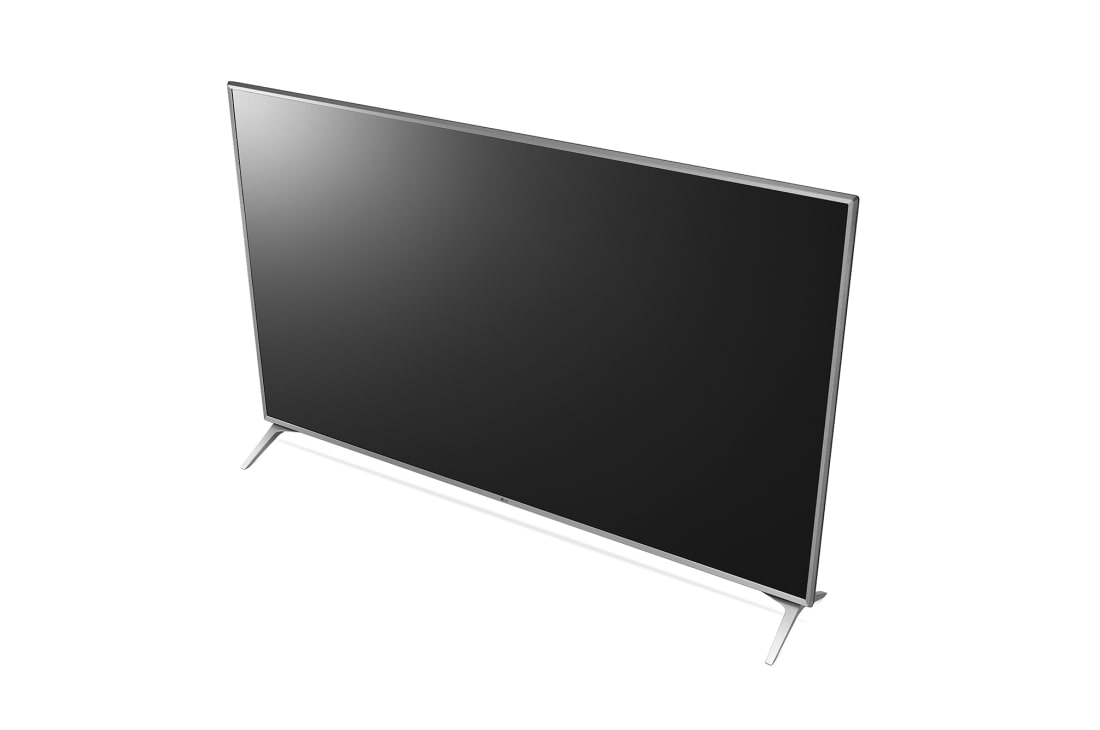

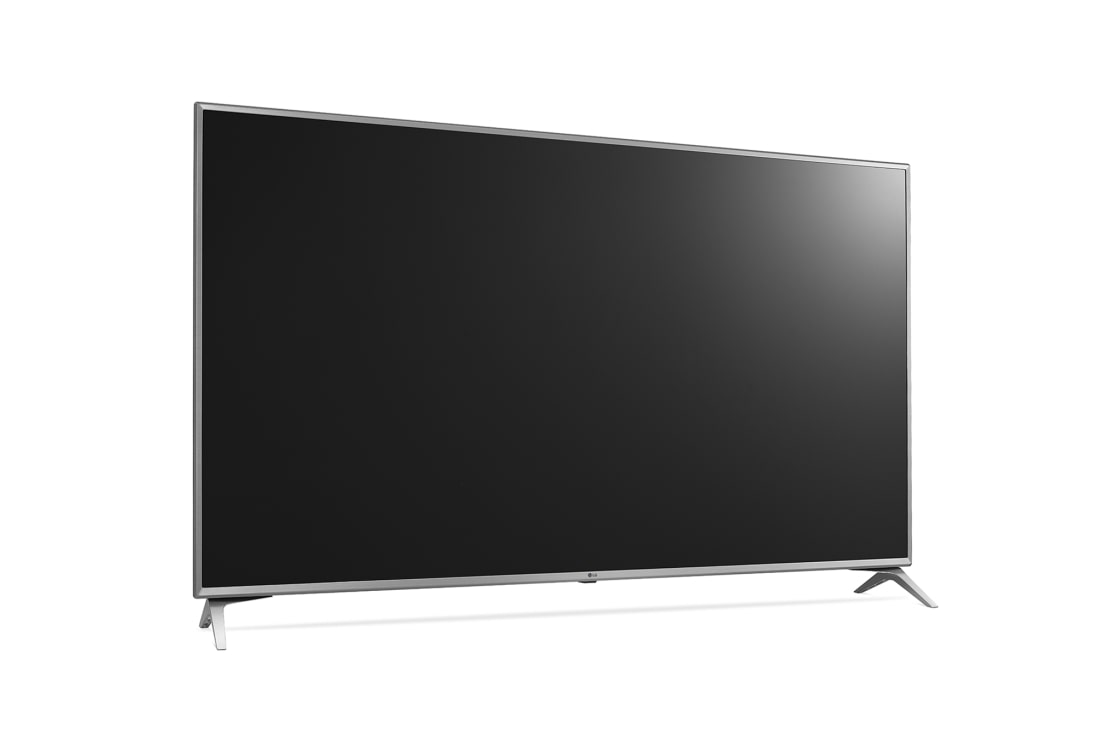

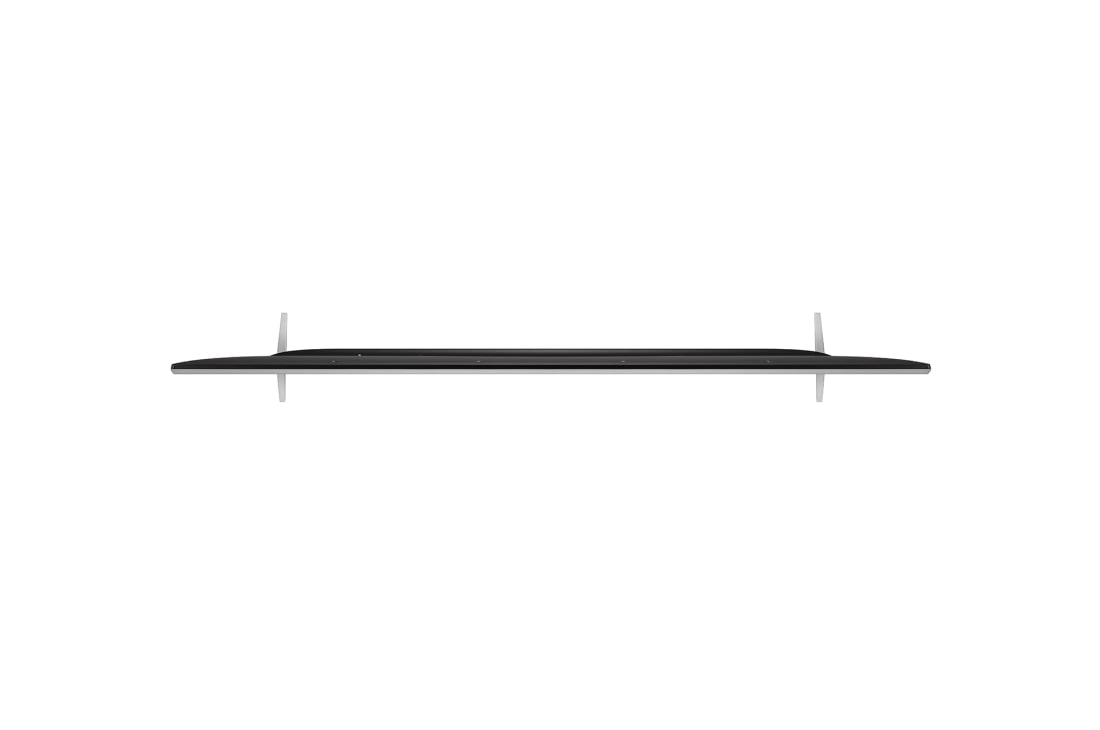

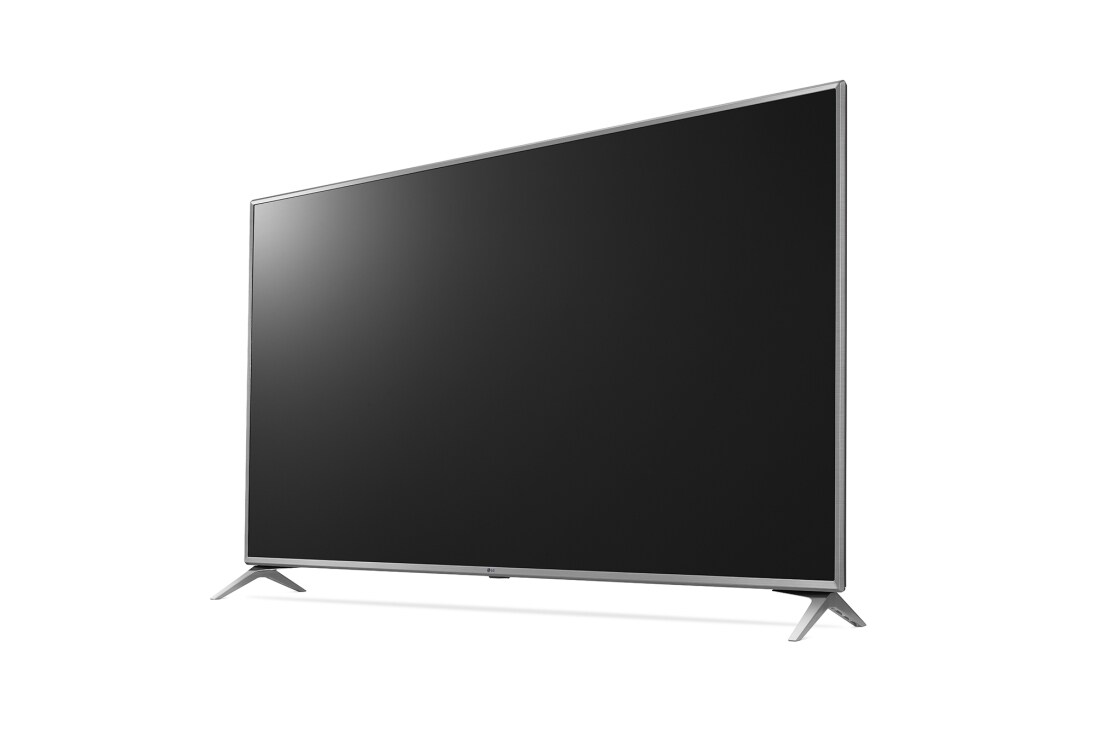

70UU640C (CIS)
70'' 400 nits UHD UHD Commercial TV

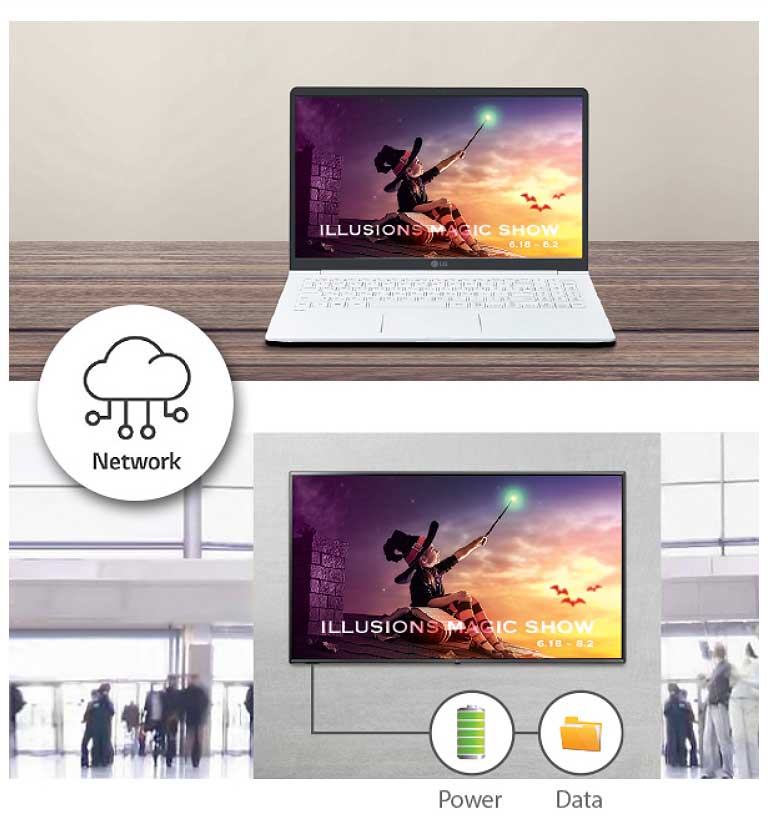

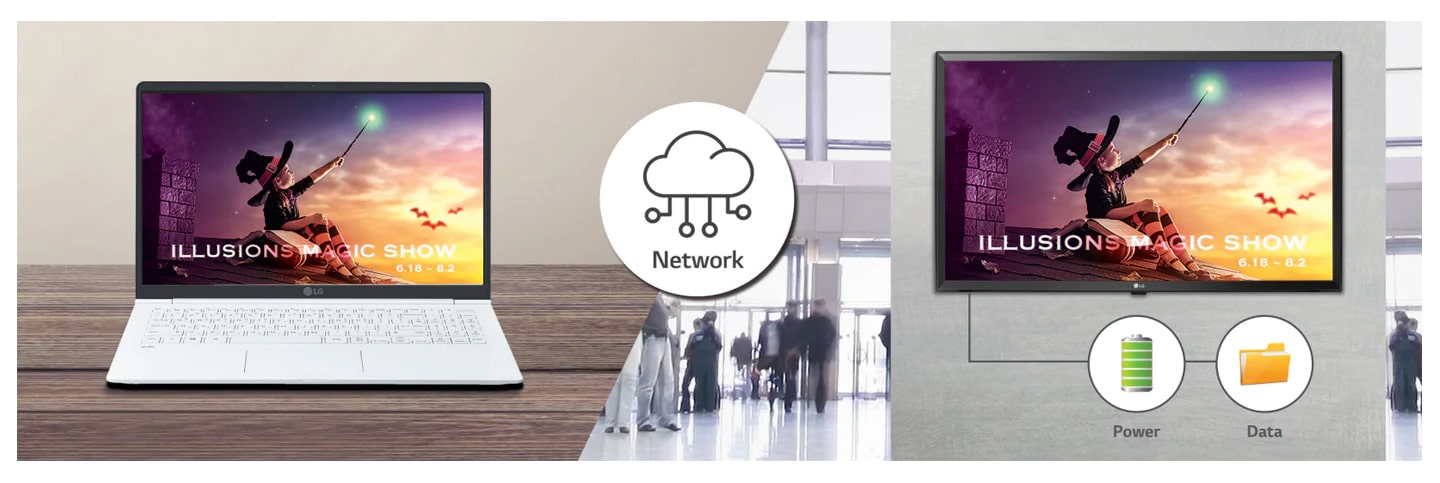

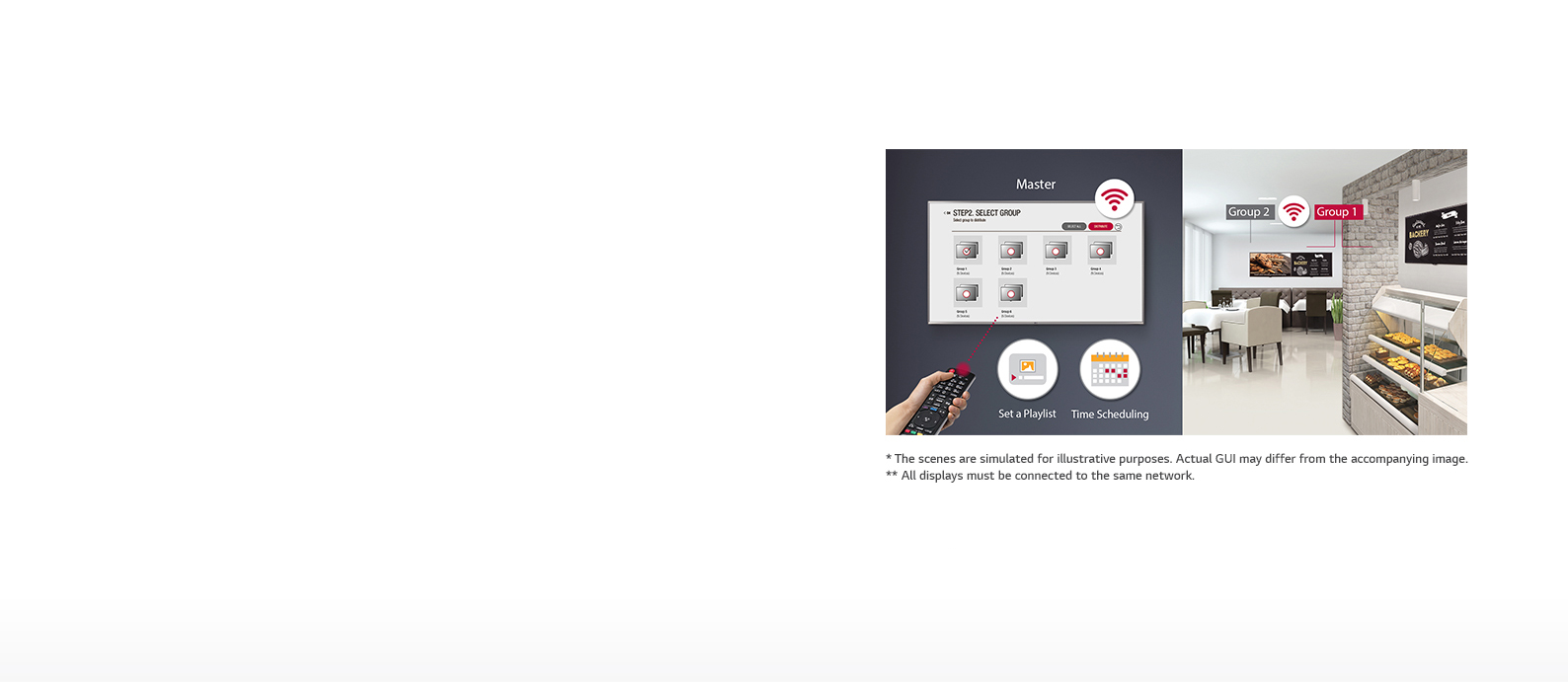

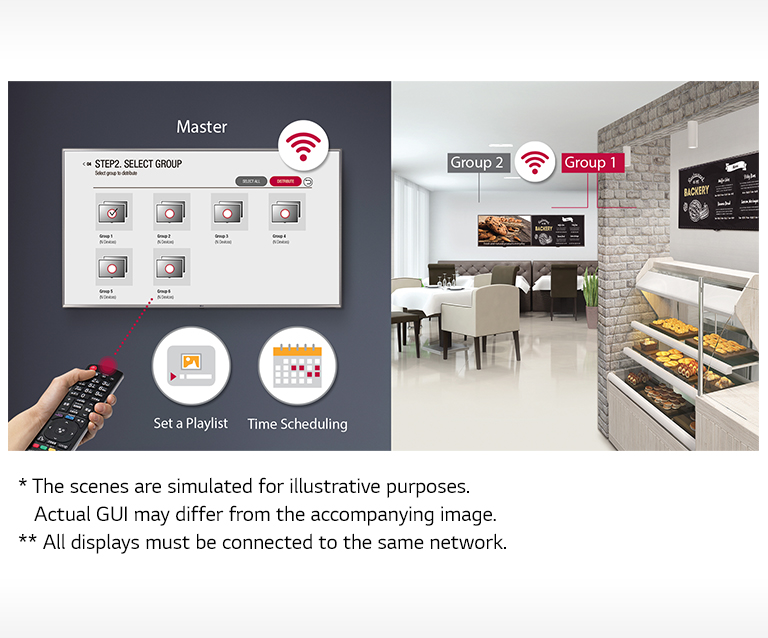

  • Content Management/Group Management

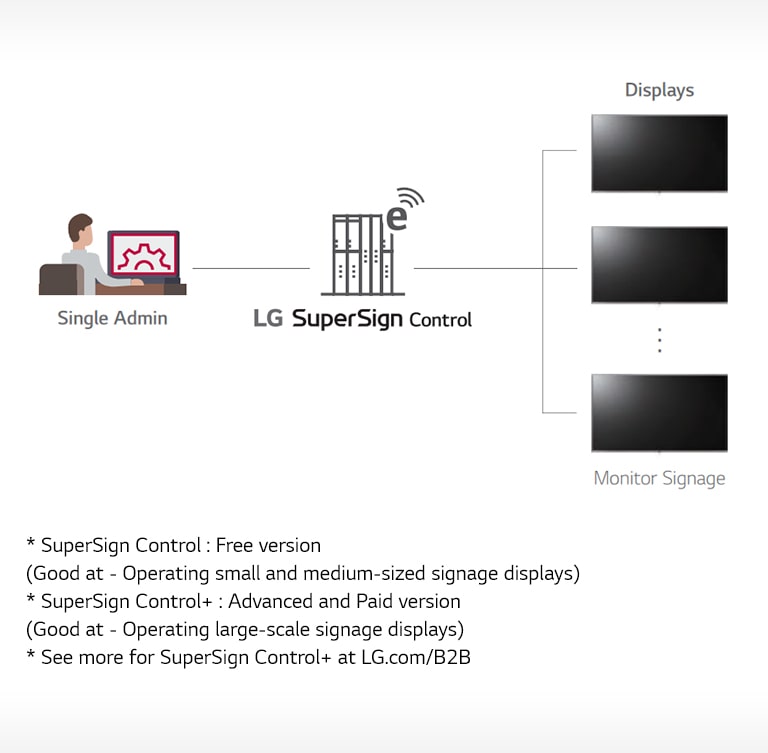

  • SuperSign Control
  • SNMP
  • Wake-up On Lan

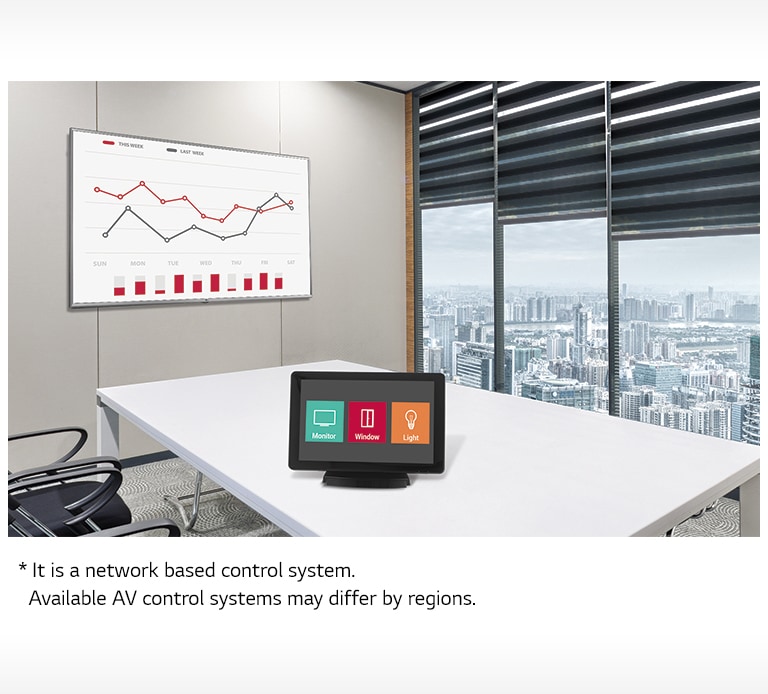

  • Crestron Connected® (Network Based Control)

component-OBScountrySelectDesc

70" 400 nits UHD UHD Commercial TV

Panel

  • Screen Size
    70"
    Backlight Type
    LED (Direct)
  • Resolution
    3,840 x 2,160 (4K UHD)
    Brightness (cd/m²)
    400

Broadcasting System

  • Analog
    • (PAL/SECAM)
    Digital

Video

  • XD Engine
    Aspect Ratio
    • 6 modes (16:9, Original, Full Wide, 4:3, Vertical Zoom, All-Direction Zoom)
  • HDR 10 / HDR Dolby Vision
    • / -

Audio

  • Audio Output
    10W + 10W
    Speaker System
    2.0 ch
  • Sound Mode
    • 6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game)
    Clear Voice
    • (Clear VoiceⅢ)

Feature

  • Hospitality

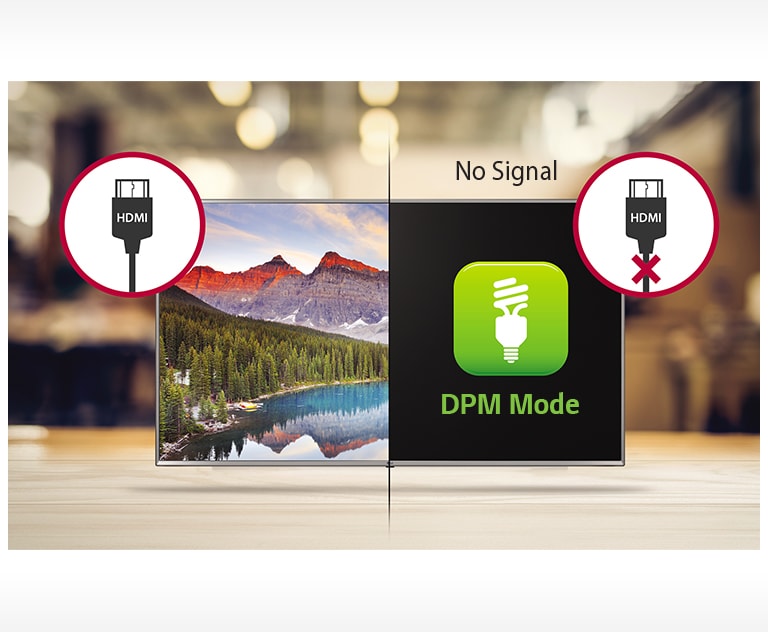

    Hotel Mode, Lock Mode (Limited), One Channel Map, Welcome Screen, Insert Image, External Speaker Out, RJP Interface, RJP Compatibility, Time Scheduler, Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care, Crestron ConnectedⓇ (Network Based Control), DPM, Embedded Content Manager/Group Manager, RTC, NTP Sync Timer

Jack Interface

  • Set Side
    HDMI In 2.0 (2), USB 2.0, CI Slot

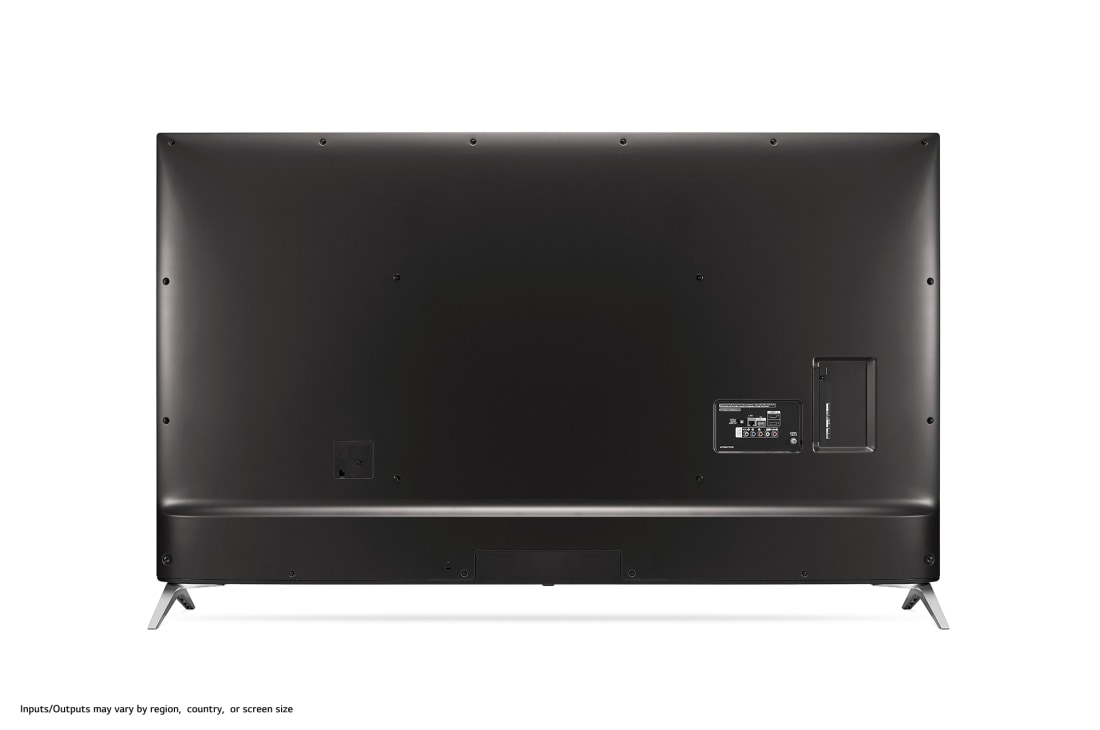

    Set Rear
    RF In (2), Digital Audio Out, HDMI/HDCP Input 2.0, RS-232C (Phone Jack Type, Control & Service), Headphone Out, RJ45, Debug

Dimension (Unit: mm)

  • Vesa
    600 x 400
    W x H x D / Weight (with stand)
    1,573 x 980 x 297 / 33.2 kg
  • W x H x D / Weight (without stand)
    1,573 x 910 x 42.8 (SPK: 69.0) / 32.5kg
    W x H x D / Weight (Packing)
    1,682 x 1,075 x 175 / 41.3 kg

Power(Unit : Watts)

  • Voltage, Hz
    100 ~ 240V, 50/60Hz
    Max
    233.5
  • Typical
    207.2
    Energy saving (Min/Med/Max)
    137 / 89 / 35
  • Stand-by
    0.3

General

  • Region
    CIS
