Discontinued
75UH5E-B
UH5E Series
  • Brightness(Typ.) : 500 cd/m²
  • Bezel : 14.9 mm (Even, Off-Bezel)

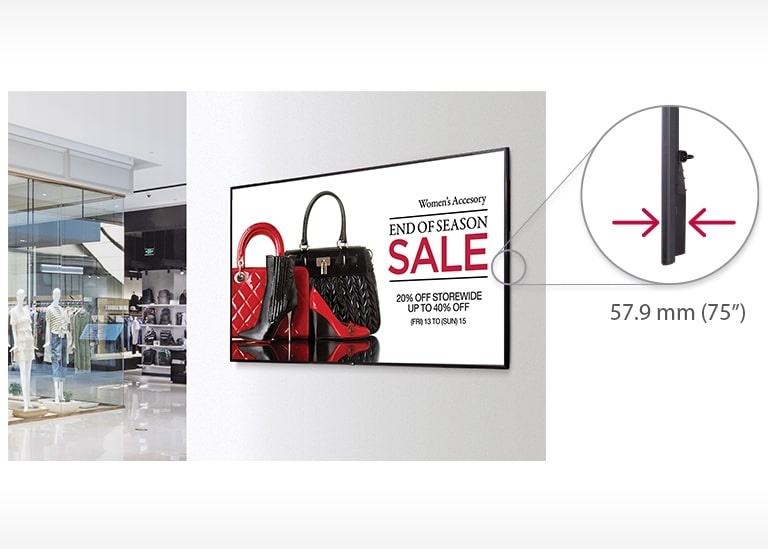

  • Depth : 57.9 mm (without Handle and Logo)
  • Interface : HDMI(3)/DP/DVI-D/USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
  • Built-in Speaker(10W+10W)
UH5E Series

Panel

  • Screen Size
    75”
    Resolution

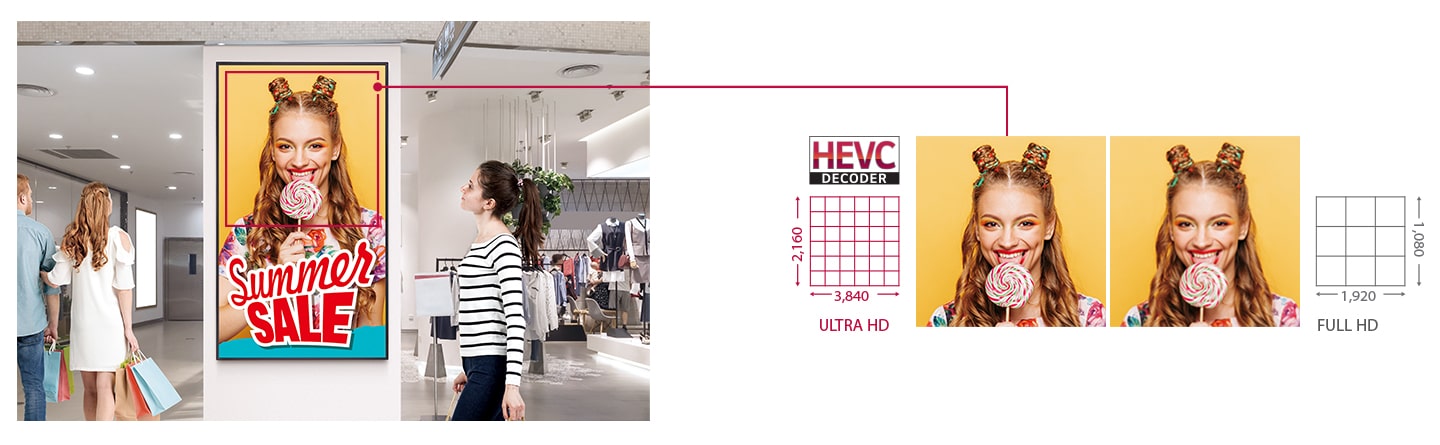

    3,840 x 2,160 (UHD)
  • Brightness(Typ.,cd/m²)
    500
    Viewing Angle (H x V)
    178 x 178
  • Life Time (Typ.)
    50,000 Hrs
    Operation Hours
    24Hrs
  • Orientation
    Portrait & Landscape

Connectivity

  • Input
    HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)
    Output
    DP, Audio (Off/Fixed/Variable)
  • External Control
    RS232C in/out, RJ45 in, IR in

Mechanical Specification

  • Bezel Width
    14.9 mm (Even) * Off-Bezel
    Monitor Dimension (W × H × D)
    1,682.4 x 960.3 x 57.9 mm
    (Without logo and handle)
  • Weight (Head)
    41.5 kg
    Carton Dimensions (W × H × D)
    1,816 x 1,123 x 228 mm
  • Packed Weight
    49 kg
    VESA™ Standard Mount Interface
    600 x 400 mm

Environment Conditions

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %

Power

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power

Power Consumption

  • Typ. / Max.
    180 W / 260 W
    Smart Energy Saving
    126 W

Certification

  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes (EU Only) / Yes (Energy Star 8.0)

Media Player Compatibility

  • OPS type compatible
    Yes

Software Compatibility

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control/Control+

Accessory

  • Basic
    Remote Controller, Power Cord, QSG, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender
    Optional
    OPS Kit (KT-OPSF), Wall Mount (LSW640A/B)

General

  • Region
    Global

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
