Discontinued
75UL3E-B (EU)

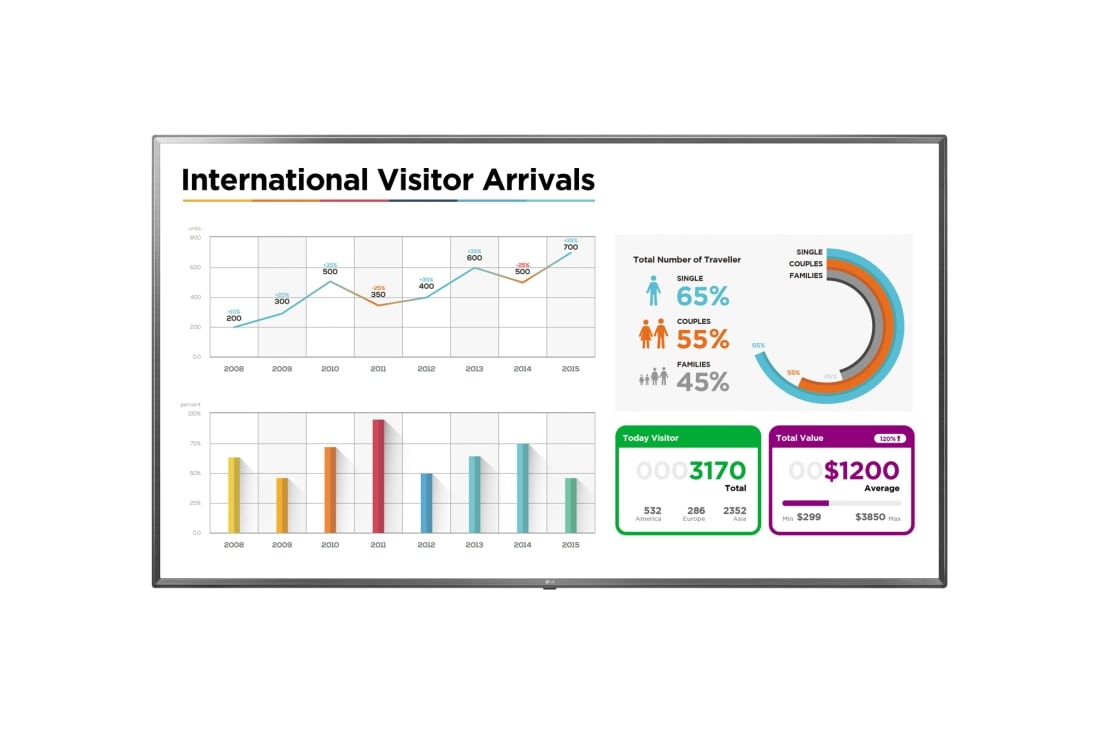

75'' 350 nits UHD TV Signage
  • Brightness(Typ.) : 350 cd/m²
  • Bezel : 20.2 mm (T/L/R), 21.5 mm (B)
  • Depth : 88.8 mm
  • Interface : HDMI(3)/USB 2.0/ RS232C In/ RJ45 In/ Audio Out
  • Built-in Speaker

component-OBScountrySelectDesc

75" 350 nits UHD TV Signage

Panel

  • Screen Size
    75"
    Resolution
    3,840 x 2,160 (UHD)
  • Brightness(Typ.,cd/m²)
    350

Connectivity

  • Input
    HDMI (3), USB 2.0
    Output
    Audio (Digital Audio Out, Optical)
  • External Control
    RS232C In (Phone Jack Type), RJ45 In

Physical Specification

  • Bezel Width
    20.2 mm (T/L/R), 21.5 mm (B)
    Monitor Dimension (W x H x D)
    1,693 x 978 x 88.8 mm
  • Weight (Head)
    34.6 kg
    Carton Dimensions (W x H x D)
    1,839 x 1,116 x 231 mm
  • Packed Weight
    45.7 kg
    VESA™ Standard Mount Interface
    600 x 400 mm

Environment Conditions

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%

Power

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power

Power Consumption

  • Typ.
    220 W
    Max
    243 W

Standard(Certification)

  • Safety
    CB
    EMC
    CE
  • ErP
    Yes (Class A)

Media Player Compatibility

  • OPS type compatible
    No
    External Media player Attatchable
    No

Software Compatibility

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control+

Accessory

  • Basic
    Remote Controller (2ea Batteries Included), Regulation Book, Phone to RS232C Gender

General

  • Region
    Europe
  • Dimension
    • [Dimension]75UL3E.dwg
    • [Dimension]75UL3E.pdf
  • Datasheet
    • UL3E_ Series_Datasheet_web_11904.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
