86TR3E component-copyModelName

Interactive Digital Board

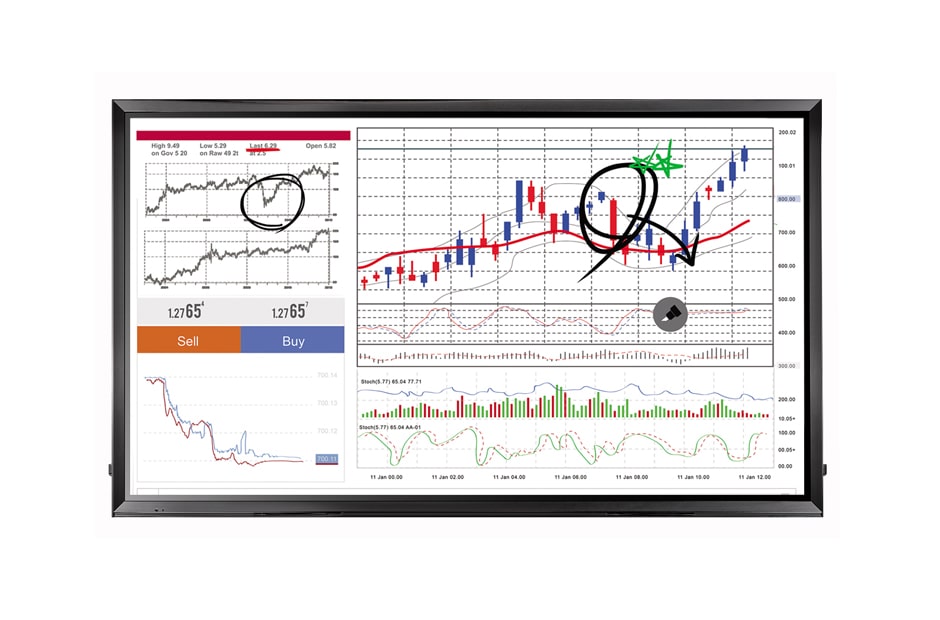

LG Interactive Digital Board, 86TR3E, thumbnail 1

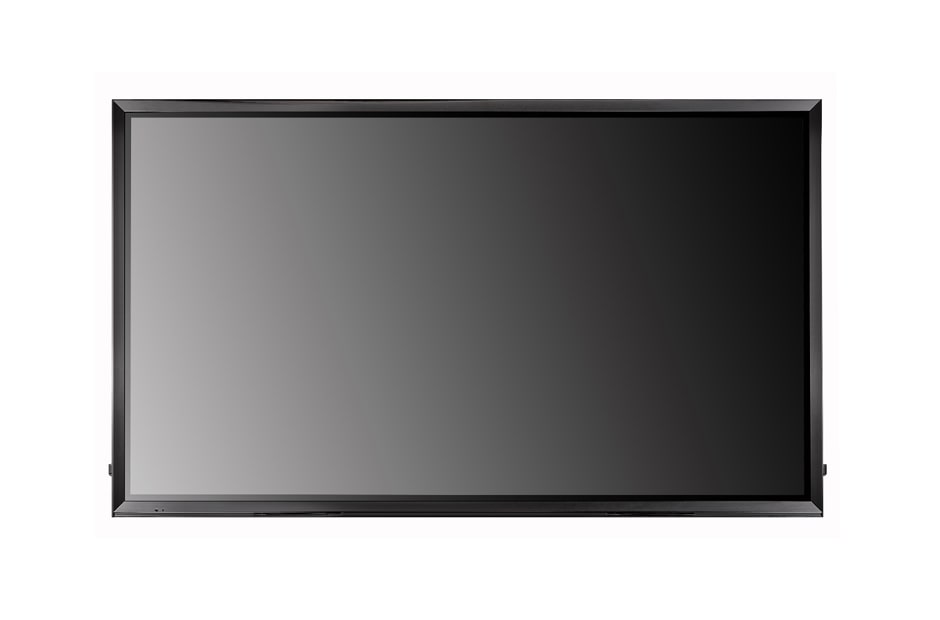

LG Interactive Digital Board, 86TR3E, thumbnail 2

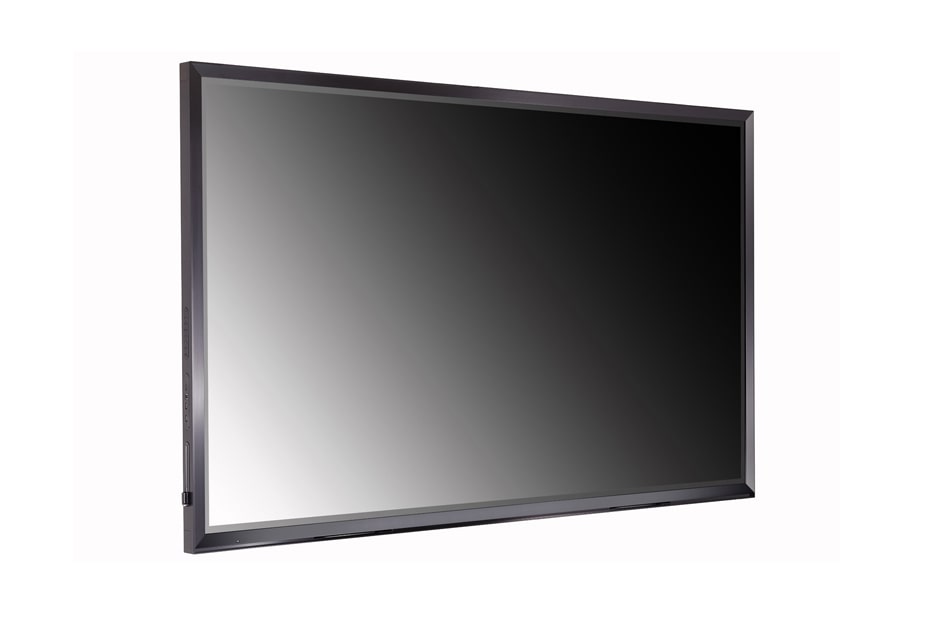

LG Interactive Digital Board, 86TR3E, thumbnail 3

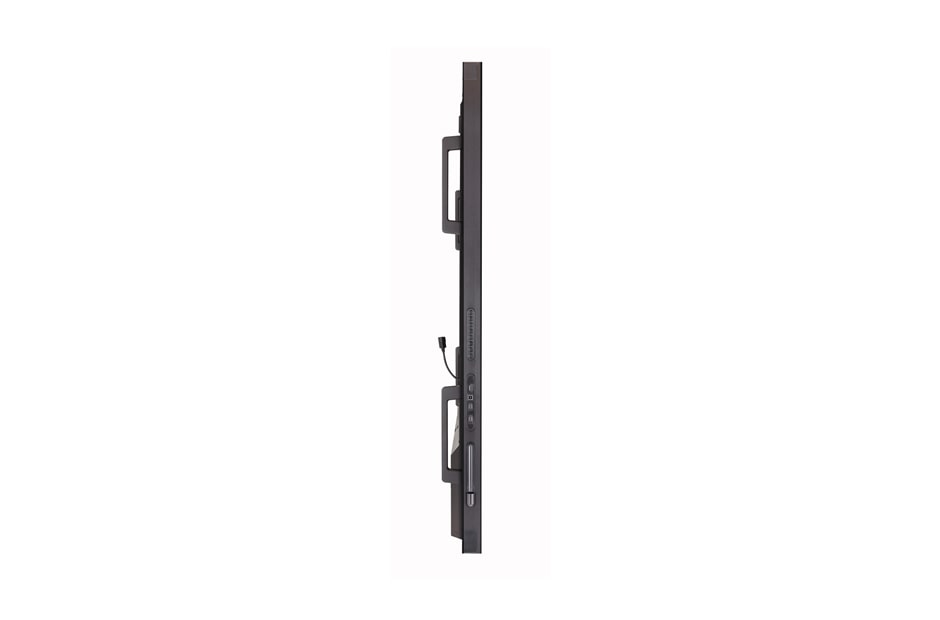

LG Interactive Digital Board, 86TR3E, thumbnail 4

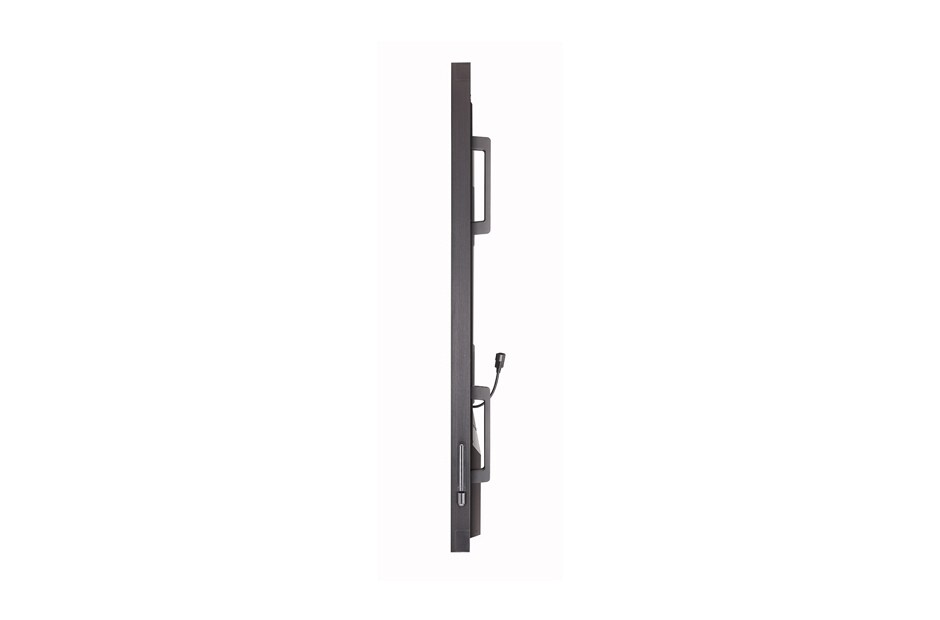

LG Interactive Digital Board, 86TR3E, thumbnail 5

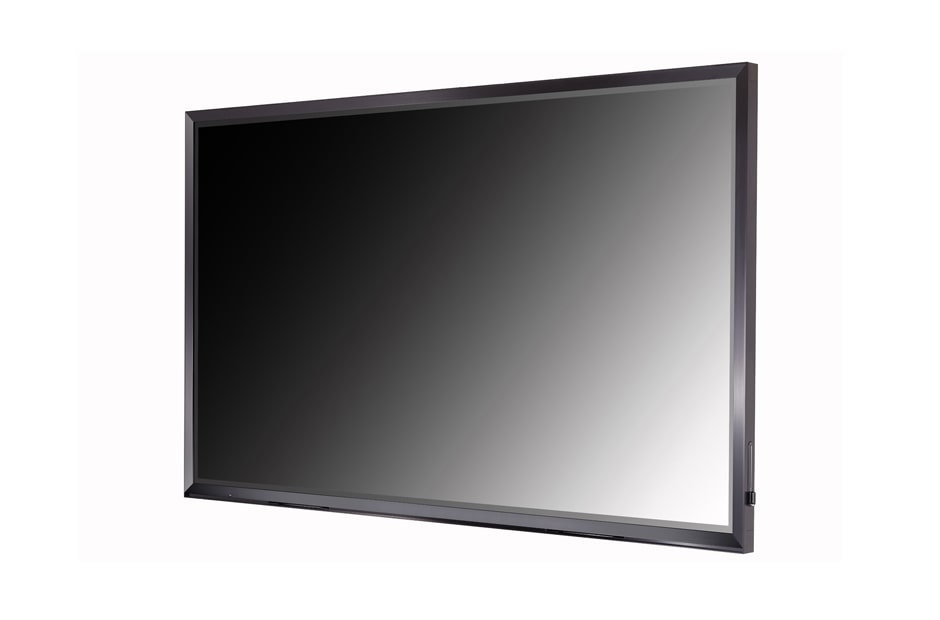

LG Interactive Digital Board, 86TR3E, thumbnail 6

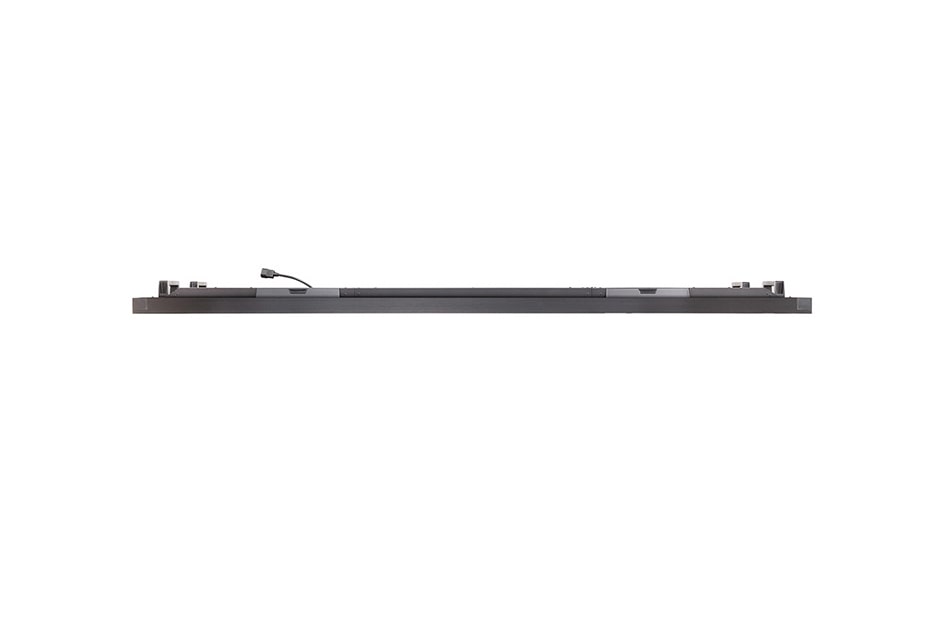

LG Interactive Digital Board, 86TR3E, thumbnail 7

Discontinued

86TR3E component-copyModelName

Interactive Digital Board

Key Features

Brightness(Typ.): 410 cd/m²
Touch Type: InGlass™
Multi touch point: Max 20 Point
Interface: HDMI (3), DP, DVI, RGB, RS232C, RJ45, USB (2), OPS USB, Touch USB (2), Wi-fi Built-in

Choose your Size

Inquiry to Buy

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.): 410 cd/m²
Touch Type: InGlass™
Multi touch point: Max 20 Point
Interface: HDMI (3), DP, DVI, RGB, RS232C, RJ45, USB (2), OPS USB, Touch USB (2), Wi-fi Built-in

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Interactive Digital Board

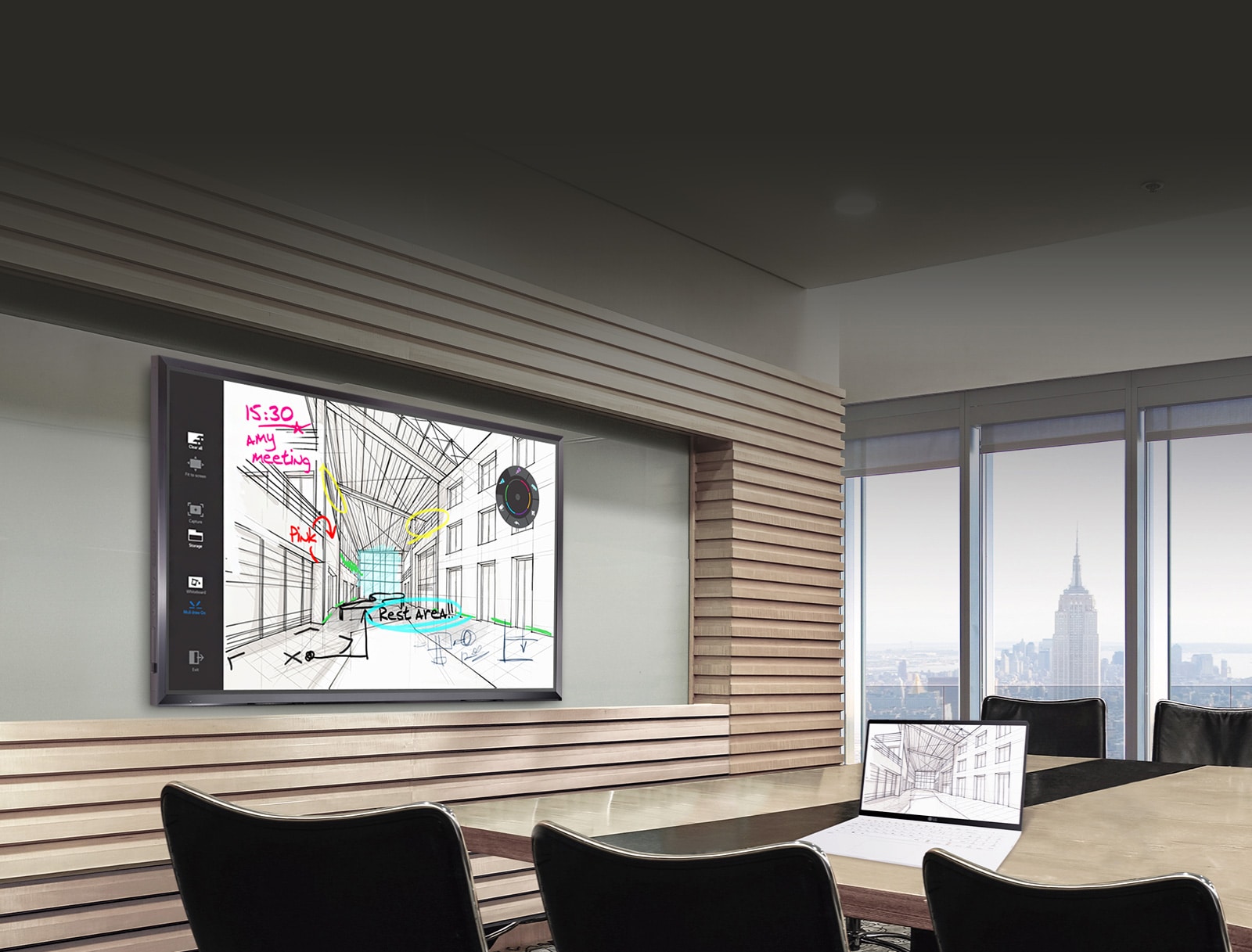

TR3E_01_M01_Be-Smarter-and-Simpler-with-LG-IDB_1523510975711

Embedded LG IDB App & webOS

Be Smarter and Simpler with LG IDB

IDB app makes it possible to write and collaborate on Interactive Digital Board(IDB) without the need for a PC or additional licenses for writing/collaboration solutions based on the webOS smart platform.

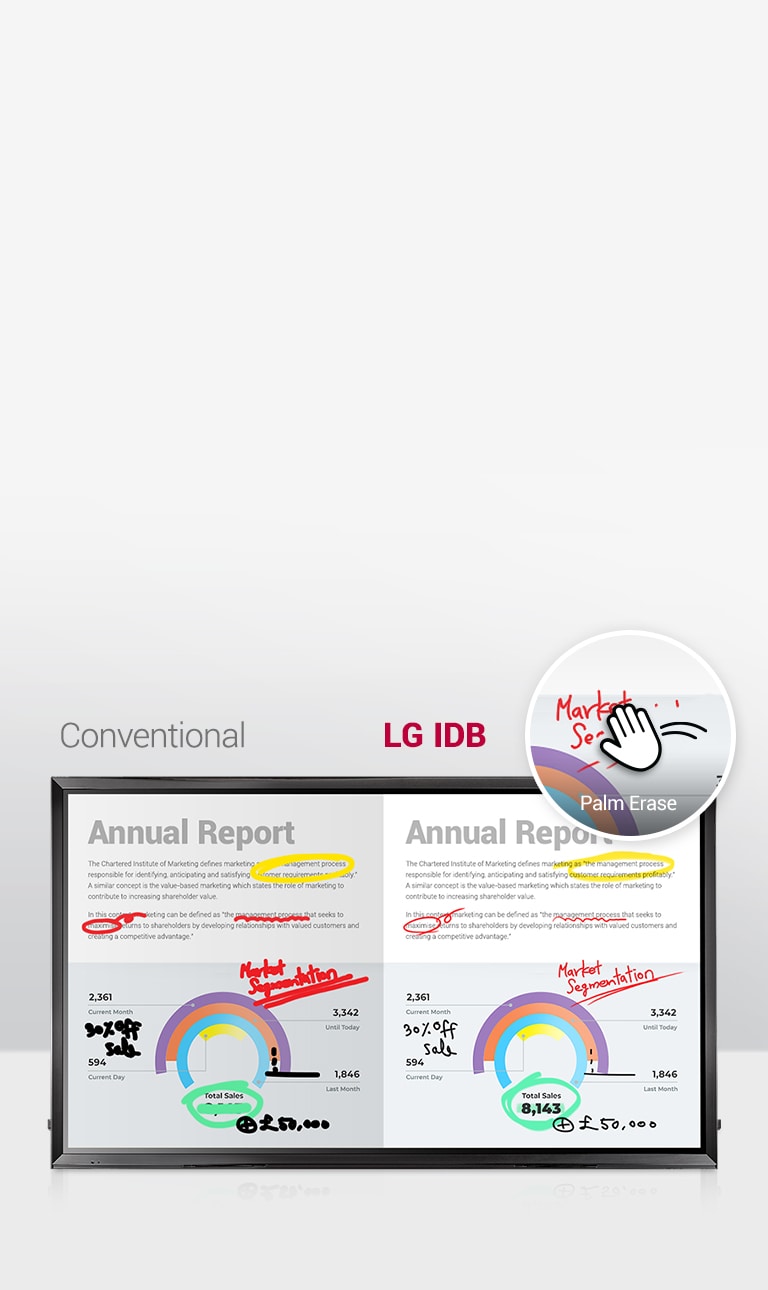

TR3E_02_M01_Intuitive-Touch-and-Writing_1523511213315

Outstanding Touch Performance

Intuitive Touch and Writing

The most advanced touch technology, InGlass™, enables precise touch responses and detailed writing like a realistic handwriting. The thickness of the pen is adapted to the writing speed, and max. 20 point multi-touch is supported. All notes on IDB are simply erased with user's palm.

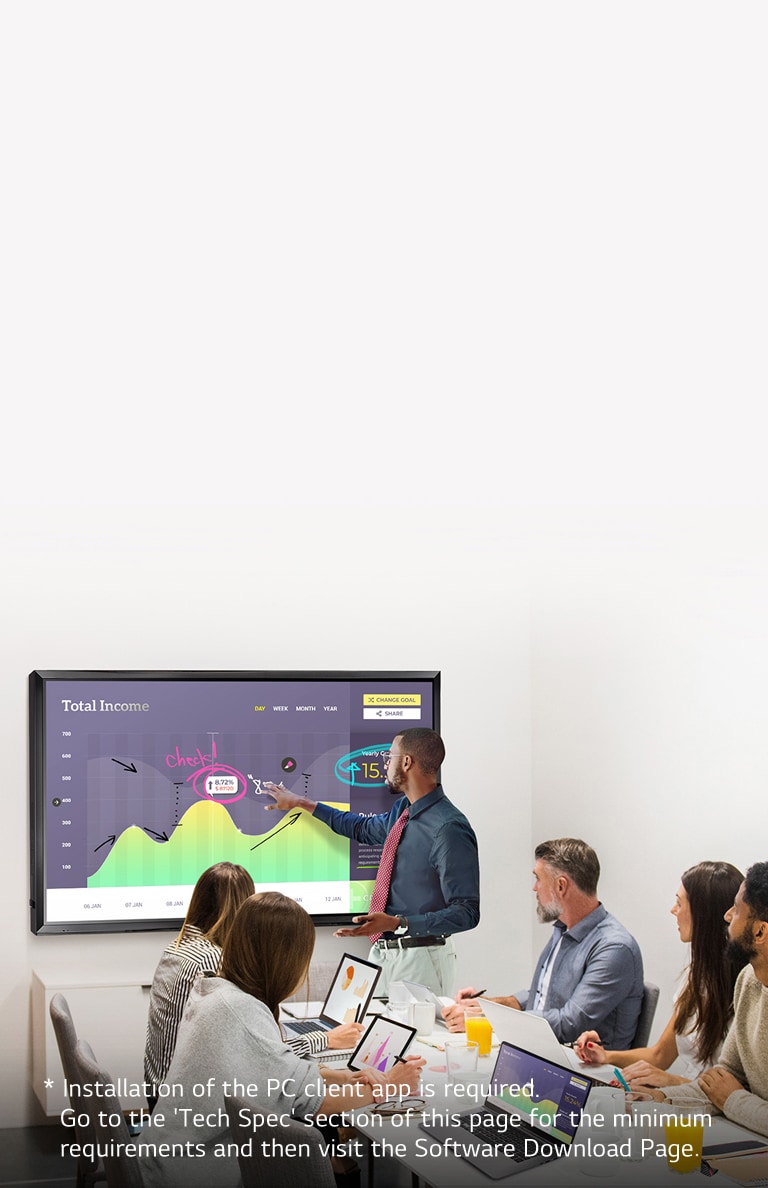

TR3E_03_M01_All-in-One-Meeting-Experience_1554854674392

Efficient Collaboration

All-in-One Meeting Experience

For the effective collaboration, LG IDB combines whole processes which includes sharing screens of participants' laptops via wired/wireless* connection simultaneously, writing on the shared screen, and saving annotation.

TR3E_04_M01_The-Superior-Picture-Quality_1523511432011

UHD Resolution

The Superior Picture Quality

With the UHD resolution of LG IDB, users can view the content in fine detail even when zoomig in it on the display. It provides high-quality media experience with 4 times higher definition picture quality than FHD.

TR3E_05_M01_True-Colors-and-Wider-View_1523511379638

IPS Panel

True Colors and Wider View

The LG IPS panel has a wide viewing angle to deliver clear content regardless of the positions of meeting attendees. Moreover, each pixel of the IPS panel truly reproduces the image colors without distortion.

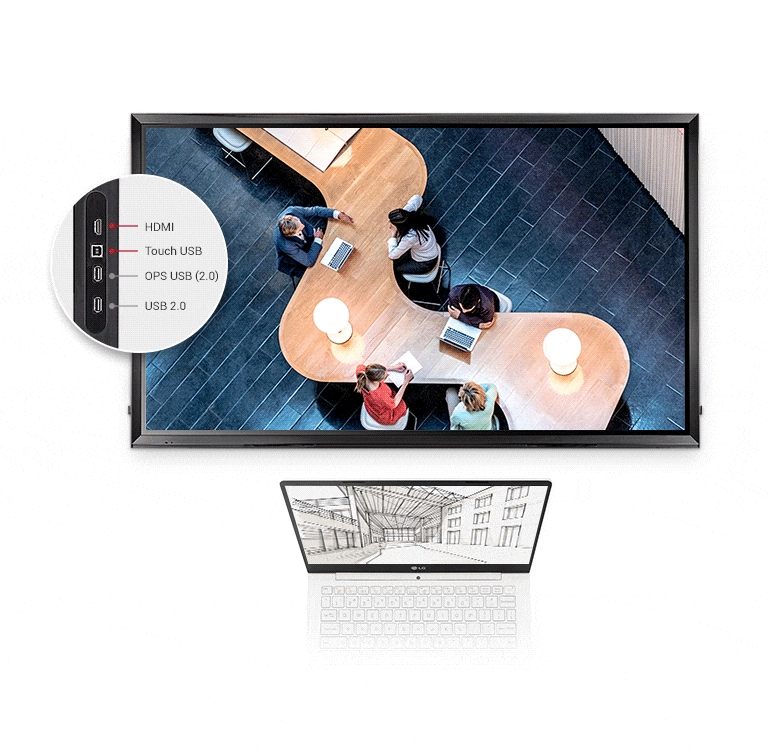

TR3E_06_M02_Quick-and-Easy-to-Share-a-Screen_1523511506491

Auto Signal/Touch Switching

Quick and Easy to Share a Screen

The display can detect input/touch signals and automatically change the source if the new input has a higher priority than the previous source. It is a time-saving function for users to set-up the signals in conference

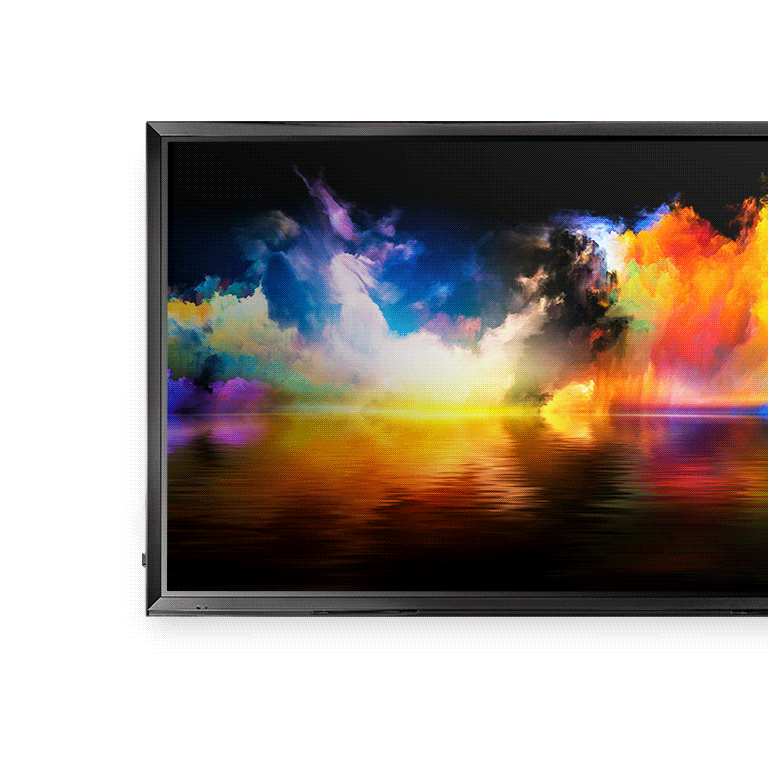

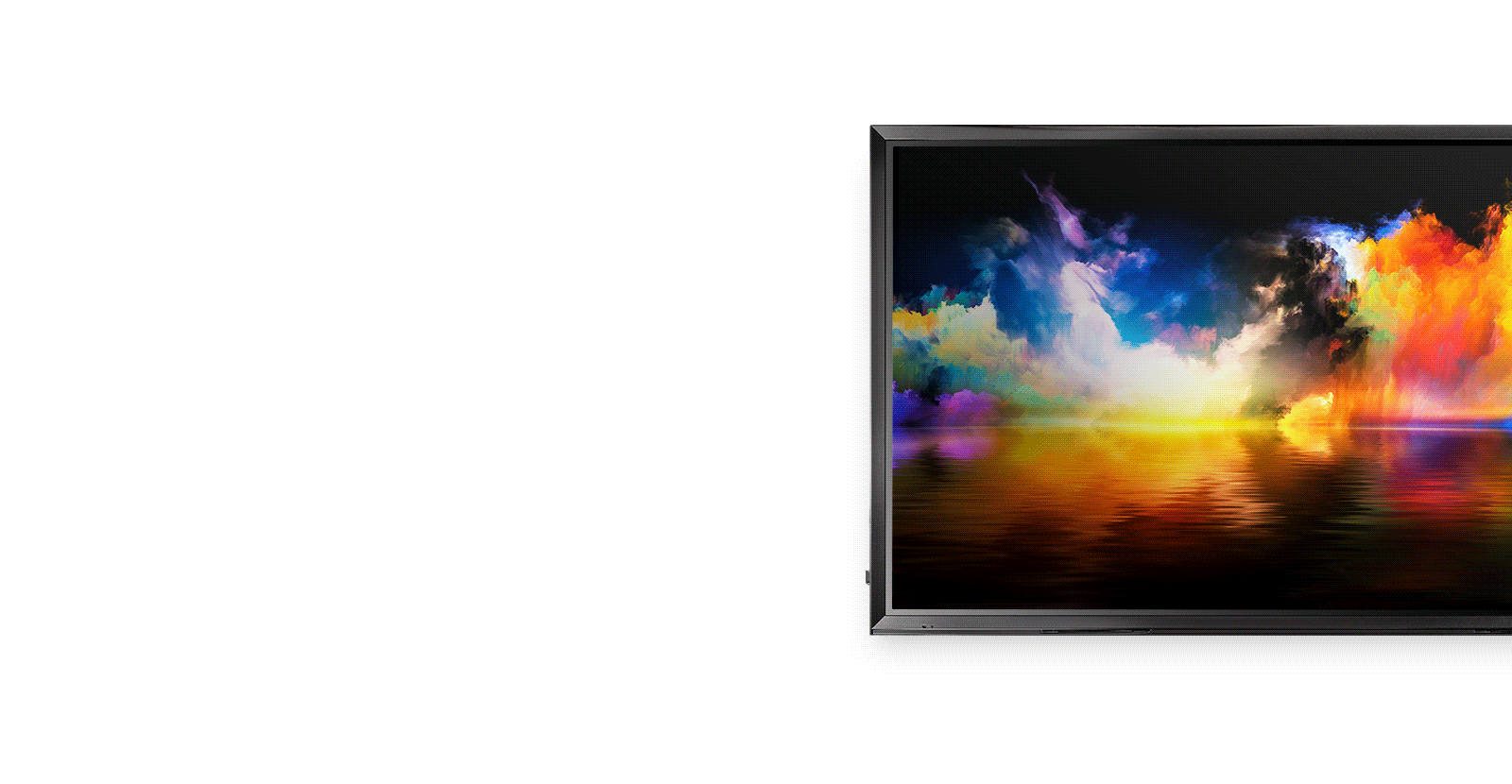

TR3E_07_M03_Easy-to-Call-and-Control-the-Menu_1523511630747

Assistive Touch Menu

Easy to Call and Control the Menu

For improving user-friendliness, LG IDB users can run the desired function or change the setting from anywhere by softly pressing the screen to call up the Touch Menu.
* The menu design(GUI) is subject to change without notice

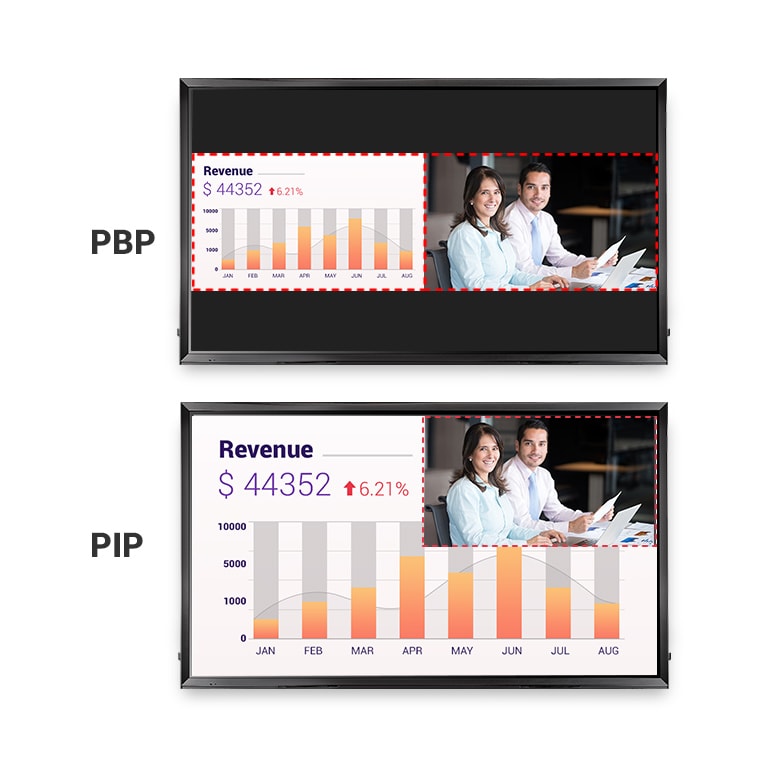

TR3E_08_M02_Enjoy-Multi-Screens_1523511719285

PBP/PIP

Enjoy
Multi Screens

PBP/PIP enables two different content sources to be displayed in various layout settings including full screen, original ratio, and sub screen modes. This gives great flexibility to users to allocate space for each content source.

Panel

Screen Size

86"

Brightness (Module, Typ., cd/m²)

410

Connectivity

Input

HDMI (3), DP, DVI-D, RGB, Audio, USB 3.0, USB 2.0, OPS USB 2.0

Output

Touch USB 2.0 (2)

Physical Specification

Bezel Width

50.7 mm (T/L/R), 62.2 mm (B)

Monitor Dimension (W x H x D)

2,026.9 x 1,180.3 x 79.5 mm (w/o Handle)
Weight (Head)

85.8 kg

Carton Dimensions (W x H x D)

2,190 × 1,470 × 371 mm
Packed Weight

114.6 kg

VESA™ Standard Mount Interface

600 x 400 mm

Standard(Certification)

ErP / Energy Star

Yes (EU Only) / No

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Software Compatibility

Content Management Software

SuperSign Premium

Control and Monitoring Software

SuperSign Link

Minimum Requirements for LG IDB Duo

OS (Windows 32bit or 64bit)

Windows 7, Windows 10

OS (macOS)

macOS 10.12 Sierra, MacOS 10.13 High Sierra
CPU (Windows)

2.7GHz+ Dual Core Broadwell or higher

CPU (macOS)

Any CPU which supports Sierra or High Sierra
Memory

4GB RAM

Hard Drive

1GB of free space
Graphics Hardware (Windows)

Intel Iris or higher, Nvidia, ATI

Graphics Hardware (macOS)

Any GPU which supports Sierra or High Sierra

Accessory

Basic

Remote Controller (include battery 2ea), Power Cord, QSG, HDMI (3M), Regulation Book, Phone to RS232C Gender, Touch Pen (2ea), Eyebolt (2ea)

Optional

OPS Kit (KT-OPSA)

Touch

Touch type

InGlass™

Available object size for touch

more than Ø 3 mm
Accuracy

2 mm

Interface

USB 2.0
Protection Glass Thickness

4T (Anti-Glare)

Multi touch point

Max 20 Point

Dimension
- 86TR3E_Dimesion.dwg
- 86TR3E_Dimesion.pdf
Datasheet
- 2018_LG_IDB_brochure_preview_11804.pdf
- 86TR3E Leaflet(preview)_11801.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
