86UH5E-B
UH5E Series
  • Brightness(Typ.) : 500 cd/m²
  • Bezel : 14.3 mm (Even, Off-Bezel)

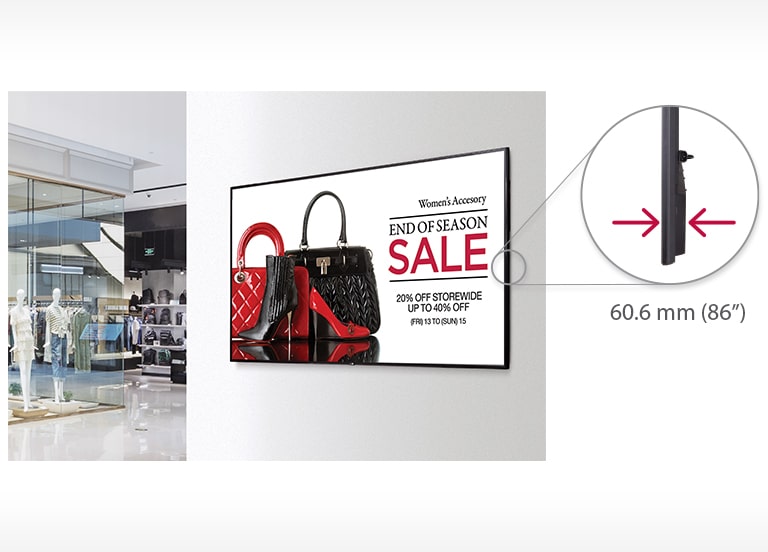

  • Depth : 60.6 mm (without Handle and Logo)
  • Interface : HDMI(3)/DP/DVI-D/USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
  • Built-in Speaker(10W+10W)
UH5E Series
MSRP $
  • Superior Picture Quality

    01_True-Color,-Immersive-View_1537247658738 01_True-Color,-Immersive-View_1537247658738

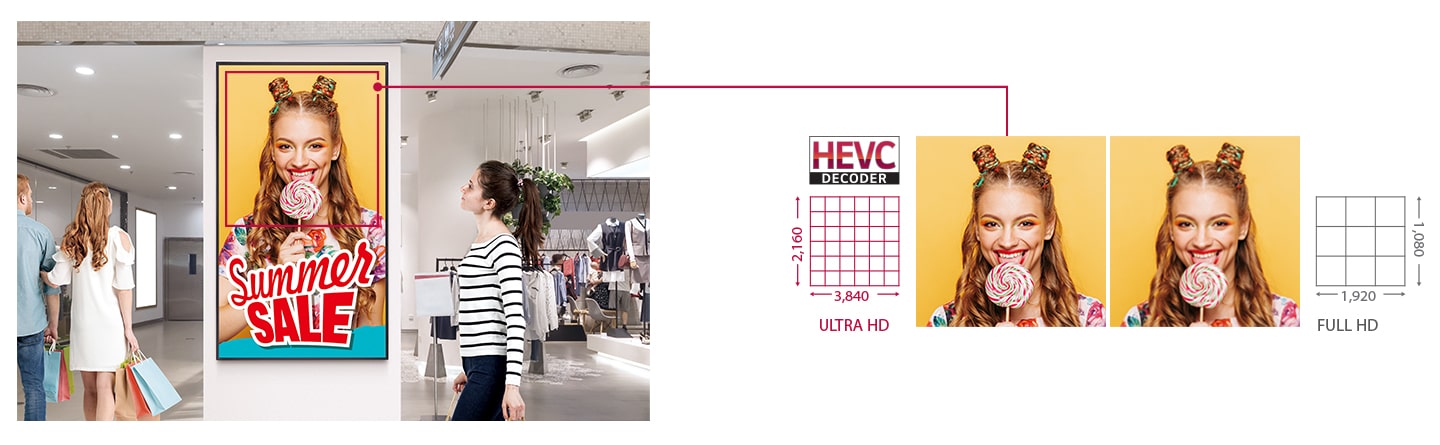

  • True Color, Immersive View

    The UH5E series is large enough to display content and get undivided attention from various viewers. LG IPS panel features a wide range of angle to deliver clear content regardless of the position of viewers. Each pixel in the IPS panel reproduces image colors true-to-life, without distortion.

  • Vivid Color Details with Ultra HD

    The UHD resolution allows users to view details even when zooming in on the display, with four times higher definition than FHD. The UH5E ensures stable UHD video playback with HEVC(High Efficiency Video Coding).

Panel

  • Screen Size
    86"
    Resolution
    3,840 x 2,160 (UHD)
  • Brightness(Typ.,cd/m²)
    500
    Viewing Angle (H x V)
    178 x 178
  • Life Time (Typ.)
    50,000 Hrs
    Operation Hours
    24 Hrs
  • Orientation
    Portrait & Landscape

Connectivity

  • Input
    HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)
    Output
    DP, Audio (Off/Fixed/Variable)
  • External Control
    RS232C In/out (4 Pin Phone-Jack), RJ45 (LAN) In, IR In

Mechanical Specification

  • Bezel Width
    14.3 mm (Even) * Off-Bezel
    Monitor Dimension (W × H × D)
    1,926.2 x 1,097.2 x 60.6 mm (without Handle and Logo)
  • Weight (Head)
    49 kg
    Carton Dimensions (W × H × D)
    2,073 x 1,260 x 292 mm
  • Packed Weight
    61.1 kg
    VESA™ Standard Mount Interface
    600 x 400 mm

Environment Conditions

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %

Power

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power

Power Consumption

  • Typ. / Max.
    215 W / 280 W
    Smart Energy Saving
    151 W

Certification

  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC

Media Player Compatibility

  • OPS type compatible
    Yes

Software Compatibility

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control/Control+

Accessory

  • Basic
    Remote Controller, Power Cord, QSG, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender
    Optional
    OPS Kit (KT-OPSF), Wall Mount (LSW640A/B)

General

  • Region
    Global

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
