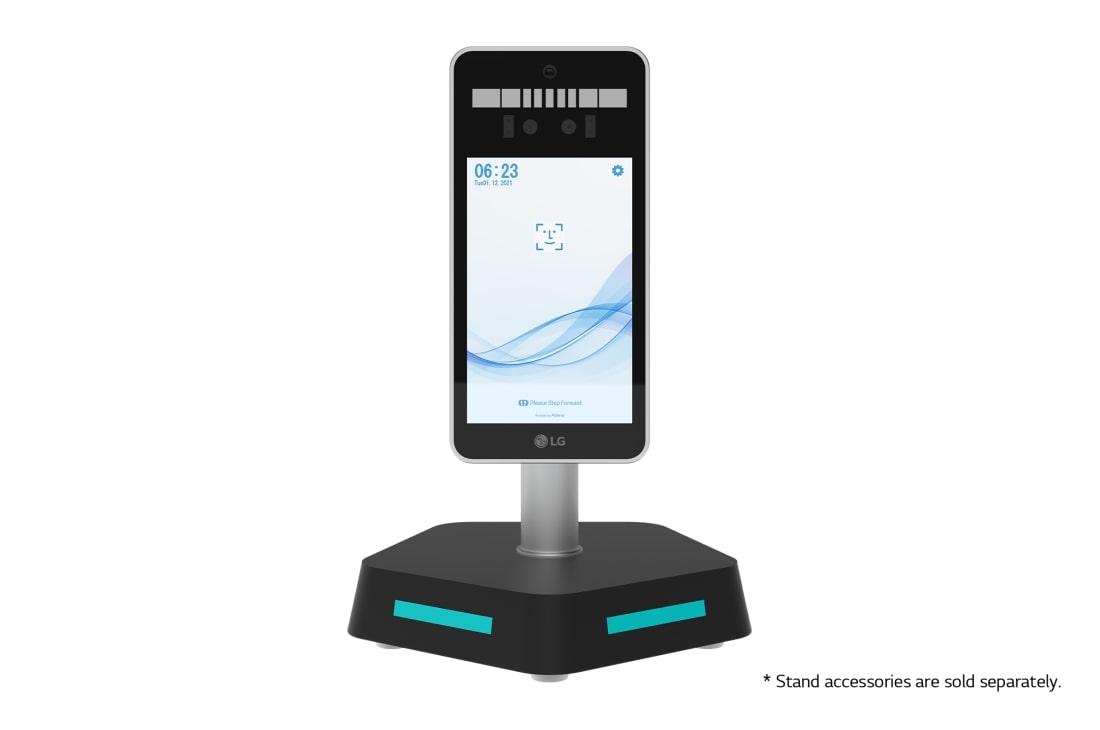

LG Thermal Sensing Terminal, Front view with table stand (* Stand accessories are sold separately.), 8KC5PJ, thumbnail 2

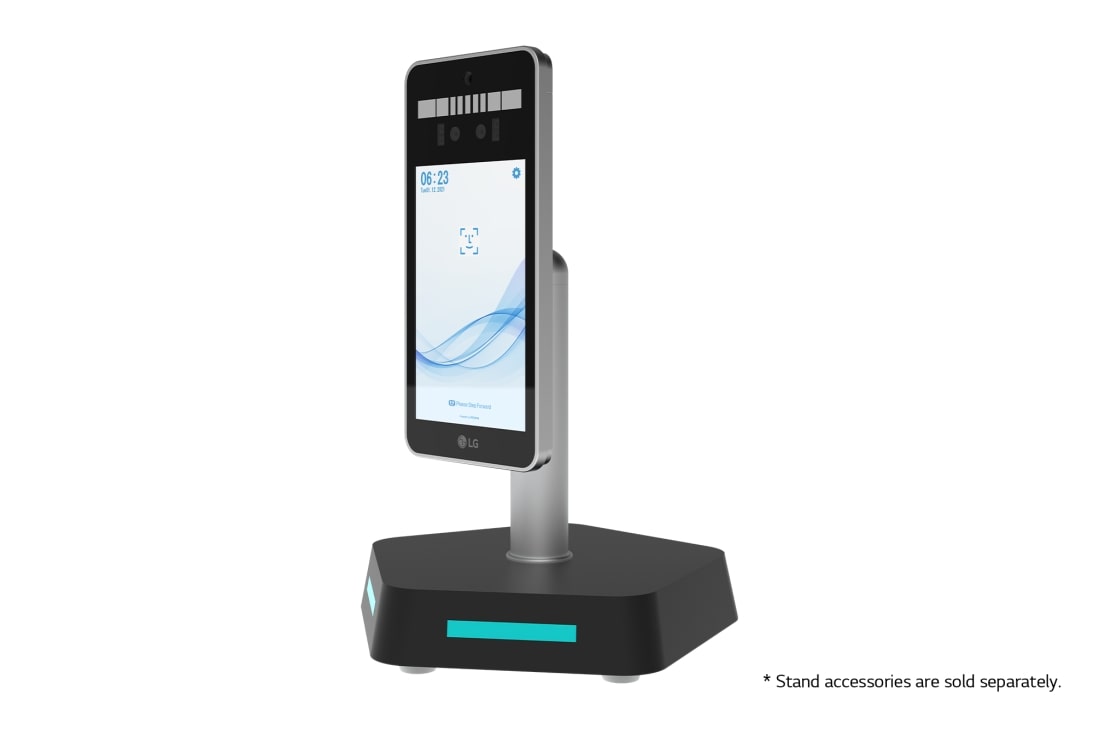

LG Thermal Sensing Terminal, -45 degree side view with table stand (* Stand accessories are sold separately.) , 8KC5PJ, thumbnail 3

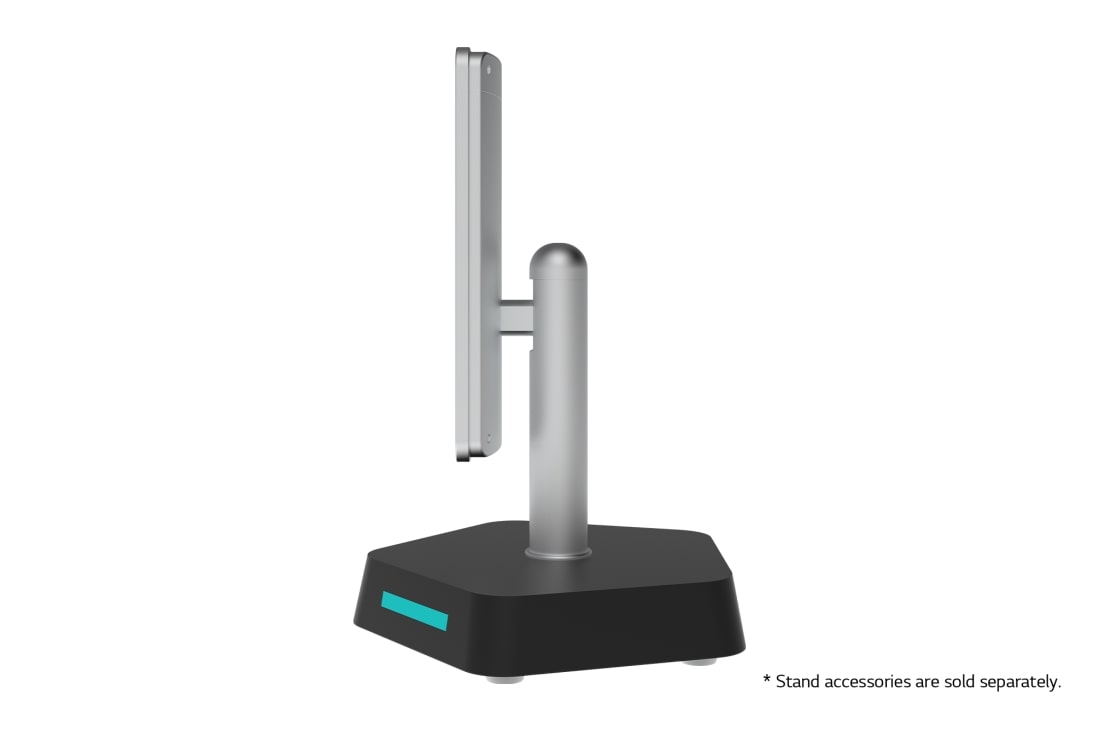

LG Thermal Sensing Terminal, -90 degree side view with table stand (* Stand accessories are sold separately.), 8KC5PJ, thumbnail 4

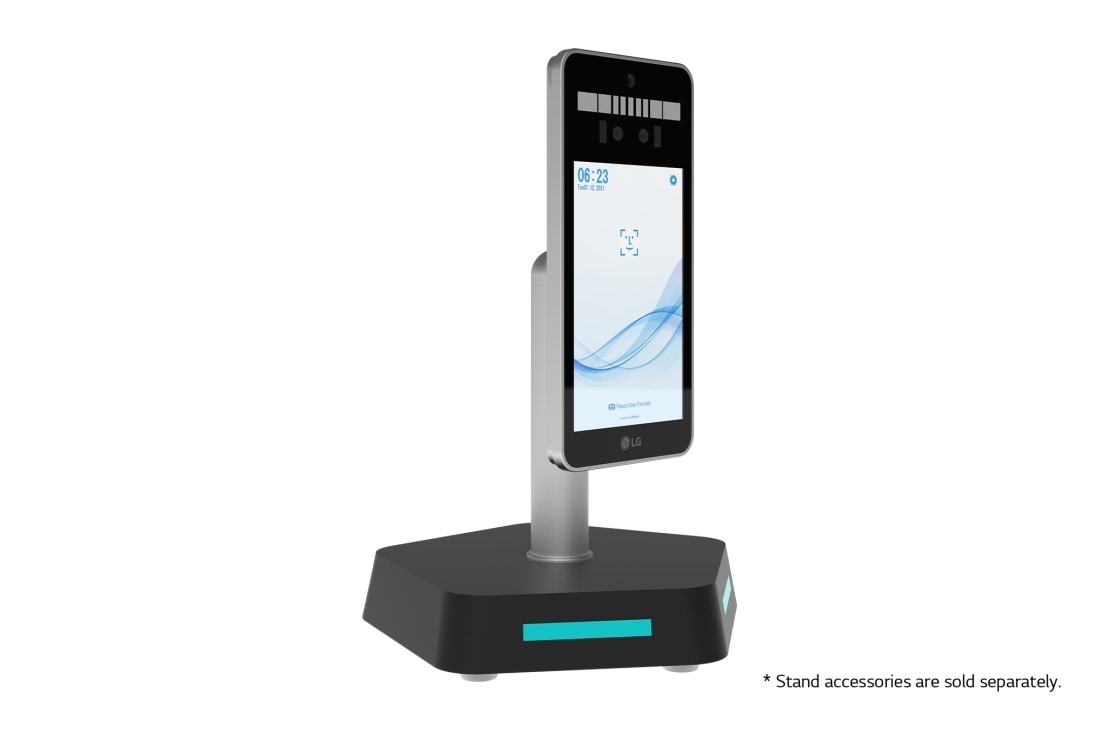

LG Thermal Sensing Terminal, +45 degree side view with table stand (* Stand accessories are sold separately.) , 8KC5PJ, thumbnail 5

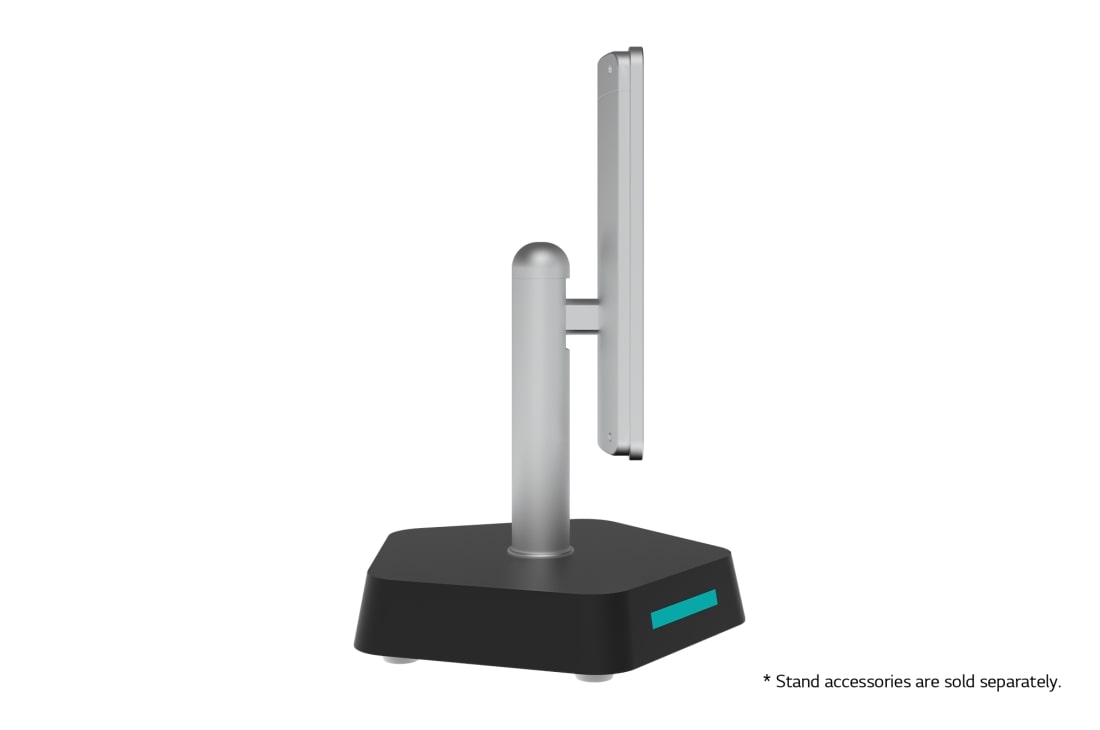

LG Thermal Sensing Terminal, +90 degree side view with table stand (* Stand accessories are sold separately.), 8KC5PJ, thumbnail 6

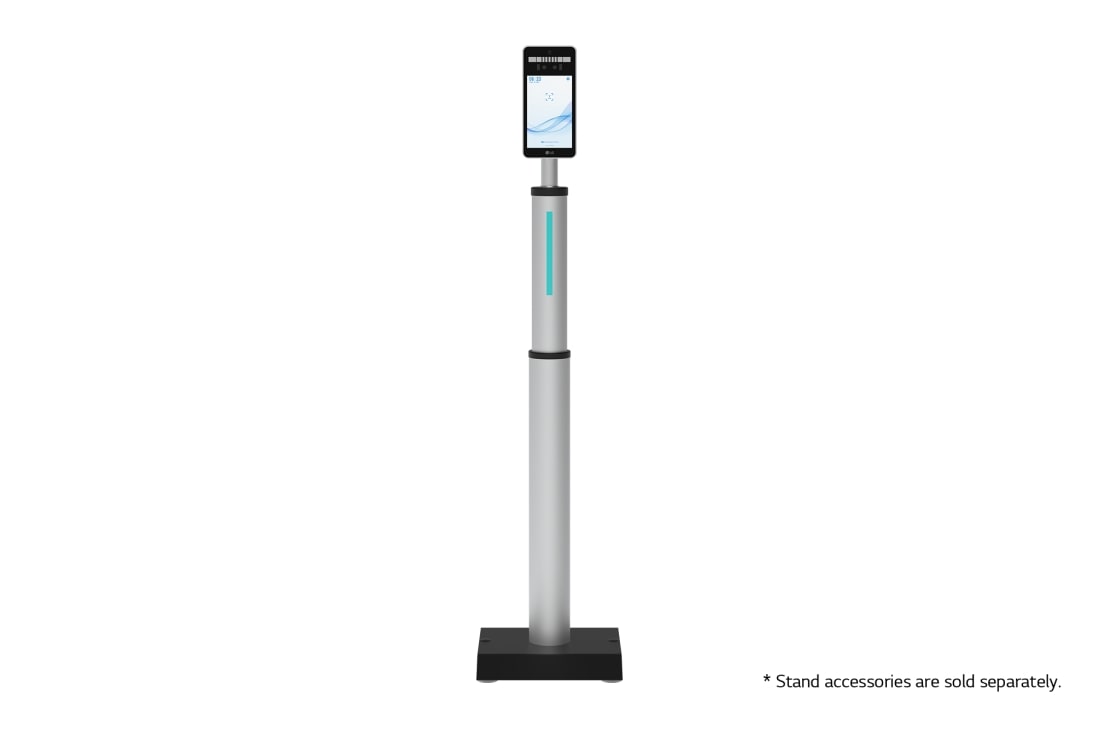

LG Thermal Sensing Terminal, Front view with floor stand (* Stand accessories are sold separately.), 8KC5PJ, thumbnail 7

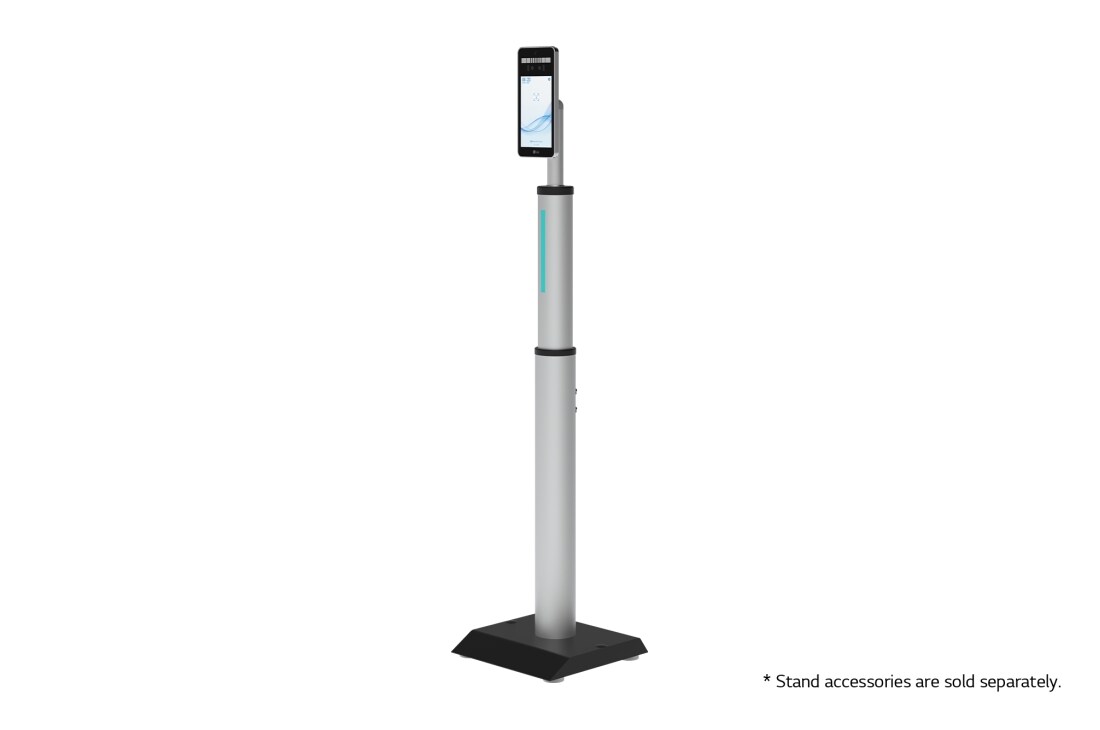

LG Thermal Sensing Terminal, -45 degree side view with floor stand (* Stand accessories are sold separately.), 8KC5PJ, thumbnail 8

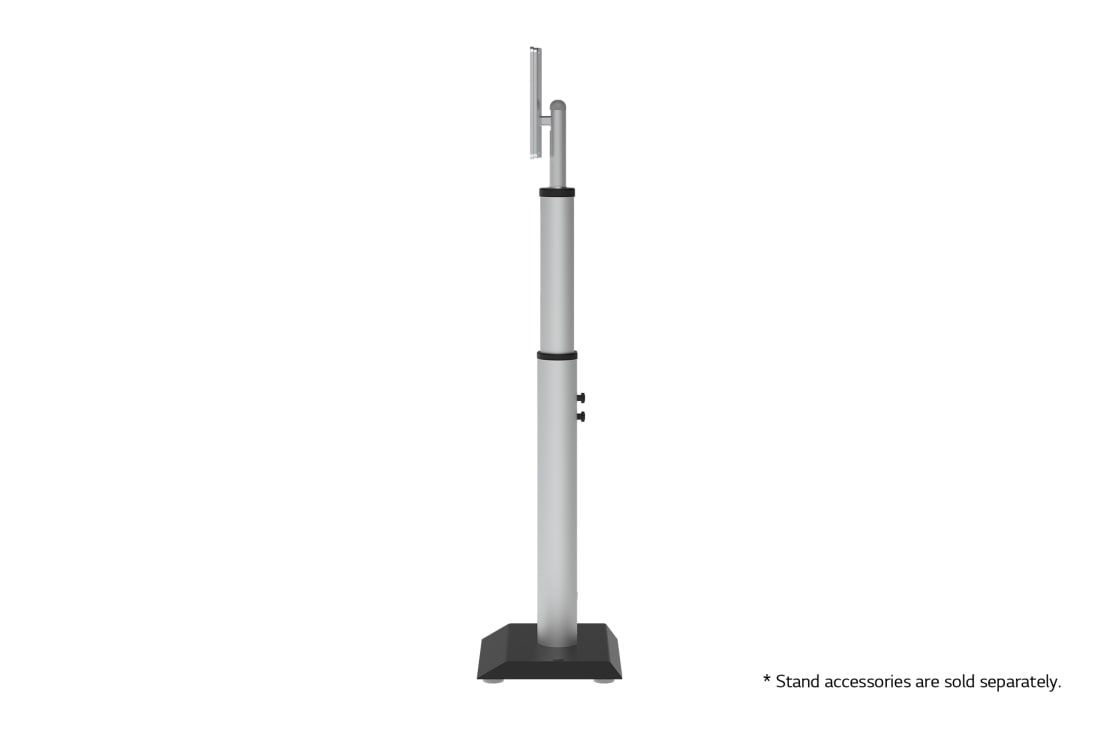

LG Thermal Sensing Terminal, -90 degree side view with floor stand (* Stand accessories are sold separately.), 8KC5PJ, thumbnail 9

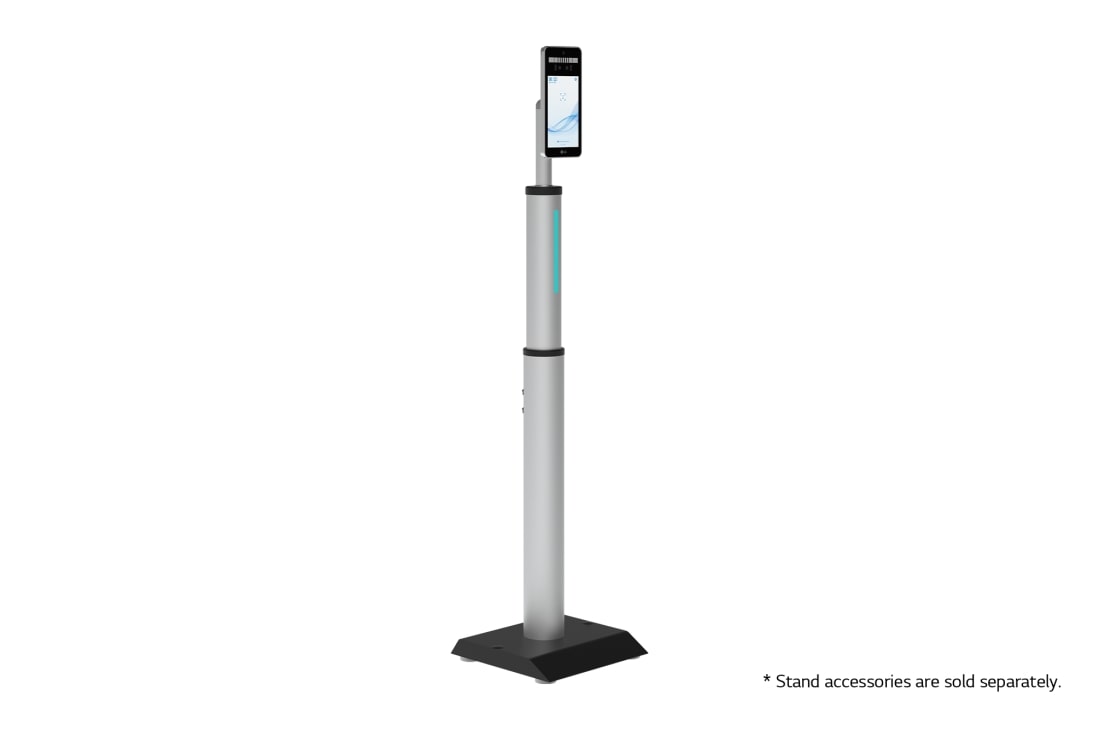

LG Thermal Sensing Terminal, +45 degree side view with floor stand (* Stand accessories are sold separately.), 8KC5PJ, thumbnail 10

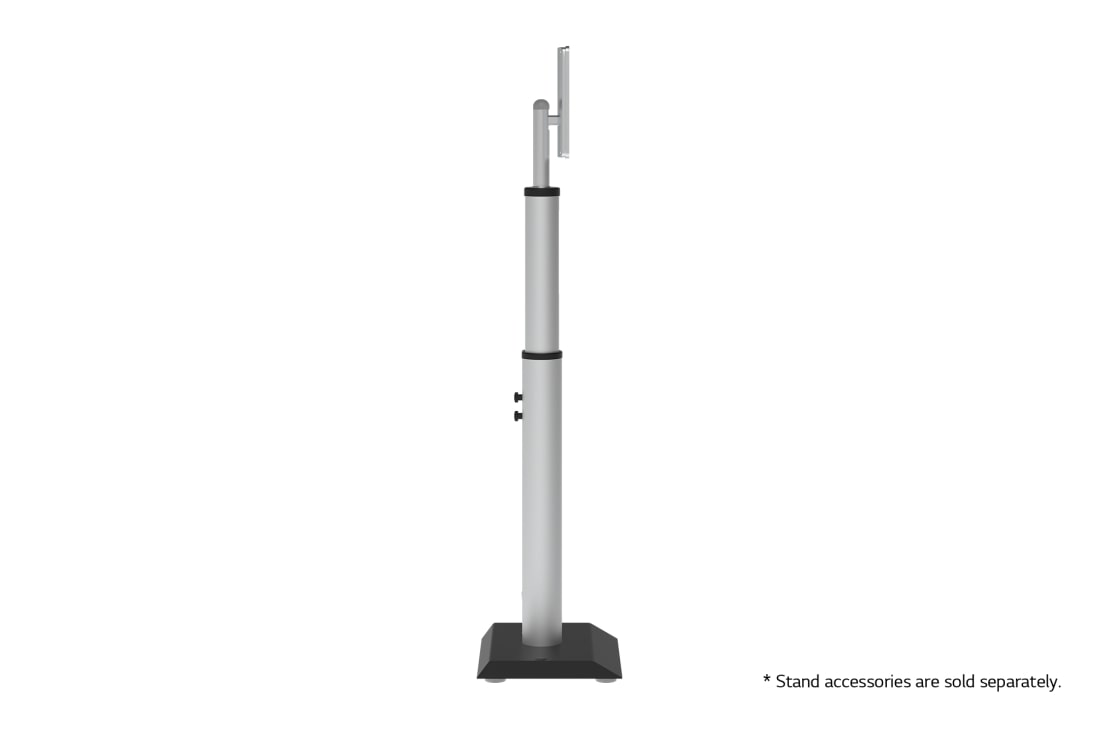

LG Thermal Sensing Terminal, +90 degree side view with floor stand (* Stand accessories are sold separately.), 8KC5PJ, thumbnail 11

Discontinued

8KC5PJ component-copyModelName

LG Thermal Sensing Terminal

Key Features

IR Touch Display ( Resolution : 800x 1,280)
RGB & Infrared Camera (2 Megapixels)
Hexa Core RK3399 Chipset (Android OS base)
Supports Wi-Fi 2.4 G
Ethernet (RJ45), USB (2, Type A 1ea / OTG 1ea), Relay
*For ASIA (except Australia, New Zealand, Thailand) Regions

Add to Compare

component-OBScountrySelectDesc

Key Features

IR Touch Display ( Resolution : 800x 1,280)
RGB & Infrared Camera (2 Megapixels)
Hexa Core RK3399 Chipset (Android OS base)
Supports Wi-Fi 2.4 G
Ethernet (RJ45), USB (2, Type A 1ea / OTG 1ea), Relay
*For ASIA (except Australia, New Zealand, Thailand) Regions

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

LG Thermal Sensing Terminal

Smart Thermal Scanner
That Secures Your Space

*For ASIA (except Australia, New Zealand, Thailand) Regions

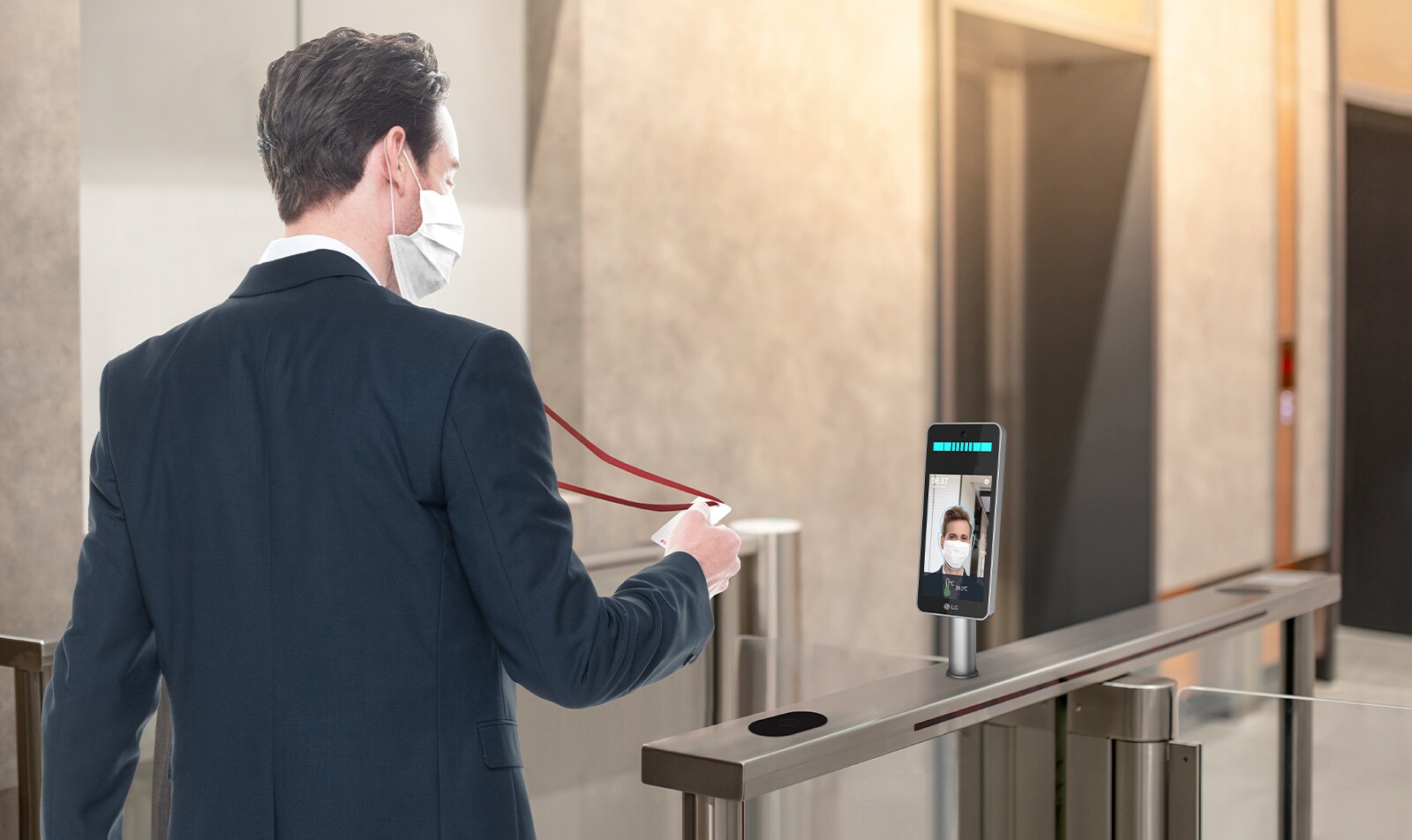

The employee with a mask clocks-in and enters the lobby of the company. LG Thermal Sensing Terminal is checking his fever.

* All images in this web page are for illustrative purposes only and may differ from the actual product.

The identification check is made by LG Thermal Sensing Terminal for an employee to enter the restricted area and the zoomed screen identifies him as a member of the company and allows him to enter.

Precise and Qualified Face Recognition

Alchera is a superior facial recognition technology applied to LG Thermal Sensing Terminal and ranked high in the face mask effects results of the Face Recognition Vendor Test (FRVT) conducted by the US National Institute of Standards and Technology (NIST). Its qualified facial recognition system helps to identify and track an individual's entry and exit, suitable for various places such as front building entrances, technology development centers, or VIP facilities requiring access controls.

* Tested at June, 2021 and based on Alchera-003

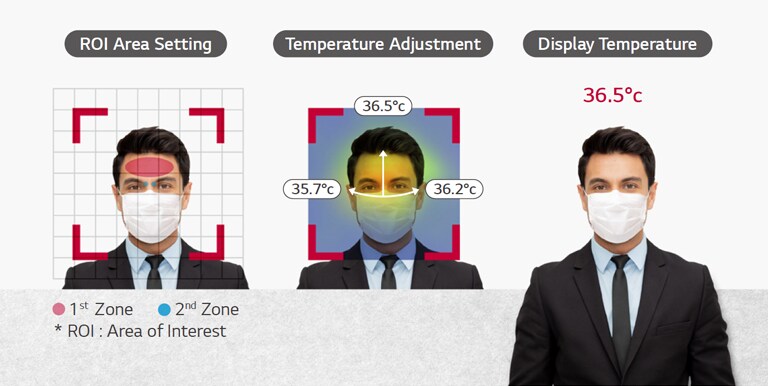

This shows the process to check passenger' fever. After ROI Area Setting, LG Thermal Sensing Terminal checks and displays the facial temperature.

Accurate Heat Detection Sensor

LG Thermal Sensing Terminal with Alchera software detects fever accurately by Heimann thermopile sensor. It sets ROI (Region of Interest) on the face by dividing into 1,024 cells and displays the estimated temperature near the area with the maximum value.

* Heat measurement and face recognition available distance : 0.3m ~ 0.8m (Recommendation 0.5m)
* Need to avoid direct sunlight
* Error range for temperature measurement (Ambient temperature for testing: 25°C): within ±0.3°C for repeated measurements

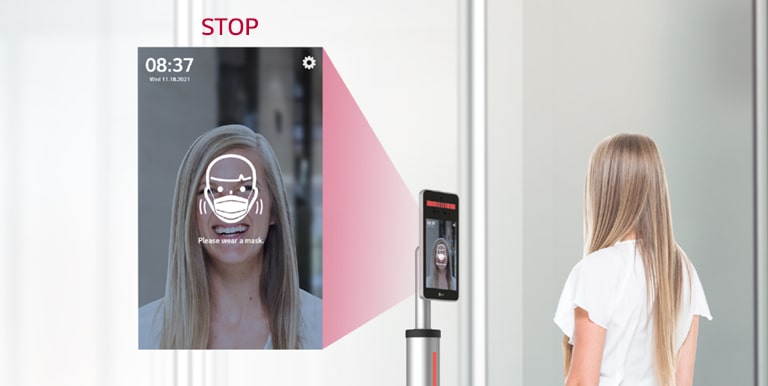

The alarm of LG Thermal Sensing Terminal is activated identifying the woman without a mask in front of the entrance.

Mask-on Facial Recognition

It is able to perform quick and accurate mask-on facial recognition, by detecting heat and determining whether the subject is wearing a mask or not before sending out an alarm. This strengthens the necessary measurements for mask-wearing protocol as well as security, within contactless settings.

LG Thermal Sensing Terminal can discern the pictures of faces or realistic 3D masks.

Liveness Detection for Security

A deep-learning algorithm and infrared camera utilizing Anti-Spoofing technology is applied on the 8KC5PJ model. It helps tell the difference between 2D images/videos, 3D masks, or even mannequins from an authorized, live person for supporting crime prevention with strengthened security.

Versatile Installation with Dedicated Accessories

Users can install 8KC5PJ series in various places by either using the terminal itself or two types of dedicated stand accessories. Basically, the device itself can be integrated with either new or existing gate control devices or facilities. Also, for stand-alone use, you can combine it with a table type short stand accessory or a long stand type accessory that is height adjustable up to 1,539mm.

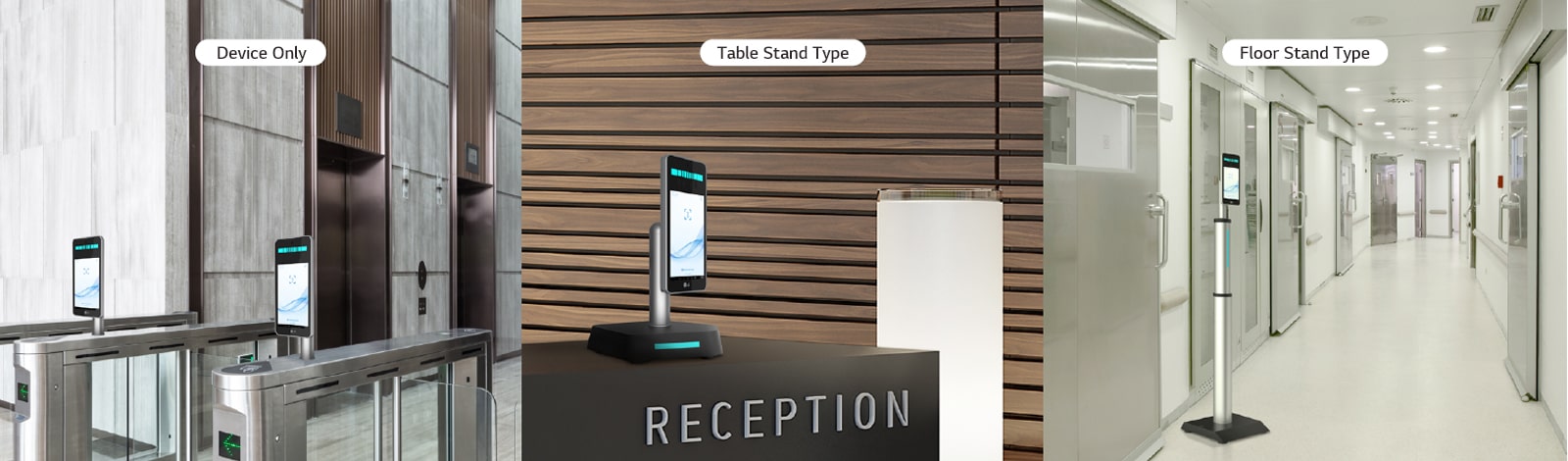

Exclusive stand accessories can be applied to LG Thermal Sensing Terminal, and these images shows how LG Thermal Sensing Terminal can be installed in places with the accessories. ‘Device Only’ type is applied to the entrance of the lobby of the building, ‘Table Stand Type’ to the reception desk, and Floor ‘Stand Type’ to the front of the entrance.

* Floor stand and table stand accessories are sold separately.

Entry Control with
Data Verification

LG Thermal Sensing Terminal provides the interface for integration with existing NFC/RFID-based Speed Gate (security) control system, which already installed on the site. This integration helps to enable the management of entry into the building effectively through verifying the identity of a person, while the 8KC5PJ measuring passengers' temperature and detecting people whether they are wearing a mask.

The employee with a mask enters the entrance of the company lobby, clocking-in with an ID card. Using LG Thermal Sensing Terminal operates the facial fever scanning, mask sensing, and the ID card checking.

Mobile and PC Administrator Tools

In a Mobile and PC monitoring system, you can register users, set the access authority based on controlled zones, and check the real-time access status.

Display

Inch

8 Inch

Resolution

800 × 1,280
Operating System

Android 7.1

CPU

RK3399 (2 × A72 + 4 A53)
RAM

4 GB

eMMC

16 GB
RGB/IR Camera

RGB Camera : Resolution 2 M Pixels (1,920 ×1,080)
IR Camera with IR LED : Resolution 2 M Pixels

LED Lighting (Status Lighting)

Front (OK-Green, Alarm-Red, Standby-White)
Speaker

2.5W, 4R speakers

Software

Online Update

Support

Admin Tools

PC / Mobile

Face Recognition

Mask Check

Support

Detection Speed

Under 2 sec
Face Recognition Distance

0.3 m-0.8 m

Data Encryption

Support
Anti-Spoofing

Deep Learning + IR

Thermal Sensing

Body Temperature

Support

Fever Alarm

Support
Thermal Sensor

Heimman Sensor 32 × 32 (1,024 Pixels)

Thermal Detection Distance

0.3 m-0.8 m (Recommendation 0.5 m)
Thermal Detection Range

32-42℃

Network/Interface

Wi-Fi

Wi-Fi 2.4 G

Ethernet (RJ45)

1 (10m / 100m Adaptive Ethernet)
USB

2 (Type-A 1ea, OTG 1ea / Format : FAT32, NTFS)

Relay

1 (Output Port )
DC Power Jack

1

Wiegand Input

Disabled
RS232 / Wiegand Output

Disabled

Power

Power Supply (Adapter)

Input : AC 220 V, 60 Hz, 1A
Output : DC 12V / 2A

Power Consumption (Typ.)

12W

Mechanic

Dimensions (W × D × H)

129.6 × 88.1 × 369.0 mm

Weight

About 1.7 Kg

Accessories(Optional)

Type

Floor Stand (Pole : ST-8KC5PJFL, Plate : ST-8KC5PJFP), Table Stand (ST-8KC5PJT)

Size (W × D × H)

Floor Stand Pole (Min.) : 100 × 100 × 795 mm
Floor Stand Pole (Max.) : 100 × 100 × 1,145 mm
Floor Stand Plate : 340 × 340 × 42 mm
Table Stand : 304.56 × 293.57 × 45 mm

Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
