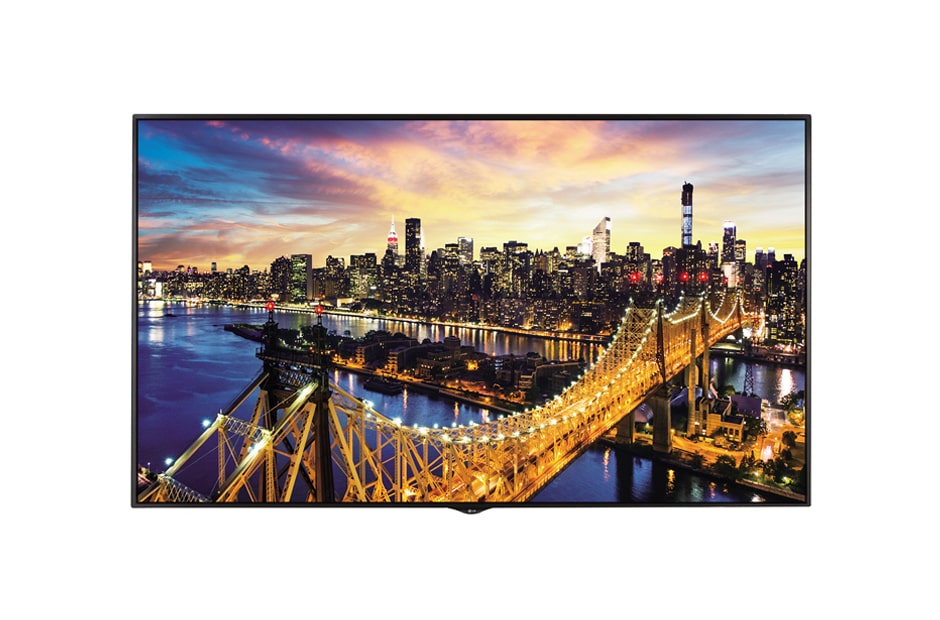

98LS95D

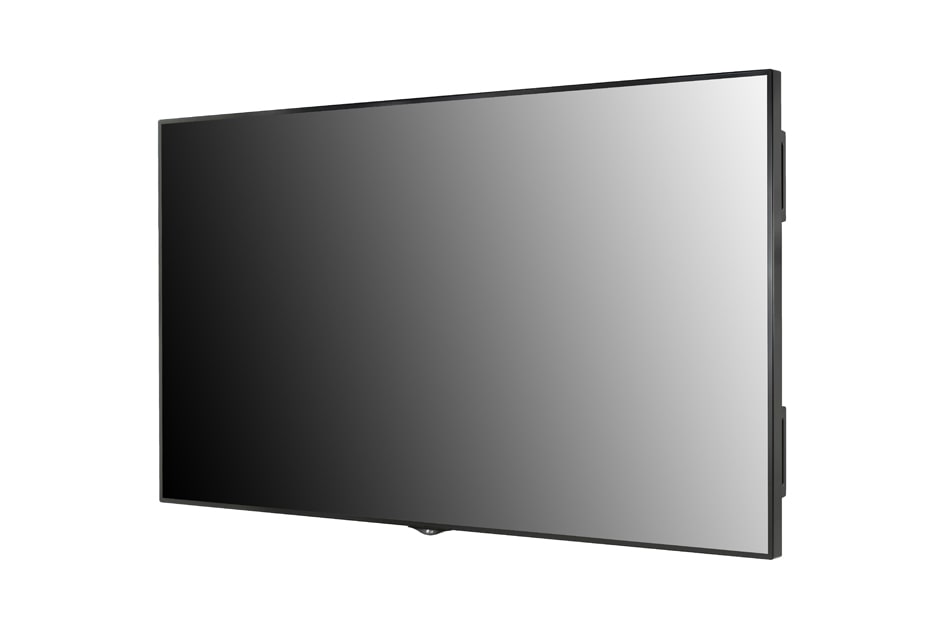

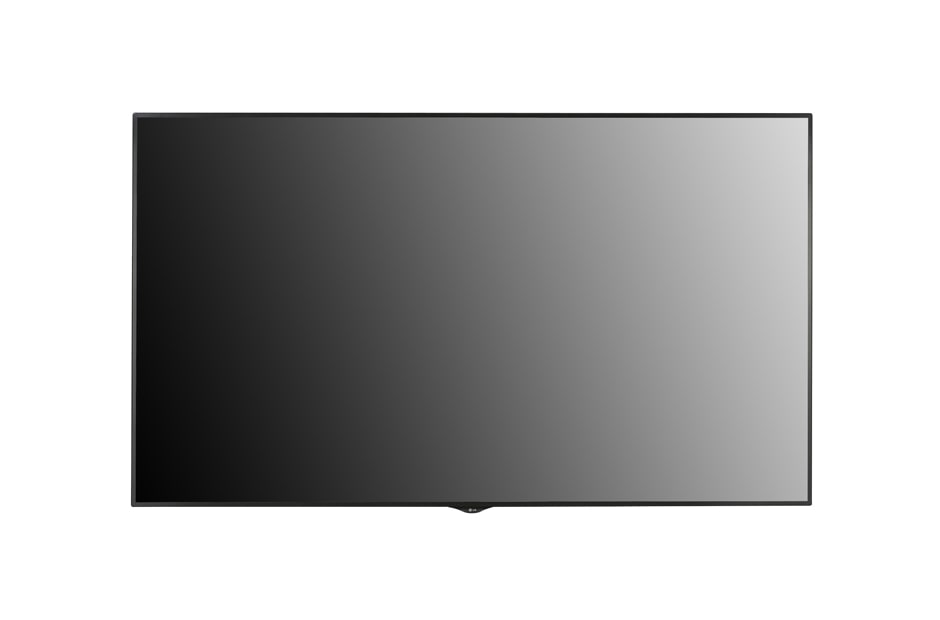

Ultra HD premium large display
  • Brightness(Typ.) : 500 cd/m²

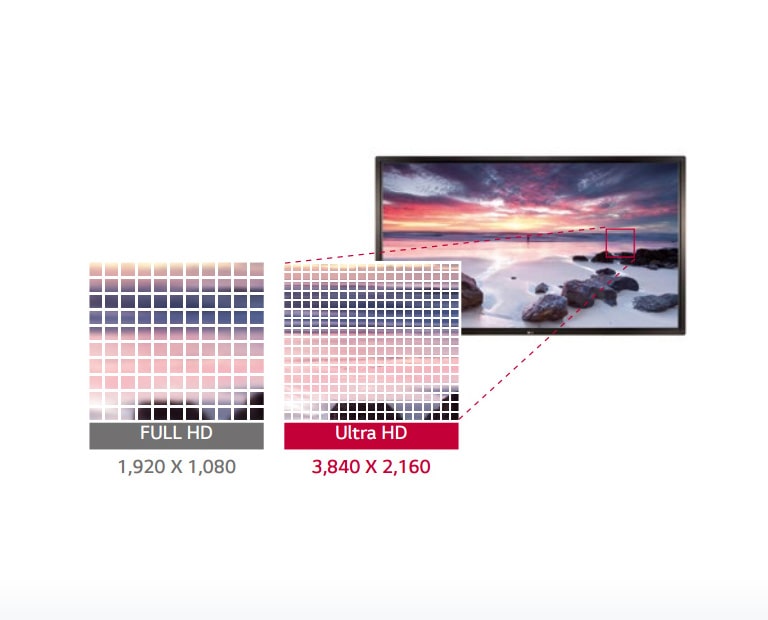

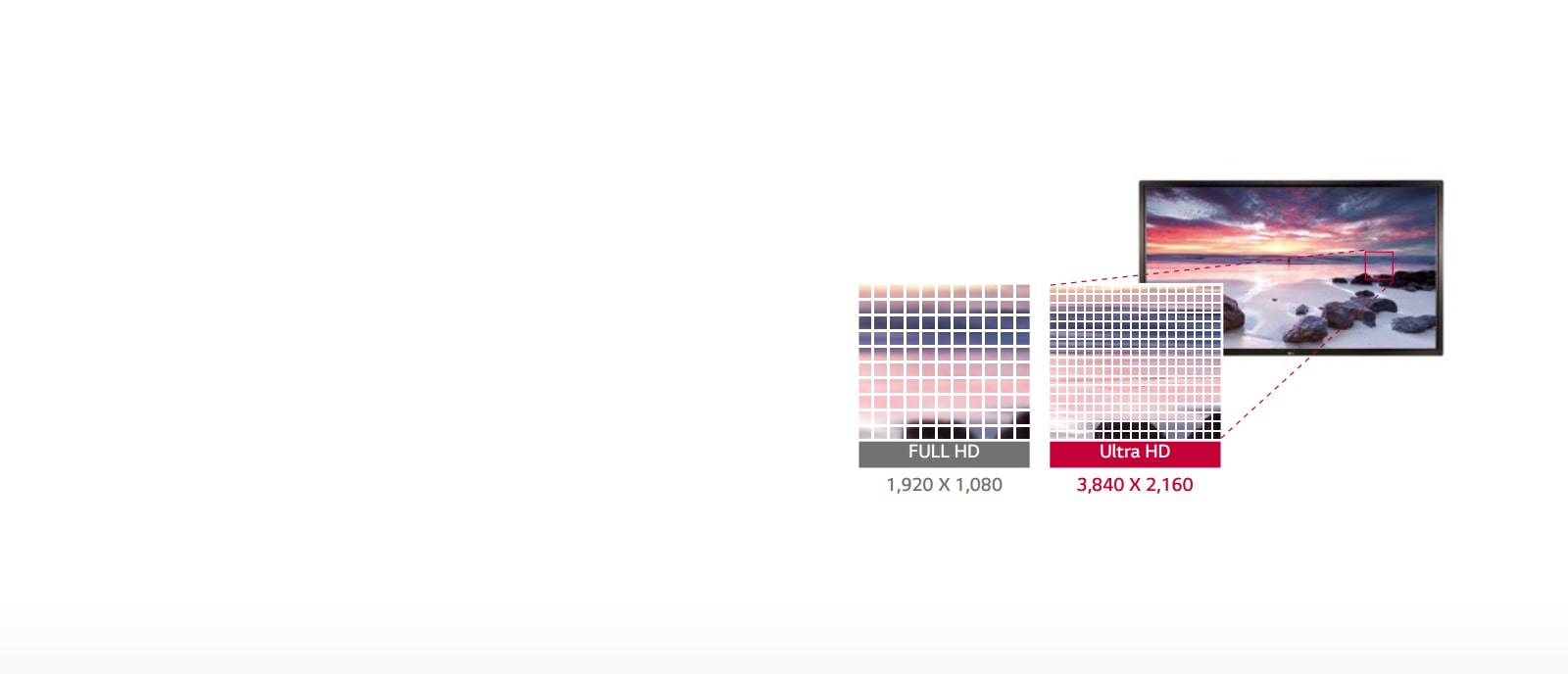

  • Resolution : 3840 x 2160 (UHD)

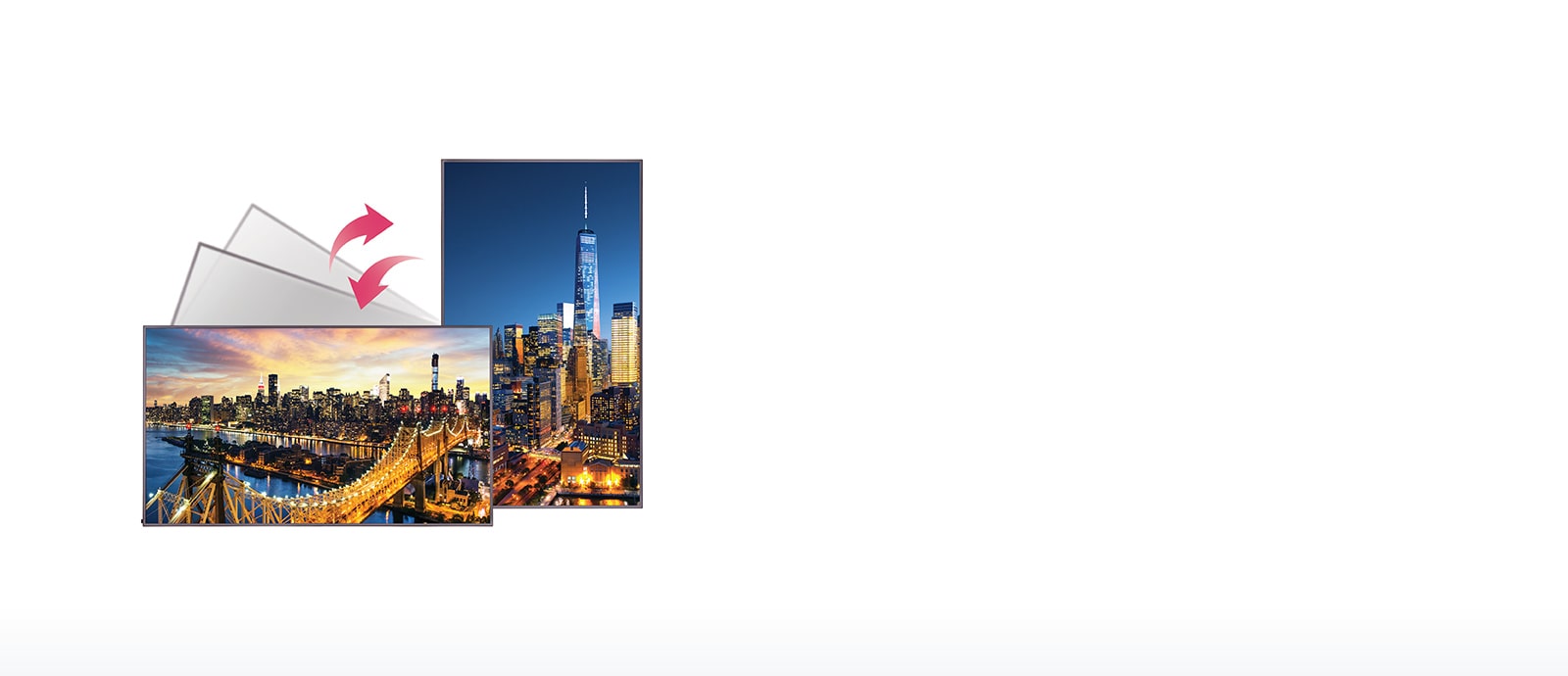

  • Orientation : Portrait & Landscape

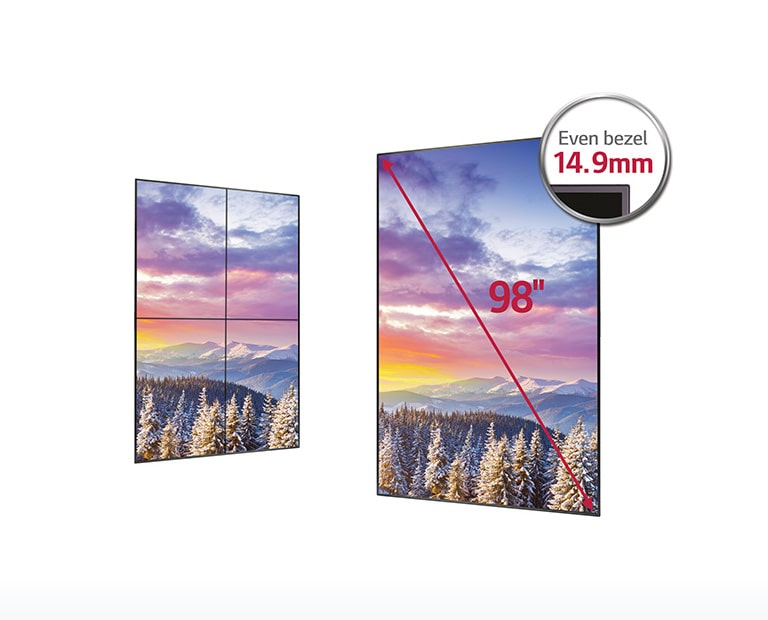

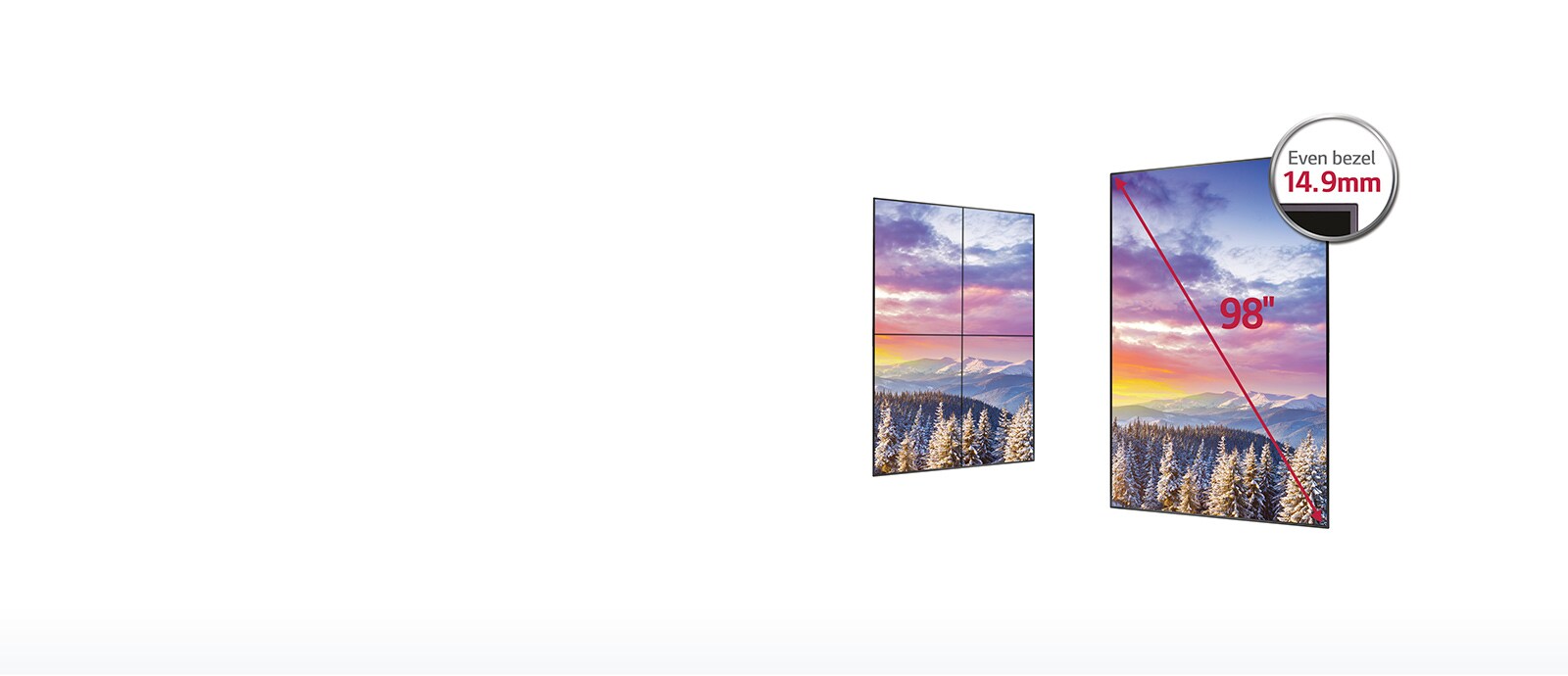

  • Bezel Width : Even bezel : 14.9mm
  • DP daisy chain : DP, HDMI3, DVI
Ultra HD premium large display

Panel

  • Screen Size
    97.52 inches(2476.95 mm) diagonal
    Native Resolution
    3840 x 2160 (UHD)
  • Brightness(Typ.,cd/m²)
    500

Connectivity - Intput

  • HDMI
    Yes(3)
    DP
    Yes (1)
  • DVI-D
    Yes (1)
    Analog (RGB)
    No
  • Audio In
    Yes(1), DVI
    External Control (RS232C IN)
    Yes (1)
  • External Control (RJ45)
    Yes (1)
    External Control (IR receiver)
    Yes (1)
  • External Control (Pixel Sensor)
    Yes
    USB (USB3.0)
    Yes (1)
  • SD Card (SDHC/Full Size)
    Yes (1)
    HDTV Formats
    HDMI : 720p, 1080i, 1080p, 2160p

Connectivity - Output

  • Digital (w/ HDCP)
    Yes(1) w/ HDCP: DP, w/o HDCP: HDMI3/DVI/OPS
    Audio Out
    Yes (1)
  • Externel Speaker Out
    Yes (1, L/R)
    External Control (RS232C OUT)
    Yes (1)

Physical Specification

  • Bezel Width
    Even bezel : 14.9mm
    Monitor Dimension (W x H x D)
    2191.8mm x 1246.8mm x 69.4mm
  • Weight (Head)
    88kg
    VESA™ Standard Mount Interface
    800x400

Media Player Compatibility

  • OPS type compatible
    No
    External Media player Attatchable
    Yes (MP500/MP700)

Software Compatibility

  • SuperSign-w lite
    Yes
    SuperSign-c
    Yes

Accessory

  • Basic
    Remote Controller(include battery 2ea), Power Cord, IR/Light sensor receiver, CD(Owner's Manual, SuperSign Program / Manual), HDMI2.0 Cable,DP cable, RS-232C, WIFI Dongle, EYE-BOLT
    Optional
    SP-2200(External Speaker)
