Discontinued
KT-T651

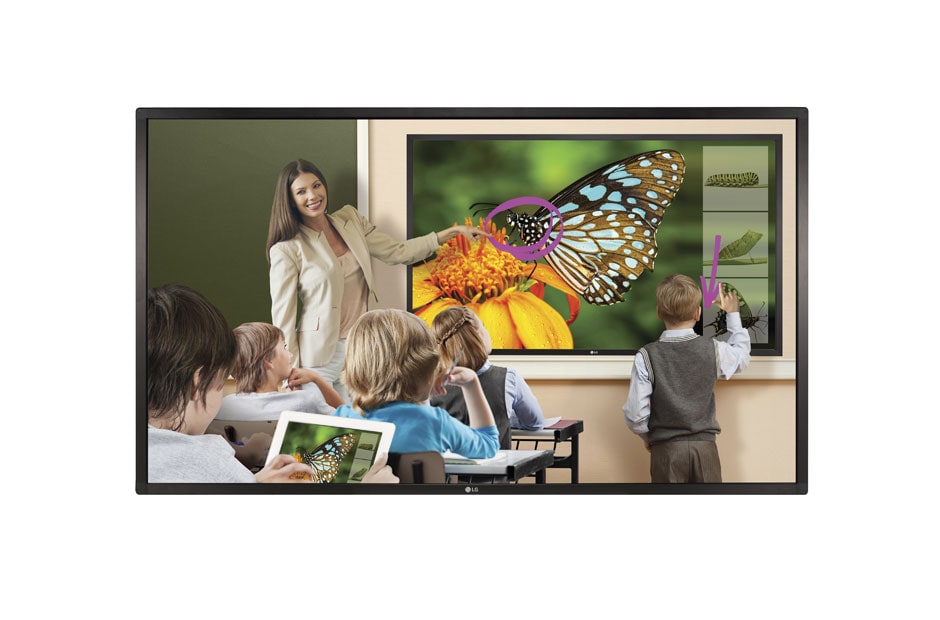

Touch Overlay Kit
  • Touch Type: IR (Infrared Rays) Spread
  • Available Object Size for Touch: Ø 8 mm
  • Accuracy: 1 mm
  • Interface: USB 2.0
  • Multi Touch Point: Max 10 Points

component-OBScountrySelectDesc

Touch Overlay Kit

Touch

  • Touch type
    IR(Infrared Rays) Spread
    Available object size for touch
    Ø 8mm
  • Scan Time
    10 ms (1 Point) ~ 30 ms (10 Points)
    Accuracy
    1mm
  • Interface
    USB 2.0
    Protection Glass Thickness
    2.8T (Anti-Glare)
  • Operating Systme Support
    Windows 7, Windows 8, Windows 8.1, Windows 10 / Mac OSX (10.7 or later) / Android / Linux
    Multi touch point
    Max 10 Point
  • Touch Resolution
    1,428 x 803

Panel

  • Screen Size
    65"
    Compatible Products
    65SE3B, 65SM5B, 65SE3KB, 65SM5KB, 65SM5C, 65SM5KC, 65SE3D, 65SM5D, 65SE3KD, 65SM5KD
  • Orientation
    Landscape & Portrait

Connectivity

  • Input
    USB

Physical Specification

  • Bezel Width
    27.0mm
    Overlay Dimension (W x H x D)
    1,485.5 × 859.5 × 23.5 mm (Max 122.6 mm)
  • Weight (Head)
    18.5 kg

Environment Conditions

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 85%

Power

  • Power Supply
    USB
    Typ.
    1.31W

Software Compatibility

  • IWB Software
    YES (CD)

Accessory

  • Basic
    Manual (Overlay), CD (Writing S/W), Pen (2), Tray, Install Accessories
  • Dimension
    • KT-T651.dwg
    • KT-T651.pdf
  • Datasheet
    • KT_T_series_(low) Leaflet_170613.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
