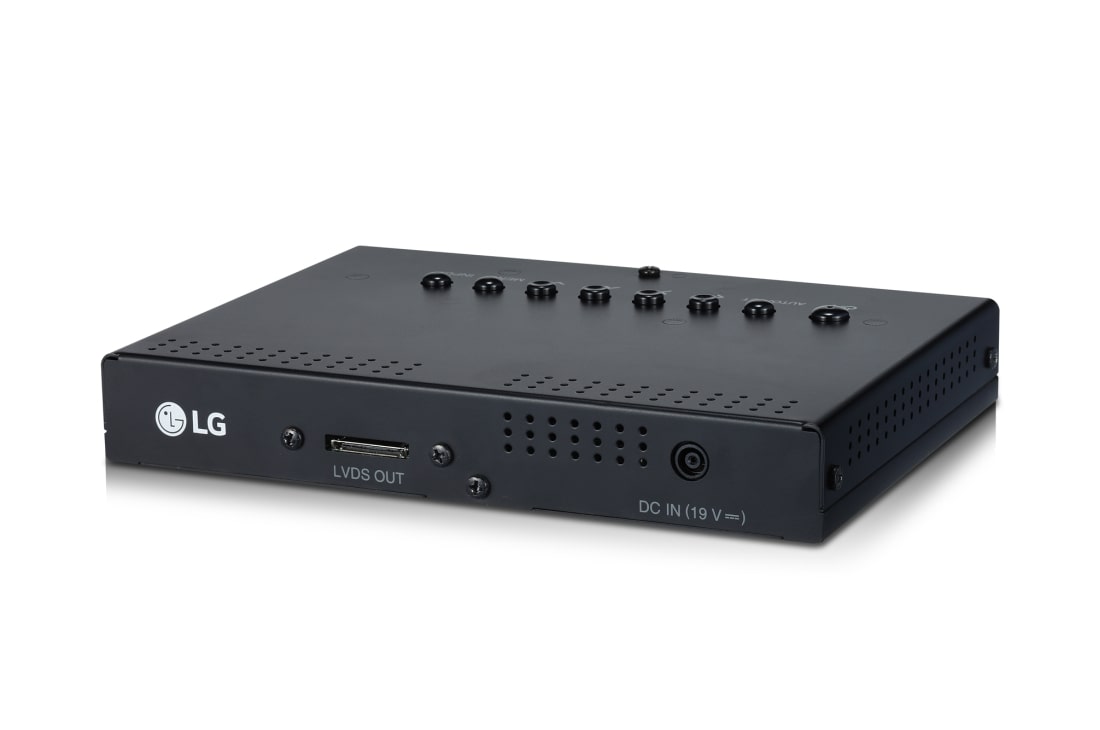

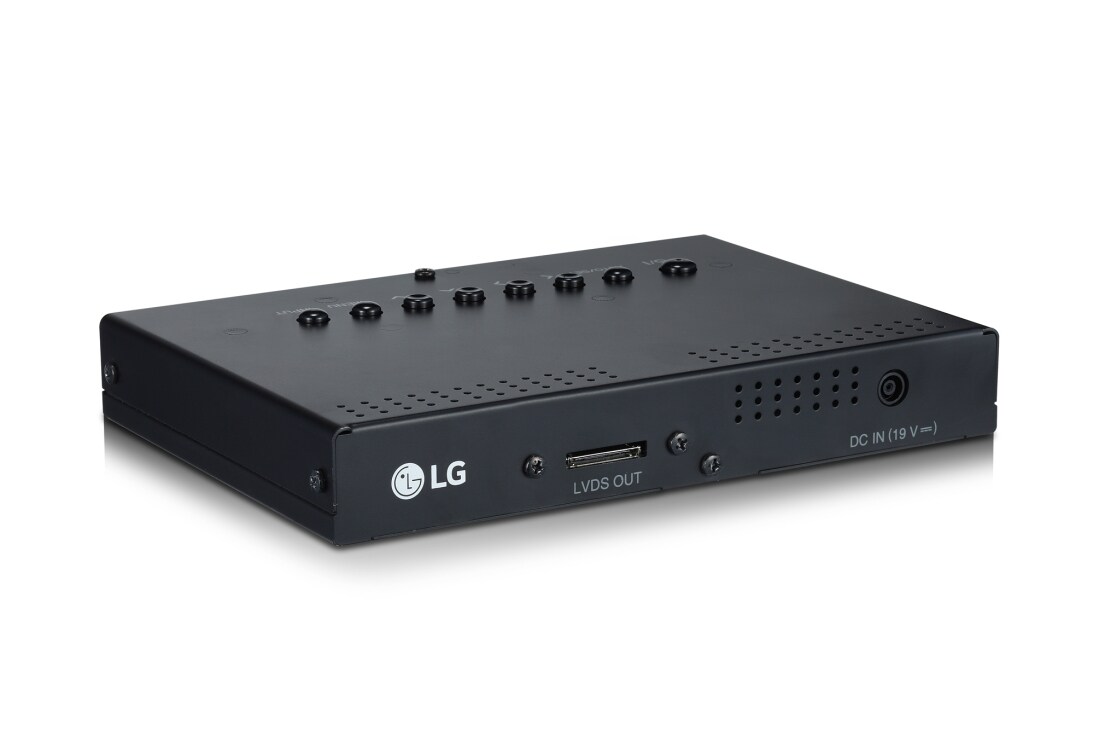

TSP510-M
AD Box
  • Max Input Resolution: 1920 x 1080@60Hz (HDMI)
  • Dimension: 198mm(W) x 32mm(H) x 145mm(D)
  • Compatible Models: 55WFB/49WFB
AD Box
MSRP $

Summary

VIDEO (PC)

  • Max Input Resolution (FHD)
    1920 x 1080@60Hz (HDMI)
    Max Input Resolution (HD)
    NA
  • Recommended Resolution (FHD)
    1920 x 1080@60Hz (HDMI)
    Recommended Resolution (HD)
    NA
  • H-Scanning Frequency
    28.1 ~ 83kHz (HDMI)
    V-Scanning Frequency
    60Hz (HDMI)
  • Pixel Frequency
    148.5MHz(HDMI)
    Sync Compatability
    Digital
  • Video Input
    HDMI
    Picture mode
    Vivid / Standard / APS / Cinema / Sport / Game /Calibration/ Expert1 / Expert2
  • Color temperature
    W50 ~ 0 ~ C50

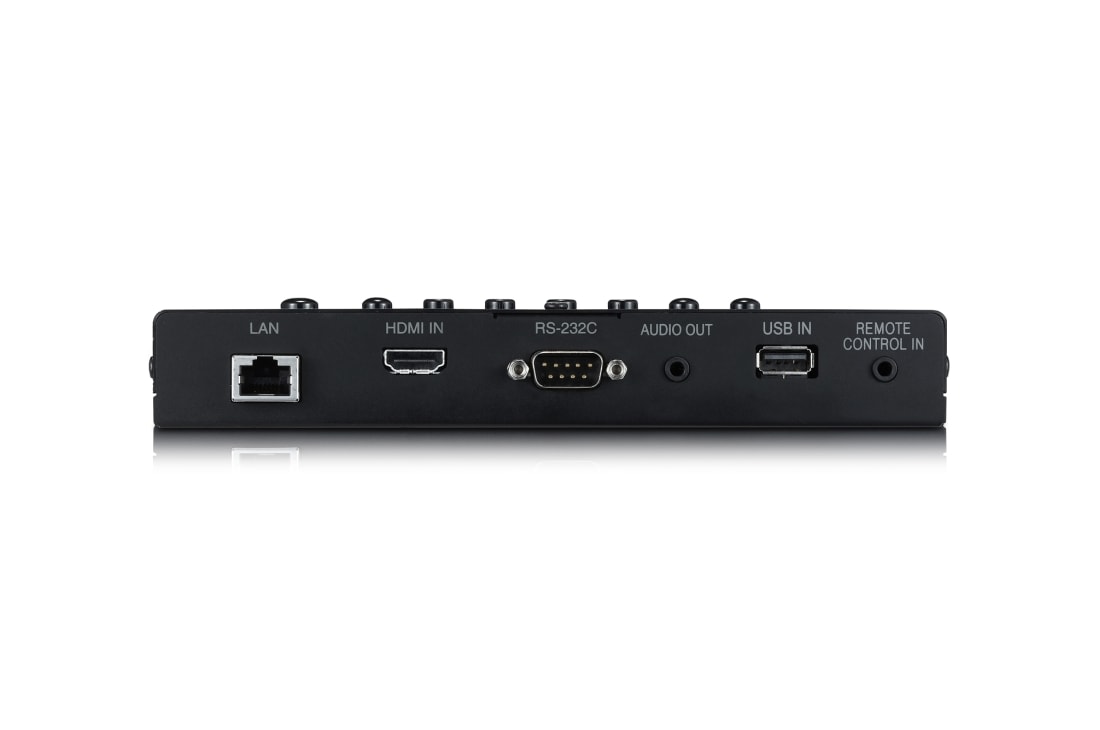

Connectivity - Intput

  • Digital
    HDMI(1) with HDCP for all input
    Analog
    N/A
  • Audio
    N/A
    External Control
    RS232C(1), RJ45(1)
  • USB
    USB(1)
    HDTV Formats
    HDMI : 720p, 1080p

Connectivity - Output

  • Digital

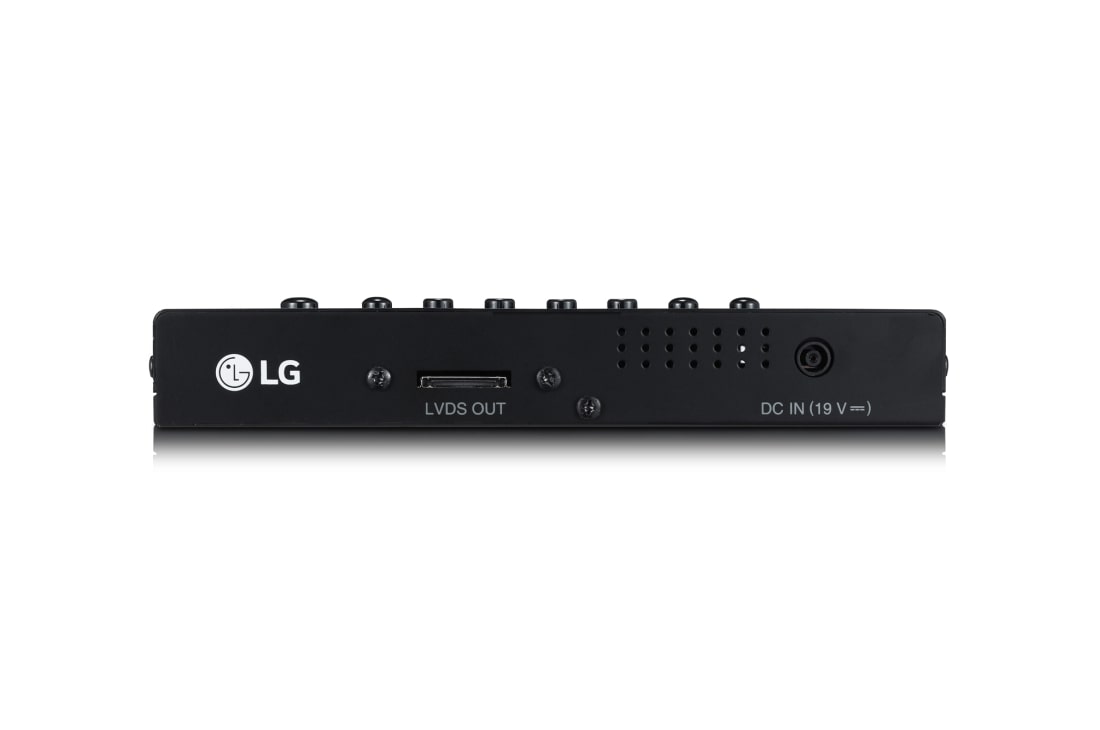

    Yes (LVDS 40Pin), Compatible with 49/55WFB
    Analog
    No
  • Audio
    Line-out Audio
    External Control
    RS232C(1)

Audio

  • Auto Volume
    N/A
    Balance
    N/A
  • Audio Power
    N/A
    Speaker On/off
    N/A
  • Clear Voice II
    N/A
    Sound Mode
    N/A

Physical Specification

  • Color
    Black
    Dimension (W x H x D)
    19.8cm x 3.2cm x 14.5cm
  • Weight (SET)
    0.65Kg
    Carton Dimensions (W x H x D)
    31.4cm x 12.4cm x 35.9cm
  • Packed Weight
    1.18Kg
    Handle
    No
  • VESA™ Standard Mount Interface
    No

Special Feature

  • Temperature Sensor
    Yes
    Auto Brightness sensor
    No
  • Cooling FAN
    No
    Tile Mode
    Yes (Max. 15x15)
  • Natural Mode @Tile Mode
    Yes
    Source Selection
    HDMI / USB
  • Brightness/Contrast/Backlight
    Brightness(Yes), Contrast(Yes) / Backlight(NO)
    Auto Config/Phase
    No
  • Time
    Clock, On/off Time, Auto off, Automatic standby
    Auto Power/Source Memory
    Yes
  • Key Lock
    Yes
    DPM Select
    Yes
  • Energy Saving
    N/A
    Smart Energy Saving
    N/A
  • Power Indicatior On/Off
    No
    Logo Light On/Off
    No
  • File Play with USB
    Yes
    PIP/PBP
    No

Environment Conditions

  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10 % to 80 %

Power

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Adaptor
  • Power Switch
    No

Power Consumption

  • Typ.
    15W
    Smart Energy Saving
    NA
  • DPM
    0.5W
    Power off
    0.5W

Standard(Certification)

  • Safety
    CB, UL
    EMC
    FCC Class "A", CE, KCC
  • ErP / Energy Star
    NA

Media Player Compatibility

  • Slot PC compatible (optional)
    No
    External Media player Attatchable
    No

Software Compatibility

  • SuperSign-w lite
    Yes (Editing, Scheduling, Distribution & Play, Control)

Accessory

  • Basic
    Remote Controller, Power Cable, HDMI Cable, Manual, ESG, IR Dongle, Adapter, LVDS Cable(FHD, 40P Molding cable, 1500mm)
