Discontinued

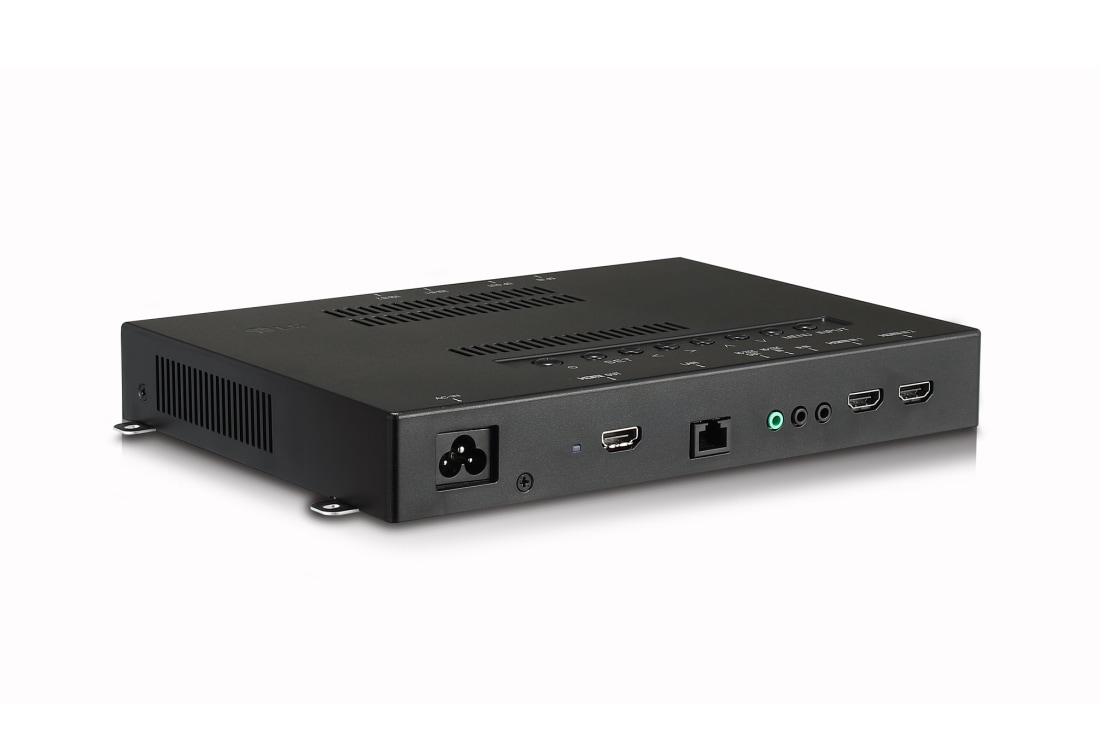

WP401 component-copyModelName
webOS Box

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

webOS Box
Inquiry to Buy
Close

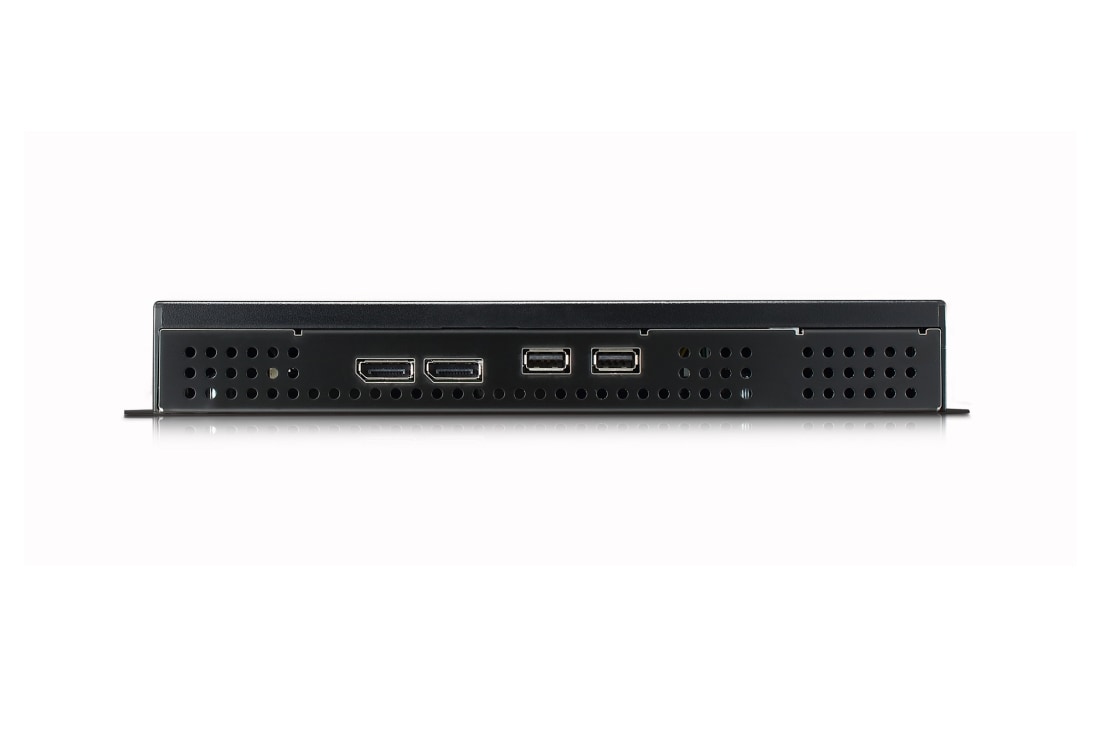

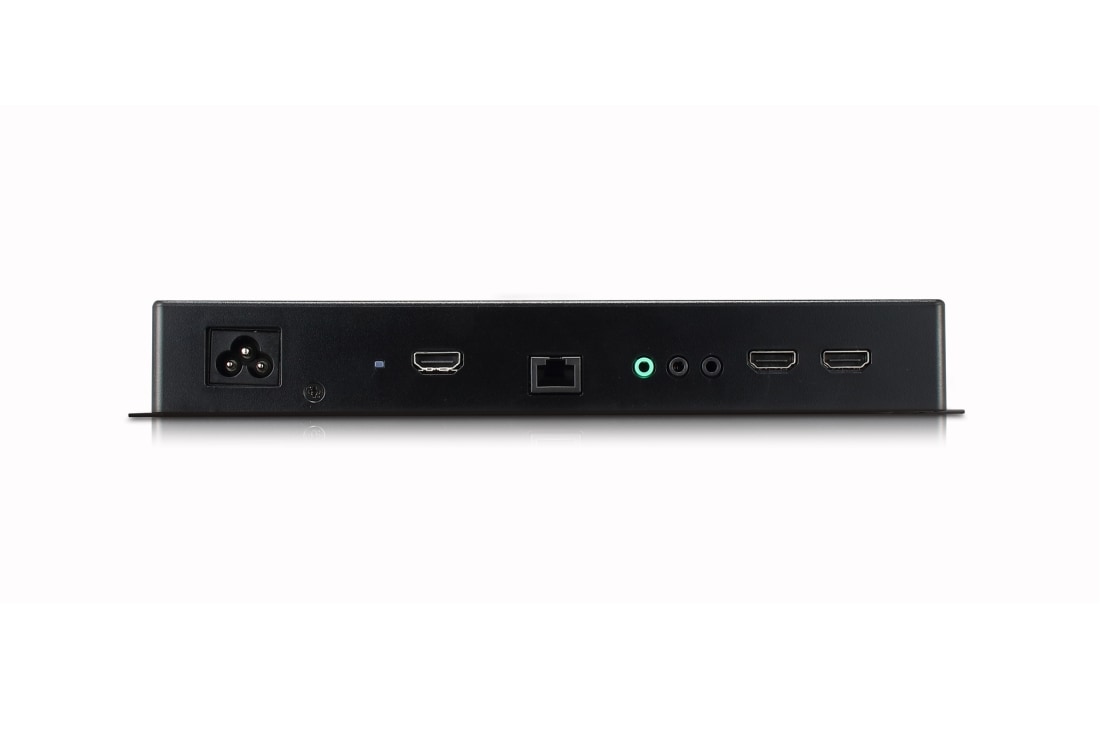

Connectivity
  • Input
    HDMI (2), DP, USB 2.0 (2)
    Output
    HDMI, DP(Daisy chain only)

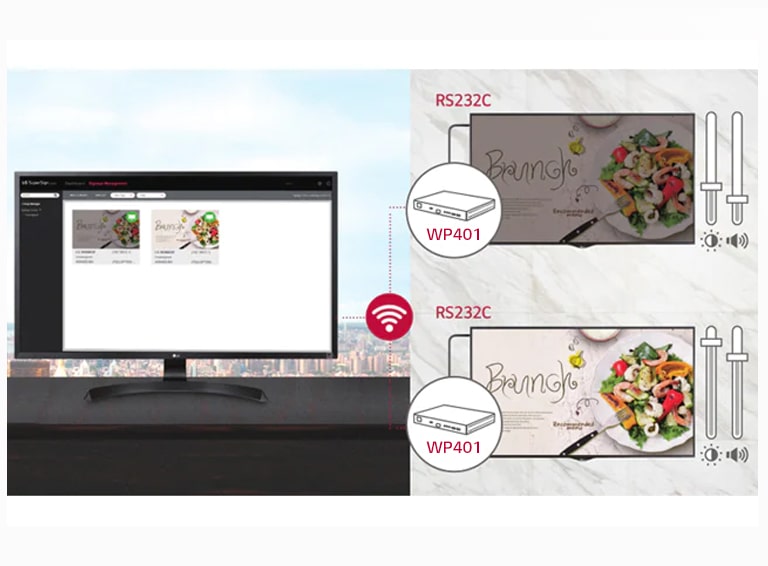

  • External Control
    RS232C in/out, RJ45 in, IR in
Mechanical Specification
  • Player Dimension (W x H x D)
    258 × 36.5 × 186 mm
    Weight (Head)
    0.87 kg
  • Carton Dimensions (W × H × D)
    359 x 124 x 314 mm
    Packed Weight
    1.77 kg
Key Feature(Hardware)
  • Key Feature (Hardware)
    Internal Memory 8GB (System 4GB, Available 4GB), Wi-Fi Built-in, Thermal Sensor, Power Indicator, Local Key Operation
Key Feature(Software)

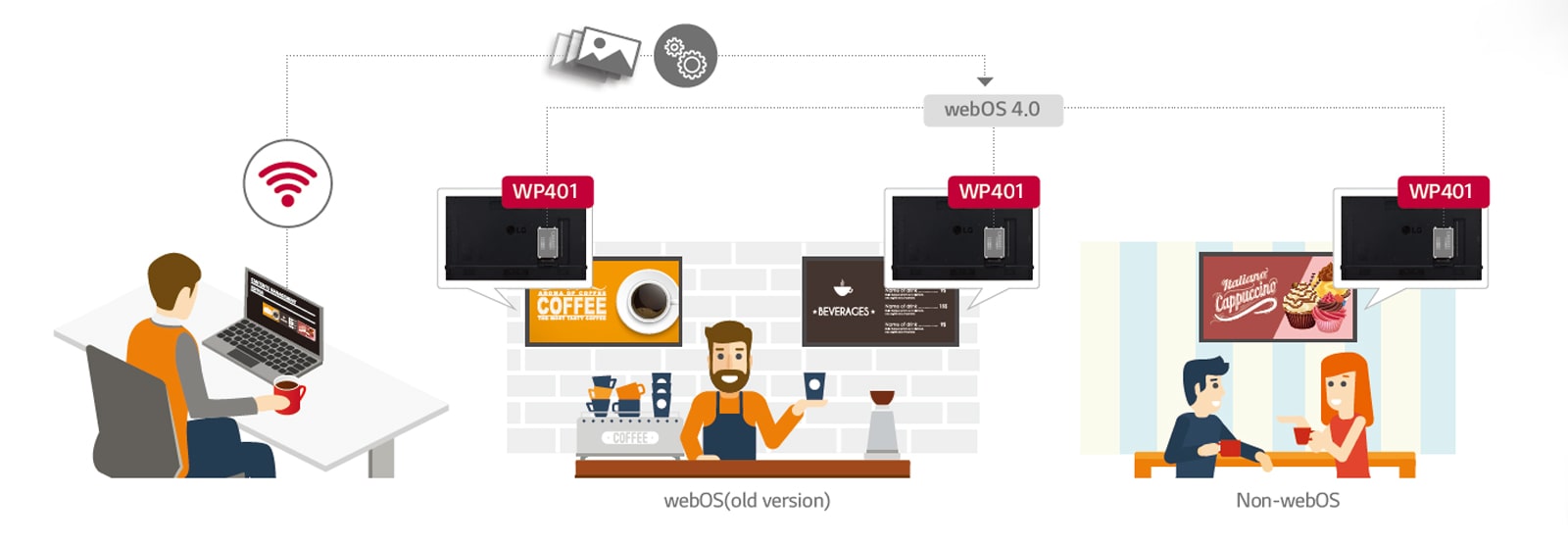

  • webOS ver.
    webOS 4.0

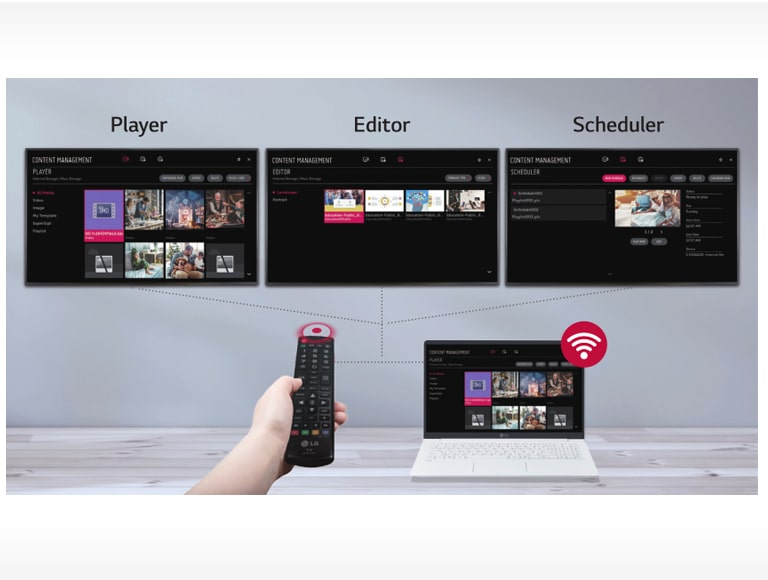

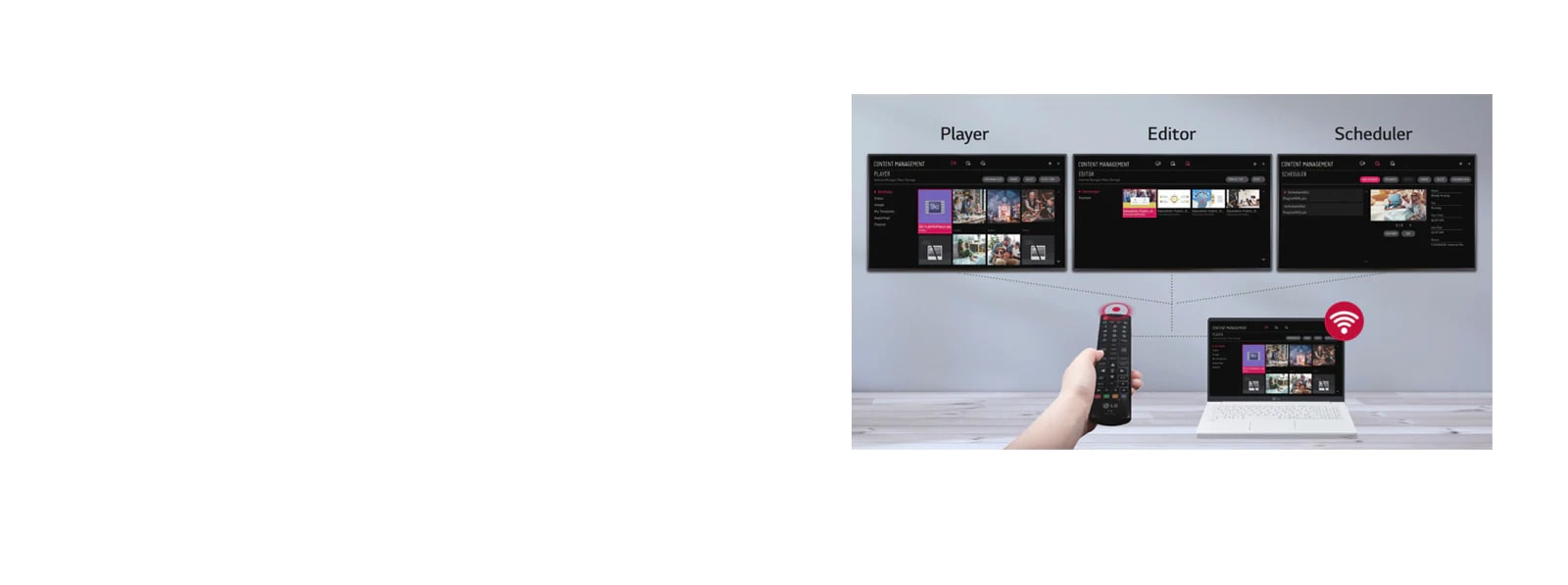

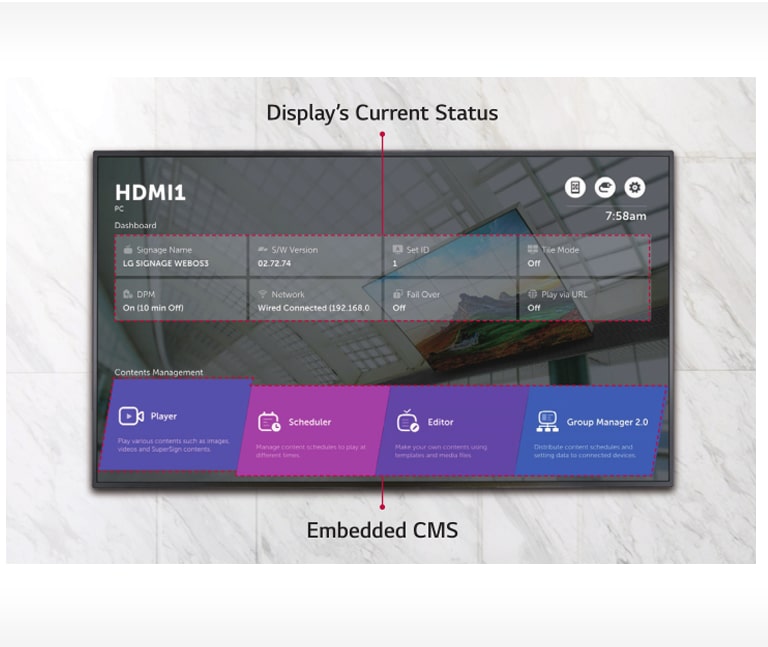

    Embedded CMS
    Local Contents Scheduling, Group Manager
  • Fail over
    O
    Background Image
    No Signal Image
  • Multi-screen
    PIP/PBP(4)
    Screen Share
    O

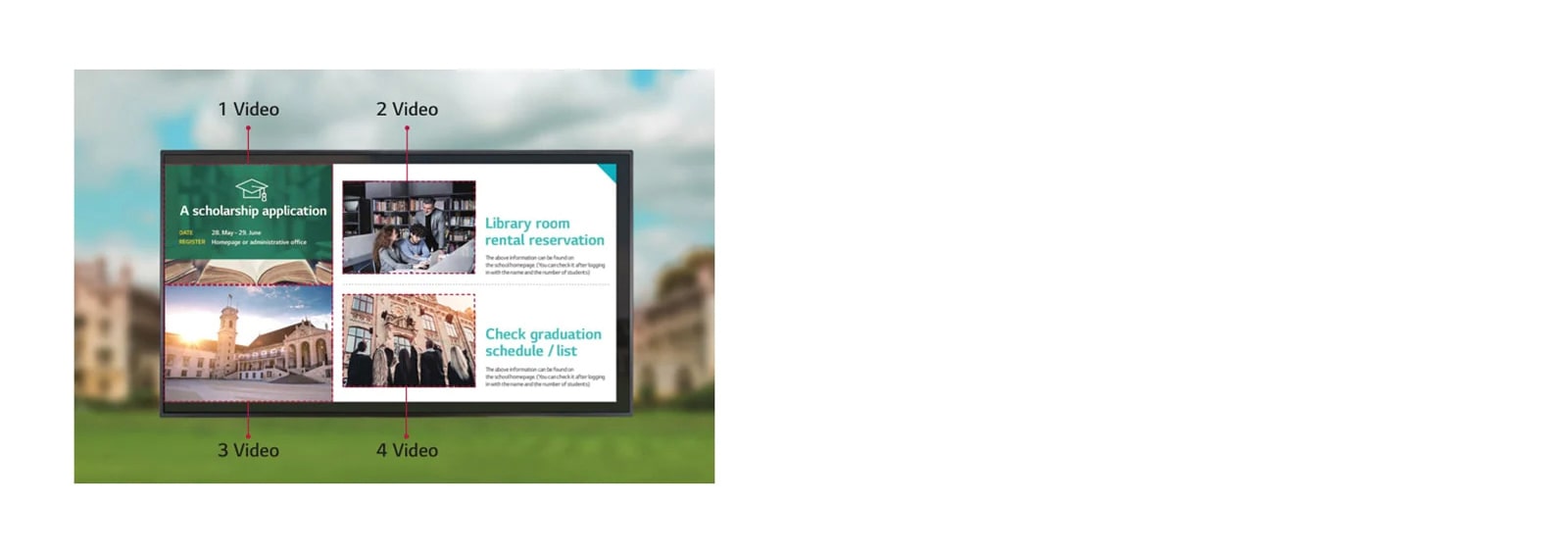

  • Video Tag
    O (4)
    Play via URL
    O
  • Rotation
    O (Screen Rotation, External Input Rotation)
    Gapless Playback
    O
  • Tile Mode Setting
    O (Max. 15x15)
    Setting Data Cloning
    O (RS-232C, Network, USB)
  • SNMP
    O
    ISM Mode
    (Image Sticking Minimization)
    O
  • Status Mailing
    O
    Power Mgmt.
    Wake on LAN
  • Beacon
    O
    HDMI-CEC
    O *Compatibility may differ by equipment.
  • SI Server Setting
    O
    webRTC
    O
Environment Conditions
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
Power
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
Power Consumption
  • Typ./Max
    23 W / 27 W
Certification
  • Safety
    CB/ NRTL
    EMC
    FCC Class "A"/CE
Software Compatibility
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control/Control+
Accessory
  • Basic
    Remote Controller, Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender
  • Dimension
    • [Dimension] wp401_dimension.dwg
    • [Dimension] wp401_dimension.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
