LAA015F
All-in-one Premium Series
  • Pixel Pitch: 1.5mm
  • Screen Size: 130"
  • Brightness: 500 cd/m²
  • HDR (HDR10/HDR10 Pro) / Surface Sound
  • Embedded System Controller
All-in-one Premium Series
MSRP $

130" Large Screen with No Bezel

The greatest advantage of LG's LED screen is the 130-inch large-sized screen with no bezel. Even bigger than four 55-inch conventional LCD displays combined, it displays content without lines or distortions and provides a more immersive visual experience.
130" Large Screen with No Bezel5 130" Large Screen with No Bezel6

Vivid Color Expression Powered by HDR

With HDR (HDR10, HDR10 Pro*) support, content becomes more vivid and has greater visual impact. The wider color spectrum and greater contrast ratio allows viewers to fully enjoy content as it appears in real life.
Vivid Color Expression Powered by HDR5 Vivid Color Expression Powered by HDR6
* HDR10 Pro is LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping.

Immersive Surface Sound

The 130" All-in-one LED Screen doesn't require any additional speakers for its impactful audio effect. Its embedded Surface Sound comes from the entire screen with 162W (4.5W x 36points) and is able to reach all meeting attendees, including people seated far from the screen.
Immersive Surface Sound5 Immersive Surface Sound6

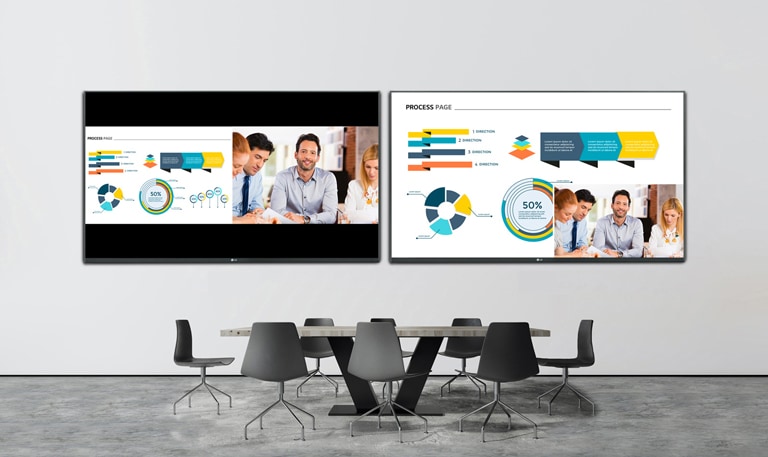

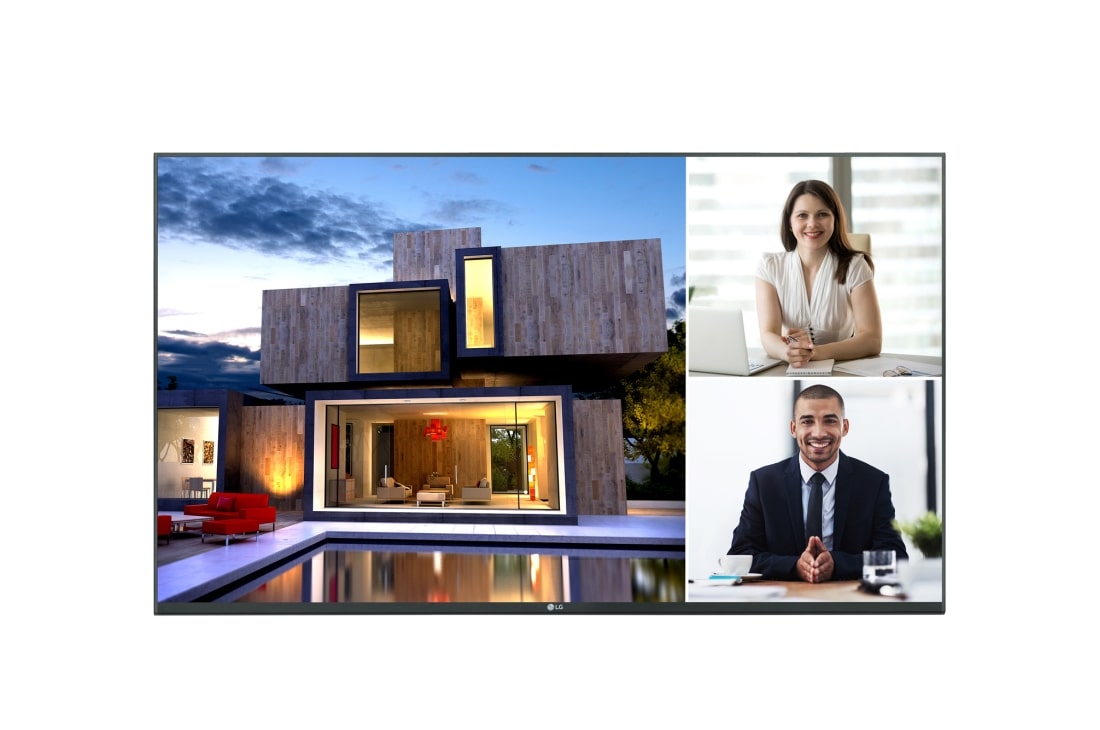

Multi Screen with PBP/PIP

PBP (Picture-By-Picture) features multi screen in a single display with upto 2 input sources while PIP (Picture-In-Picture) supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content source.
Multi Screen with PBP/PIP1 Multi Screen with PBP/PIP2
iF DESIGN AWARD 2020 Winner

iF DESIGN AWARD 2020 Winner

iF DESIGN AWARD 2020 Winner

Red Dot Design Award 2020

Physical Parameter

  • Pixel Configuration
    3 in 1 SMD
    Pixel Pitch (mm)
    1.50
  • Screen Resolution (W × H)
    1,920 × 1,080
    Screen Dimension (W × H × D,mm)
    2,880 × 1,620 × 128.5 mm (w / o Screen Frame)
  • Screen Weight (kg)
    162.1 kg (w / o Screen Frame)
    No. of Cabinet per Screen (W × H)
    3 × 3
  • No. of Modules per Cabinet (W × H)
    4 × 3
    Cabinet Resolution (W × H)
    640 × 360
  • Cabinet Dimensions (W × H × D)
    960 × 540 × 128.5 mm
    Cabinet Surface Area (m²)
    0.52
  • Weight per Cabinet (kg/unit)
    Main: 19.3
    Secondary: 17.8
    Weight per Square Meter (kg/m²)
    34.7
  • Physical Pixel Density (pixels/m²)
    444,444
    Flatness of Cabinet
    ± 0.2 mm
  • Cabinet Material
    Front: Die Casting Aluminum
    Rear: PC+ABS

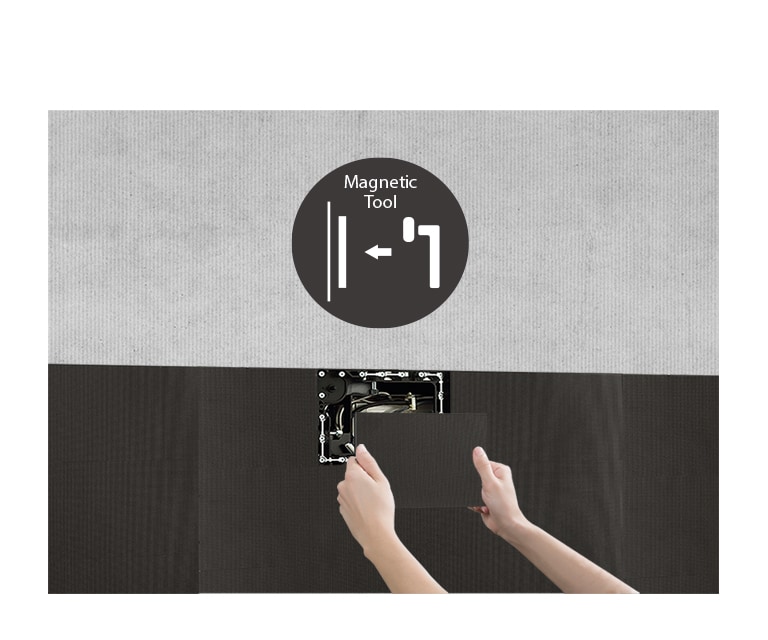

    Service Access
    Front and Rear

Optical Parameter

  • Brightness (Max.)
    500 nit
    Color Temperature
    6,500
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    140
  • Brightness Uniformity
    95%
    Color Uniformity
    ±0.015Cx,Cy
  • Contrast Ratio
    5,000 : 1
    Processing Depth
    16 bit
  • HDR Compatibility
    HDR10, HDR10 Pro
    ※ HDR10 Pro is LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping.

Electrical Parameter

  • Power Consumption (W/Screen, Max.)
    2,900
    Power Consumption (W/Screen, Avg.)
    980
  • Power Consumption (W/m², Max.)
    622
    Power Supply (V)
    AC 100 - 240 V
  • Frame Rate (Hz)
    50 / 60
    Refresh Rate (Hz)
    3,840
  • Sound Output (Max.)
    162W

Operation Conditions

  • Lifetime (Hours to Half Brightness)
    100,000
    Operating Temperature (°C)
    0°C to 40°C
  • Operating Humidity
    10 % to 80 %

Connectivity(Embedded Controller)

  • Video Inputs
    HDMI In (3), DP In, USB 2.0
    Control
    RJ45 In, RS232C In/out
  • Special Features

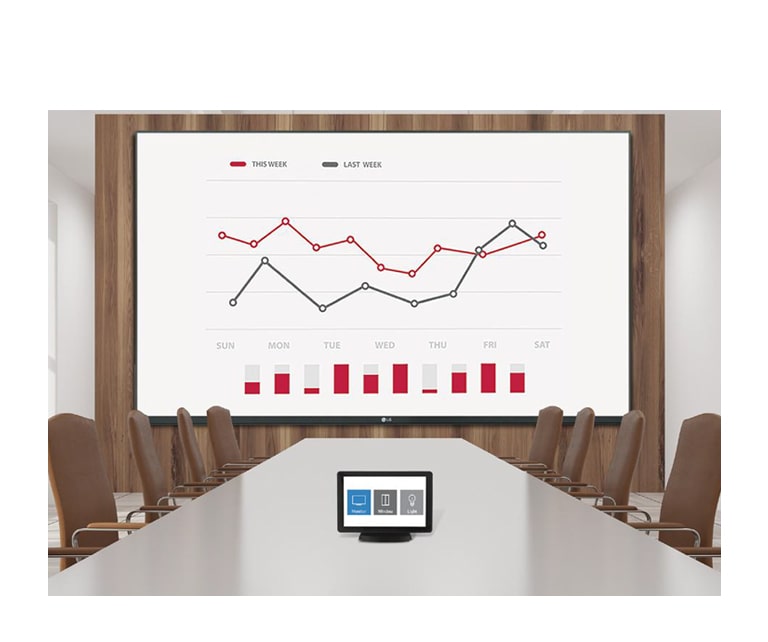

    Temperature Sensor, Ambient Light Sensor, Crestron Connected®(Network based control)

Certification

  • Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1
    EMC
    FCC Class A / CE / KC
  • Environment
    RoHS

Accessory

  • Basic
    Data Cable, LAN Cable, Power Cord, RS232C Gender (9 Pin to Phone Jack), Remote Controller, IR Receiver, Manual
    Optional
    Screen Frame (ACC-LAASF15), Floor Stand (ST-1300F)

SW

  • Platform
    webOS 4.0
    Support

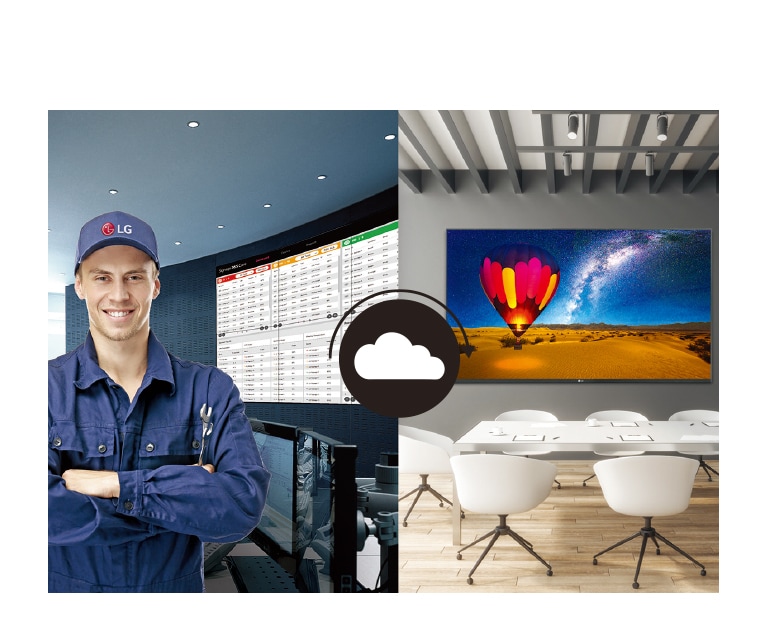

    Signage365Care (The availability differs by region), SuperSign CMS, LED Assistant

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
