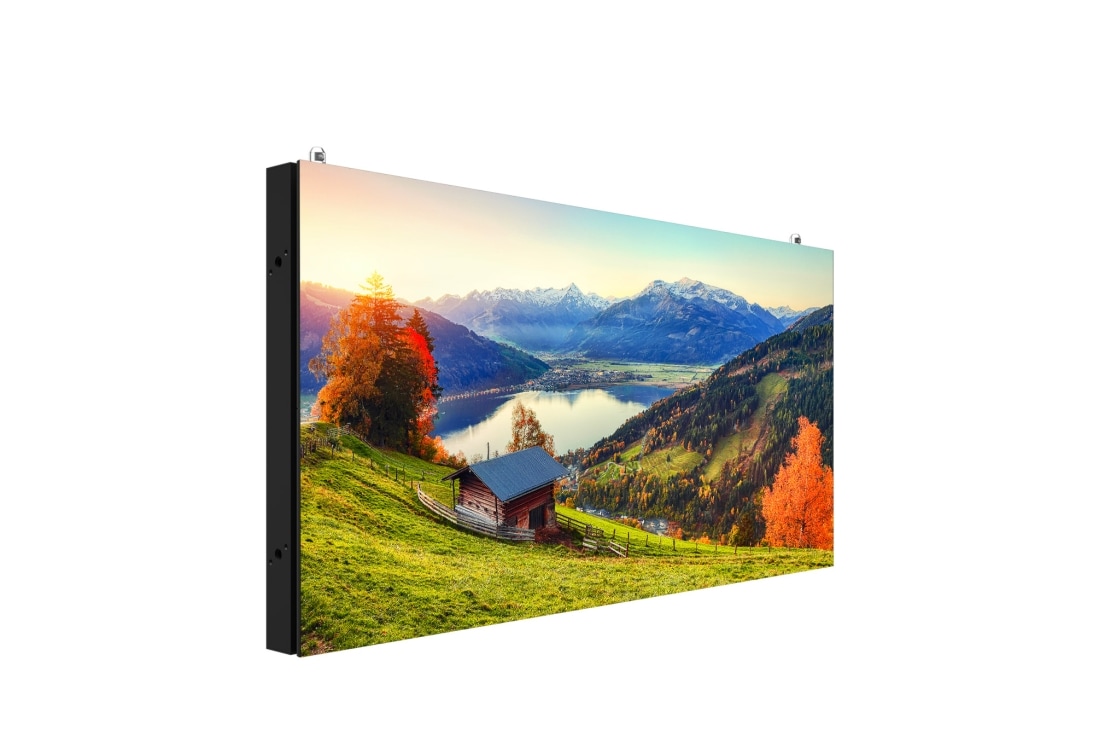

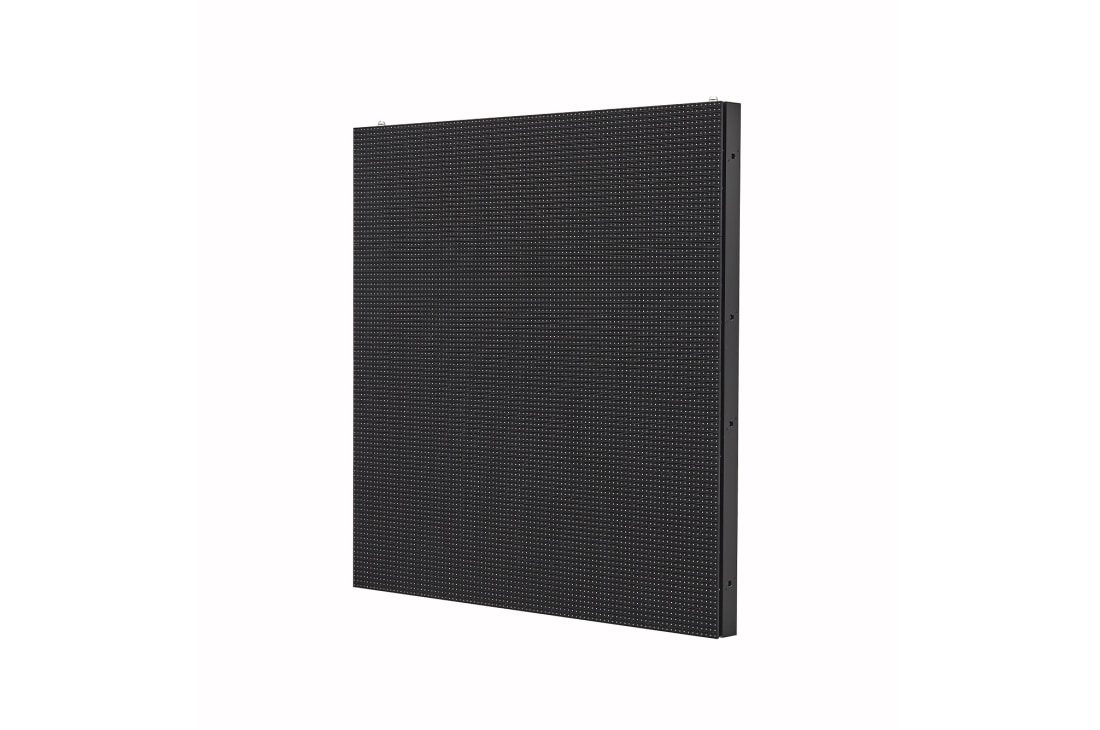

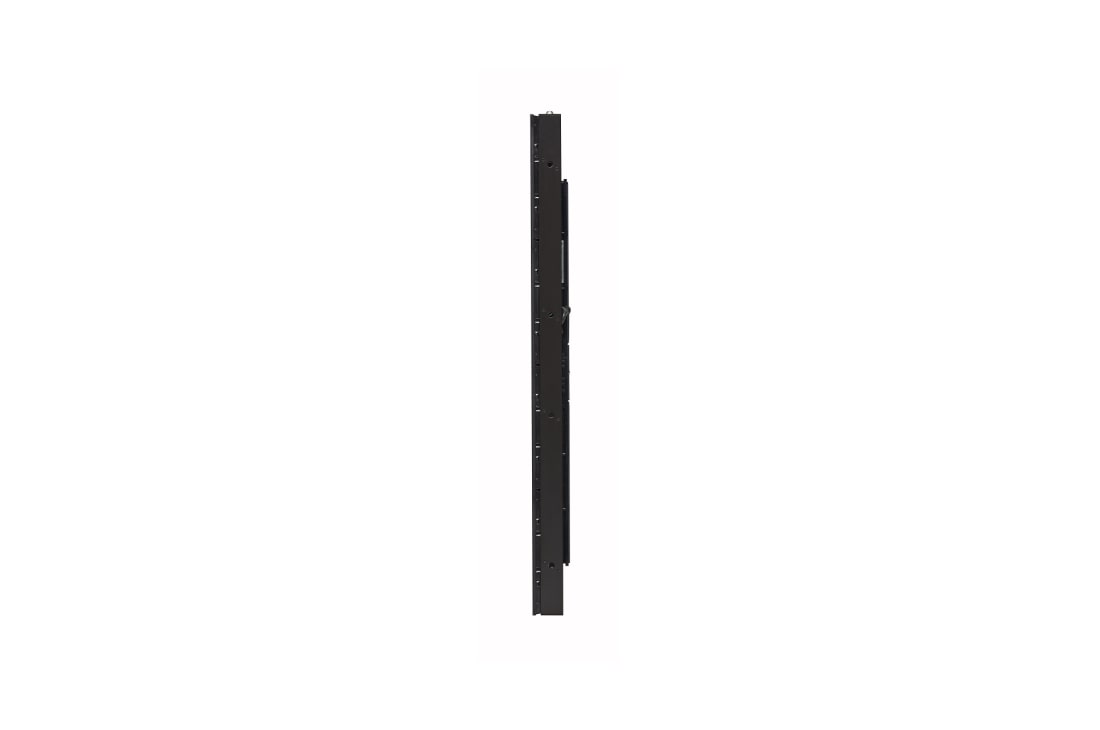

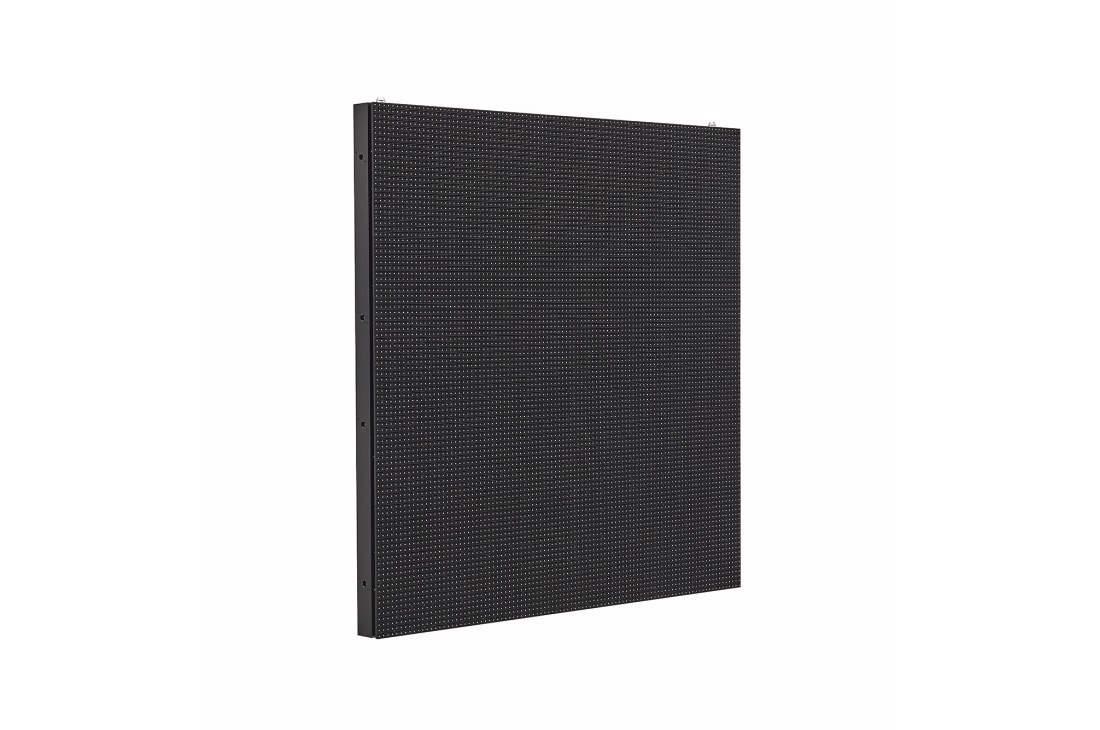

GSCD100
Ultra Light Series
  • Pixel Pitch: 10.41mm
  • Brightness: 5,000/7,000 cd/m² (GN/GR Series)
  • Lightweight Design

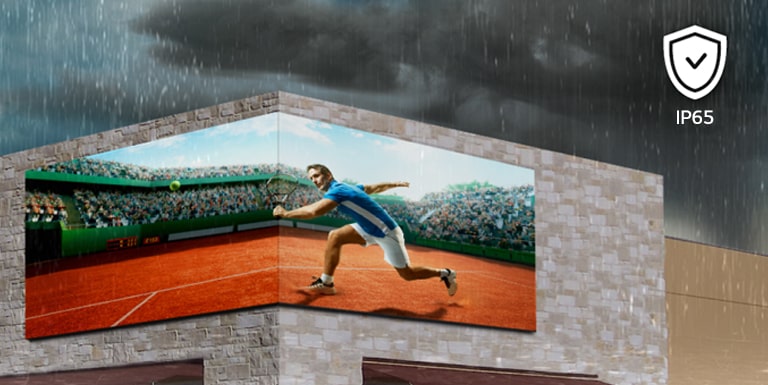

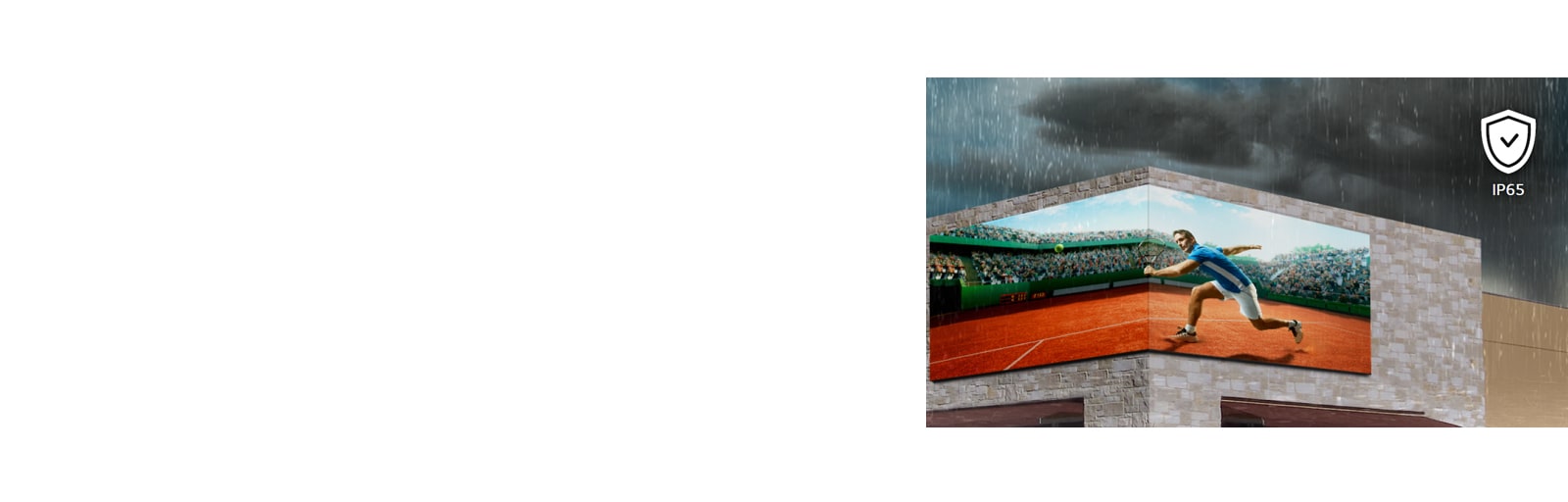

  • IP65 Weatherproof Design
  • 90º Corner Option Available

component-OBScountrySelectDesc

Ultra Light Series

GSCD Ultra Light Series

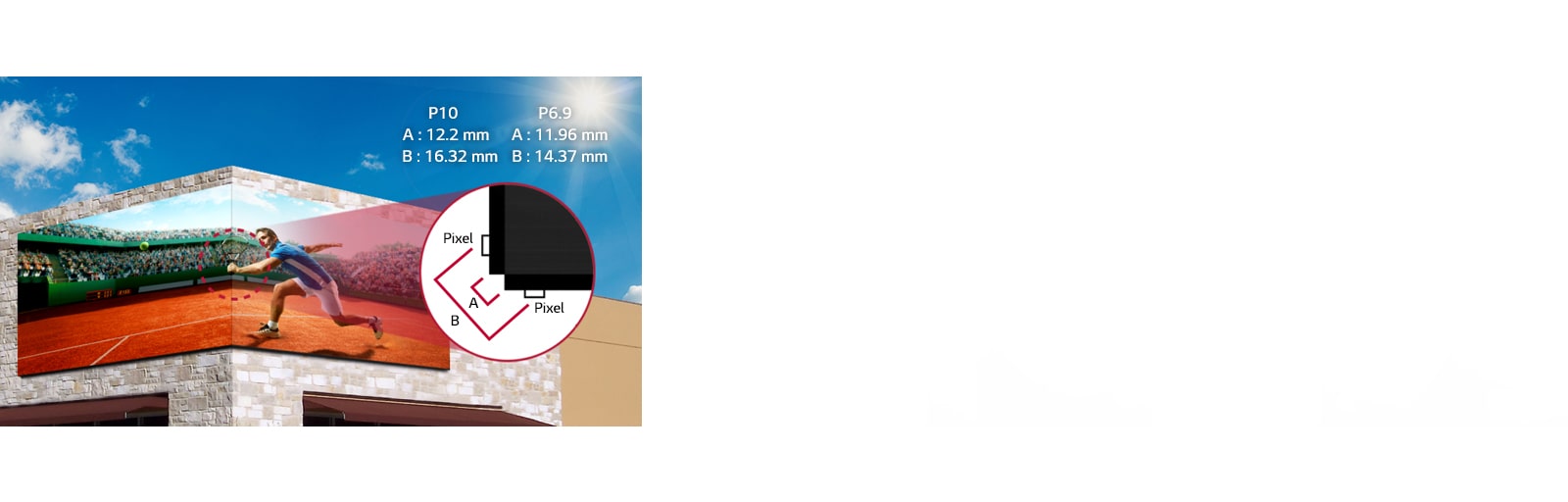

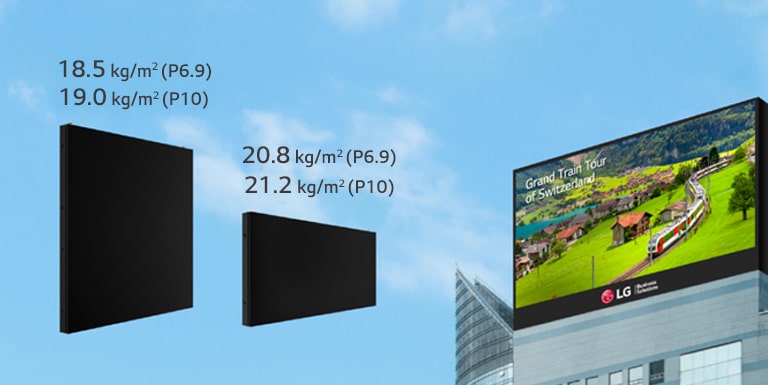

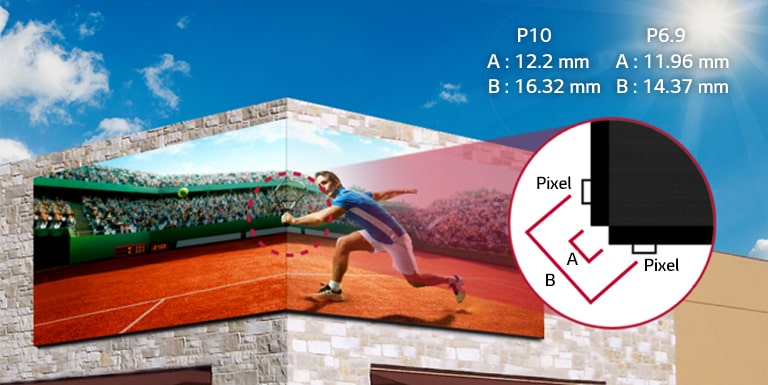

With a lightweight design, the Ultra Light Series can be easily composed of a large screen without providing heavy load to the installing structure. A 90° corner option is provided for seamless right-angled installation.

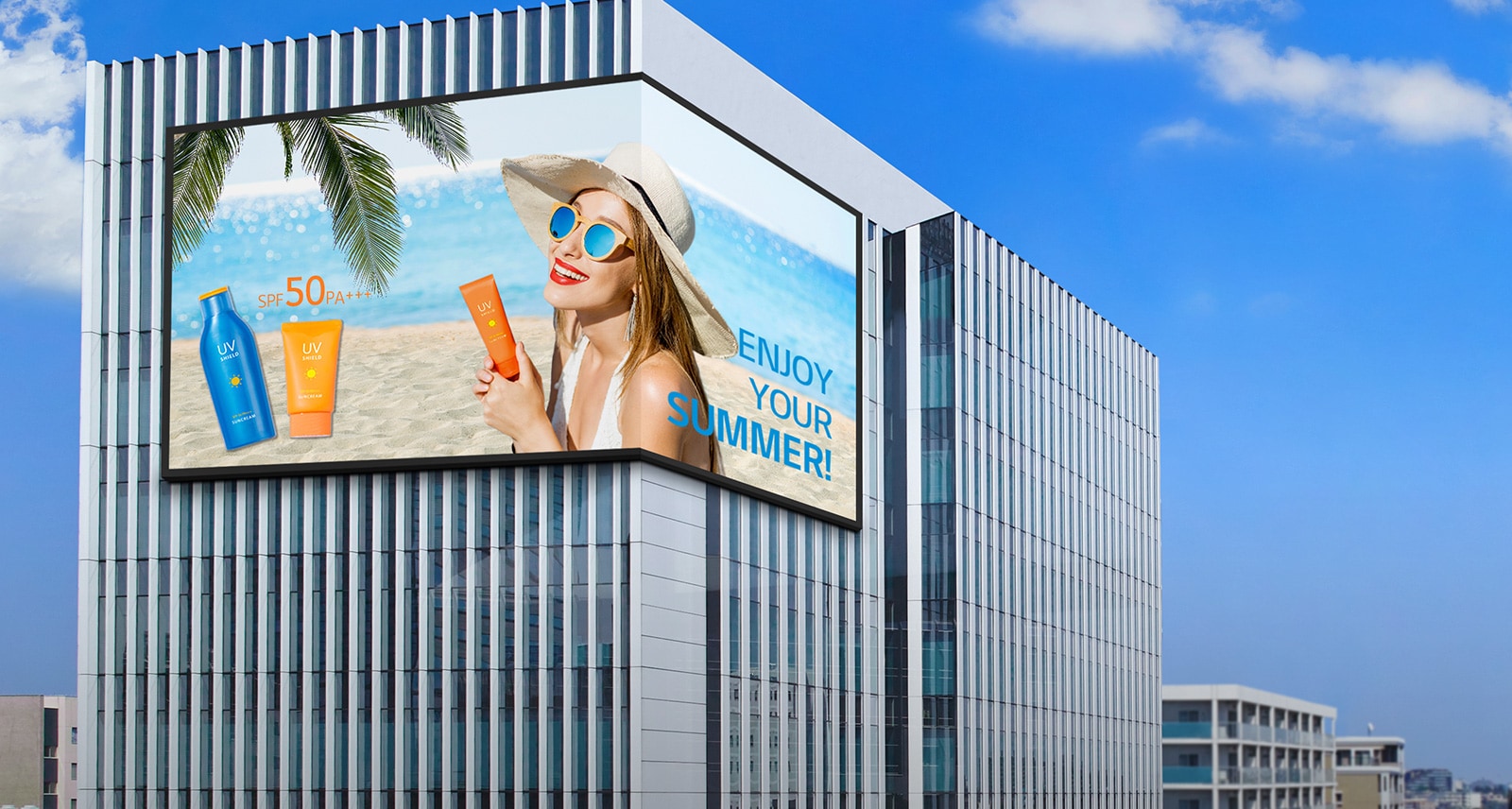

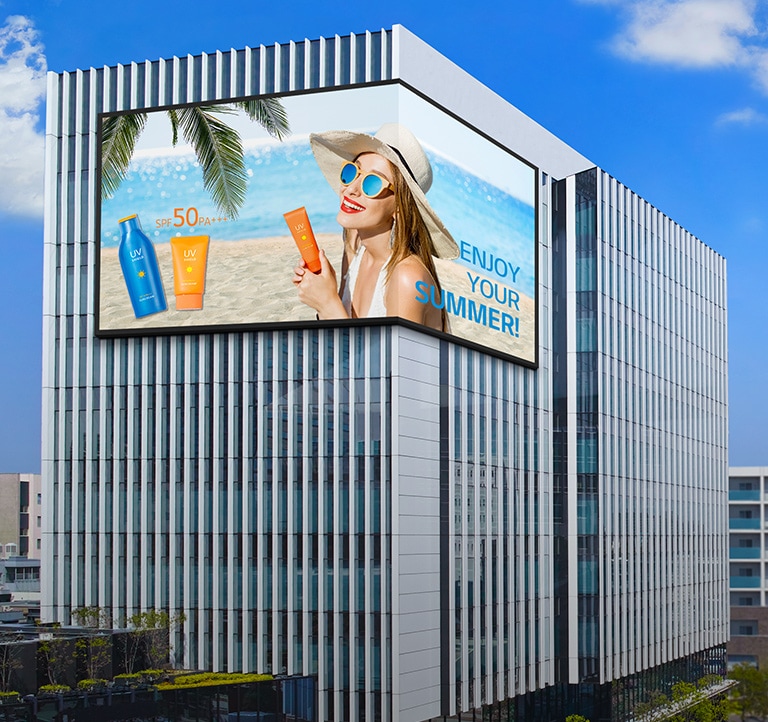

There is a screen installed on the corner of the building. There is a screen installed on the corner of the building.
* GSCD100-GR series only
* Require purchase of 90° corner installable model.

Compatibility with
LG Software Solutions

Powered by LG’s high performance system controller, the GSCD series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.

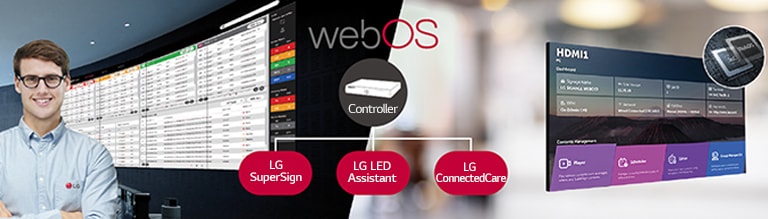

The LG employee is remotely monitoring the GSCD series installed in a different place by using a cloud-based LG monitoring solution. System controller with web OS enables GSCD series to be compatible with LG software solutions. The LG employee is remotely monitoring the GSCD series installed in a different place by using a cloud-based LG monitoring solution. System controller with web OS enables GSCD series to be compatible with LG software solutions.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)

Physical Parameter

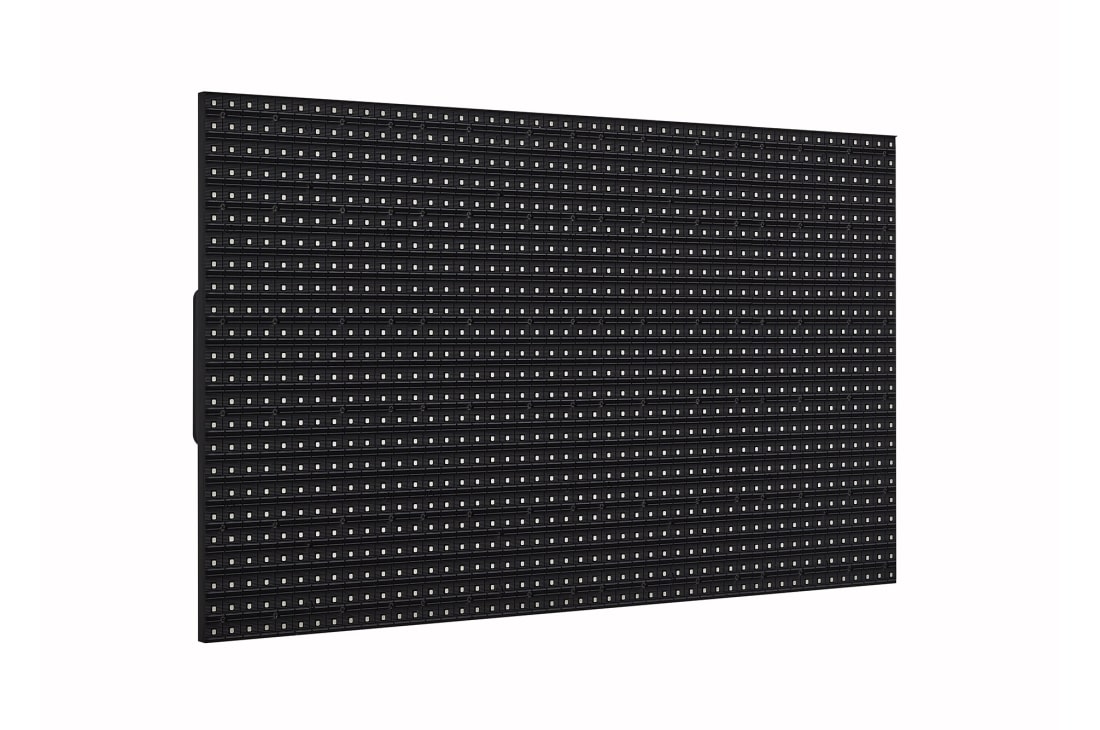

  • Pixel Configuration
    3 in 1 SMD
    Pixel Pitch (mm)
    10.41

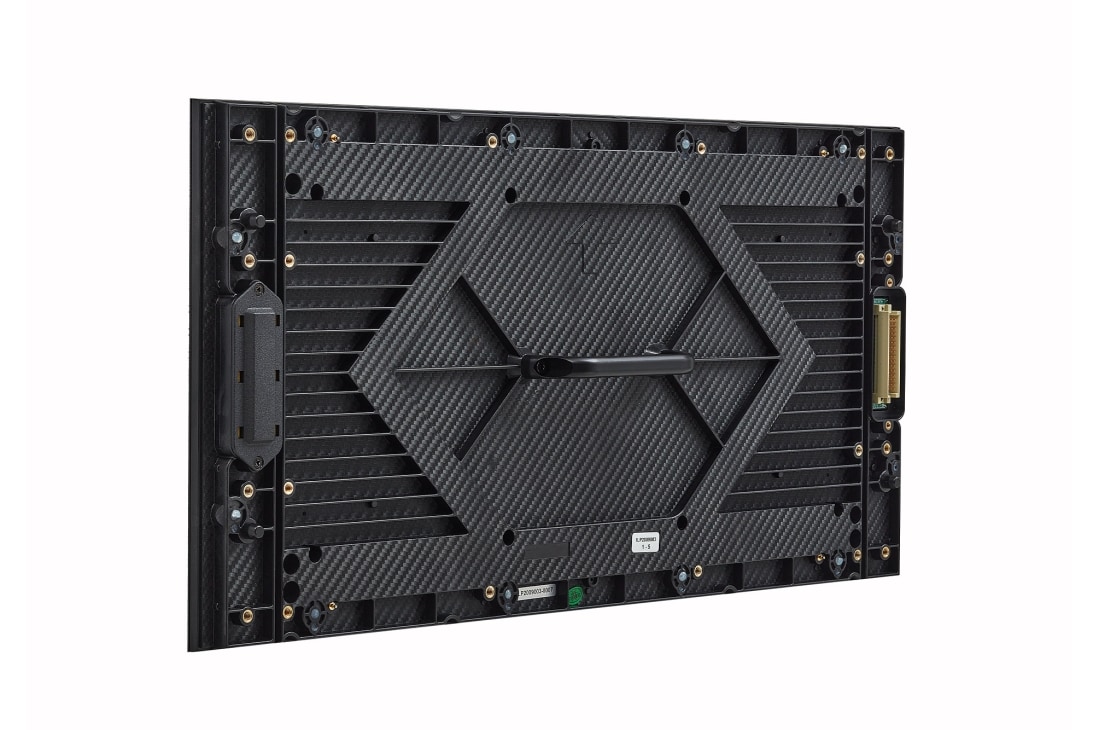

  • Module Resolution (W x H)
    48 × 24
    Module Dimensions (W x H, mm)
    500 × 250
  • Weight per Module (kg)
    1.30
    No. of Modules per Cabinet (W × H)
    2 × 4 / 2 × 2 (Half-sized)
  • Cabinet Resolution (W × H)
    96 × 96 / 96 × 48 (Half-sized)
    Cabinet Dimensions (W × H × D)
    1,000 × 1,000 × 85.1 mm / 1,000 × 500 × 85.1 mm (Half-sized)
  • Cabinet Surface Area (m²)
    1.000 / 0.500 (Half-sized)
    Weight per Cabinet (kg/cabinet)
    19.0 / 10.6 (Half-sized)
  • Weight per Square Meter (kg/m²)
    19.0 / 21.2 (Half-sized)
    Physical Pixel Density (pixels/m²)
    9,216
  • Flatness of Cabinet
    ±0.5 mm
    Cabinet Material
    Aluminum Profile

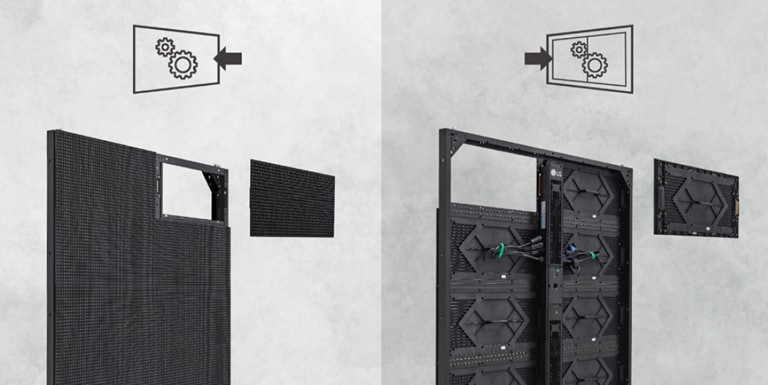

  • Service Access
    Front or Rear (One Option Only)

Optical Parameter

  • Max Brightness (After Calibration)
    5,000/7,000 cd/m² (GN/GR Series)
    Color Temperature
    3,200-9,300 (K)
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    136
  • Brightness Uniformity
    97%
    Color Uniformity
    ± 0.003 Cx,Cy
  • Contrast Ratio
    10,000
    Processing Depth (bit)
    16

Electrical Parameter

  • Power Consumption (W/Cabinet, Max.)
    650 / 330 (Half-sized)
    Power Consumption (W/Cabinet, Avg.)
    216 / 110 (Half-sized)
  • Power Consumption (W/m², Max.)
    650 / 660 (Half-sized)
    Power Supply (V)
    100 to 240
  • Frame Rate (Hz)
    50 / 60
    Refresh Rate (Hz)
    3,840

Operation Conditions

  • Lifetime (Hours to Half Brightness)
    100,000
    Operating Temperature (°C)
    -30°C to +50°C
  • Operating Humidity
    10-99%RH
    IP rating Front / Rear
    IP65 / IP65

Controller(CVCA)

  • Connectivity - Input
    HDMI (HDCP 2.2), DP (HDCP 2.2, HDCP 1.4), OPS, USB 2.0
    Connectivity - Output
    Gigabit Ethernet × 16, RS-232C In/Out (4 Pin Phone-jack)
  • Connectivity - Control
    RJ45 In (LAN)
    Video - Resolution
    3,840 × 2,160 @ 60Hz
  • Video - Format
    RGB / YCbCr4:4:4 / YCbCr4:2:2
    Feature
    8 GB (System 4 GB + Available 3.6 GB), Temperature Sensor, Local Key Operation, Signal Redundancy, HDR10
  • Software - Platform
    webOS 4.0 w / Open API Support
    Software - Setup and Maintenance
    LG LED Assistant
  • Software - Content Management
    LG SuperSign CMS
    Software - Cloud Monitoring
    LG ConnectedCare
  • Physical Specs - Dimensions (W × H × D, mm)
    443 × 63 × 307.5 → EIA Standard Rack (2U)
    Physical Specs - Weight (kg)
    4.9
  • Power Specs - Power Supply (V)
    AC 100-240 V, 50/60 Hz
    Power Specs - Power Type
    Built-in Power
  • Power Specs - Power Consumption (W)
    50 (Max.)
    Environmental Conditions - Operation Temperature
    0°C to 40°C
  • Environmental Conditions - Operation Humidity
    10% to 80%
    Certifications - Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1
  • Certifications - EMC
    FCC Class "A" / CE / KC
  • Dimension
    • (2D Drawing)LG GSCD100-GN.dwg
    • (2D Drawing)LG GSCD100-GN2.dwg
    • (2D Drawing)LG GSCD100-GN.pdf
    • (2D Drawing)LG GSCD100-GN2.pdf
  • Datasheet
    • GSCD Series_Datasheet(low)_LG Ultra Light LED Signage_210730.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
