LAC025DD4 component-copyModelName

Curved Series

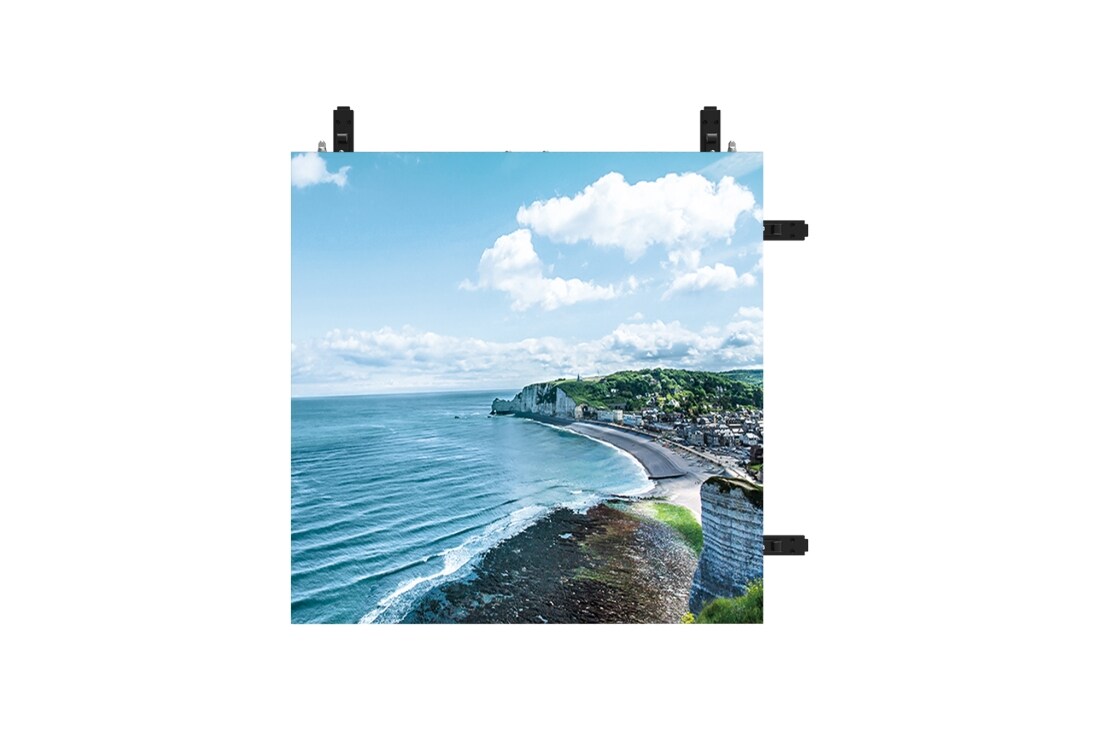

LG Curved Series, Front view with infill image, LAC025DD4, thumbnail 1

LG Curved Series, Front view, LAC025DD4, thumbnail 2

LG Curved Series, -45 degree side view, LAC025DD4, thumbnail 3

LG Curved Series, +90 degree Side view, LAC025DD4, thumbnail 4

LG Curved Series, +45 degree side view, LAC025DD4, thumbnail 5

LG Curved Series, Rear view, LAC025DD4, thumbnail 6

LG Curved Series, -45 degree rear view, LAC025DD4, thumbnail 7

LG Curved Series, +45 degree rear view, LAC025DD4, thumbnail 8

LG Curved Series, Rear top view, LAC025DD4, thumbnail 9

Discontinued

LAC025DD4 component-copyModelName

Curved Series

Key Features

Pixel Pitch: 2.5mm
1,200nit High Brightness
Design Flexibility
IP30 Secured Design

Choose your Pitch

Inquiry to Buy

Add to Compare

component-OBScountrySelectDesc

Key Features

Pixel Pitch: 2.5mm
1,200nit High Brightness
Design Flexibility
IP30 Secured Design

Choose your Pitch

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Curved Series

Design Flexibility

Each unit case can be adjusted up to 20 degrees with five angles and supports a curvature of up to 1,430 R, offering a truly curved design. Only 18 panels are needed to build a circular screen with a diameter of 2.864 m.

1,200nit High Brightness

Installed in a large venue with natural or indoor lighting, this high-brightness product immediately captures the audience’s attention and effectively delivers your message.

IP30 Secured Design

Despite being built for indoor use, this IP30-rated product offers extraordinary durability. IP30 offers ingress protection from solids that are Φ2.5mm or larger (e.g., screws) for the LED unit case.

Attachable Power and Control Modules

Power and control modules attached to the unit cases can be removed easily, making it easy to fix problems that may arise.

Simple Magnetic Connection

Magnetic connection is applied for fastening and easy service with positioning pin between two units.

Uniform Picture Quality

Every step from production is strictly managed, while factory calibration ensures consistent quality between the LED units. The display provides seamless content with 97％ brightness uniformity.

Vividness with Color Accuracy

LG’s rigorous quality standards also make LG LED signage reproduce accurate colors, vividly displaying the original colors of objects without distortion.

RoHS Certified Safe Product

Boasting RoHS certification, all LG LED signage models are environmentally-friendly products that do not use materials harmful to the environment and people.

Physical Parameters

Pixel Configuration

3 in 1 SMD

Pixel Pitch (mm)

2.50
Module Resolution (W x H)

200 × 50

Module Dimensions (W x H, mm)

500 × 125
Weight per Module (kg)

1.00

No. of Modules per Cabinet (W × H)

1 × 4
Cabinet Resolution (W × H)

200 × 200

Cabinet Dimensions (W × H × D)

500 × 500 × 84
Cabinet Surface Area (m²)

0.250

Weight per Cabinet (kg/cabinet)

8.9
Weight per Square Meter (kg/m²)

35.6

Physical Pixel Density (pixels/m²)

160,000
Flatness of Cabinet

± 0.3 mm

Cabinet Material

Die-casting Aluminum
Service Access

Rear

Optical Parameter

Min. Brightness (After Calibration)

1,200

Color Temperature

3,500 ~ 9,000
Visual Viewing Angle (Horizontal)

160

Visual Viewing Angle (Vertical)

160
Brightness Uniformity

97%

Color Uniformity

± 0.003 Cx,Cy
Contrast Ratio

5,000

Processing Depth (bit)

14

Electrical Parameter

Power Consumption (W/Cabinet, Max.)

150

Power Consumption (W/Cabinet, Avg.)

50
Power Consumption (W/m², Max.)

600

Heat Dissipation (BTU/h/Cabinet, Max.)

512
Heat Dissipation (BTU/h/Cabinet, Avg.)

171

Heat Dissipation (BTU/h/m², Max.)

2,047
Power Supply (V)

100 to 240

Frame Rate (Hz)

50 / 60
Refresh Rate (Hz)

1,920

Operation Conditions

Lifetime (Hours to Half Brightness)

100,000

Operating Temperature (°C)

-10° to +45°
Operating Humidity

0 - 80 % RH

IP Rating Front

IP30
IP Rating Rear

IP30

Certification

Certification

CE,FCC,ETL

Environment

Environment

RoHS

Controller

Controller

LCIN006

Dimension
- (2D Drawing)LG LAC0xxDDn-series.dwg
- (2D Drawing)LG LAC0xxDDn-series.pdf
Datasheet
- LG Curved LED_LAC series_Datasheet(web)_2008.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
