LSCB025
Ultra Slim Series
  • Pixel Pitch: 2.50mm
  • Brightness: 800cd/m²
  • Ultra Slim Depth
  • EMC Class B, BS 476 Part7 Class 1

component-OBScountrySelectDesc

Ultra Slim Series

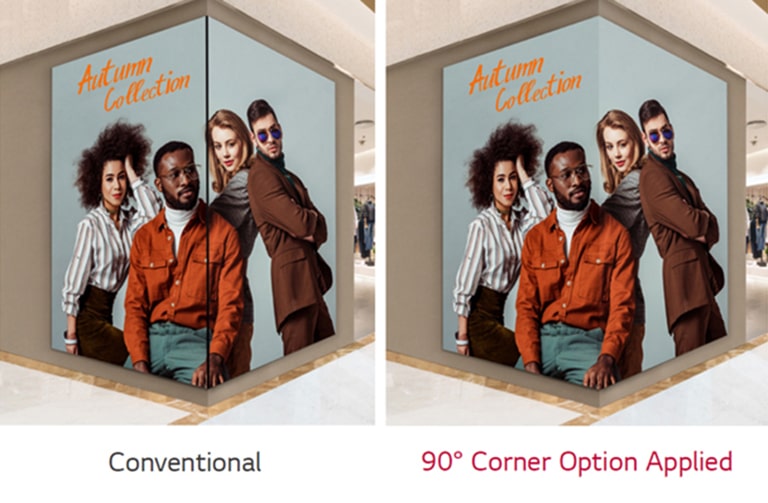

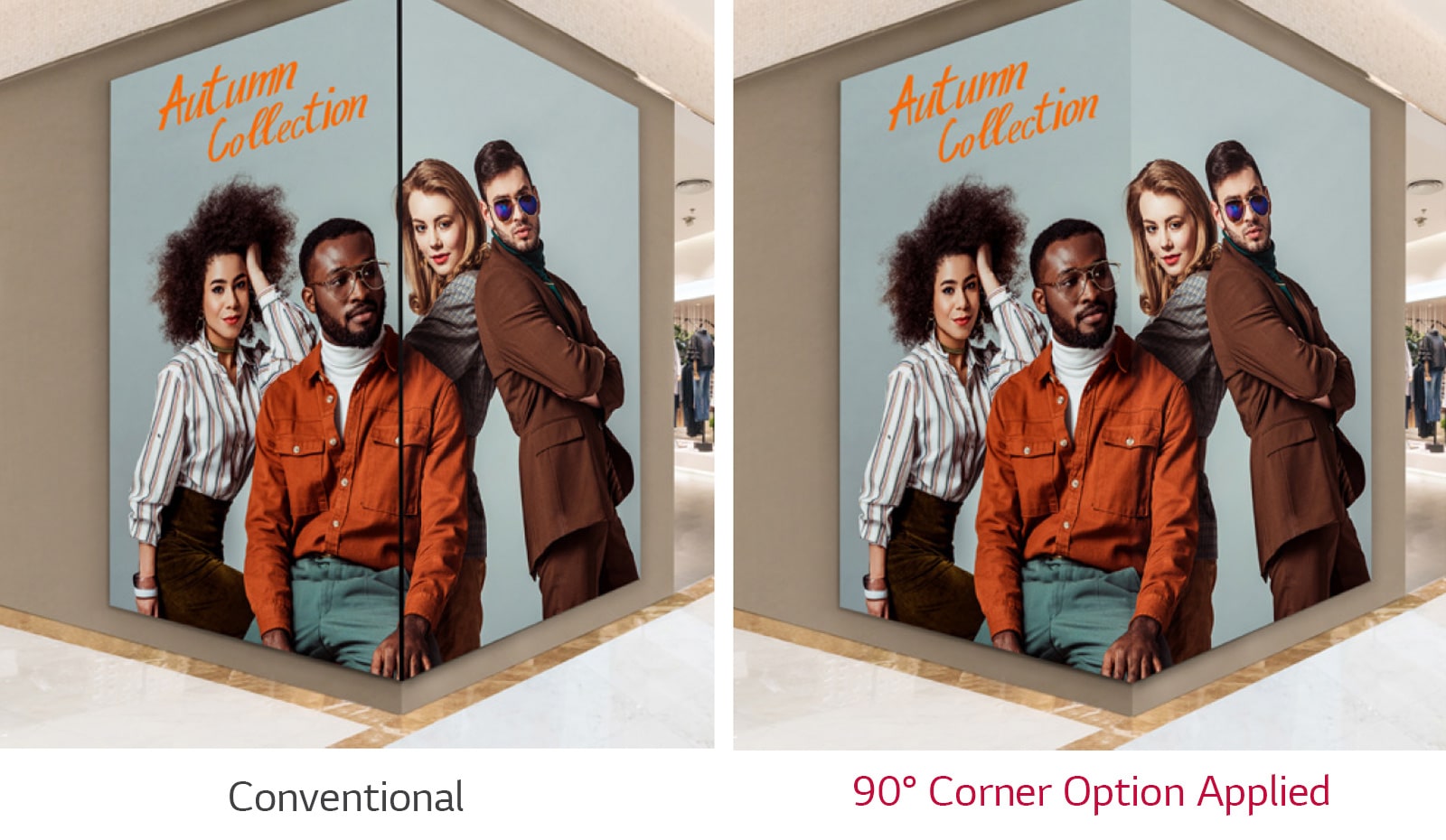

90° Corner Design Available

If you add 90°corner option, the LSCB series fits naturally into the space and delivers smooth content to customers.
The content with the 90° Corner Option is shown without any interruptions even when installed on a corner. The content with the 90° Corner Option is shown without any interruptions even when installed on a corner.

Compatibility with
LG Software Solutions

When connected with LG's CVCA system controller, the LSCB series is compatible with LG software solutions including SuperSignCMS, LED Assistant, and ConnectedCare, which help customers operate their own business deftly.
An LG service man is monitoring the status of the LED screen through the LG webOS controller and software solutions. An LG service man is monitoring the status of the LED screen through the LG webOS controller and software solutions.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare: Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)

Flexible Curve LED Display

The LSCB-CKF, a specially-designed flexible curved LED display, supports true concave and convex curvatures up to 383 mm*. This greatly enhances the design’s flexibility, which allows users to freely create the curved screen as they want.
Both walls of the indoor hallway are curved, and LEDs are installed along the entire wall. Both walls of the indoor hallway are curved, and LEDs are installed along the entire wall.
* Applied to the LSCB15-CKF, LSCB18-CKF, and LSCB25-CKF models only. The LSCB12-CKF supports curvatures of up to 1,720 mm.

Physical Parameter

  • Pixel Configuration
    3 in 1
    Pixel Pitch (mm)
    2.500
  • Module Resolution (W x H)
    120 × 135
    Module Dimensions (W x H, mm)
    300 × 337.5
  • Weight per Module (kg)
    0.64 (-RK,-CK)/ 1.40 (-CKF)
    No. of Modules per Cabinet (W × H)
    2x2 (-RK)/ 1x2 (-CK,-CKF)
  • Cabinet Resolution (W × H)
    240x135 (-RK)/ 120x135 (-CK, -CKF)
    Cabinet Dimensions (W × H × D)
    600x337.5x34 (-RK)/
    300x337.5x29.7 (-CK)/
    300x337.5x35.6 (-CKF, Cabinet Mounting Depth)
  • Cabinet Surface Area (m²)
    0.203 (-RK)/ 0.101 (-CK, -CKF)
    Weight per Cabinet (kg/unit)
    5.3 (-RK)/ 4.0 (-CK)/
    3.1 (-CKF, Weight Changes for Different Curves)
  • Weight per Square Meter (kg/m²)
    26.2 (-RK)/ 39.0 (-CK)/ 30.6 (-CKF)
    Physical Pixel Density (pixels/m²)
    160,000
  • Flatness of Cabinet
    ± 0.1 mm
    Cabinet Material
    Die-casting Aluminum (-RK)/
    Aluminum Machine (-CK, CKF)
  • Service Access
    Front

Optical Parameter

  • Max Brightness (After Calibration)
    800
    Color Temperature
    3,200-9,300 (K)
  • Visual Viewing Angle (H×V)
    160 × 160
    Brightness Uniformity
    97%
  • Color Uniformity
    ± 0.003 Cx,Cy
    Contrast Ratio
    5,000 : 1
  • Processing Depth (bit)
    14 (HDR10, HDR10 Pro)

Electrical Parameter

  • Power Consumption (W/Cabinet, Max.)
    100 (-RK)/ 55 (-CK, -CKF)
    Power Consumption (W/Cabinet, Avg.)
    34 (-RK)/ 18 (-CK, CKF)
  • Power Consumption (W/m², Max.)
    494 (-RK)/ 543 (-CK, -CKF)
    Power Supply (V)
    100 to 240
  • Frame Rate (Hz)
    50 / 60
    Refresh Rate (Hz)
    3,840

Operation Conditions

  • Lifetime (Hours to Half Brightness)
    100,000
    Operating Temperature (°C)
    -10° to +45°
  • Operating Humidity
    0 - 80 % RH
    IP rating Front / Rear
    IP30 / IP30

Controller

  • Controller
    CVCA, LCIN006, LCIN008 (4K)

90 Degree Corner Cut

  • 90 Degree Corner Cut
    Yes
  • Dimension
    • LSCB0xx-CK-v1.2.dwg
    • LSCB0xx-CKF-v1.1.dwg
    • LSCB0xx-RK-v1.1.dwg
    • LSCB0xx-CK-v1.2.pdf
    • LSCB0xx-CKF-v1.1.pdf
    • LSCB0xx-RK-v1.1.pdf
  • Datasheet
    • LSCB Series_Datasheet(low)_LG Ultra Slim LED Signage_220216.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
