17HK701G-W

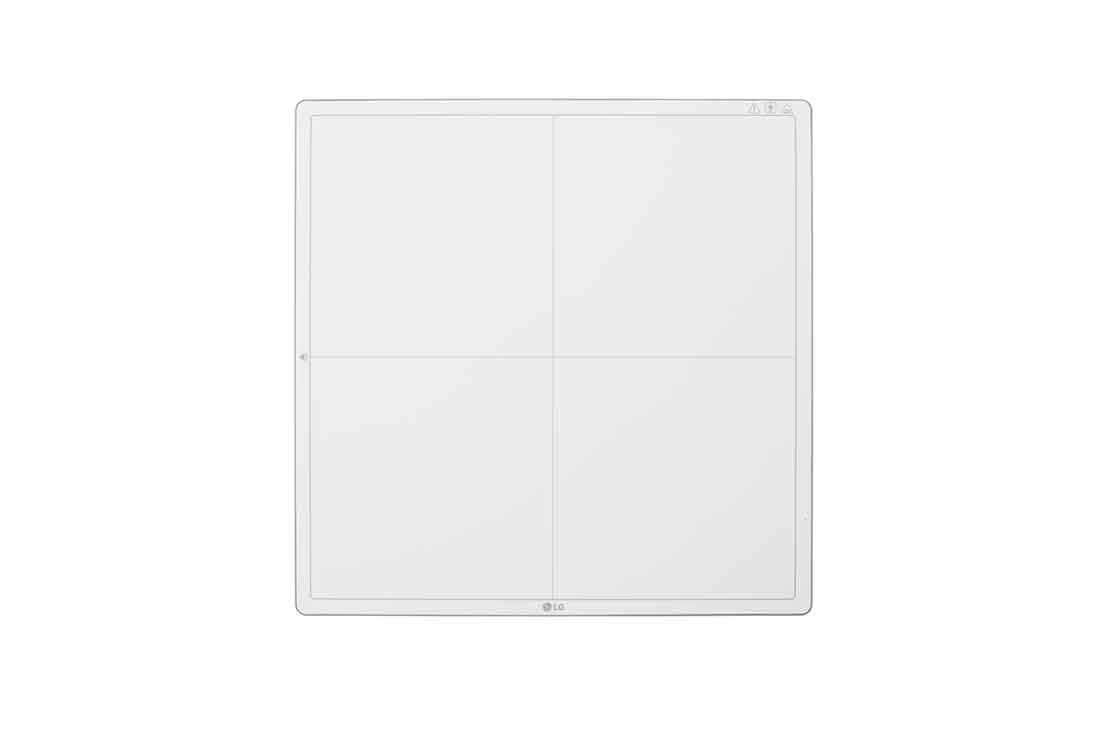

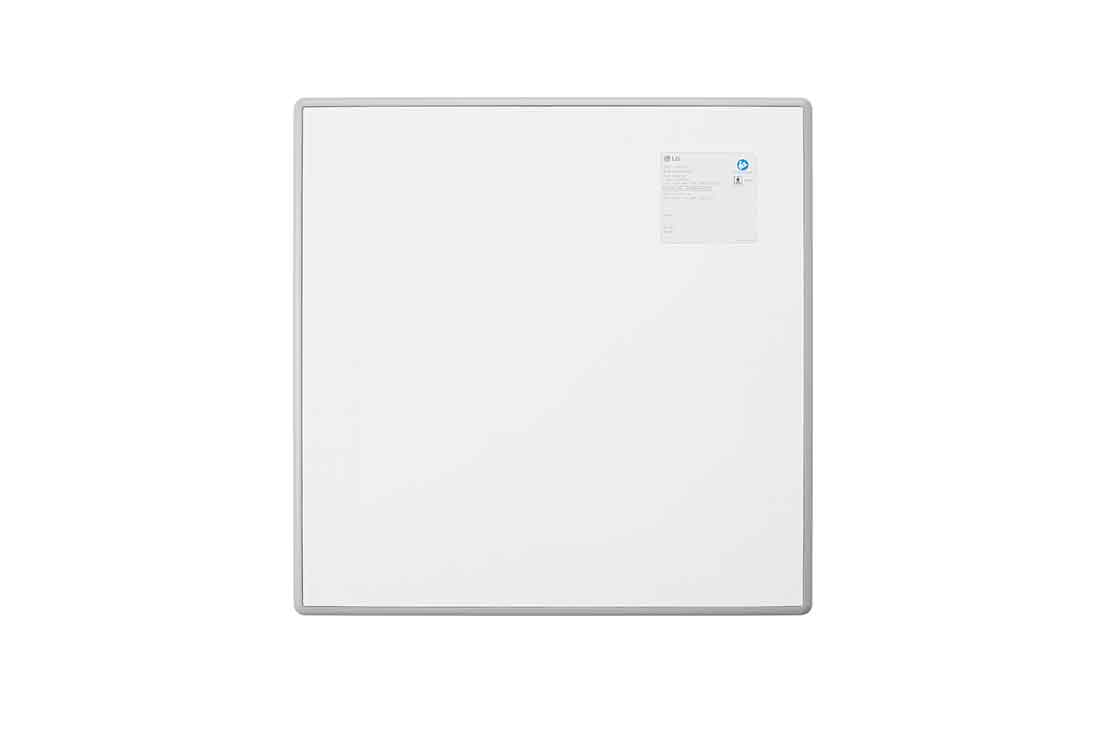

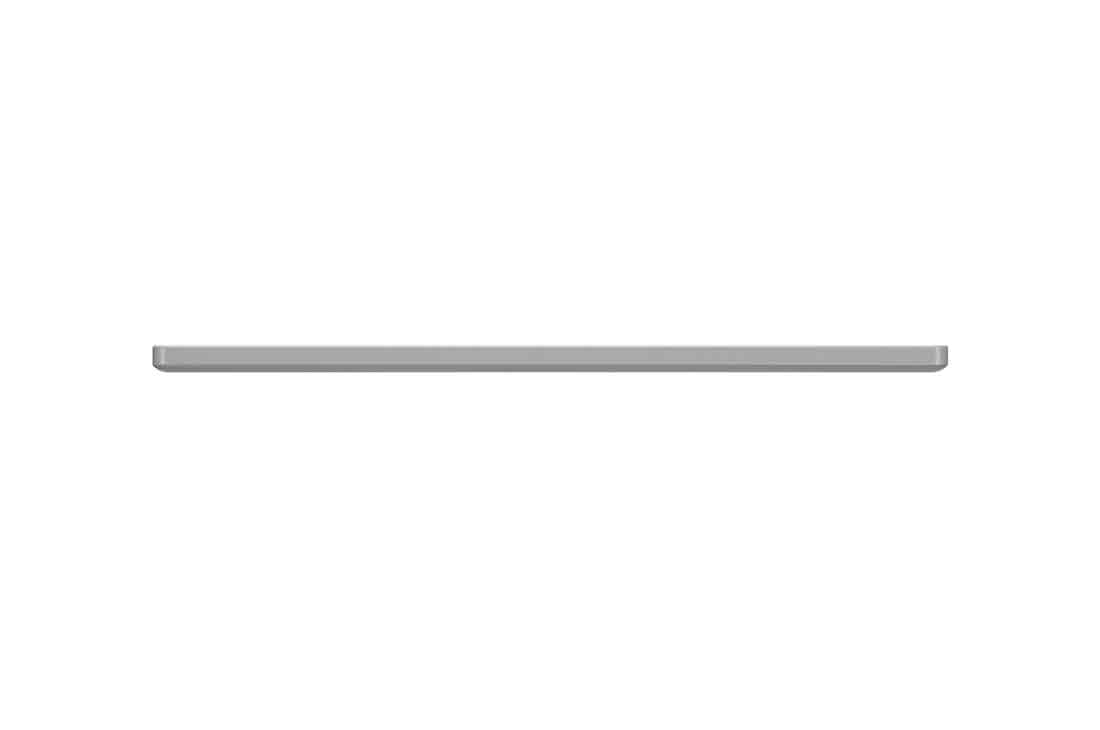

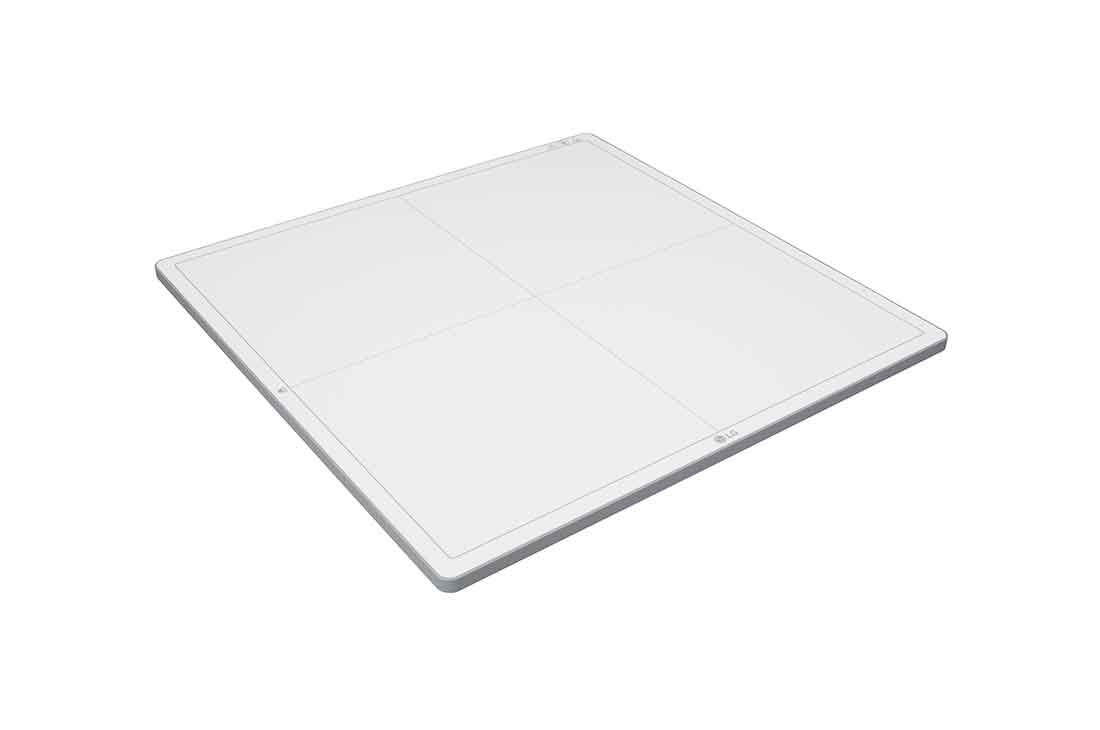

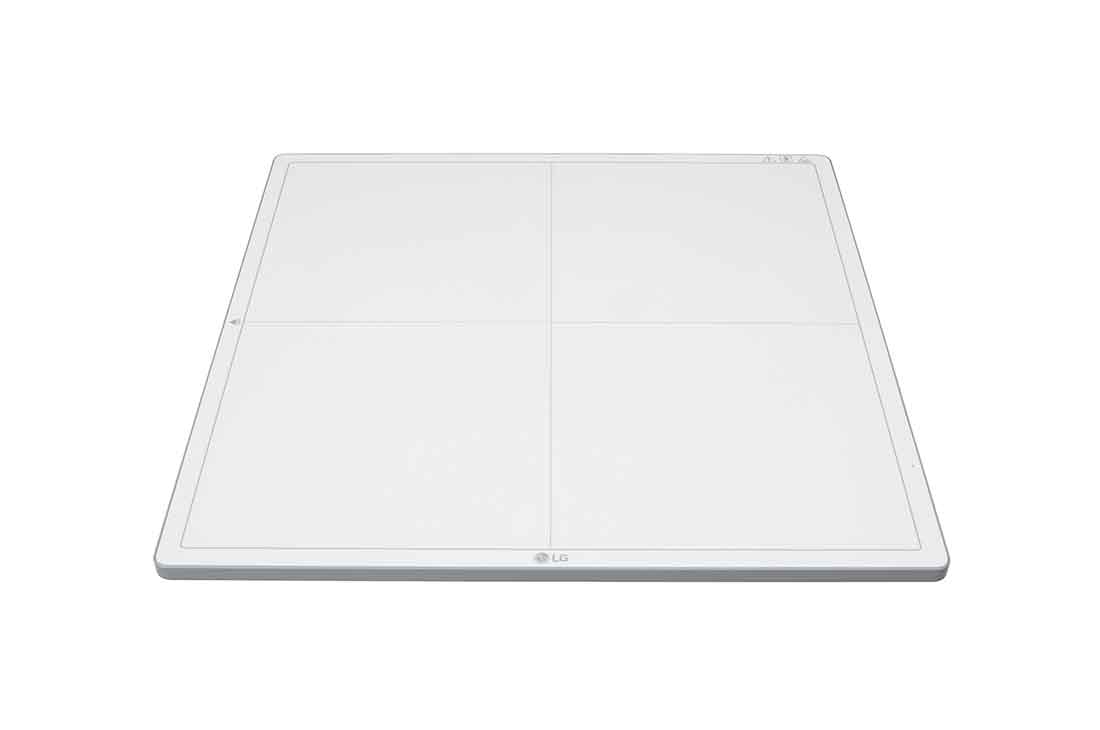

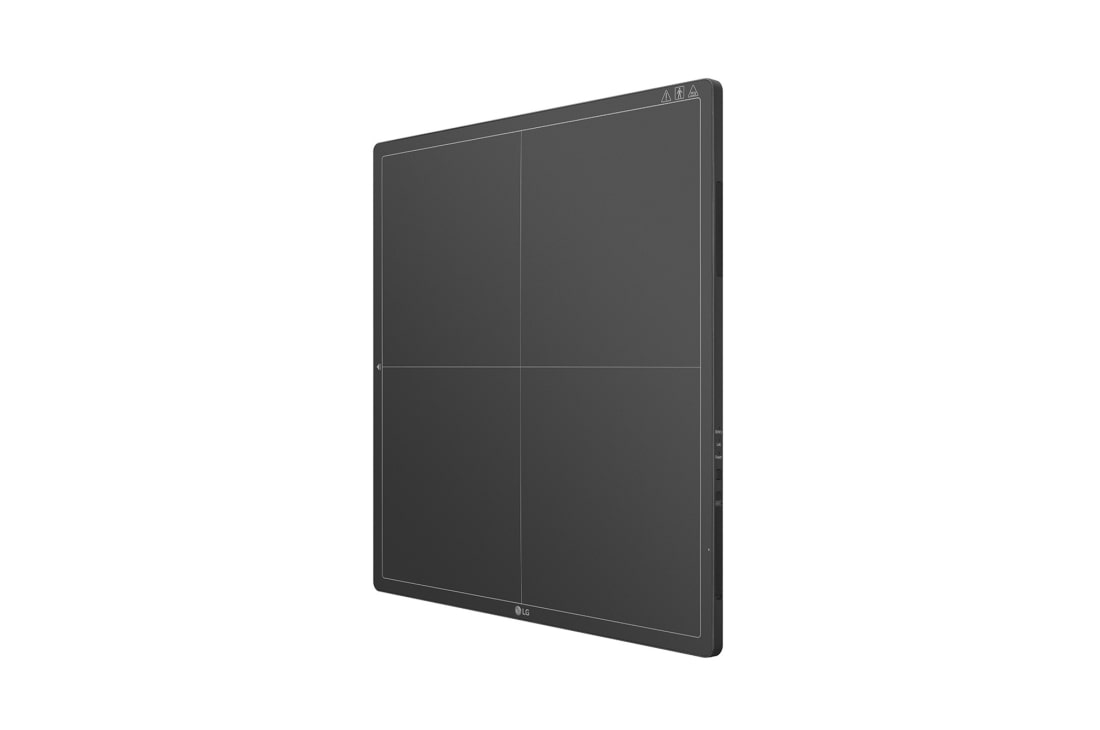

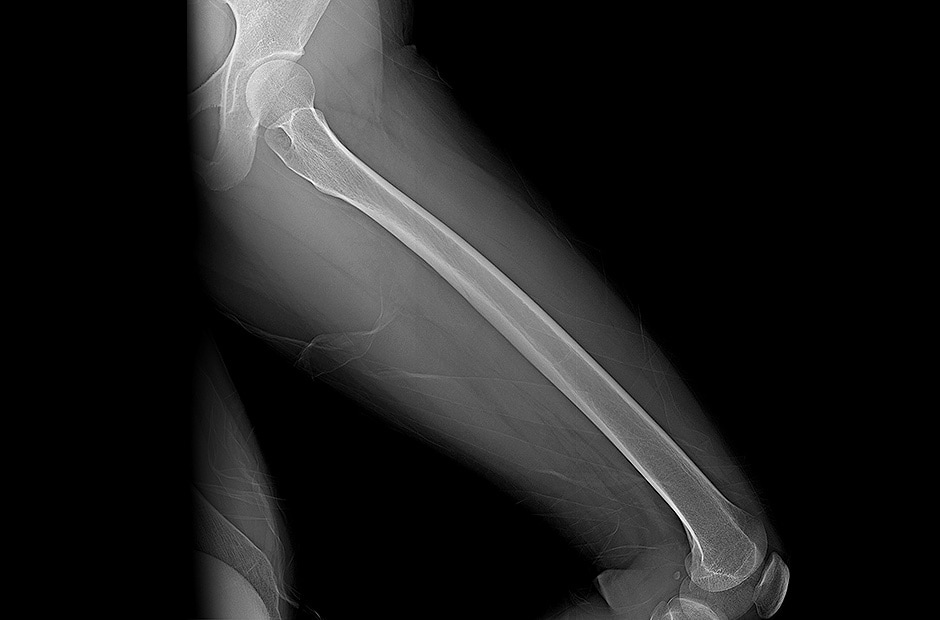

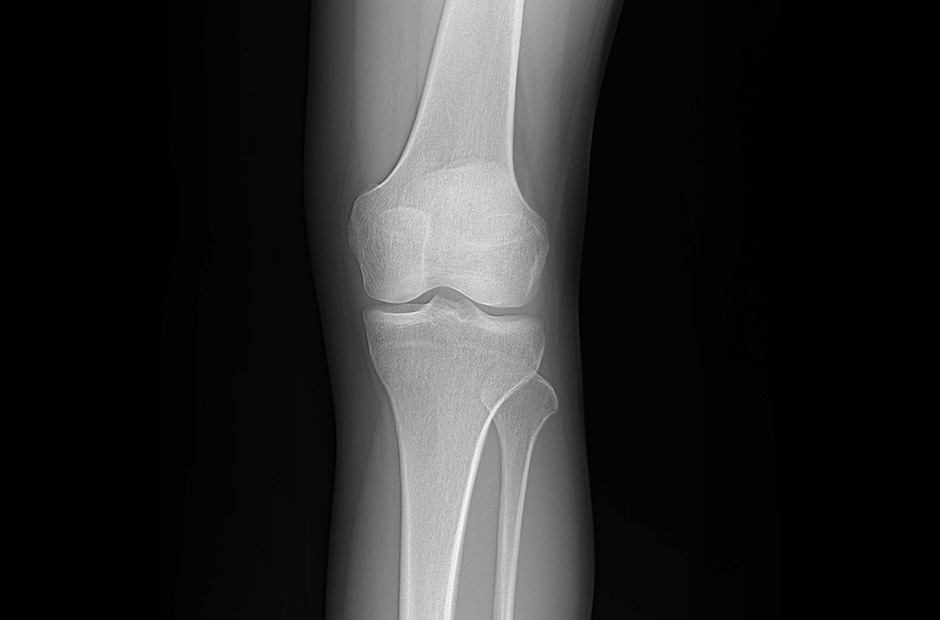

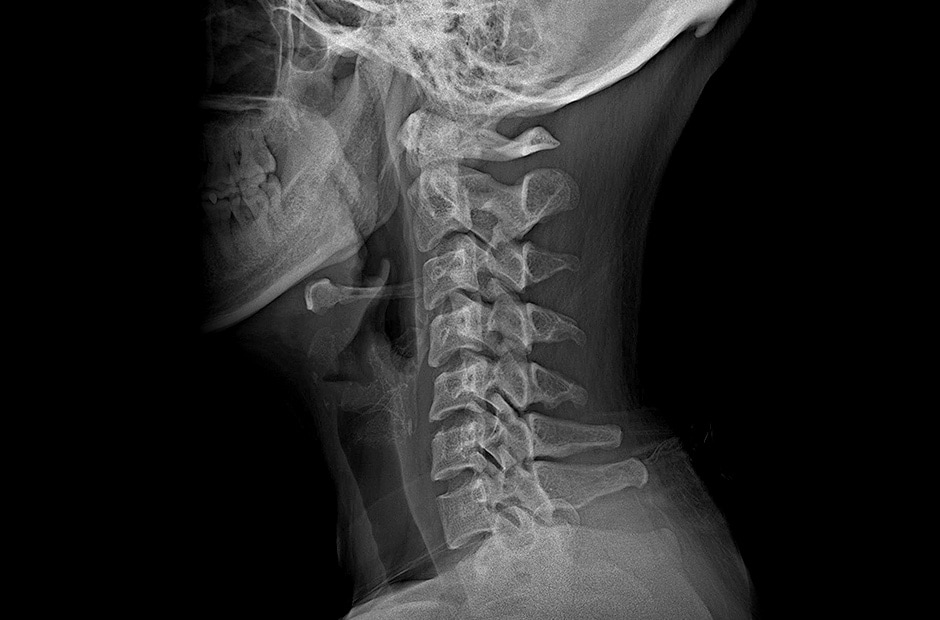

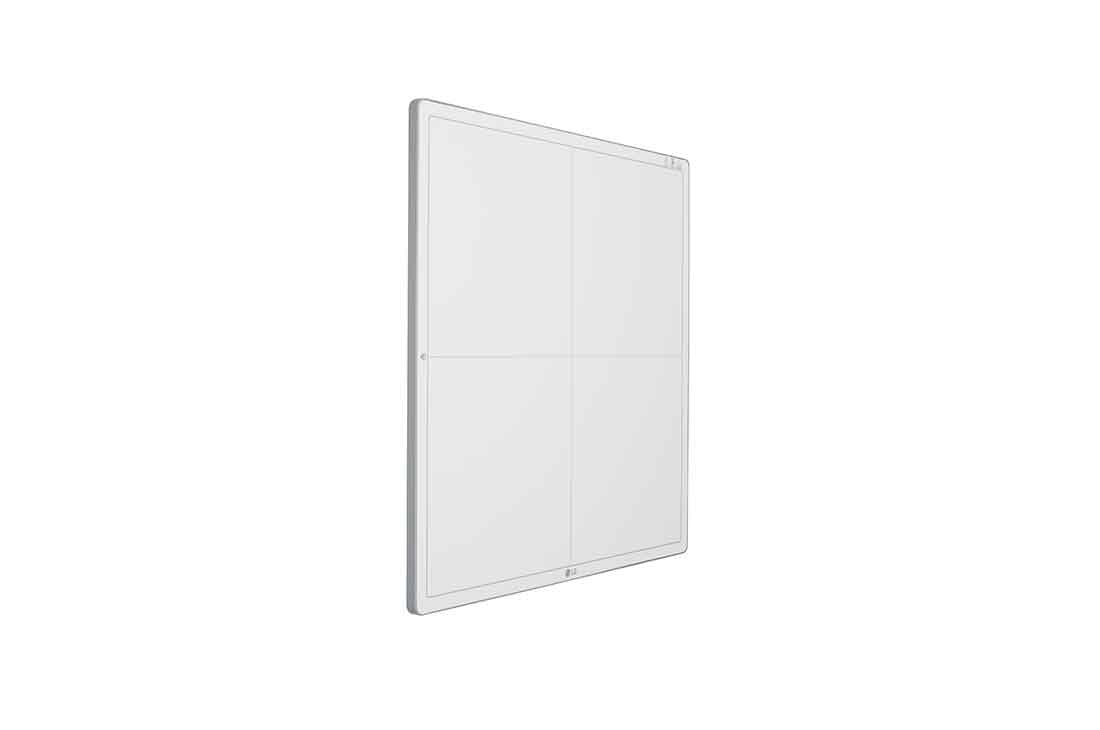

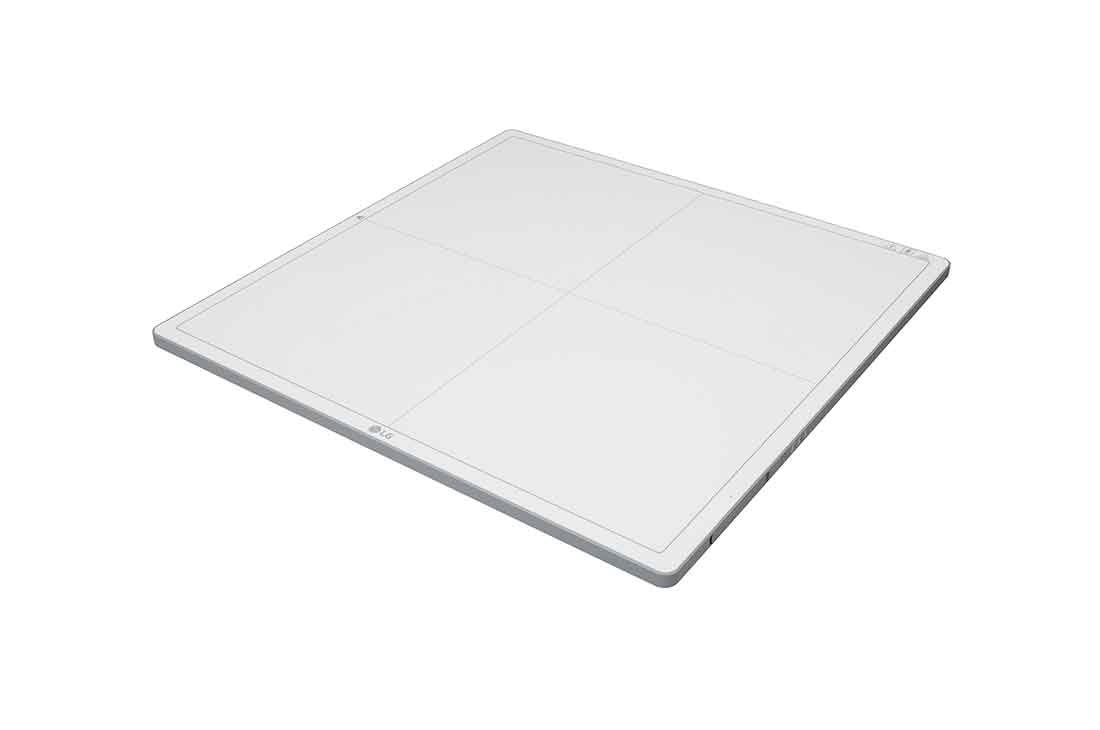

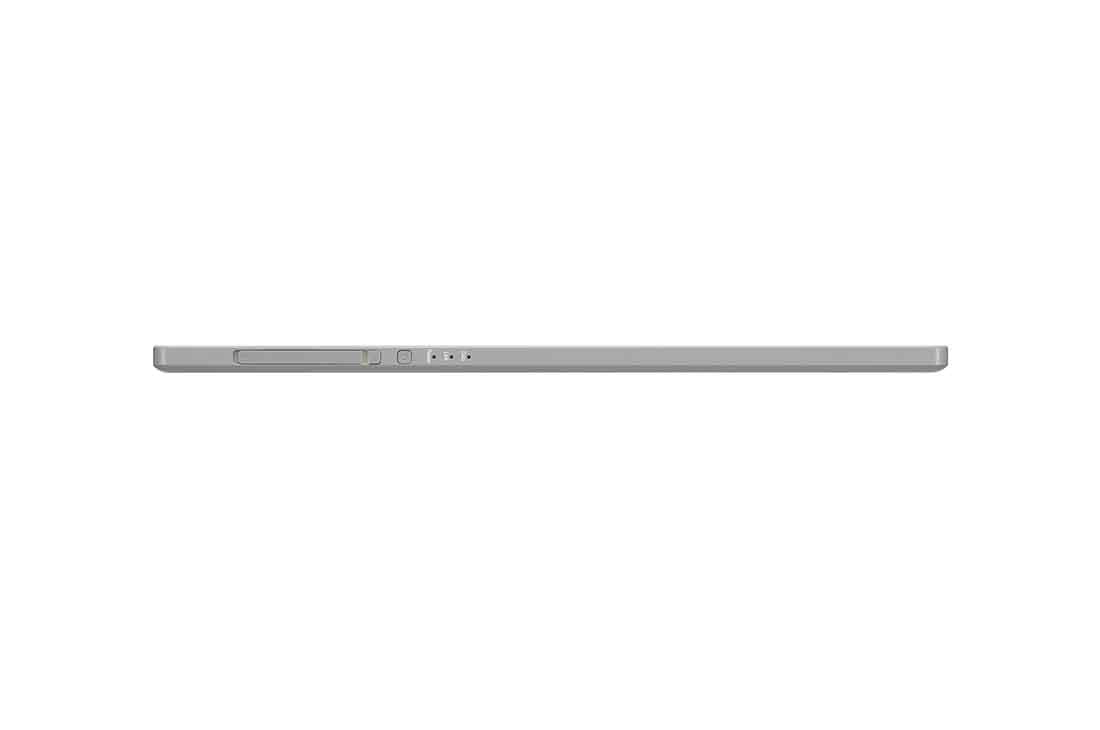

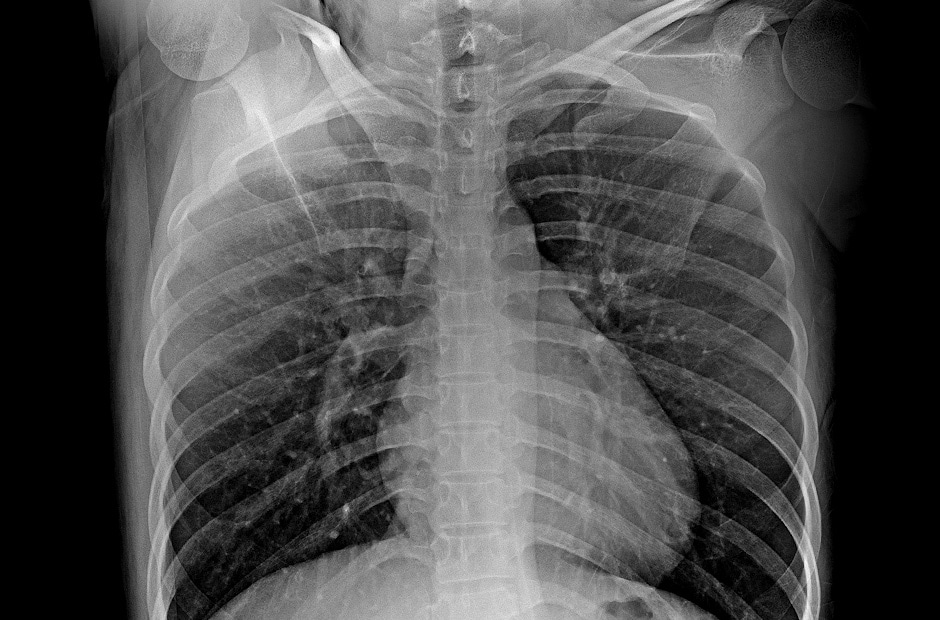

LG 17 x 17-inch Wireless/ Wired Digital X-ray Detctor

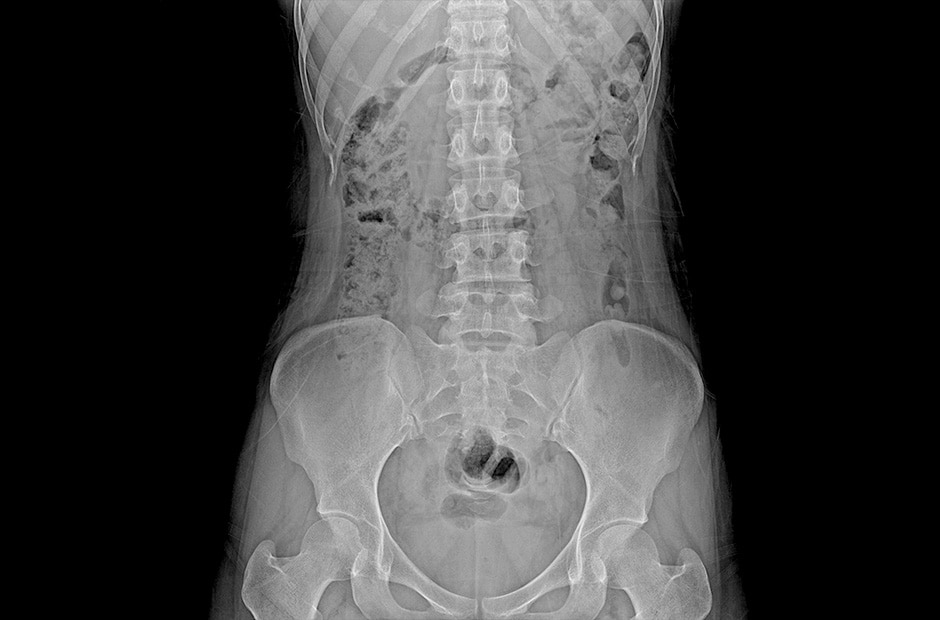

  • 140㎛ pixel size & 16bit A/D conversion
  • Raw Image in 2.5s (wireless) & 2s (wired)
  • AP Mode & Auto Storage on the DXD

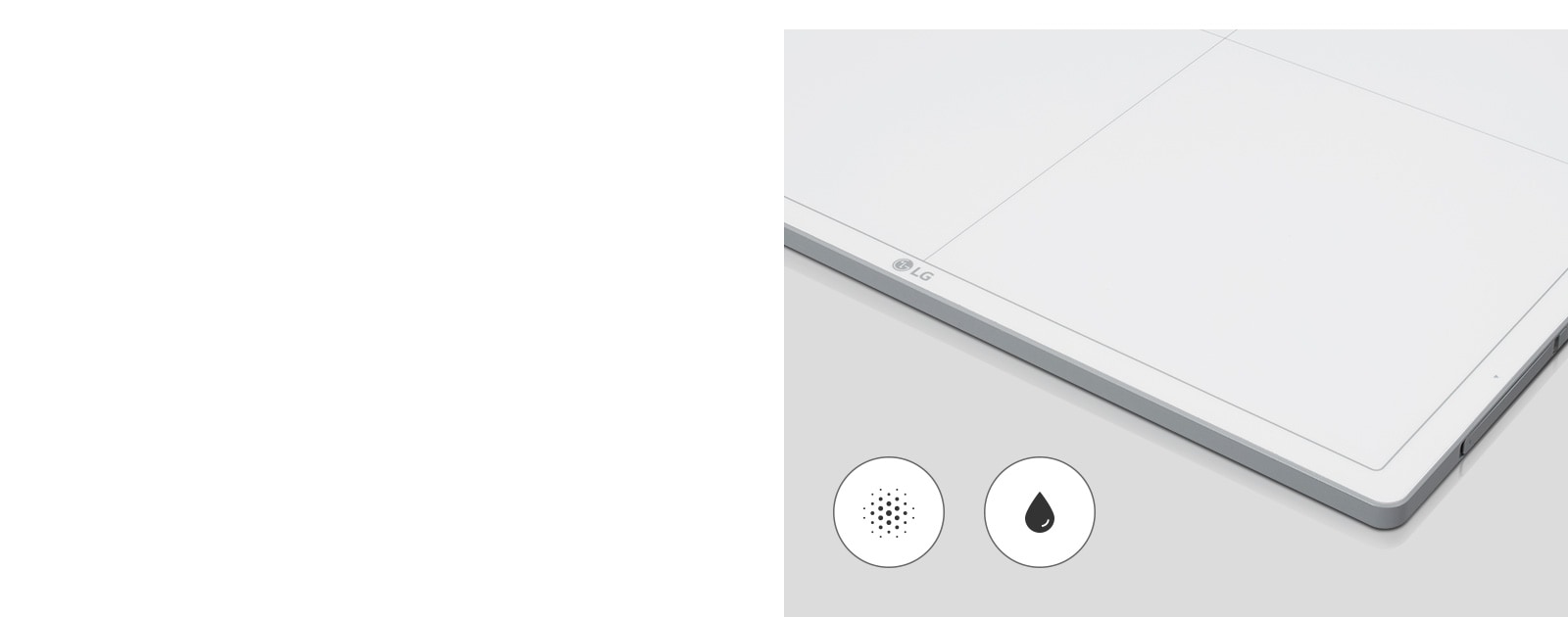

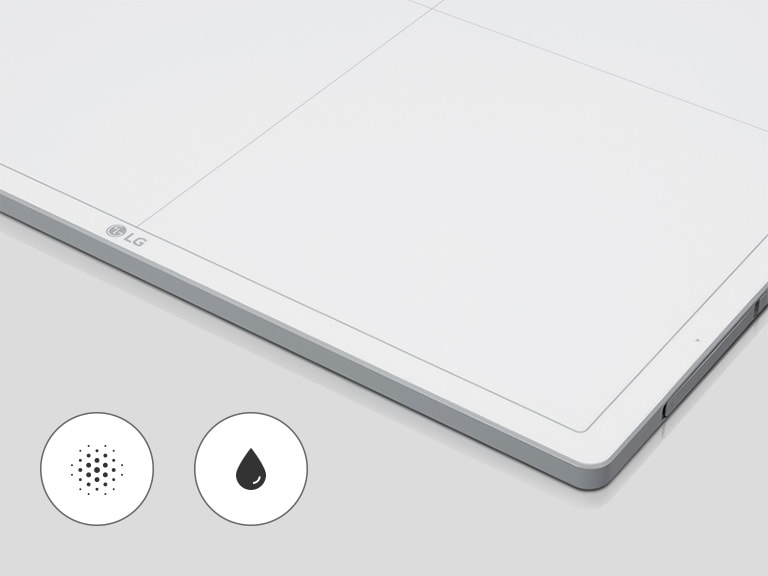

  • IP53: Waterproof and Dustproof

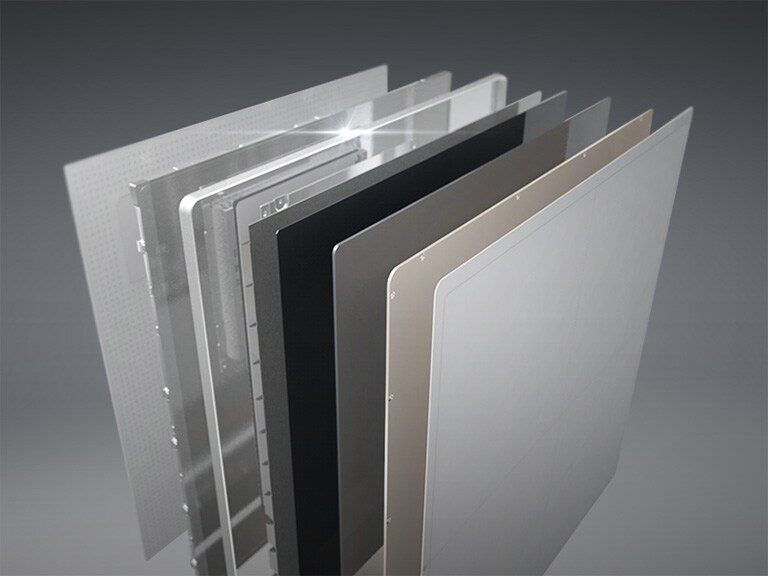

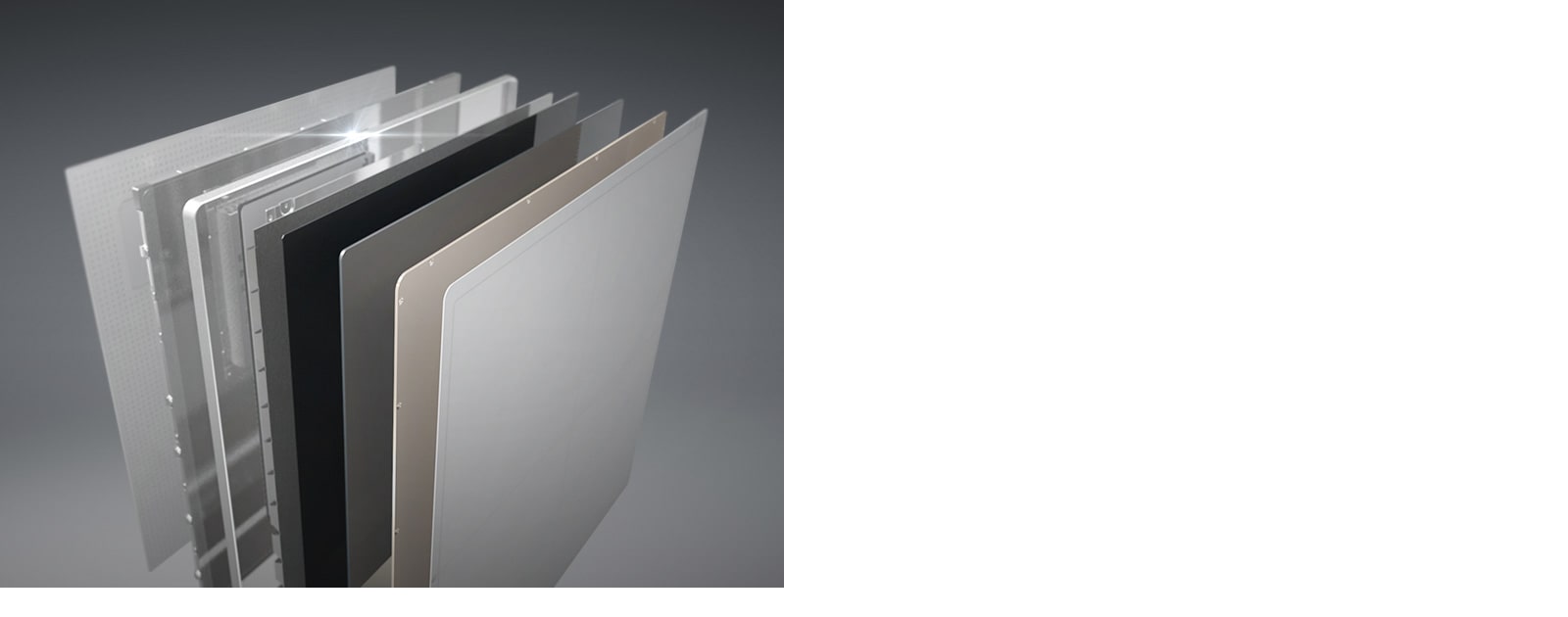

  • Magnesium & Carbon-fiber Body

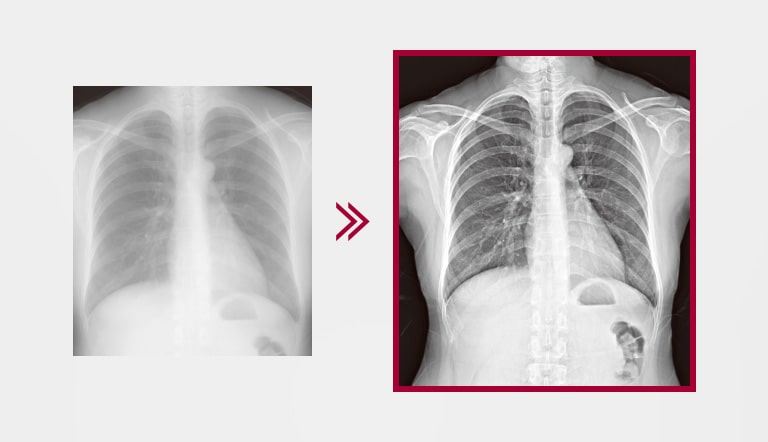

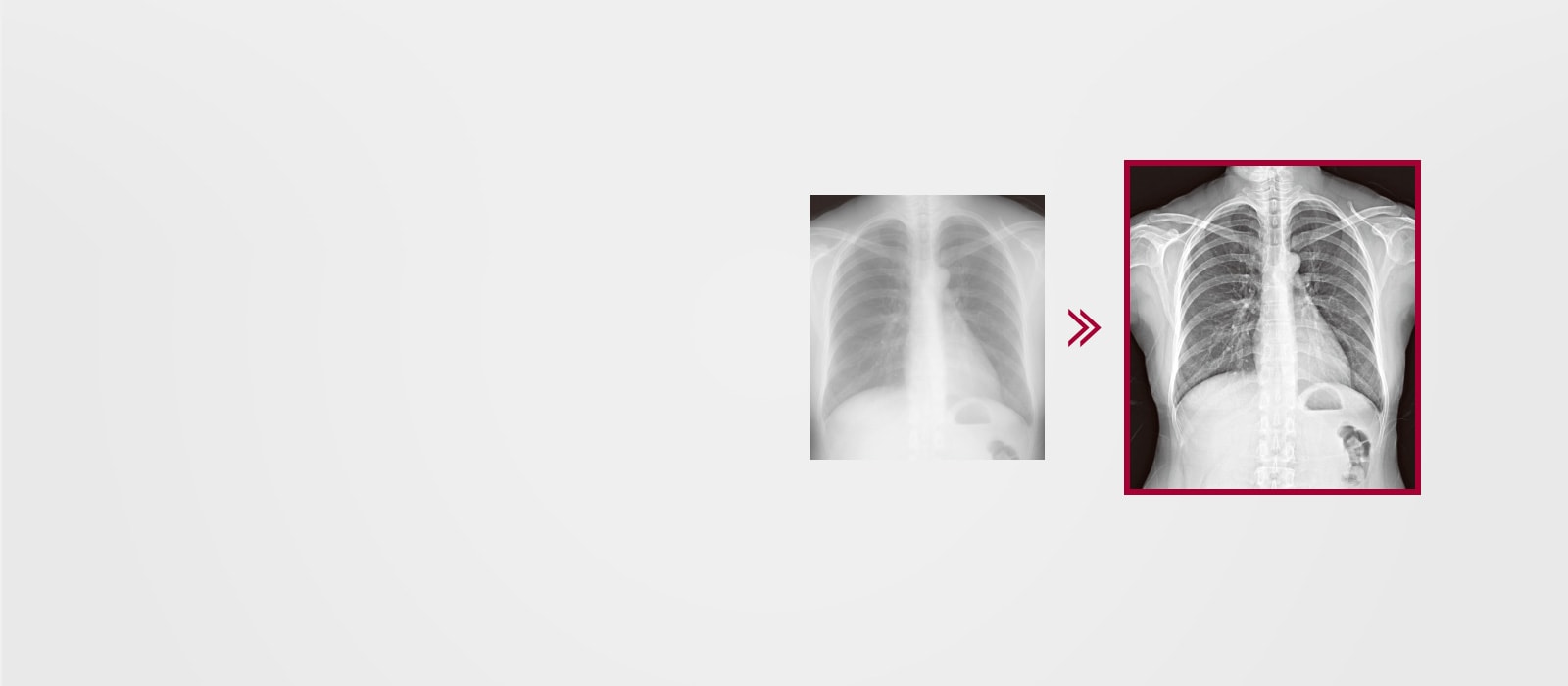

  • LG Acquisition Workstation Software

component-OBScountrySelectDesc

LG 17 x 17-inch Wireless/ Wired Digital X-ray Detctor
*IP: Ingress protection (IP53 indicates Solids Level 5, and Liquids Level 3).
  • 3.4kg(7.5lb)

    Product Weight (Including Battery)

  • 300kg(661lb)

    Maximum Uniform Load

  • 100kg(220lb)

    Maximum Local Load

Improved Work Efficiency

Rapid Image Availability

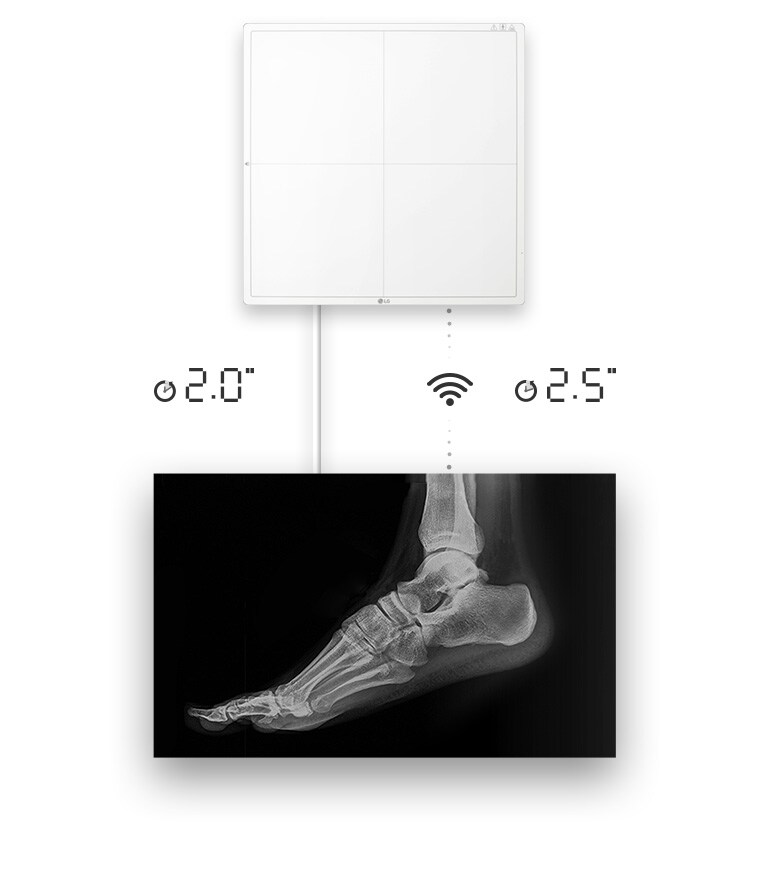

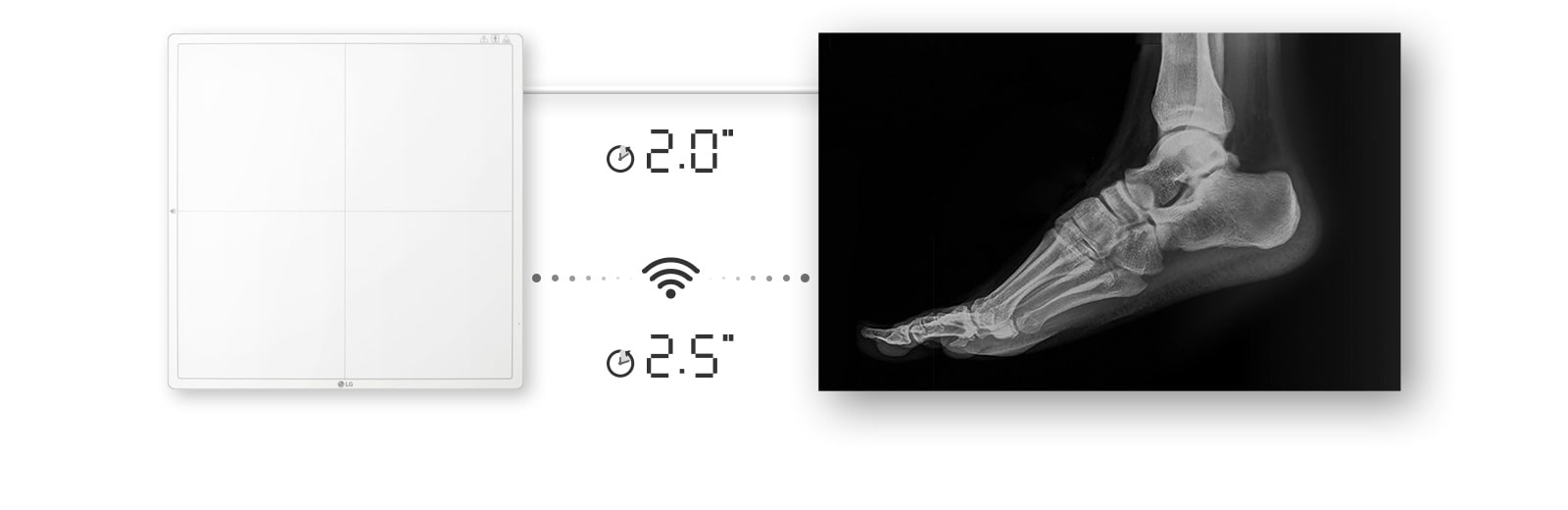

LG DXD increases productivity with a fast-processing. It takes only 2 seconds with connection or 2.5 seconds for wireless to get a raw image.
Image availability in 2 seconds with a wired connection, or 2.5 seconds with a wireless connection to get a raw image Image availability in 2 seconds with a wired connection, or 2.5 seconds with a wireless connection to get a raw image

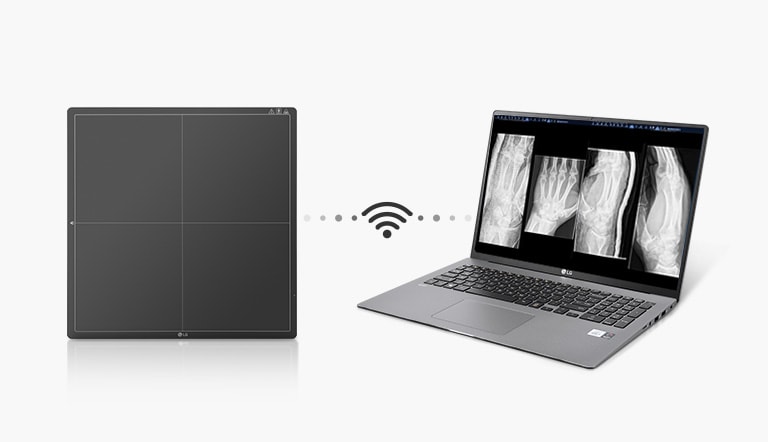

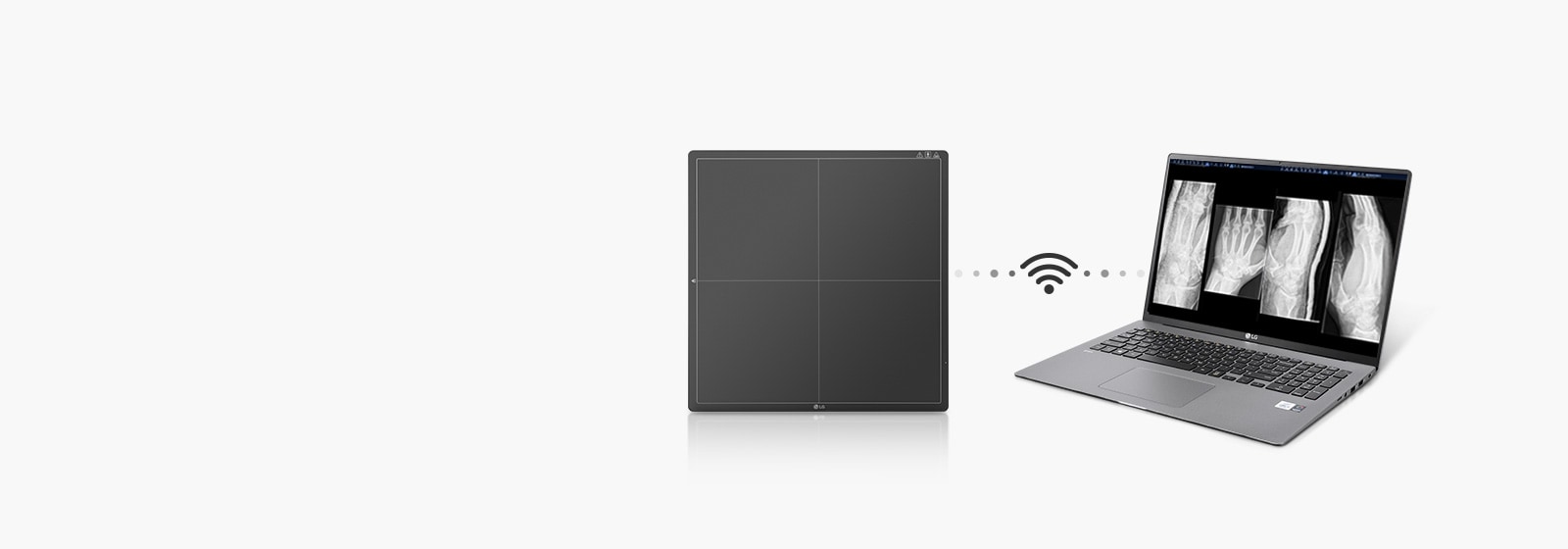

*Access Point Mode is available in combination with LG Acquisition Workstation Software.

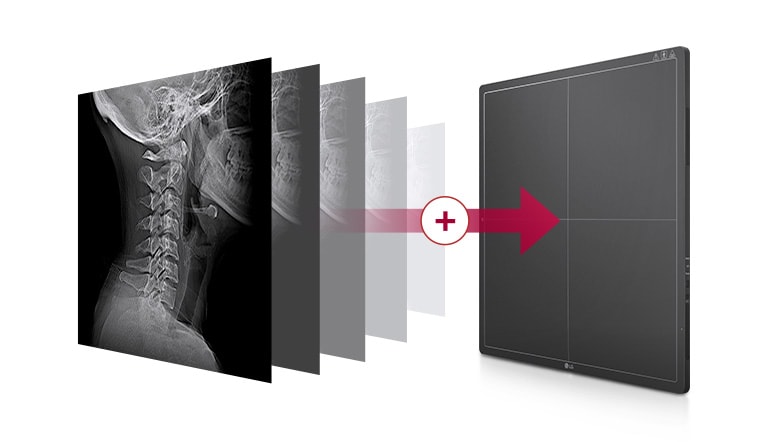

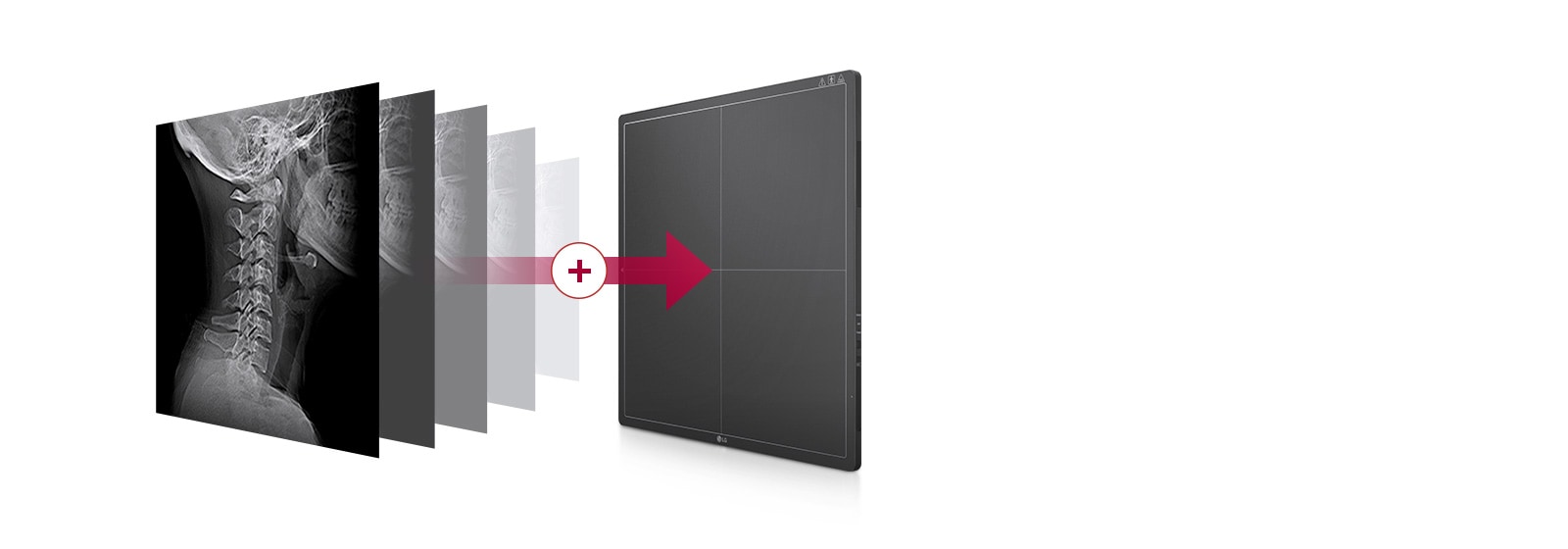

*The oldest image (first in) is removed first (first out) from the internal memory storage once the storage space fills up with 200 images.
Sensor(panel)unit
  • TFT Type
    A-Si
    Scintillator
    Csi
  • Number of Pixels
    3072 x 3072
    Pixel Pitch
    140㎛
  • TFT Dimensions(WxDxH, mm)
    445 x 445 mm
    TFT Active Area(mm)
    430.08 × 430.08 mm
  • X-ray sensitive Pixel
    3072 x 3072
    X-ray sensitive Area(mm)
    430.08 x 430.08mm
  • Sensor protection plate
    Carbon Fiber Plate
    Input
    DC24V/2.1A
  • Power consumption
    Typ. 19.0W (No Charging), 30.5W (with Charging)
    Weight(kg) / Icld. Battery (Typ.)
    3.4kg
  • Maximum Load Weight
    Full (Uniform Load) : 300kg Local (Point Load) : 100kg
    Falling
  • Cycle Time(Ethernet / WLAN)
    8sec / 11 sec (Ethernet / WLAN)
    Full Image(Raw Image) (Typ.)
    Wired 2 sec / Wireless 2.5 sec (Typ)
  • Image-lag (Typ.)
    0.023%
MTF(Typ.)
  • MTF @ 0.5lp/mm
    89%
    MTF @ 1lp/mm
    74%
  • MTF @ 2lp/mm
    47%
    MTF @ 3lp/mm
    29%
DQE(Typ)
  • DQE @ 0.1lp/mm
    72%
    DQE @ 0.5lp/mm
    67%
  • DQE @ 1lp/mm
    61%
    DQE @ 2lp/mm
    49%
  • DQE @ 3lp/mm
    28%
    Sensitivity( lsb/uGy ) / Programmable
    Typ. 900 / Yes
Degradation
  • Expected lifetime (Gy)
    100 Gy
    Sensitivity degradation at the 'end of Life'
    20%
  • Spatial Resolution(lp/mm)
    3.57 lp/mm
    A/D Conversion
    16 bit
  • Data Output
    16 bit
    Auto Exposure Detection
    Yes
  • X-ray generator voltage range
    40 to 150kVp
    Unit Interface
    Connect to Control Box
  • Power unit interface
    Connect to Control Box
    WLAN
    IEEE802.11a/b/g/n/ac, 2.4GHz/5GHz
  • Wired Communication
    Yes
    Detachable Wire (Easy to plug / unplug)
    Yes (Magnetic)
  • X-ray period (ms) (=Window Time)
    Standard: 500 ( ~4000)
    Sensor
  • Shock monitoring
    Yes
Control Box
  • Power Input
    AC100 to 240V, 47-63Hz
    Power Output
    DC24V / 2.1A
  • AC Power Cord
    1.5m, White
    Dimensions(WxDxH, mm)
    125 x 255 x 109.8mm
  • weight(kg)
    1.3 kg
Main Cable(DXD-Control Box)
  • Length
    7m
LAN Cable(Control Box-PC): Optional(When Buyer requires this cable, is shipped according to BOM)
  • Length
    10m
Sync Cable(Control Box - X-ray Generator): Optional(When Buyer requires this cable, is shipped according to BOM)
  • Length
    15m
Battery
  • Type
    Detachable
    Nominal Capacity
    30Wh (7.5V, 4000mAh)
  • Nominal Voltage
    7.5V
    Dimensions(WxDxH, mm)
    204.6 x 110.5 x 7.8
  • weight(g)
    229.86
    Operation Time
    Typ. 240 shots / 6.0 hrs (Condition : Interval Time 90 sec)
  • Battery duration in standby status
    Typ. 13 hrs
Battery Charger
  • Input voltage
    19V
    Output voltage
    8.7V
  • Charging Time
    3 Hours
    Slot Q'ty
    3
  • Bundle battery Q'ty
    2
    Dimensions(WxDxH, mm)
    125 x 255.5 x 90.5mm
  • weight(kg)
    0.9 kg
AC Adapter for Battery Charger
  • Dimensions(WxDxH, mm)
    134 x 59.8 x 31mm
    DC Cable length
    1,500 mm
  • AC Power Cord
    Yes
    Input
    100 ~ 240VAC
  • Output
    19V/3.42A
    Weight(kg)
    0.335 kg
Environmetal
  • Storage-Temperature
    -20 to 60 ℃
    Storage-Humidity
    Less than 90% RH, No condensation
  • Storage-Pressure
    50 ~ 106 kPa
    Storage-Attitude
    Less than 12,192 m
  • Operating-Temperature
    10 to 35 ℃
    Operating-Humidity
    Less than 80% RH, No condensation
  • Operating-Pressure
    70 ~ 106 kPa
    Operating-Attitude
    Less than 5000 m
Watertightness
  • Watertightness
    IP53
    Cleaning and desinfecting products
    Isopropanel 100%, Ethanol 70%, Cidex OPA, 0.9% Nacl solution
  • Anti-Bacteria
    JIS Z 2801 0.99%
Warranty
  • Warranty
    36 Month
Accessories
  • CD
    Manual, Calibration SW
    Cable
    Power cord, Manin Cable 7m (LAN Cable, Sync cable Option)
  • Other
    Book Manual , Outgonig Inspection sheet
Pakage
  • Dimension in Shiping (W x H x D)
    621 x 352 x 562
    Pallet Stuffing (20ft/40ft/40ft HC)
     160/360/432
  • Weight in Shipping
    10.9kg
