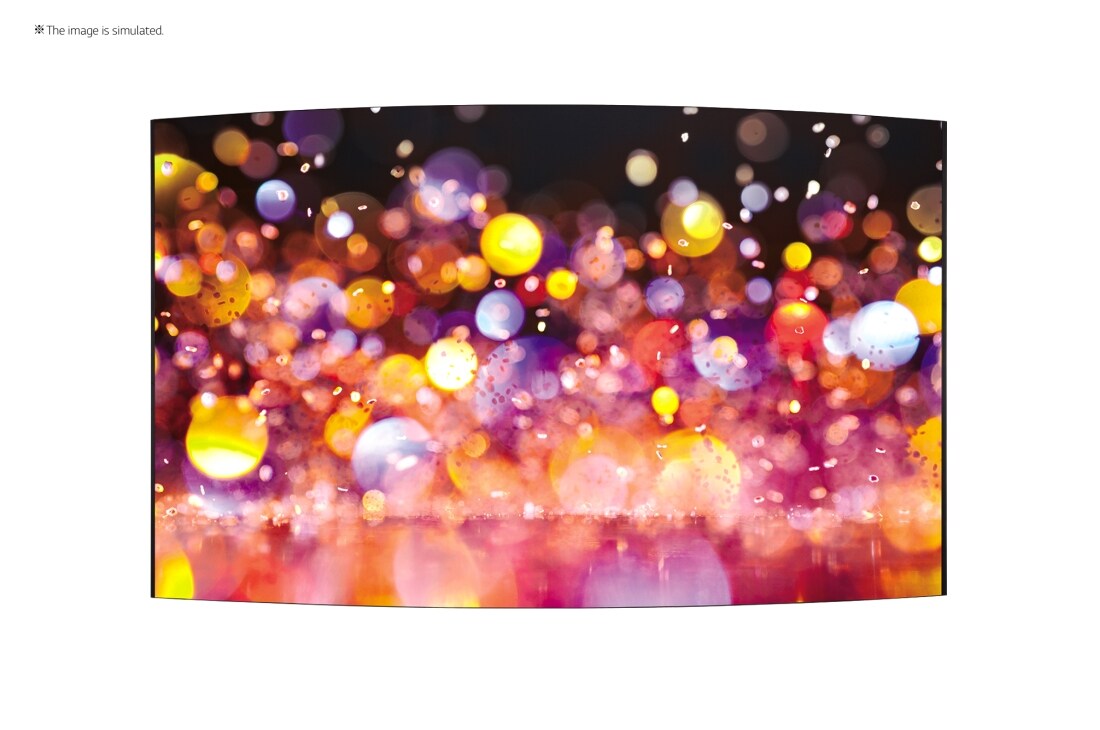

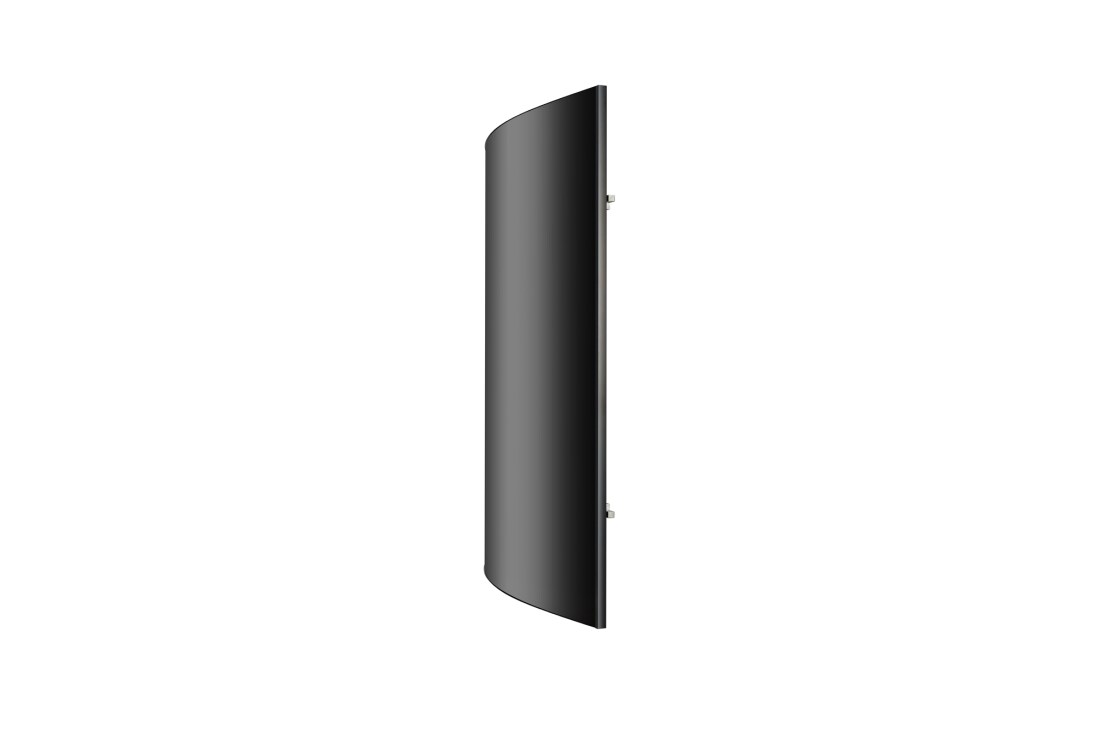

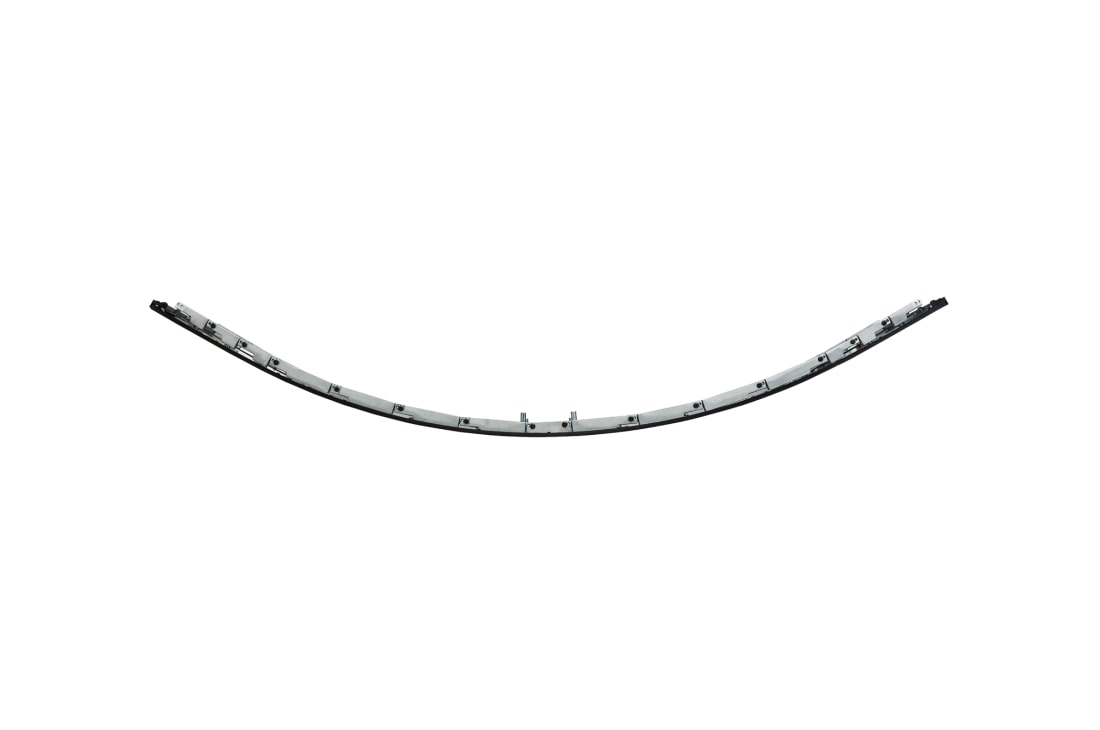

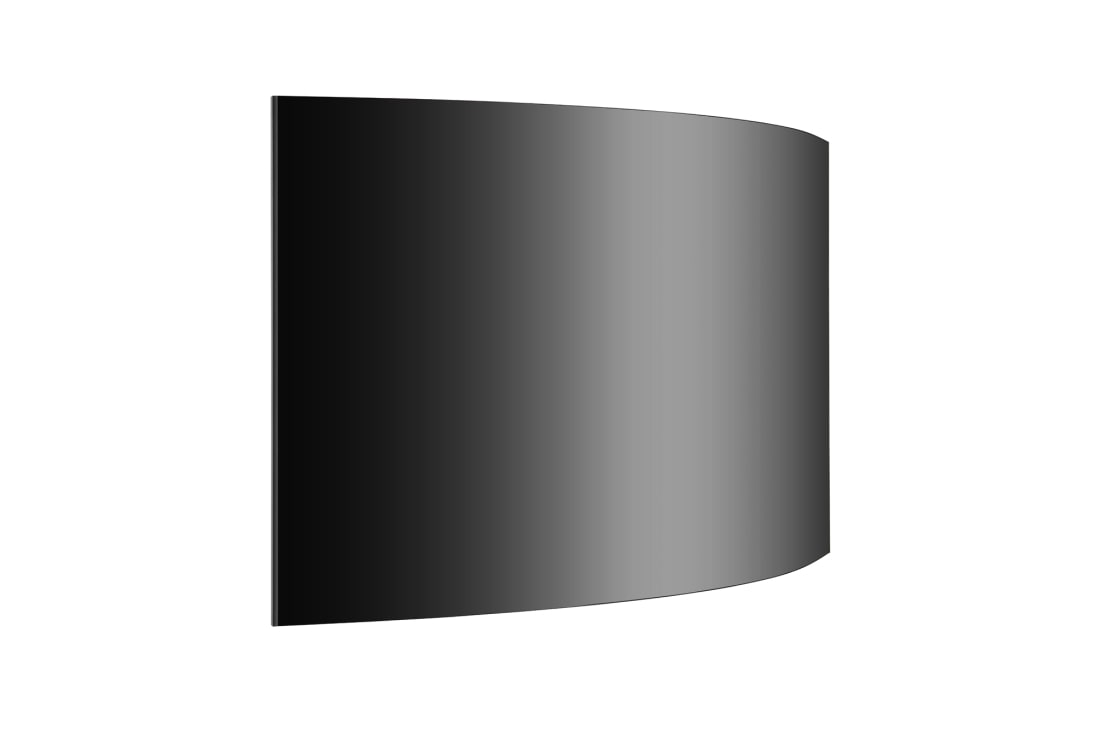

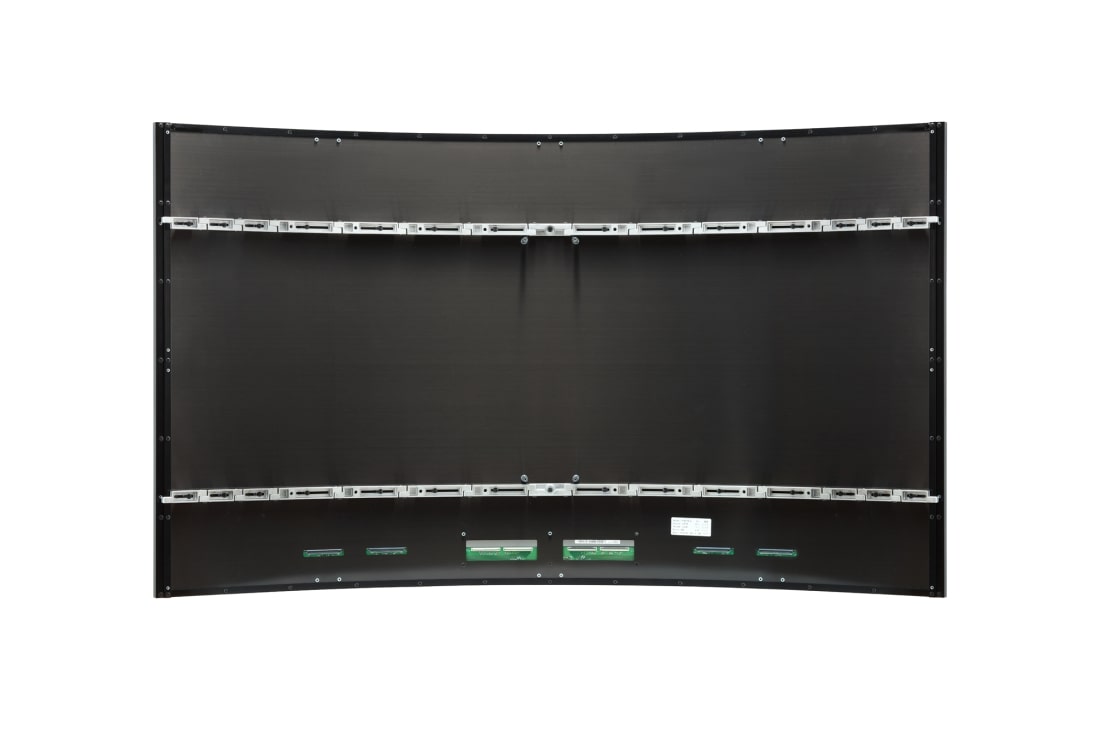

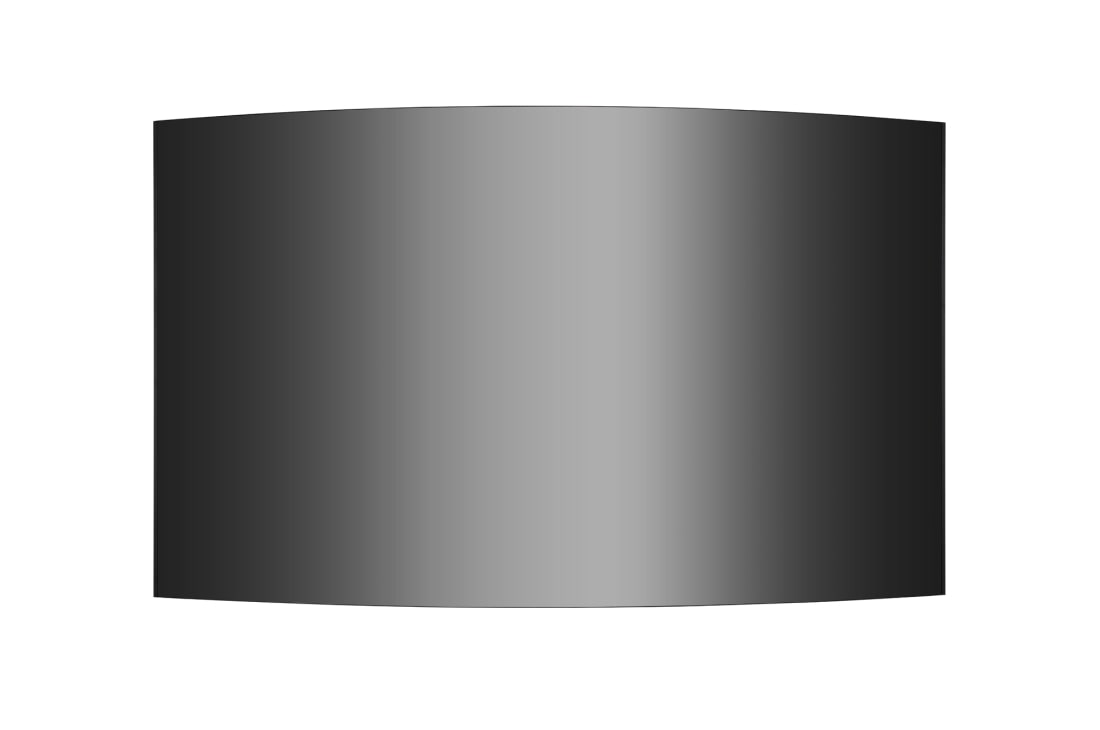

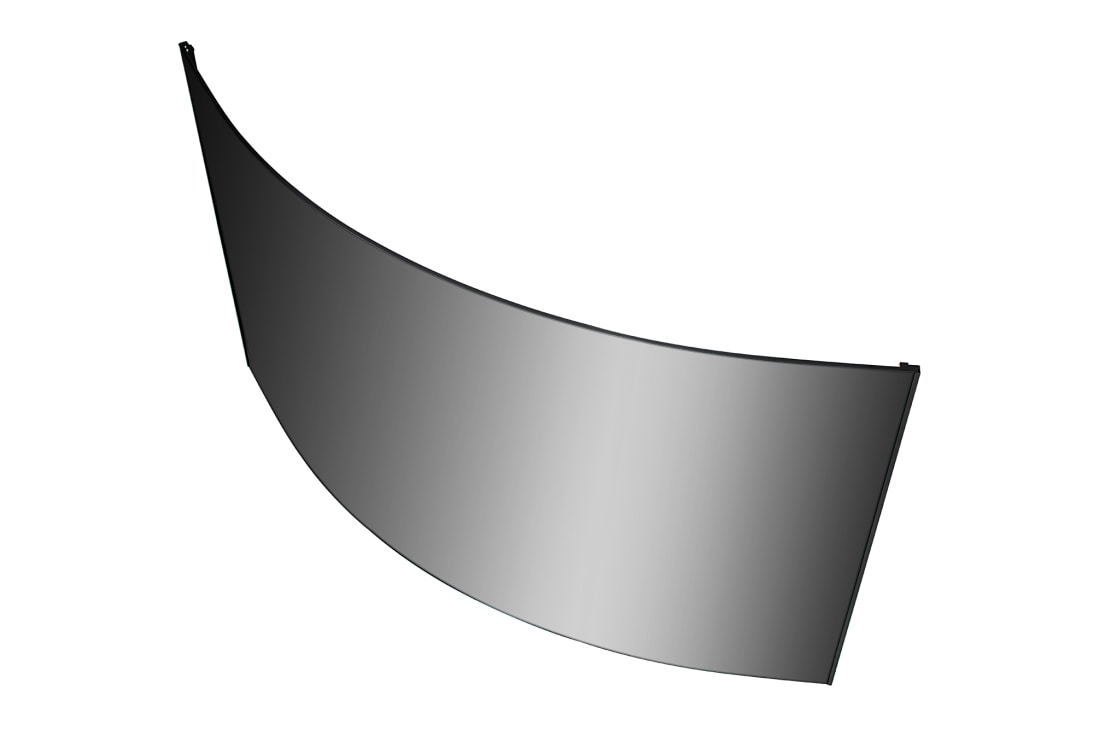

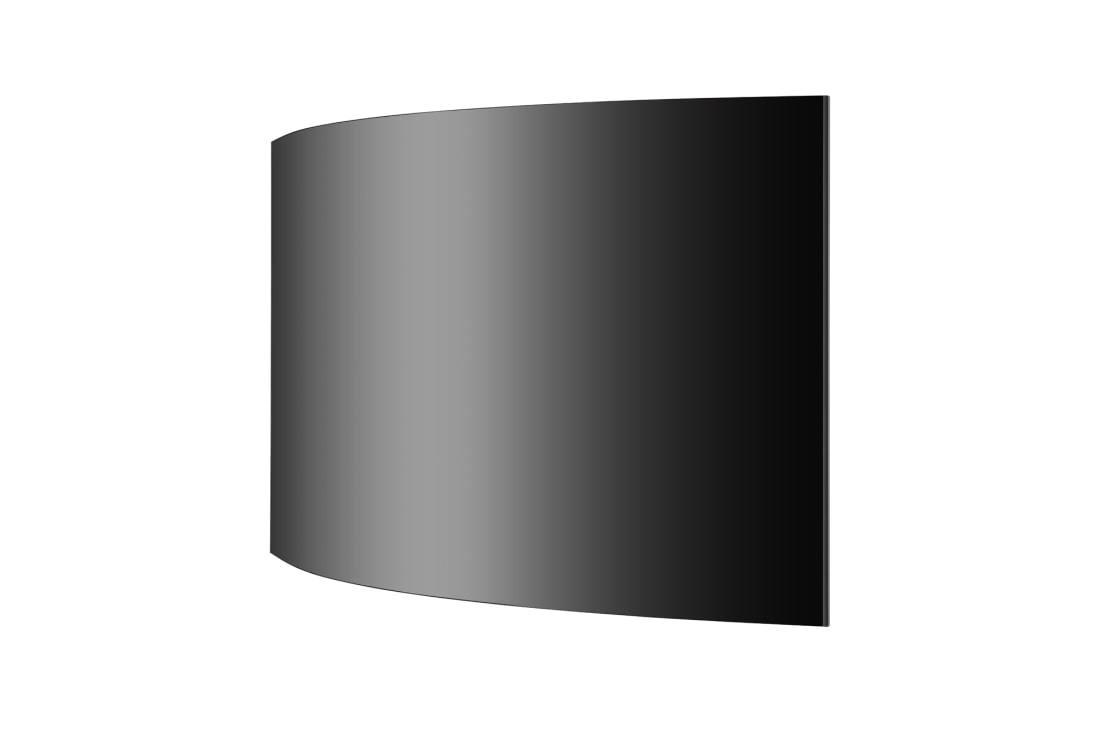

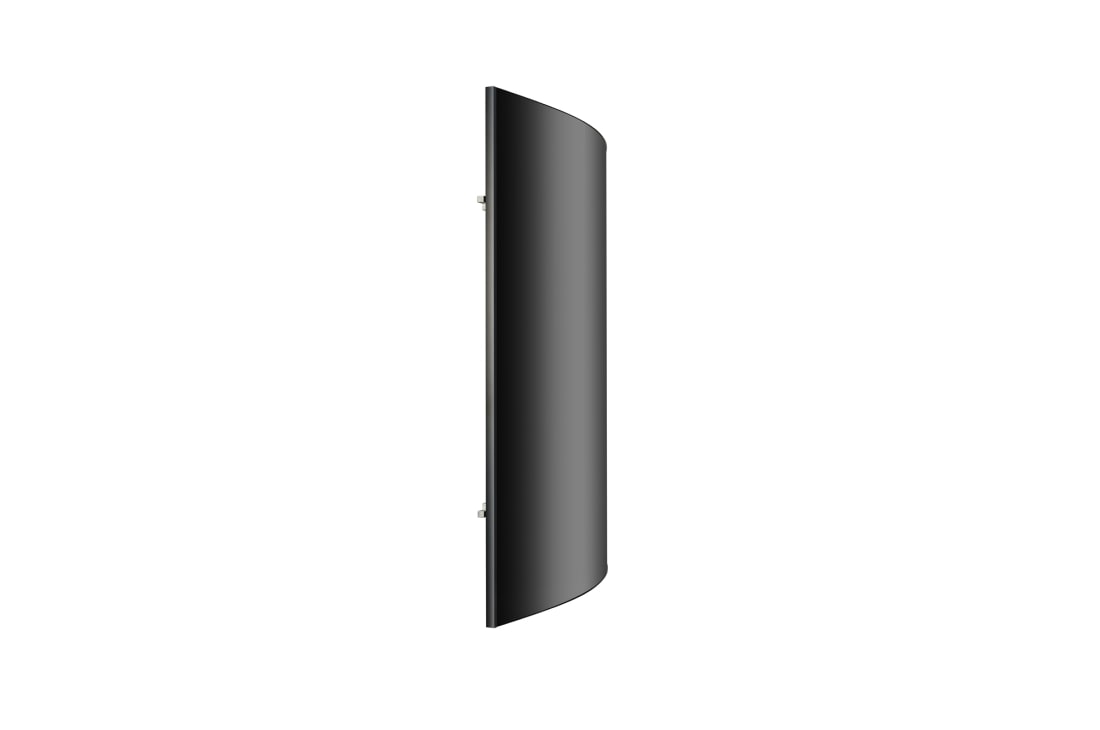

Flexible Curved Open Frame

Key Features

Choose your Size

component-OBScountrySelectDesc

Flexible Curved Open Frame
Panel
  • Screen Size
    55"
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness (Average Picture Level 25%, Typ., cd/m²)
    400
    Brightness (Average Picture Level 100%, Typ., cd/m²)
    150
Connectivity
  • Input
    HDMI, DP, USB 2.0 (2)
    Output
    DP, Audio (Fixed/Off/Variable)
  • External Control
    RS232C In/out, RJ45 In/out, IR In
Physical Specification
  • Bezel Width (T/B/L/R)
    0.6 / 0.6 / 6.7 / 6.7 mm (Flat, Off Bezel)
    5.0 / 10.6 / 7.6 / 7.6 mm (Flat, On Bezel)
    Monitor Dimension (W x H x D)
    1,224.9 x 696.2 x 38.0 mm (Head, w/Pem-nut)
    1,224.9 x 696.2 x 12.4 mm (Head Only)
  • Weight
    Set: 9.9 kg
    Signage Box: 3.5 kg
    Carton Dimensions (W x H x D)
    1,350 x 837 x 250 mm
  • Packed Weight
    17 kg
Environment Conditions
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
  • Power Consumption(Typ./Max., Based on 8 Color Bar)
    309 W / 318 W
Standard(Certification)
  • Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1
    EMC
    FCC Class "A" / CE / KCC
  • ErP / Energy Star
    Yes / No
Media Player Compatibility
  • OPS type compatible
    No
    External Media player Attatchable
    Yes
Software Compatibility
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control+ / Control
Accessory
  • Basic
    Remote Controller (2 Batteries Included), Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, RS232 Cable (4p-4p), FFC Cables (220mm x 4ea for Connection between Panel and Signage Box), DP Cable, LAN Cable, LC (VLC Cable)
    Optional

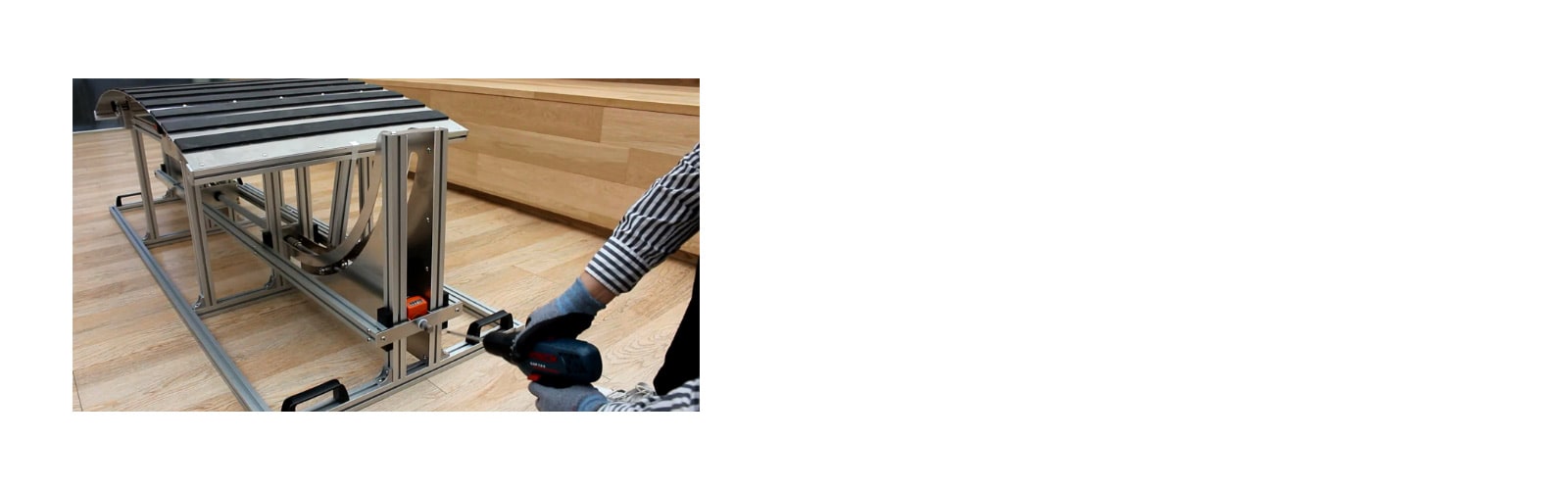

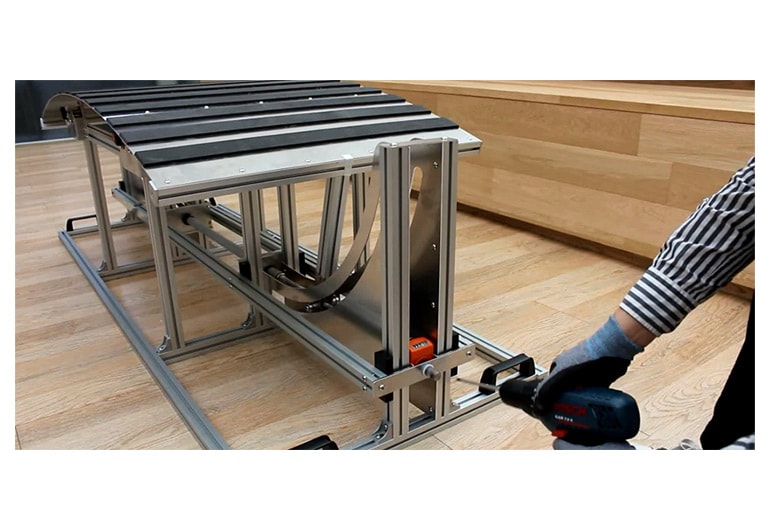

    Curvature Calibrator (ACC-CC-EF5E)
  • Dimension
    • [Dimension]55EF5E-L_0R(FLAT).dwg
    • [Dimension]55EF5E-L_0R(FLAT).pdf
  • Etc.
    • Curvature Set-up Guide (Inc. Curvature Table).zip
  • Datasheet
    • 55EF5E_Leaflet(web)_11806.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
