Discontinued
55EG5CD

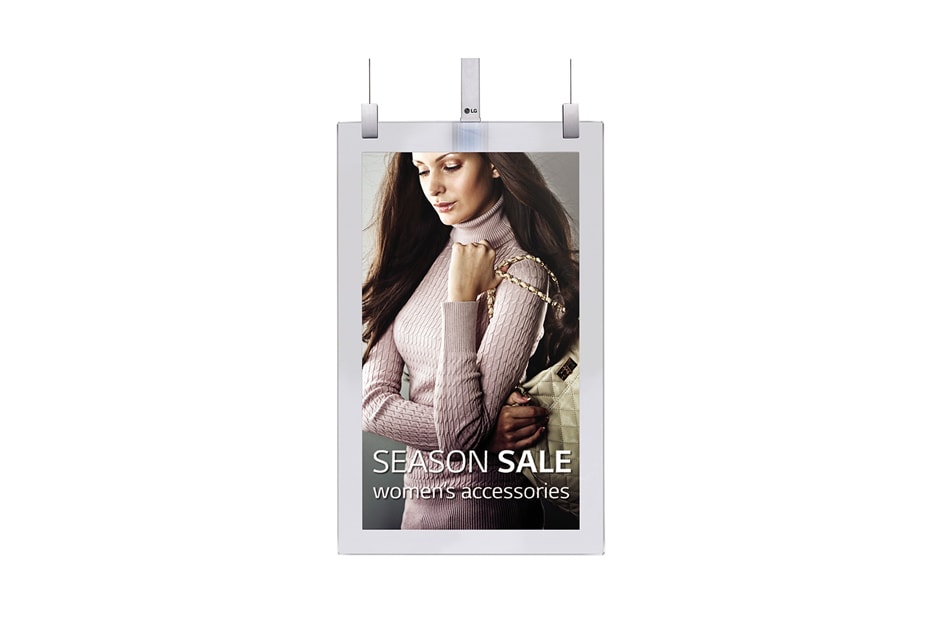

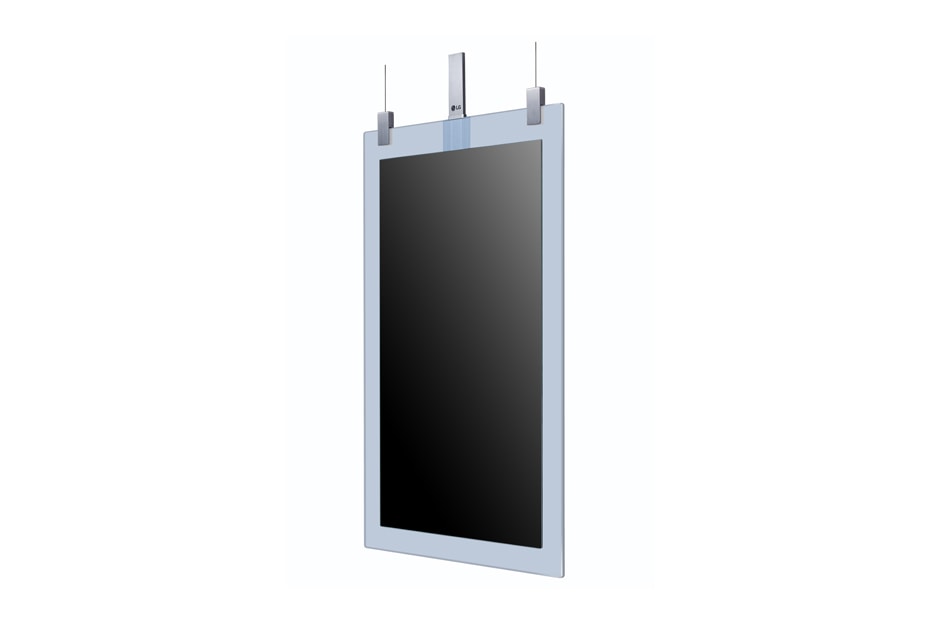

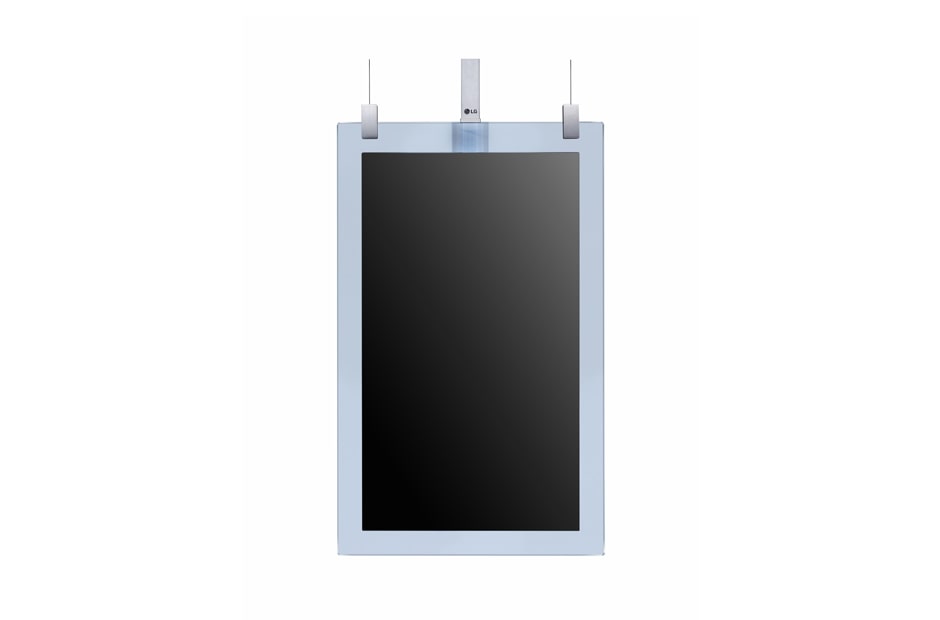

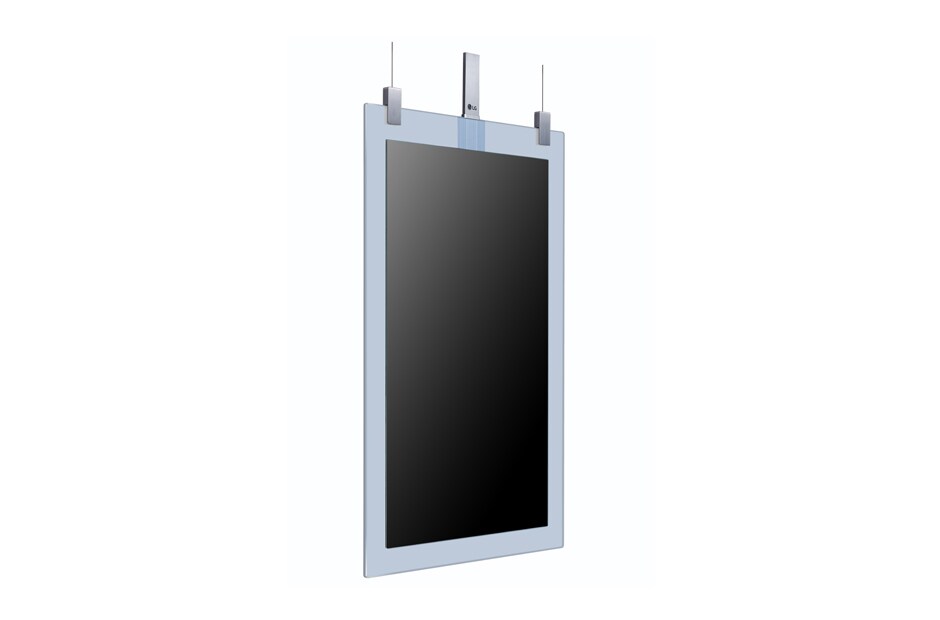

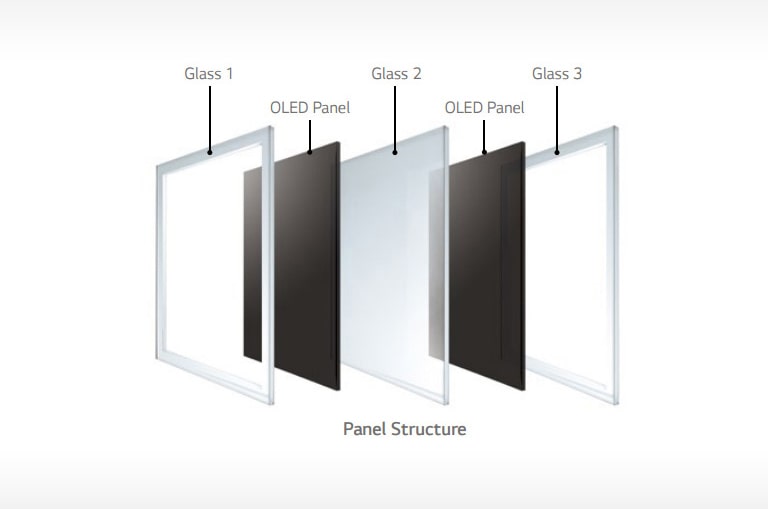

Wallpaper OLED signage in Glass
  • Brightness(Typ.) : 400 cd/m²(Average Picture Level 25%)

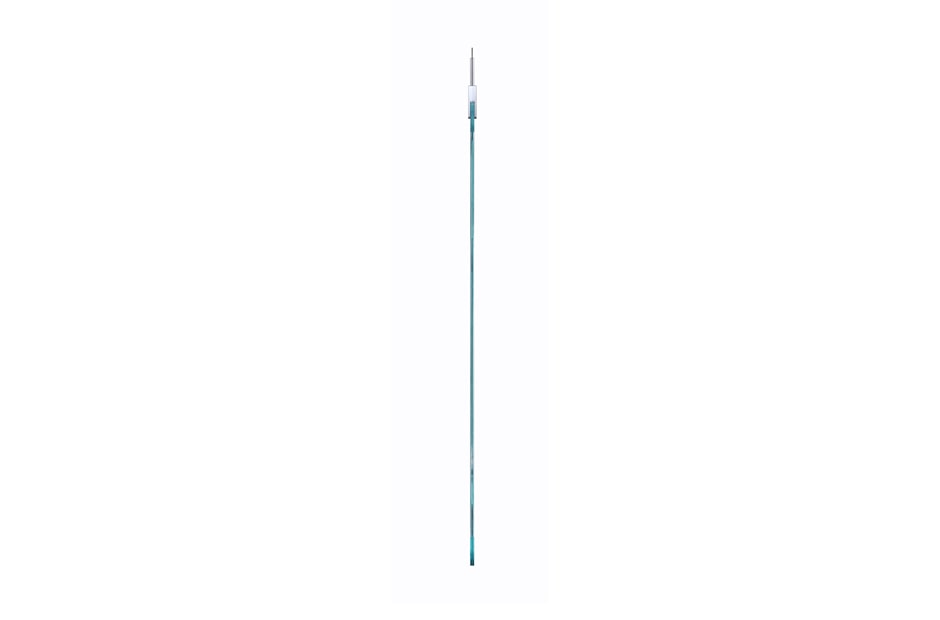

  • Depth : 13.0mm
  • Orientation : Portrait mode
  • Interface : HDMI, DP, RJ45, IR, RS232C, USB

component-OBScountrySelectDesc

Wallpaper OLED signage in Glass

Panel

  • Screen Size
    55"
    Resolution
    1,920 x 1,080 (FHD)
  • Brigthness(APL25%, Typ., cd/m²)
    400

Connectivity

  • Input
    HDMI(1+1), DP(1+1)
    Output
    Audio(1+1), DP(1+1), IR Out(1+1, w/RS232C OUT Port Share)
  • External Control
    RS232C in/out(1+1), RJ in(1+1), IR Receiver(1+1), USB 3.0(1+1)

Physical Specification

  • Bezel Width
    6.6 / 6.6 / 7.2 / 10.3 mm (U/B/L/R *On bezel) - Without Glass
    Only Panel, 101.3 / 81.3 / 81.3 / 81.3 mm (U/B/L/R *Off bezel, With glass)
    107.9 / 87.9 / 88.5 / 91.6 mm (U/B/L/R *On bezel, With glass)
    Monitor Dimension (W x H x D)
    861.3 X 1406.2 X 13mm (Head, Without Hanging Acc.)
  • Weight (Head)
    31.2

Environment Conditions

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %

Power

  • Power Supply
    100-240 V~, 50/60 Hz
    Power Type
    Built-In Power

Power Consumption

  • Typ.
    190 W

Standard(Certification)

  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class "A" / CE / KCC
  • ErP / Energy Star
    Yes / NA

Media Player Compatibility

  • OPS type compatible
    Yes
    External Media player Attatchable
    Yes

Software Compatibility

  • Content Management Software
    SuperSign Premium
    Control and Monitoring Software
    SuperSign Link

Accessory

  • Basic
    Remote controller (include battery 2ea), Power cord, QSG, HDMI cable (1m x 2ea for connection between T-Con box and signage box, 1.8m x 2ea), Power Hanness Cable (1m x 2ea for connection between T-Con box and signage box), IR receiver (2ea), Regulation book, Phone to RS232C gender (2ea), Jack cover, Signage box mounting bracket, T-Con box mounting bracket, FFC cable cover, Hanging Supporter front, Hanging supporter rear, Hanging supporter rear cover, FFC cable supporter assy, Ceiling bracket
    Optional
    OPS Kit(KT-OPSA)
  • Dimension
