55EW5G-A component-copyModelName

Transparent OLED Signage

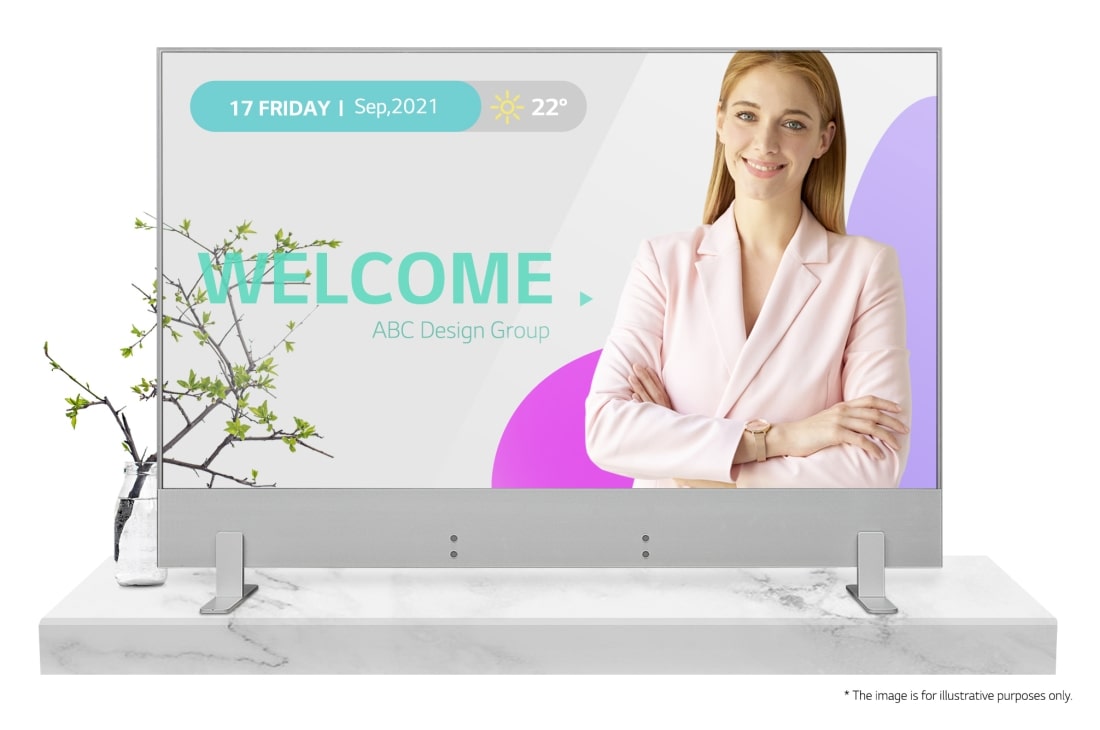

LG Transparent OLED Signage, Front view with infill image, 55EW5G-A, thumbnail 1

LG Transparent OLED Signage, -45 degree side view with infill image, 55EW5G-A, thumbnail 2

LG Transparent OLED Signage, Front view , 55EW5G-A, thumbnail 3

LG Transparent OLED Signage, -45 degree side view, 55EW5G-A, thumbnail 4

LG Transparent OLED Signage, -90 degree side view, 55EW5G-A, thumbnail 5

LG Transparent OLED Signage, +45 degree side view, 55EW5G-A, thumbnail 6

LG Transparent OLED Signage, +90 degree side view, 55EW5G-A, thumbnail 7

LG Transparent OLED Signage, Rear view, 55EW5G-A, thumbnail 8

Discontinued

55EW5G-A component-copyModelName

Transparent OLED Signage

Key Features

Brightness(Typ.): 400nit (APL 25%, Without Glass)
Transparency(Typ.) : 38%
Bezel : 7.9 mm (T/B/L), 121.7 mm (B)
Interface : HDMI/DP/USB(2)/ RS232C/ RJ45/ Audio/ IR

Choose your Size

Inquiry to Buy

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.): 400nit (APL 25%, Without Glass)
Transparency(Typ.) : 38%
Bezel : 7.9 mm (T/B/L), 121.7 mm (B)
Interface : HDMI/DP/USB(2)/ RS232C/ RJ45/ Audio/ IR

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Transparent OLED Signage

See the unseen,
LG Transparent OLED

LG Transparent OLED Signage offers new ways to communicate visually and opens up a whole new level of creativity that even conventional digital signage cannot offer.

A man is doing his job by looking at the data displayed on the Transparent OLED screen.

* All images are for illustrative purposes only.

A New Level of See-through View

LG Transparent OLED Signage illuminates spaces that once were hidden away behind the display, completely harmonizing with its surroundings.
Boasting vivid and clear colors with high transparency, this display provides visual enhancements to objects placed behind it, giving viewers an impressive "wow" factor.

LG Transparent OLED Signage vividly shows the fireworks, making the screen look more colorful in harmony with the actual night view behind it.

Information about the Colosseum is shown on the Transparent OLED screen set up in front of the Colosseum model.

High Transparency

LG’s OLED technology makes the Transparent OLED Signage have slimmer structure without backlight unit nor a liquid crystal layer, achieving high transparency of 38% much higher than conventional LCD transparent displays (10%*). While clearly showing objects behind the screen, it overlays the relevant information right before them.

* Based on LG’s WFB series

A man is getting information through the Transparent OLED screen showing photos of the dessert menu.

Accurate and Vivid Colors

Featuring self-lighting pixels, the display maintains vivid colors and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.

Attach thin and transparent tempered glass to the screen to maximize product protection and user safety.

Protective Tempered Glass

Touching a display directly can cause damage or scratches. The tempered front glass protects product from such external impacts and its anti-shatter glass is designed to minimize customers’ injuries.

* Optically Clear Adhesive

A woman understands her work by looking at the transparent display installed in the office's windows.

Expandable Design

LG Transparent OLED Signage is designed as a semi-assembled display, meaning you can install it in various ways to fit into existing structures and spaces. With a variety of forms of installation*, it can complement any venue in which it is installed.

* Installation accessories are not supplied by LG.

Explore more showroom at<br>LG Digital Connect1

Explore more showroom at
LG Digital Connect

Explore

Panel

Screen Size

55"

Panel Technology

OLED
Native Resolution

1,920 x 1,080 (FHD)

Brightness

150/400nit (APL 100%/25%, Without Glass)
Contrast Ratio

150,000 : 1

Dynamic CR

No
Color gamut

BT709 120 %

Viewing Angle (H x V)

178 x 178
Color Depth

10bit(R), 1.07Bilion colors

Response Time

1 ms (G to G)
Surface Treatment (Haze)

Hard coating (2H)

Operation Hours (Hours / Day)

18 / 7 (Moving Content Only)
Portrait / Landscape

Yes / Yes

Transparency

38% (SET)

Connectivity

Input

HDMI (1, HDCP1.4), DP (1, HDCP1.3), RS232C IN, RJ45(LAN), IR IN (1, External IR Receiver), USB2.0 Type A(2)

Output

DP Out, Audio Out, RS232C OUT (1, w/ IR out), RJ45(LAN)

Mechanical Specification

Bezel Color

Transparent

Bezel Width

T/R/L/B : 7.9/7.9/7.9/121.7mm
Weight (Head)

11.6Kg (Head), 3.4Kg (Signage Box)

Monitor Dimension (W x H x D)

1225.5 x 810.1 x 4.9mm (Head)
782.8 x 238.4 x 34.7mm (Signage Box)
Monitor Dimensions with Stand (W × H × D)

No

VESA™ Standard Mount Interface

No
Protection Glass

Depth 3.0 mm , Tempered / Chemical Strengthening, Anti-Reflective, Shatter-Proof

Feature

HW

Internal Memory (16GB), Temperature Sensor

SW

webOS ver. (webOS4.0), Local Contents Scheduling, Group Manager, USB Plug & Play, Fail over, RS-232C Sync, Local Network Sync, Video Tag (4), Gapless Playback, Tile Mode Setting, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Crestron Inside, PM mode, Wake on LAN, HDMI-CEC, SI Server Setting, Pro:Idiom

Environment Conditions

Operation Temperature

0 °C to 40 °C

Operation Humidity

10 % to 80 %

Power

Power Supply

AC 100-240V~, 50/60Hz

Power Type

Built-In Power

Power Consumption

Typ. / Max.

250 W / 280 W

BTU (British Thermal Unit)

853.03 BTU/Hr(Typ.), 955.39 BTU/Hr(Max)

Sound

Speaker

No

Dimension
- 55ew5g_2d.dwg
- 55ew5g_2d.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
