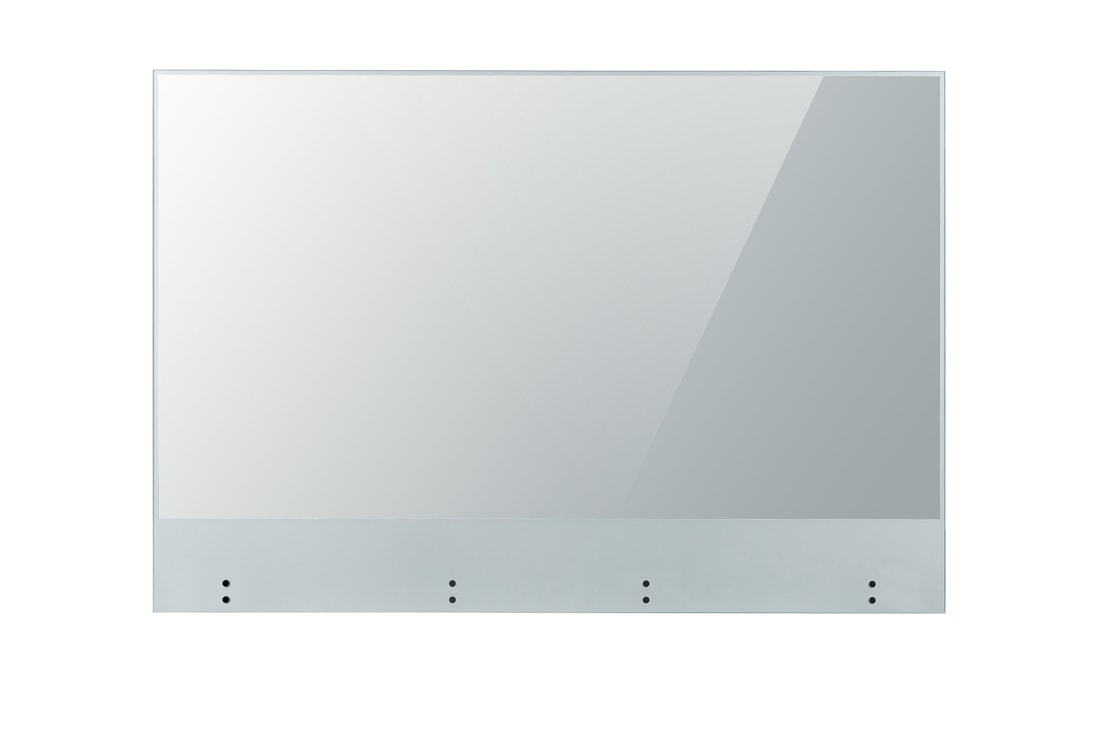

55EW5TF-A
Transparent OLED Signage
55"
  • Brightness(Typ.): 400 cd/m² (APL 25%, without Glass)

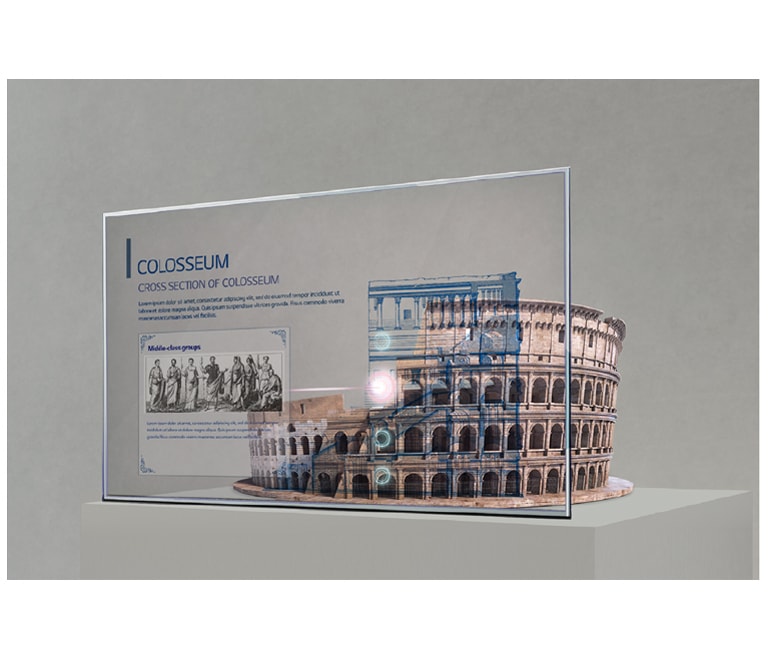

  • Transparency(Typ.) : 33% (Set)
  • Bezel : 7.9 mm (T/B/L), 144.5 mm (B)
  • Interface : HDMI / DP / USB 2.0(2) / Touch USB / RS232C / RJ45/ IR / Audio

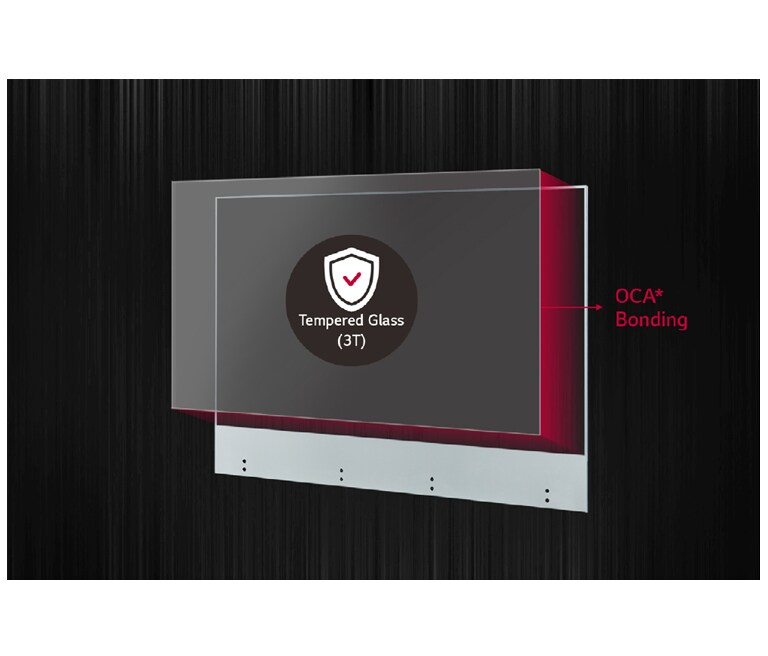

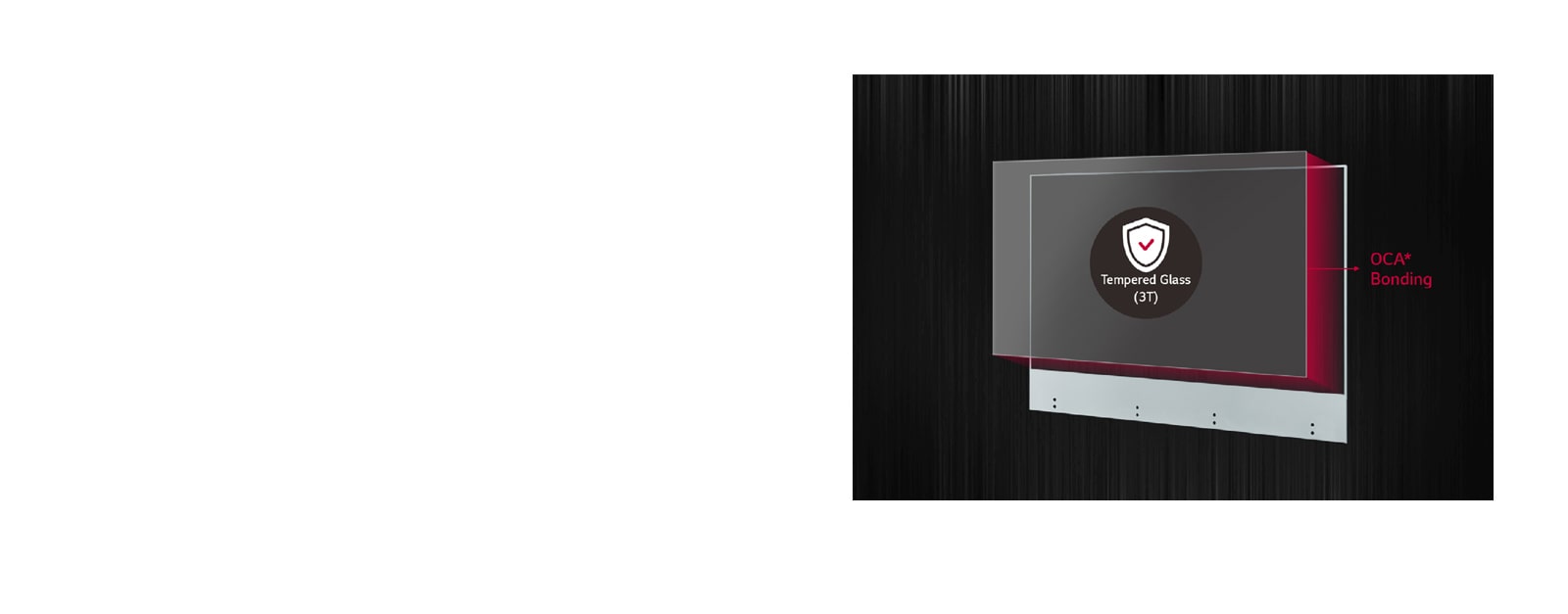

  • P-Cap Touch, Tempered Front Glass (3T)

component-OBScountrySelectDesc

Transparent OLED Signage
SPATIAL HARMONY

Expandable Design

LG Transparent OLED Touch Signage is designed as a semi-assembled display, meaning you can install it in various ways to fit into existing structures and spaces. With a variety of forms of installation*, it can complement any venue in which it is installed.
Expandable Design Expandable Design
* Installation accessories are not supplied by LG.

Panel

  • Screen Size
    55"
    Panel Technology
    OLED
  • Native Resolution
    1,920 x 1,080 (FHD)
    Brightness (Typ., nit, APL 100%, Without Glass)
    150
  • Brightness (Typ., nit, APL 25%, without Glass)
    400
    Contrast Ratio
    150,000 : 1
  • Dynamic CR
    No
    Color gamut
    BT709 120 %
  • Viewing Angle (H x V)
    178 x 178
    Color Depth
    1.07 Billion Colors (10 bit)
  • Response Time
    1 ms (G to G)
    Surface Treatment (Haze)
    No
  • Operation Hours (Hours / Day)
    18 / 7 (Moving Content Only)
    Portrait / Landscape
    Yes / Yes
  • Transparency (Typ.)
    33% (Set)

Connectivity

  • Input
    HDMI (HDCP 2.2), DP (HDCP 1.3), USB 2.0 Type A, USB 2.0 Type A (Touch Control Board Only)
    Output
    DP, Audio, USB 2.0 Type B (Touch USB)
  • External Control
    RS232C In/Out, RJ45 (LAN) In/Out, IR In (External IR Receiver)

Mechanical Specification

  • Bezel Color
    Matt Silver
    Bezel Width
    7.9 / 7.9 / 7.9 / 144.5 mm (T / R / L / B)
  • Weight (Head)
    (Head) 14.6 kg
    (Signage Box) 3.4 kg
    Monitor Dimension (W × H × D)
    (Head) 1,225.5 x 832.9 x 7.0 mm
    (Signage Box) 782.8 x 238.4 x 34.7 mm
  • Monitor Dimensions with Stand (W × H × D)
    No
    VESA™ Standard Mount Interface
    No
  • Protection Glass
    Depth 3.0 mm , Tempered / Chemical Strengthening, Anti-Reflective, Shatter-Proof

Feature

  • Key Feature
    Internal Memory (16GB), Temperature Sensor, FAN, webOS 4.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Video Tag (4), Rotation (Screen Rotation), Gapless Playback, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Crestron Connected®(Network based control), PM Mode, Wake on LAN, HDMI-CEC(Compatibility may differ by equipment.), SI Server Setting, Pro:Idiom

Environment Conditions

  • Operation Temperature Range
    0°C to 40°C
    Operation Humidity Range
    10 % to 80 %

Power

  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power

Power Consumption

  • Typ. / Max.
    250 W / 280 W
    BTU (British Thermal Unit)
    853 BTU/Hr (Typ.), 955 BTU/Hr (Max.)

Sound

  • Speaker
    No

Certification

  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP
    Yes (EU Only)

Media Player Compatibility

  • OPS type compatible
    No
    OPS Power Built In
    No

Software Compatibility

  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes
  • SuperSign Media Editor
    Yes
    Signage365Care
    Yes (The availability can differ by region.)

Accessory

  • Basic
    Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, FFC Cables (1,600 mm × 4 ea for Connection Between Panel and Signage Box), HDMI Cable (3 M), Micro to A Type USB Cable (1.8 M for Connection Between Touch and Signage Box), A to B Type USB Cable (Touch Out), Tape (10 ea for Cabling / 10 ea EMI Gasket Tape), Screw (M4 × L22, 12 ea / M4 Nut 12 ea / M3 × L5.5, 8 ea / M3 × L3.5, 20 ea), Shield Cover Ass'y, Rubber Damper 4 ea, Touch Cable Holder 2 ea
  • Datasheet
    • 55EW5TF_Datasheet(low)_LG T-OLED Touch_200313.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
