Discontinued

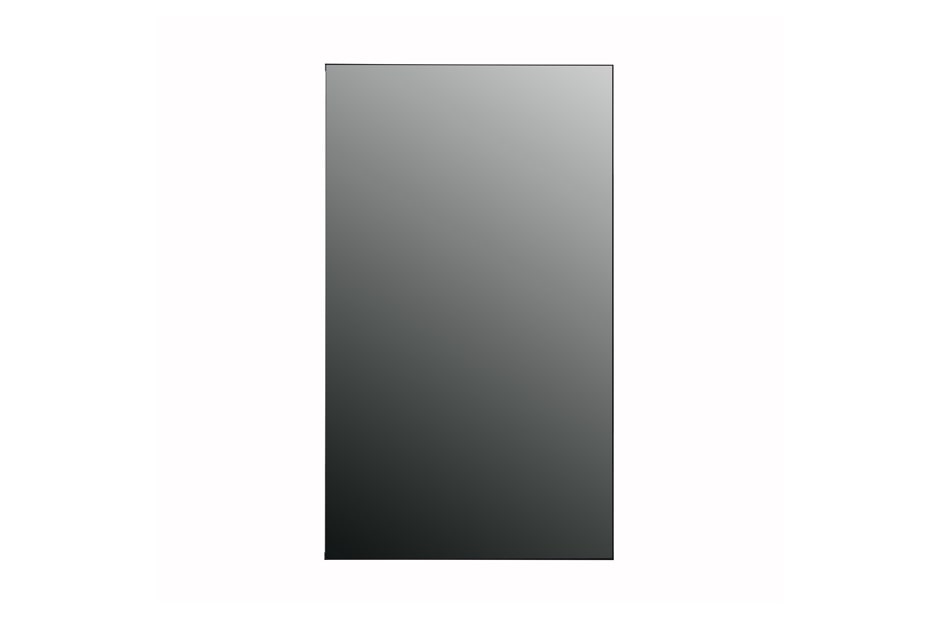

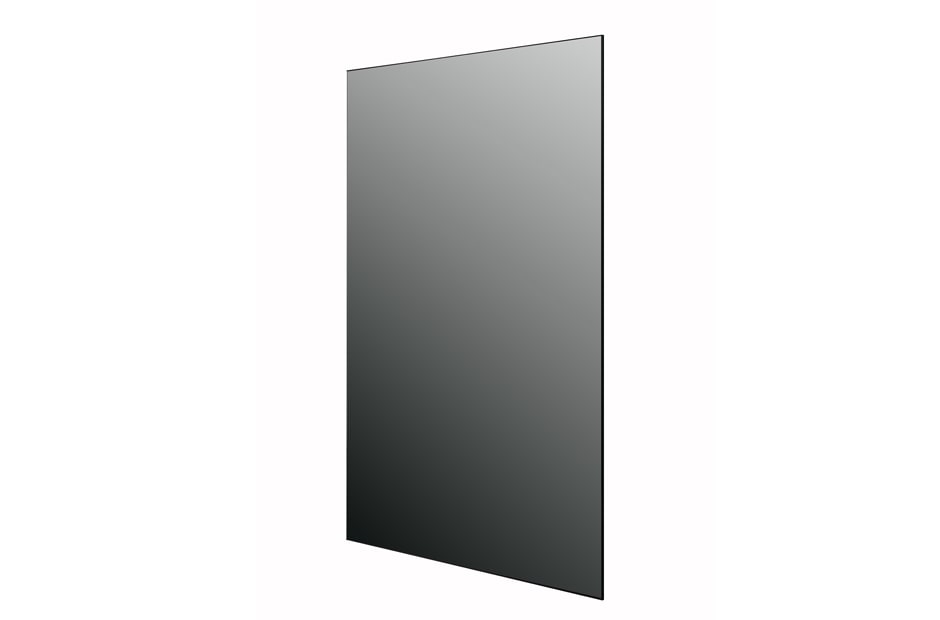

65EV5C
Video Wall OLED Signage
  • Brightness(Typ.) : 450 cd/m² (Average Picture Level 25%)

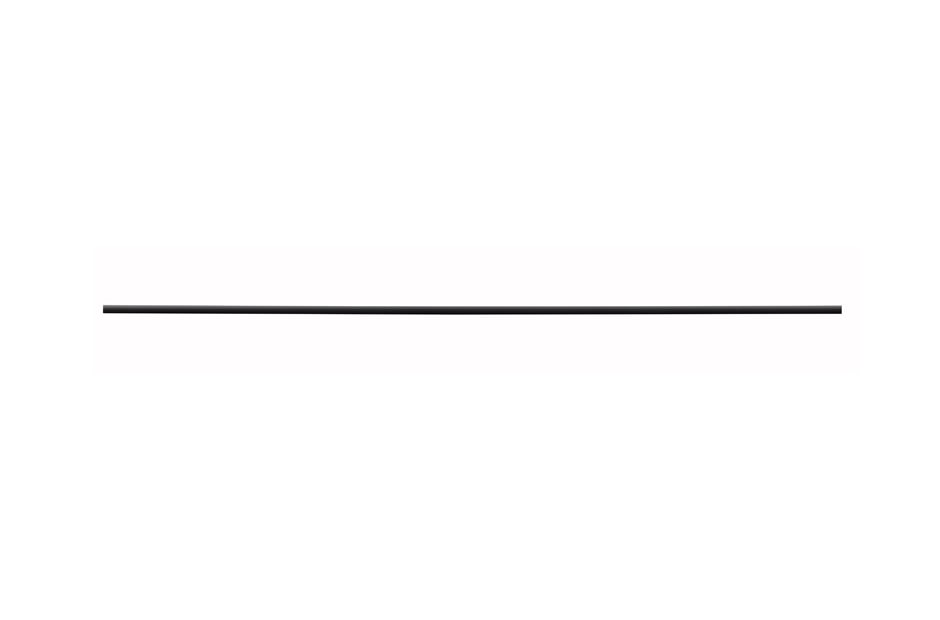

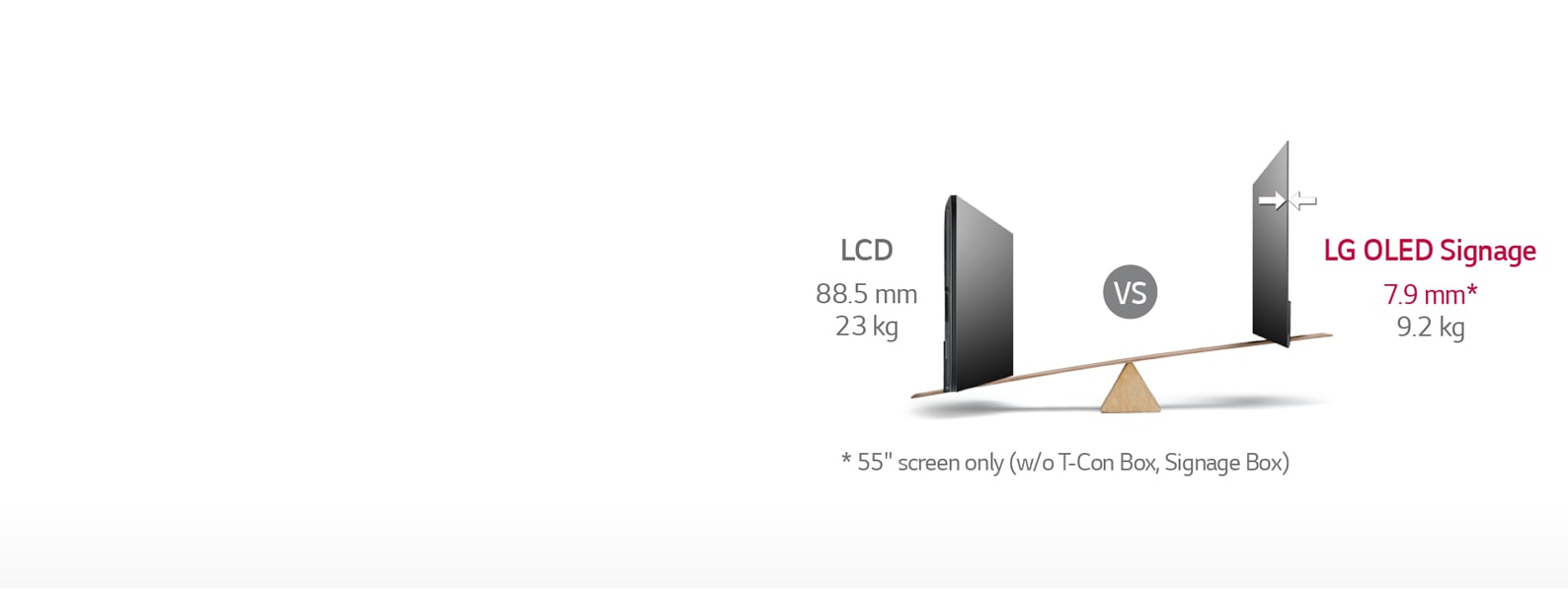

  • Depth : 7.9 mm (Display Only)
  • Orientation : Portrait
  • Interface : HDMI, DP, USB, RS232C, RJ45, IR Reciever

component-OBScountrySelectDesc

Video Wall OLED Signage

Panel

  • Screen Size
    65"
    Resolution
    3,840 x 2,160 (UHD)
  • Brightness (APL25%, Typ., cd/m²)
    450

Connectivity

  • Input
    HDMI, DP, USB
    Output
    DP
  • External Control
    RS232C in/out, RJ45 in/out, IR receiver

Physical Specification

  • Bezel Width
    (Off Bezel) 1.2 / 1.2 / 1.2 / 1.2 mm (U/B/L/R)
    (On Bezel) 10.5 / 10.5 / 10.5 / 11.0 mm (U/B/L/R)

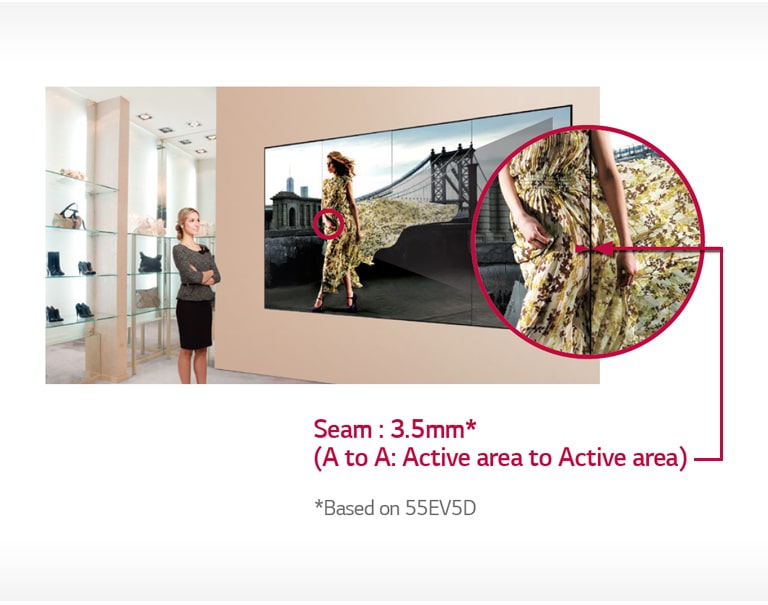

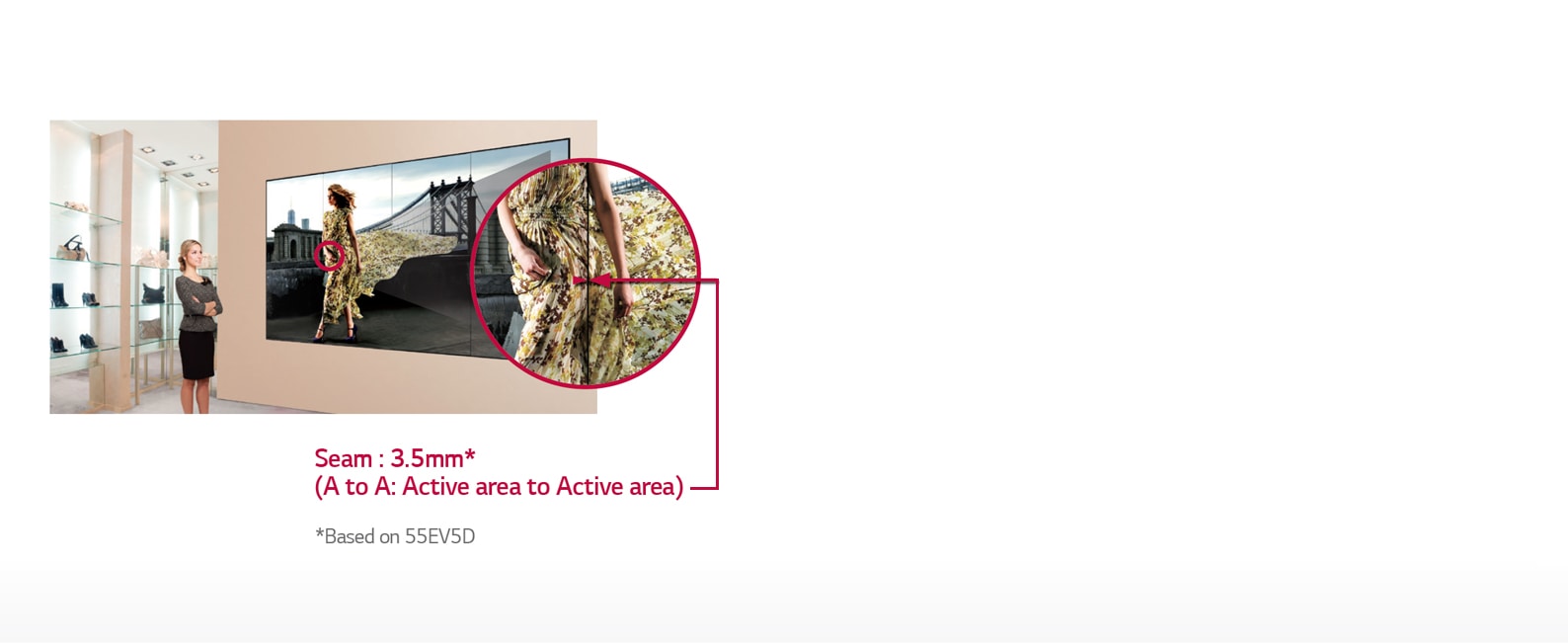

    (Seam) 9.5 mm
    Dimension (W x H x D)
    (Head)

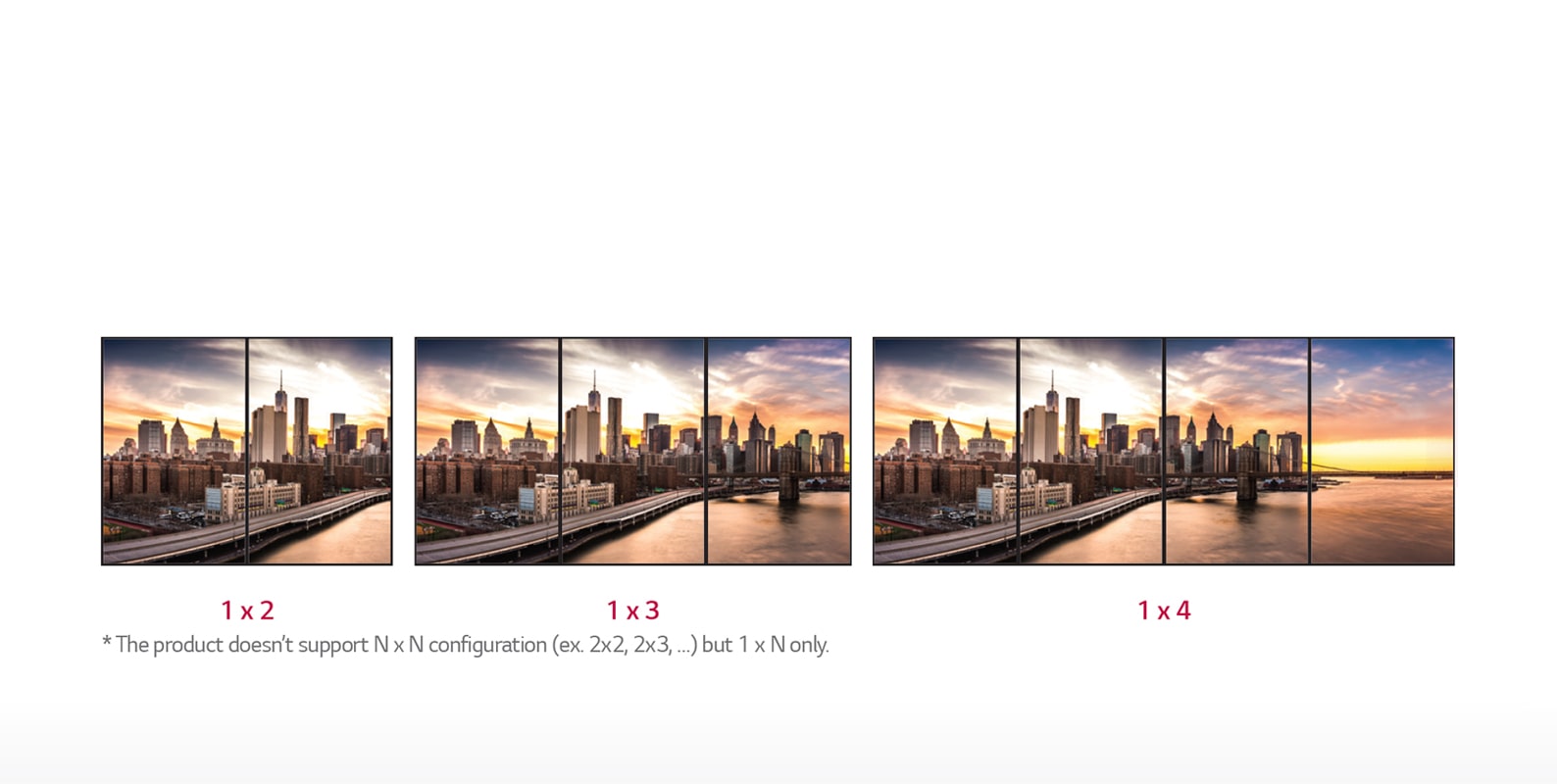

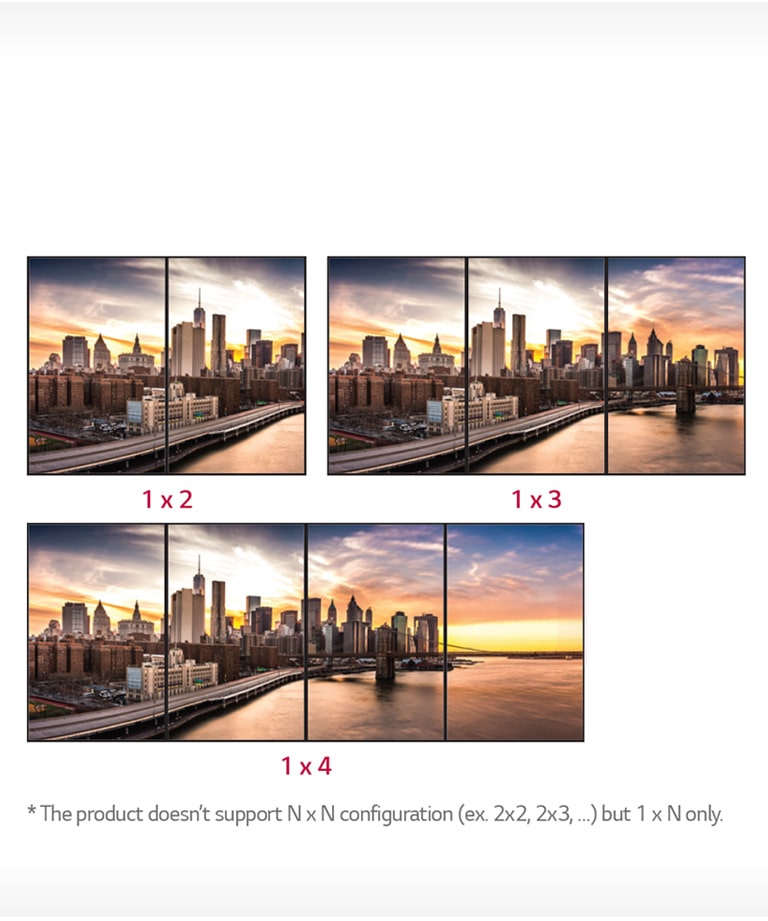

    1x2: 1,639 x 1,450.5 x 7.9 mm
    1x3: 2,452 x 1,450.5 x 7.9 mm
    (Main Box) 423 x 390.2 x 24.2 mm
    (PSU Box) 523 x 243 x 56 mm
  • Weight
    (Set: Head + Main Box + PSU Box) 1×2: 47 kg, 1×3: 70 kg
    Packaged Weight(Set)
    1x2: 70 kg, 1x3: 120 kg

Environment Conditions

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %

Power

  • Power Supply
    100-240 V~, 50/60 Hz
    Power Type
    Built-In Power

Standard(Certification)

  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes / NA

Media Player Compatibility

  • OPS type compatible
    No
    External Media player Attatchable
    Yes

Software Compatibility

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign C

Accessory

  • Basic
    Remote Controller (2 Batteries Included), Power Cord, QSG, Power Hanness Cable (3M x 1ea, for Connection between PSU Box and Main Box), IR Receiver, Regulation Book, FFC Cables (120mm x 4ea), Phone to RS232C Gender, Phone to Phone (4pin) Cable, DP Cable, LAN Cable
    Optional
    N/A
  • Dimension
    • 65EV5C_2D.dwg
    • 65EV5C_2D.pdf
  • Datasheet
    • EV5C+EV5D Leafelt(online)_11804.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
