65EV5E
EV5E Series
65"
  • Brightness(Typ.): 400 cd/m² (APL 25%)
  • Bezel: 1.2 mm (Even, Off bezel)

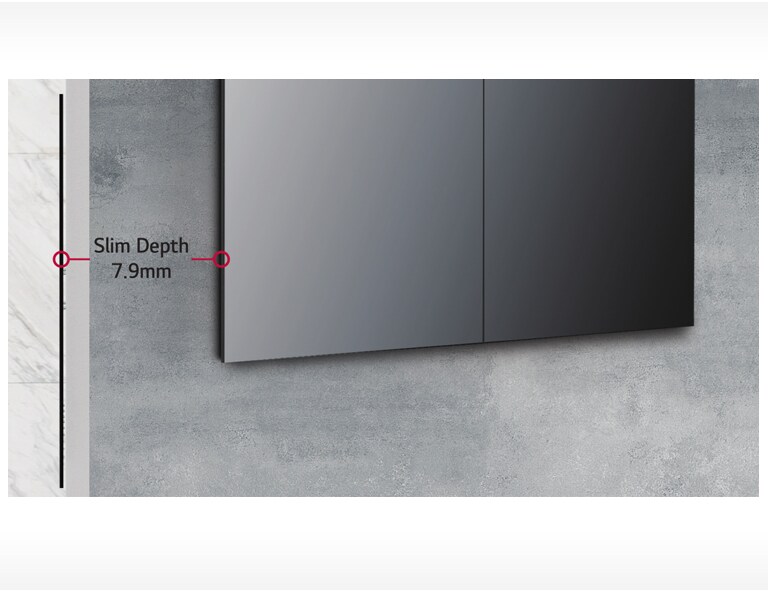

  • Depth: 7.9 mm (Head)
  • Interface: HDMI/ DP/ USB 2.0(2)/ RS232C/ RJ45/ Audio Out/ IR
EV5E Series
MSRP $

Panel

  • Screen Size
    65"
    Resolution
    3,840 x 2,160 (UHD)
  • Brightness (APL25%, Typ., cd/m²)
    400
    Brightness (APL100%, Typ., cd/m²)
    150

Connectivity

  • Input
    HDMI, DP, USB 2.0 (2)
    Output
    DP, Audio
  • External Control

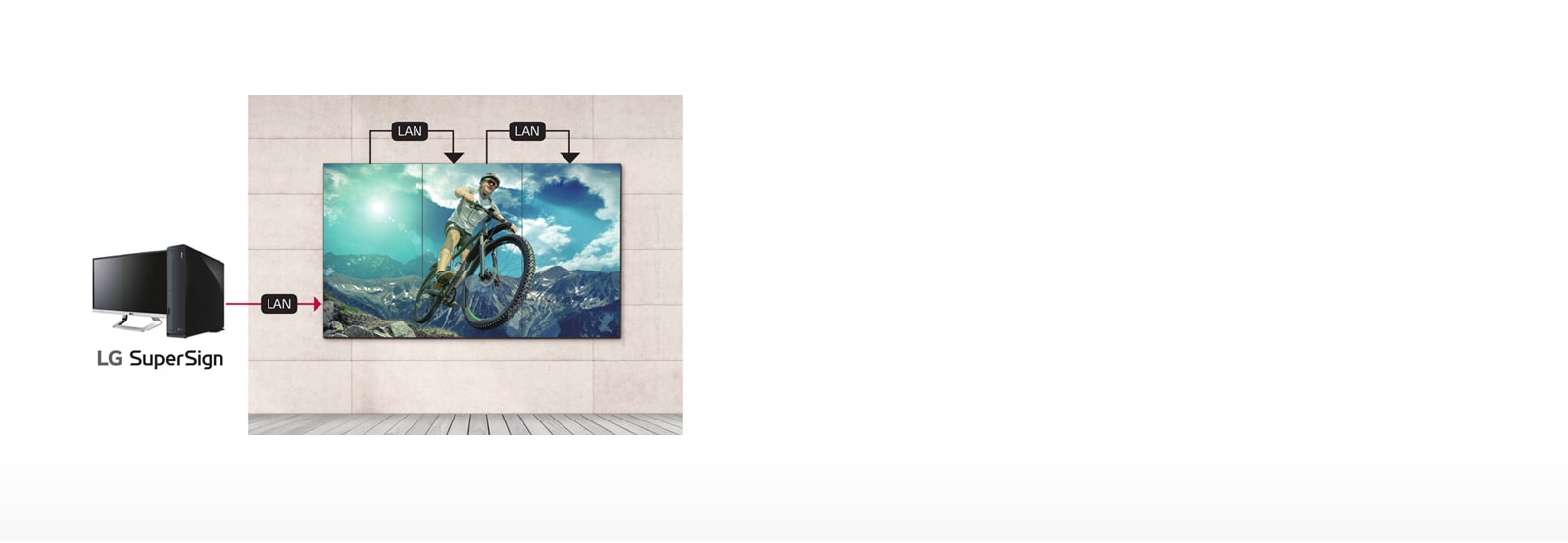

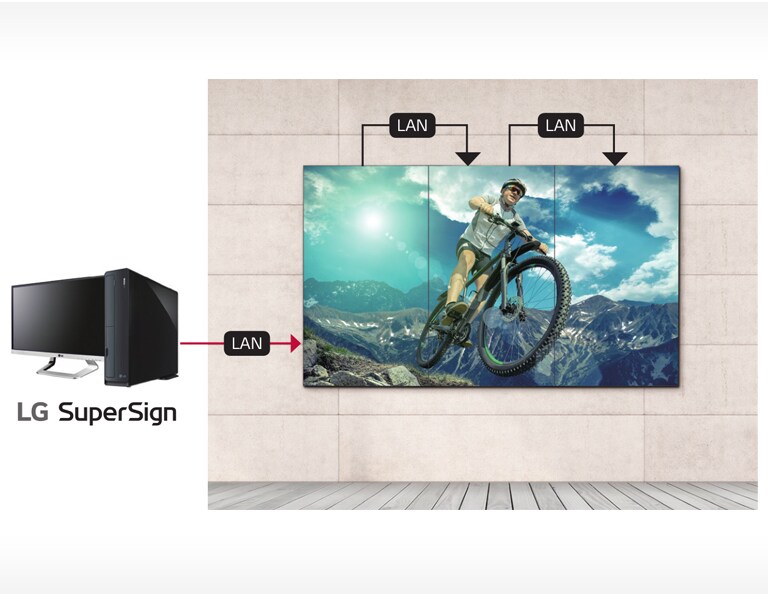

    RS232C In/out, RJ45 (LAN) In/out, IR In

Physical Specification

  • Bezel Width
    1.2mm (Even) *Off-Bezel
    9.1 mm (T/B), 8.7 mm (L), 11.6 mm (R) *On-Bezel

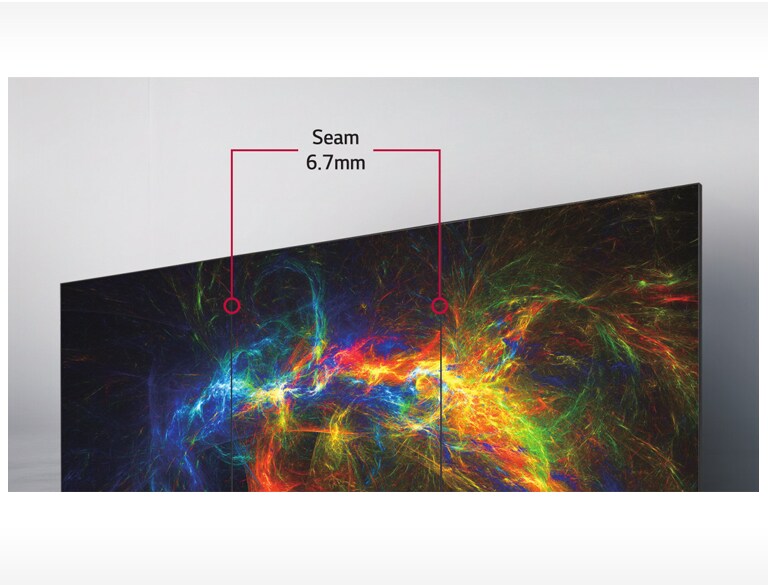

    6.7 mm (Seam)
    Dimension (W x H x D)
    1,634.6 x 1,446.7 x 7.9 mm (Head 1x2)
    2,445.4 x 1,446.7 x 7.9 mm (Head 1x3)
    782.8 x 35.5 x 239.0 mm (Signage Box)
  • Weight
    29.4 kg (Set 1×2) / 44.5 kg (Set 1×3)
    Carton Dimensions (W x H x D)
    1,940 x 1,120 x 536 mm (Set 1x2) / 1,940 x 1,120 x 646 mm (Set 1x3)
  • Packed Weight
    69.6 kg (Set 1x2, w/ Pallet) / 96 kg (Set 1x3, w/ Pallet)

Environment Conditions

  • Operation Temperature
    0°C ~40°C
    Operation Humidity
    10% ~ 80%

Power

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power

Power Consumption

  • Typ.
    440 W *8 Color Bar Based
    Max.
    478 W *8 Color Bar Based

Standard (Certification)

  • Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes (EU Only) / No

Media Player Compatibility

  • OPS type compatible
    No
    External Media player Attatchable
    Yes

Software Compatibility

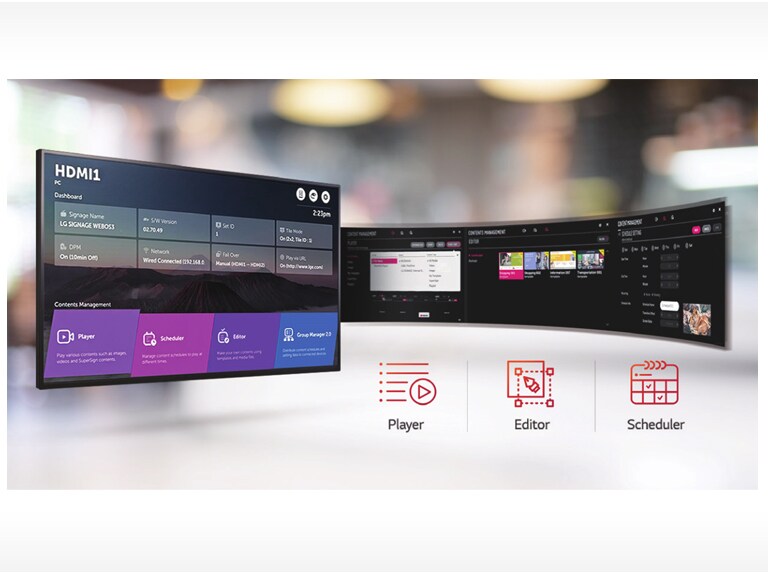

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control+ / Control

Accessory

  • Basic
    Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, RS232 Cable (4p-4p), FFC Cables (for Connection Between Panel and Signage Box), DP Cable, LAN Cable, LC (VLC Cable), Fixer Screws, Anchor Bolts, Polyester Tapes, Panel Jigs

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
