LG UltraFine Display OLED Pro
Contact Us

The Ultimate Professional OLED Monitor Designed for Broadcast

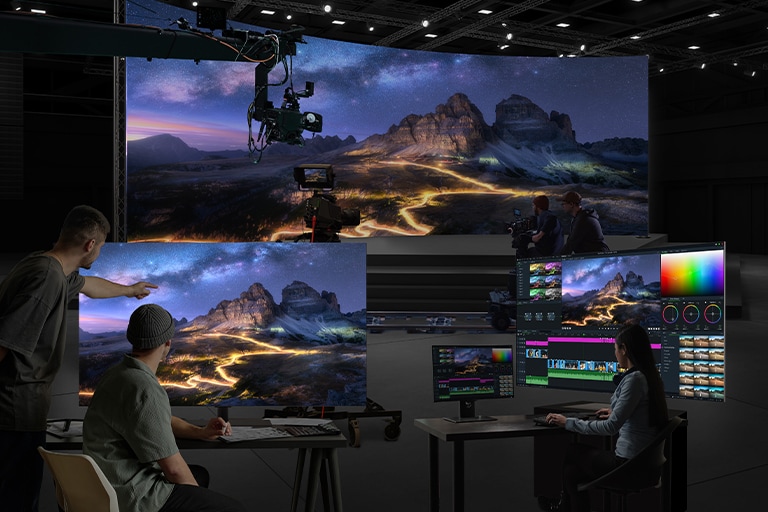

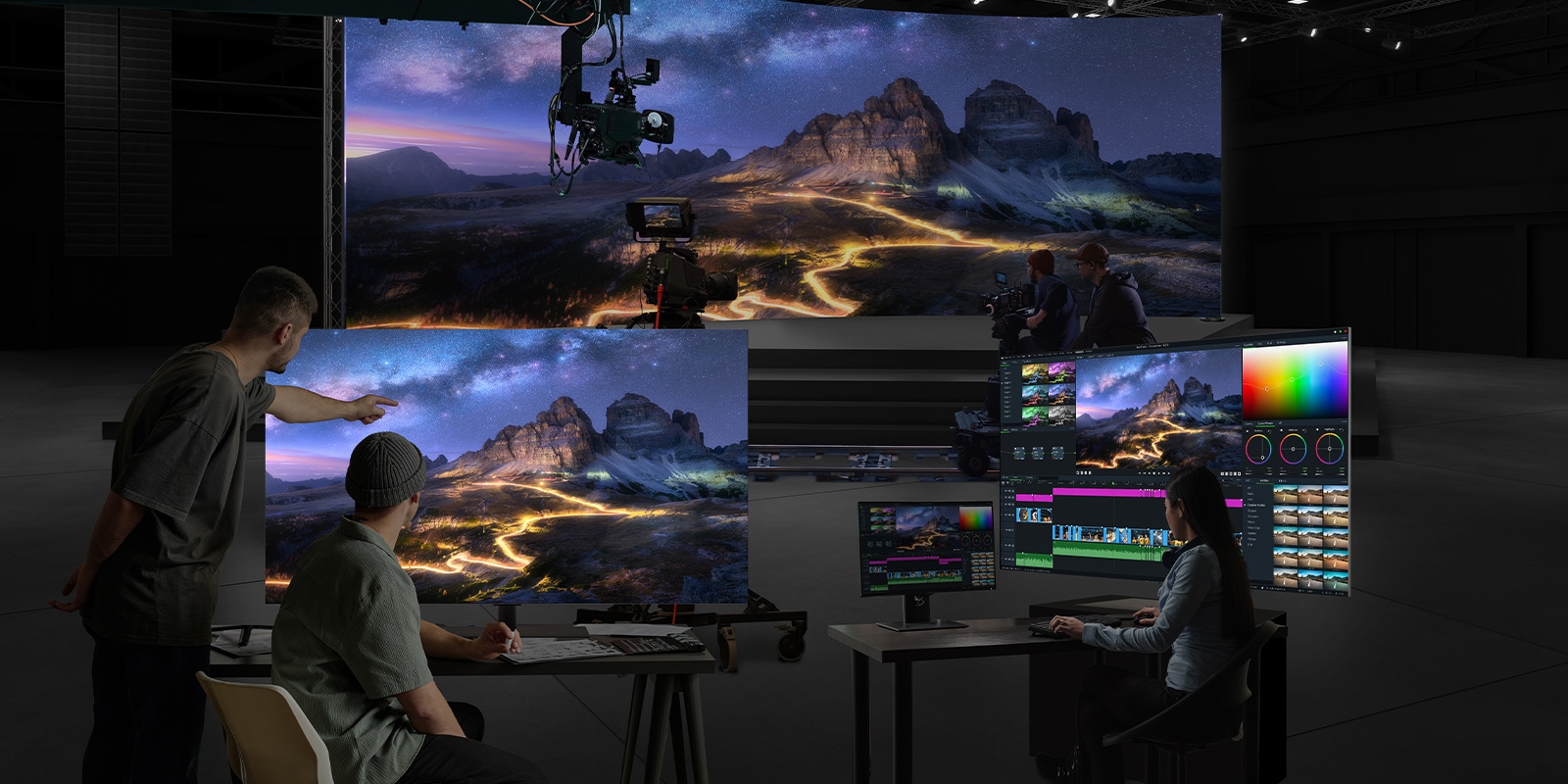

Filming is in progress in a studio with a large LED screen as the background. One 65EP5Q is used for color grading, while another is displaying the output for monitoring. Filming is in progress in a studio with a large LED screen as the background. One 65EP5Q is used for color grading, while another is displaying the output for monitoring.
* All images in this page are for illustrative purposes only.

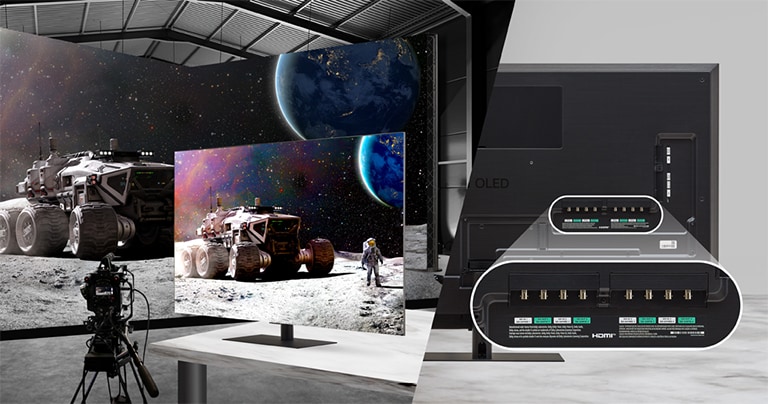

The left image shows content being monitored in a studio using the 65EP5Q, while the right image displays a close-up of the 65EP5Q’s rear interface, showcasing its diverse input and output options. The left image shows content being monitored in a studio using the 65EP5Q, while the right image displays a close-up of the 65EP5Q’s rear interface, showcasing its diverse input and output options.

Diverse I/O Interfaces

A variety of input interfaces are provided including HDMI and SDI In/Out with BNC, and it also supports SDI over IP via SFP+ case with a SFP module. OLED Pro can transmit 12Gbps data transfer for 4K 60p images.*

* To use 4K 60p, only the YCbCr 4:2:2 10-bit format is available.

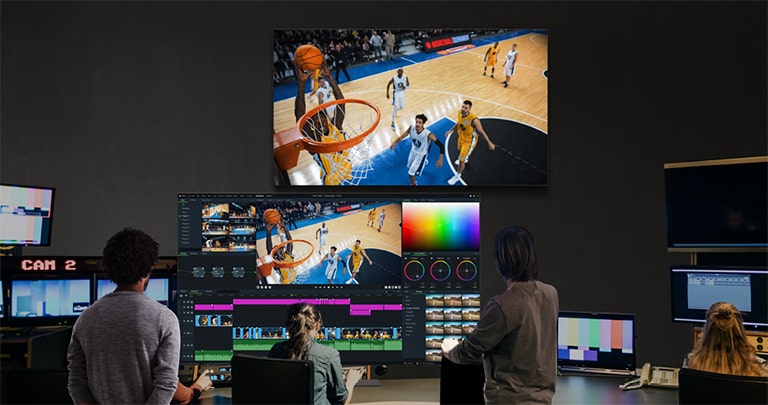

A basketball game broadcast is being monitored on the 65EP5Q, which displays consistent and accurate colors across the entire screen without distortion, regardless of viewing angle. A basketball game broadcast is being monitored on the 65EP5Q, which displays consistent and accurate colors across the entire screen without distortion, regardless of viewing angle.

Consistent Luminance & Color Accuracy

OLED Pro's advanced localized brightness compensation helps deliver consistent, accurate colors across the entire display surface. Experience enhanced color fidelity and vibrancy, regardless of seating position or viewing angle. Whether it's a small review session or a packed presentation, you can enjoy a superior viewing experience—clear, precise, and uniform from edge to edge.
The left screen shows an underwater scene that appears muted due to murky colors, while the OLED Pro display on the right, which supports 3D LUT, delivers a more vivid and accurate representation of the underwater environment. The left screen shows an underwater scene that appears muted due to murky colors, while the OLED Pro display on the right, which supports 3D LUT, delivers a more vivid and accurate representation of the underwater environment.

Professional Color Grading with 3D LUT

Experience precise color control and creative freedom with OLED Pro’s full support for professional 3D Look-Up Tables. Whether you’re crafting cinematic visuals or monitoring live broadcast content, easily apply and adjust LUTs to reflect your exact artistic vision. This advanced color processing empowers creators and post-production teams to meet demanding visual standards, exceed client expectations, and bring unique stories to life.

* Images shown are for illustrative purposes only.

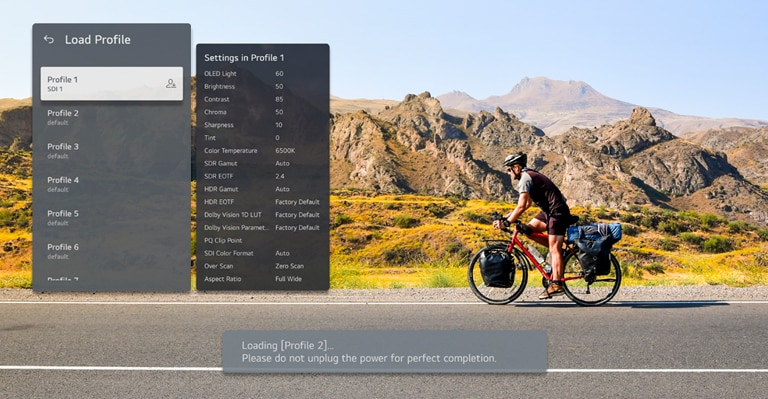

The image shows the 65EP5Q's Load Profile menu interface, illustrating how multiple user-specific screen setting profiles are stored separately and can be easily switched between. The image shows the 65EP5Q's Load Profile menu interface, illustrating how multiple user-specific screen setting profiles are stored separately and can be easily switched between.

Instant, Secure Profile Switching with Password Protection

Switch instantly between up to 10 customized setting profiles— whether for different users, color spaces, or project types. Stay precise and productive across every workflow with effortless transitions between configurations. Each profile can be passwordprotected to help prevent unauthorized changes, ensuring your calibrated settings remain consistent—so you can focus on creating, not recalibrating.
Close
Info
  • Product
    OLED Pro
    Year
    Y25
  • Month
    M06
Panel
  • Screen Size (Inch)
    65"
    Panel Technology
    OLED
  • Back Light Type
    OLED
    Aspect Ratio
    16:9
  • Native Resolution
    3840x2160 (UHD)
    Refresh Rate
    120Hz
  • Brightness
    2900/2200/1000/330nit (APL 3%/10%/25%/100%)
    Contrast Ratio
    3,300,000 : 1
  • Color gamut
    DCI-P3 99.5%
    Viewing Angle (H x V)
    178 x 178
  • Color Depth (Number of Colors)
    10bit, 1.07Billion colors
    Response Time
    0.1ms (G to G)
  • Surface Treatment (Haze)
    Haze 1%
    Life time
    30,000 Hrs (Typ.)
  • Operation Hours (Hours/Day)
    12/7 (Moving Content Only)
    Portait / Landscape
    No / Yes
Connectivity
(Jack Interface)
  • HDMI IN
    Yes(1), (HDCP1.4/2.2)
    RS232C IN
    Yes(1), Service only
  • RJ45(LAN) IN
    Yes(1), 100base-T
    USB IN
    USB2.0 Type A(1)
  • Audio Out
    Yes (1)
Mechanical
  • Bezel Color
    Sliver
    Bezel Width
    T/R/L/B : 1.5/1.5/1.5/1.5mm (Off Bezel)
    T/R/L/B : 6.2/6.2/6.2/11.1mm (On Bezel)
  • Weight (Head)
    22kg
    Weight (Head+Stand)
    27.3kg
  • Packed Weight
    34.1kg
    Monitor Dimensions (W x H x D)
    1441 x 826 x 24.3mm
  • Monitor Dimension with Stand (W x H x D)
    1441 x 865/910 x 263mm
    Carton Dimensions (W x H x D)
    1600 x 970 x 172mm
  • VESATM Standard Mount Interface
    300 x 300
HW Feature
  • Internal Memory (eMMC)
    16GB
    Wi-Fi/BT (Built-in)
    Yes
  • Temperature Sensor
    Yes
    Power Indicator
    Yes
  • Local Key Operation
    Yes
    FAN (Built-in)
    Yes
SW Feature
  • OS Ver. (webOS)
    webOS8.5
    No Signal Image
    Yes
  • PIP
    Yes
    PBP
    Yes(2)
  • ISM Method
    Yes
Environment Conditions
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
Power Consumption
  • Typ.
    120W (IEC 62087)
    Max.
    450W
  • BTU (British Thermal Unit)
    TBD
    Power off
    0.5W
Sound
  • Speaker (Built-in)
    Yes (15W x 2)
Certification
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes (EU Only) / No
Software Compatibility
  • SuperSign WB
    Yes
Language
  • OSD
    English
Accessory
  • Basic
    Remote Controller(include battery 2ea), IG(Installation Guide), Regulation Book, Stand(Base,body,neck,cable holder,Screw), AV Cover,Wall mount cover
Special Feature
  • Conformal Coating (Power Board)
    Yes
Product Dedicated
Feature
  • SDI In
    Yes(4), 12Gx4
    - Single Link : SD/HD/3G/6G/12G
    - Dual Link : HD/3G_4K
    - Quad Link : HD_4K/3G_4K
    - Quad View : HD/3G/6G/12G
    SFP+ In
    Yes(1), SFP+, Support only for the Embrionix's SDI module
  • SDI Out
    Yes(4), Loop-through
    OS ver.
    webOS8.5
  • Color Adjustment
    OLED Light, Brightness, Contrast, Chroma, Sharpness, Tint, White Balance Control
    Color Temp.
    VAR Temp/9300K/6500K/5400K/3200K/D65(6504K)/C(6774K)/D-Cinema(6302K)
  • Over scan (Over scan)
    Zero Scan, Over Scan, Under Scan
    Aspect Ratio
    Auto, Original, Full Wide, 4:3, 14:9, 13:9, 1.85:1, 2.35:1, 1:1
  • Zoom
    x2~x5
    HDR/SDR monitoring
    Yes
  • Calibration SW
    Yes (SuperSign WB - including Uniformity Compensation, 9p/13p/25p, EBU Grade1)
    3rd Party Cal. SW Compatibility
    Yes (CalMAN - including Uniformity Compensation, 9p/13p/25p, EBU Grade1)
    ※ LG Connect must be on.
  • Eyesafe Certification (Less than 50% of blue light emission)
    Yes
    DeltaE < 2
    Yes
  • Gamut
    Auto/Native/BT.709/BT.2020/sRGB/AdobeRGB/P3/Cali 1 BT.709/Cali 1 BT.2020/Cali 1 sRGB/Cali 1 AdobeRGB/Cali 1 P3
    SDI Color Format
    Auto, RGB444, YCbCr444, YCbCr422
  • Custom 3D LUT file Import (through USB)
    Yes
    R/G/B Gain
    Adjustable (0~1023)
  • Mono/Blue Only
    Yes
    Transfer Matrix
    Yes
  • Mastering Peak
    Yes
    EOTF(Electro-Optical Transfer Function)
    Auto/User/1.9/2.2/2.4/2.6/Cali 1~Cali 10
  • Audio - Source Selection
    Yes (SDI1, SDI2, SDI3, SDI4)
    Audio - Level Meter
    Yes (Ch1~16, Selectable)
  • Audio - Sound Mode
    Yes
    Audio - Dolby Atmos
    Yes
  • Profile Load / Save
    Profile1~10
    Function Key
    Function1~5
  • VPID
    Yes
    Internal Signal Pattern
    Yes
  • PBP
    Yes
    PIP
    Yes
  • OLED Panel Setting (for image sticking prevention)
    TPC Auto-dimming (Temporal Peak Luminance Control), Pixel Cleaning, Screen Shift, Logo Luminance Adjustment, GSR Auto dimming(Global Sticky Reduction),Convex Power Control
    LG Connect
    Yes
  • 3rd Party Control Pad Compatibility
    Yes (Open API)
    Remote IP Control App (HTML)
    Yes
  • Datasheet
    • 65EP5Q Datasheet(low)_LG OLED Pro Monitor_250825.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
