24CN670N
24'' All-in-One Thin Client for Healthcare
  • IEC60601, CE MDD, FDA (Class I)
  • 23.8" Full HD IPS Display
  • Dual-band RFID
  • Quad-core Processor
  • Fanless Design
  • Ergonomic Stand

component-OBScountrySelectDesc

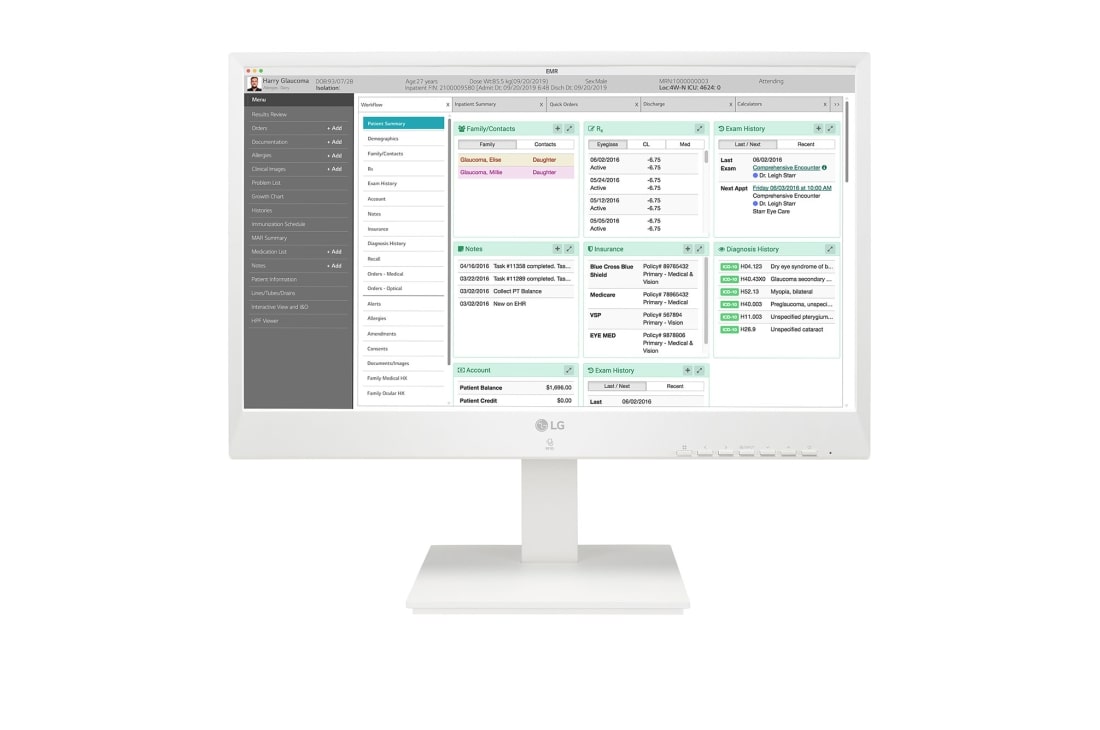

24" All-in-One Thin Client for Healthcare
Why Desktop Virtualization

Easy and Secure

LG Thin Client offers medical facilities an endpoint that delivers end-user performance and strong data protection. It provides a secure, cost-efficient, and reliable virtual desktop experience that's easy to implement and manage.
lg thin client for medical facilities providing with an easy and secured healthcare experience lg thin client for medical facilities providing with an easy and secured healthcare experience
All-in-One Thin Client

Designed for Medical Environment

LG's 24CN670N approved by medical standards* (IEC60601, CE MDD and FDA Class I), ensures its reliability at medical environment. Also its white color body helps to remove substances such as dust and dirt easily and keep it clean. So you can maintain the highest level of cleanliness** and promote patient safety.
The all-in-one thin client designed for medical environment complying with the standards of IEC60601, and CE, and approved by the FDA for the Class I The all-in-one thin client designed for medical environment complying with the standards of IEC60601, and CE, and approved by the FDA for the Class I
*IEC 60601: Series of technical standards for safety and essential performance of medical equipments, published by the International Electrotechnical Commission.
*CE marking: The medical device manufacturer's claim that a product meets the essential requirements of all relevant European Medical Device Directives.
*FDA Class I: Class I devices are subject to ‘General Controls’ as are Class II and Class III devices. Class I medical devices have a low to moderate risk to the patient and/or user.
**Recommended cleaning products are Isopropanol 100%, Ethanol 70%, Cidex OPA, 0.9% NaCl solution. All excluding screen. See user guide for cleaning instructions for more details.
Full HD IPS Display

More Visible at Wide Angle

LG All-in-One Thin Client with IPS technology delivers visual comfort especially for sharing charts and medical information with others.
full HD IPS display providing with wide viewing angle full HD IPS display providing with wide viewing angle
Quad-core Processor

Powerful Performance

With advanced Quad-core Processor and a powerful system memory option, 24CN670N helps you complete your work faster and easier than ever.
quad-core processor enabling you to get work done fast, and easily quad-core processor enabling you to get work done fast, and easily

icon Processor Intel® Quad-core

icon RAM 4GB DDR4

icon Storage 16GB eMMC

*RAM, and Storage specifications as detailed above apply only to models without Windows operating system, and may differ by model.
Up to 2 Display Support

Multi Display Set-up

LG 24CN670N supports up to two UHD 4K resolution displays. With the high flexibility for multi-monitor set-up options, you can get more done in less time.
24cn670n enabling to connect up to two uhd 4k resolution displays 24cn670n enabling to connect up to two uhd 4k resolution displays
*Supporting up to 4K resolution for connected displays via USB Type-C™ and DisplayPort 1.2 out.
Ergonomic Design

Better Workplace Ergonomics

The 24CN670N supports tilt, swivel, pivot and height adjustment options for the best comfort at work. These ergonomics also make it easier to share content with others and set up the equipment for shift work, leading to user convenience.
the monitor in the ergonomic design supporting tilt, swivel, pivot and height adjustment options the monitor in the ergonomic design supporting tilt, swivel, pivot and height adjustment options

icon Tilt -5° ~ 35°

icon Swivel 0° ~ 355° (±5°)

icon Pivot Bi-Direction

icon Height 0 ~ 130mm

PC Part

  • Processor
    Intel® Celeron J4105 (Quad Core 1.5GHz, up to 2.5GHz burst), Fanless
    Graphics
    Integrated Graphics
  • Operation System
    Non OS (IGEL OS Compatible)
    System Memory
    4GB DDR4, 2666MHz
  • Storage
    16GB eMMC
    Display Support
    Up to 2 displays : 3840x2160@60Hz (via DisplayPort 1.2 out), 3840x2160@60Hz (via USB Type-C)
  • TPM (Trust Platform Module)
    Hardware TPM 2.0

Display

  • Size (Inch)
    23.8
    Size (cm)
    60.47 cm
  • Aspect Ratio
    16:9
    Resolution
    1920 x 1080
  • Panel Type
    IPS
    Brightness (Min.)
    200 cd/m²
  • Brightness (Typ.)
    250 cd/m²
    Color Gamut (Typ.)
    NTSC 72% (CIE1931)
  • Color Depth (Number of Colors)
    16.7M
    Color Bit
    8bit (6bit+FRC)
  • Contrast Ratio (Min.)
    600:1
    Contrast Ratio (Typ.)
    1000:1
  • Response Time
    5ms (GtG at Faster)
    Viewing Angle (CR≥10)
    178º(R/L), 178º(U/D)

Feature

  • Color Weakness
    YES
    Flicker safe
    YES
  • Reader Mode
    YES
    Smart Energy Saving
    YES
  • Super Resolution+
    YES

Connectivity

  • HDMI
    YES(1ea)
    DisplayPort
    YES(out 1ea)
  • MIC & Headphone out combo
    YES (1 x 3.5mm audio-mic combo jack (CTIA Type))
    USB
    2x USB 2.0 Type-A, 4 x USB 3.1 gen1 (5Gb/s) Type-A, 1 x USB 3.1 gen1 (5Gb/s) Type-C with DP out
  • USB-C
    YES(out 1ea)

Sound

  • Speaker
    YES
    Speaker_Channel
    2ch
  • Speaker_Output (unit)
    3W
    Maxx Audio
    YES

Power

  • AC Input
    100-240Vac, 50/60Hz
    DC Output
    19V, 6.32A
  • Power Consumption (DC Off)
    Less than 1.2W
    Power Consumption (Max.)
    70W
  • Power Consumption (Typ.)
    28W
    Power Consumption (Sleep Mode)
    1.24W
  • Long Idle (Display Off)
    3.8W
    Short Idle (Display On)
    19.5W
  • Type
    External Power(Adapter)

Mechanical

  • Tilt
    -5º ~ 35º
    Swivel
    0°~355° (±5°)
  • Pivot
    Bi-Direction
    Height Range
    0 ~ 130 mm
  • OneClick Stand
    YES
    Wall Mountable
    100 x 100 mm

Dimensions/Weight

  • Dimension with Stand (W x H x D)
    553.8 x 512.9 x 240
    Dimension without Stand (W x H x D)
    553.8 x 382.9 x 59.4
  • Weight with Stand
    6.2kg
    Weight without Stand
    4.05Kg

Network

  • LAN
    1 x RJ45 : 10/100/1000 Base-T Gigabit Ethernet (Wake on LAN)
    Wi-Fi
    Dual Band 802.11a/b/g/n/ac 2x2 (BT 5.0 Combo, Internal Antenna)
  • Bluetooth
    BT5.0

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
