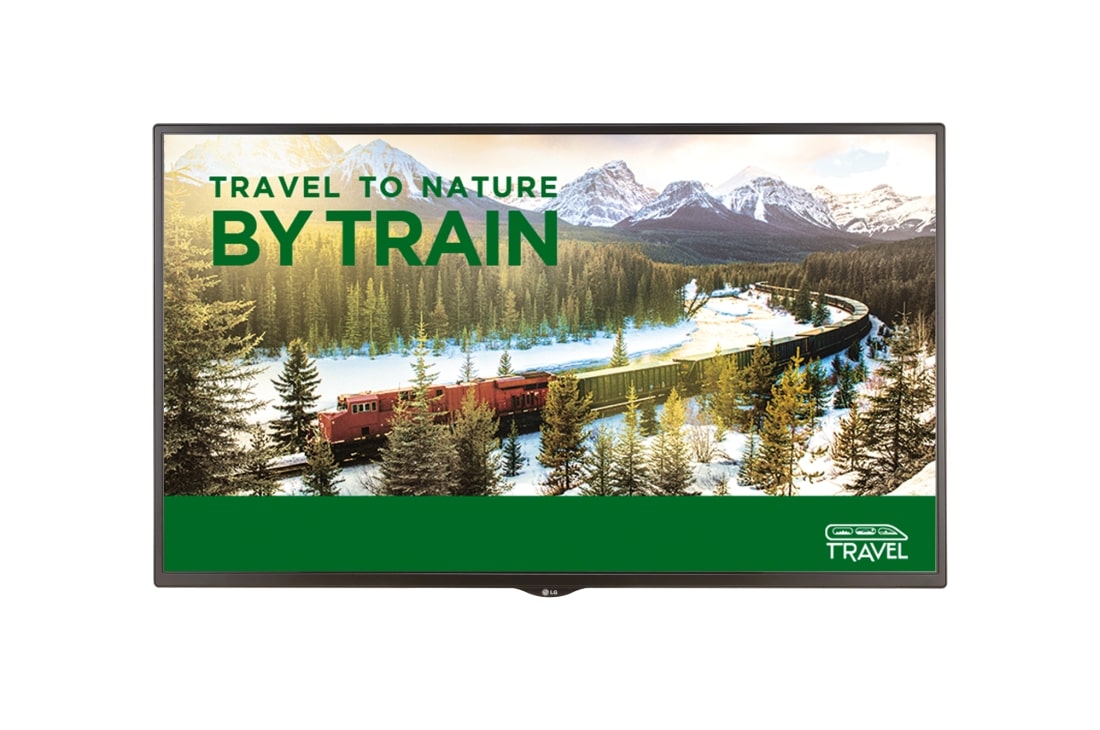

49'' 700 nits FHD Standard Signage

Key Features

Choose your Size

component-OBScountrySelectDesc

49" 700 nits FHD Standard Signage
Panel
  • Screen Size
    49"
    Native Resolution
    1,920 x 1,080 (FHD)
  • Brightness(Typ.,cd/m²)
    700
Connectivity
  • Input
    HDMI (3), DP, DVI-D, Audio, USB 3.0
    Output
    DP, Audio
  • External Control
    RS232C in/out, RJ45 in, IR in
Physical Specification
  • Bezel Width
    11.9 mm (T/R/L), 18 mm (B)
    Monitor Dimension (W x H x D)
    1,102.2 x 638.5 x 54 mm
  • Weight (Head)
    14.3 kg
    Carton Dimensions (W x H x D)
    1,197 x 760 x 166 mm
  • Packed Weight
    17.4 kg
    VESA™ Standard Mount Interface
    300 x 300 mm
Environment Conditions
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
Power Consumption
  • Typ. / Max.
    110 W / 140 W
    Smart Energy Saving
    77 W
Standard(Certification)
  • Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes (EU Only) / Yes (Energy Star 8.0)
Media Player Compatibility
  • OPS type compatible
    Yes
    External Media player Attatchable
    Yes
Software Compatibility
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Link
Minimum Requirements for LG Presenter
  • OS (Windows)
    Windows 7 (64bit), Windows 10 (64bit)
    OS (macOS)
    macOS 10.12 Sierra, MacOS 10.13 High Sierra
  • CPU (Windows)
    2.7GHz+ Dual Core Broadwell or higher
    CPU (macOS)
    Any CPU which supports Sierra or High Sierra
  • Memory
    4GB RAM
    Hard Drive
    1GB of free space
  • Graphics Hardware (Windows)
    Intel Iris or higher, Nvidia, ATI
    Graphics Hardware (macOS)
    Any GPU which supports Sierra or High Sierra
Accessory
  • Basic
    Remote Controller (2 Batteries Included), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender
    Optional
    Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T49E)
General
  • Region
    Global
  • Dimension
    • [Dimension]_49SH7E.dwg
    • [Dimension]_49SH7E.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
