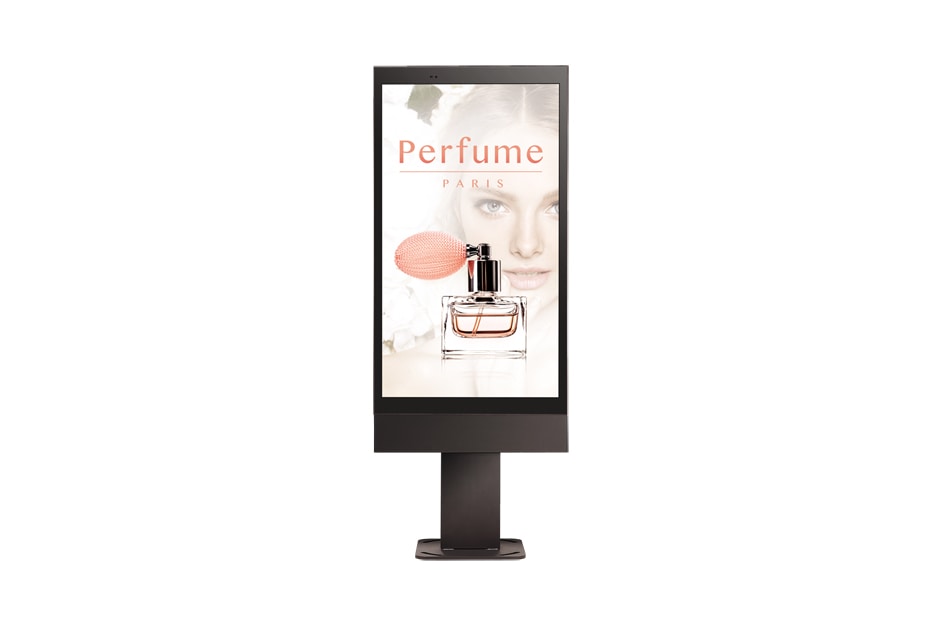

55XE3C component-copyModelName

Outdoor Dispaly

Discontinued

55XE3C component-copyModelName

Outdoor Dispaly

Key Features

Brightness(Typ.) : 3,000 cd/m²
Operating Temperature : -30°C to 50 °C
IP56 Design
Interface : HDMI / DP / DVI / RJ45 / RS232C / SD Card / USB3.0 / External speaker out

Inquiry to Buy

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 3,000 cd/m²
Operating Temperature : -30°C to 50 °C
IP56 Design
Interface : HDMI / DP / DVI / RJ45 / RS232C / SD Card / USB3.0 / External speaker out

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Outdoor Dispaly

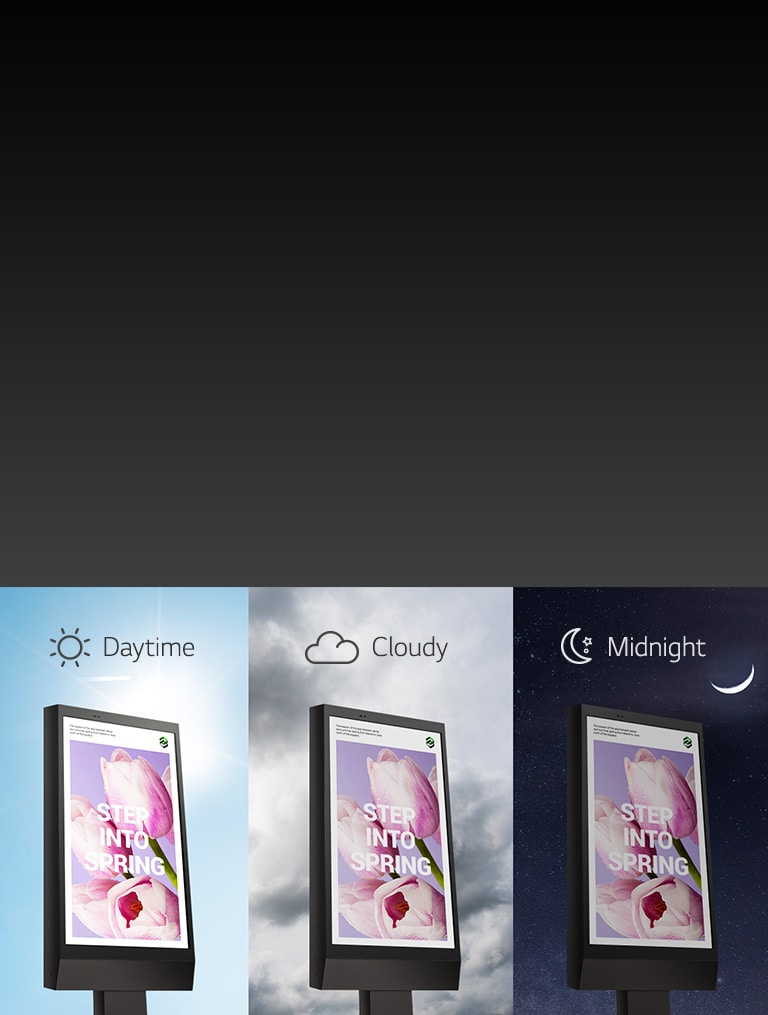

Auto Brightness Sensor

Smart Brightness Control

Screen brightness is automatically adjusted according to the surrounding illumination level. The brightness is increased in light for better visibility, while it is lowered in darkness to reduce power consumption.

QWP (Quarter Wave Plate)

Clear View: Polarized Sunglasses

FPR (Film-type Patterned Retarder) technology is embedded with a QWP which enables clear visibility even when the viewer is wearing polarized sunglasses.

IPS Panel Technology

True Colors, Wide View

IPS technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.

Conformal Coating

The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on every major circuit board eliminates such troubles by protecting it against dust, iron powder, humidity, etc.

IP56 Design

Protection from Dust & Humidity

The XE series is sealed with IP56 design ensuring reliable operation. In addition to being waterproof, it is weatherproof against the sun, rain, snow, dust and wind's damaging effects.

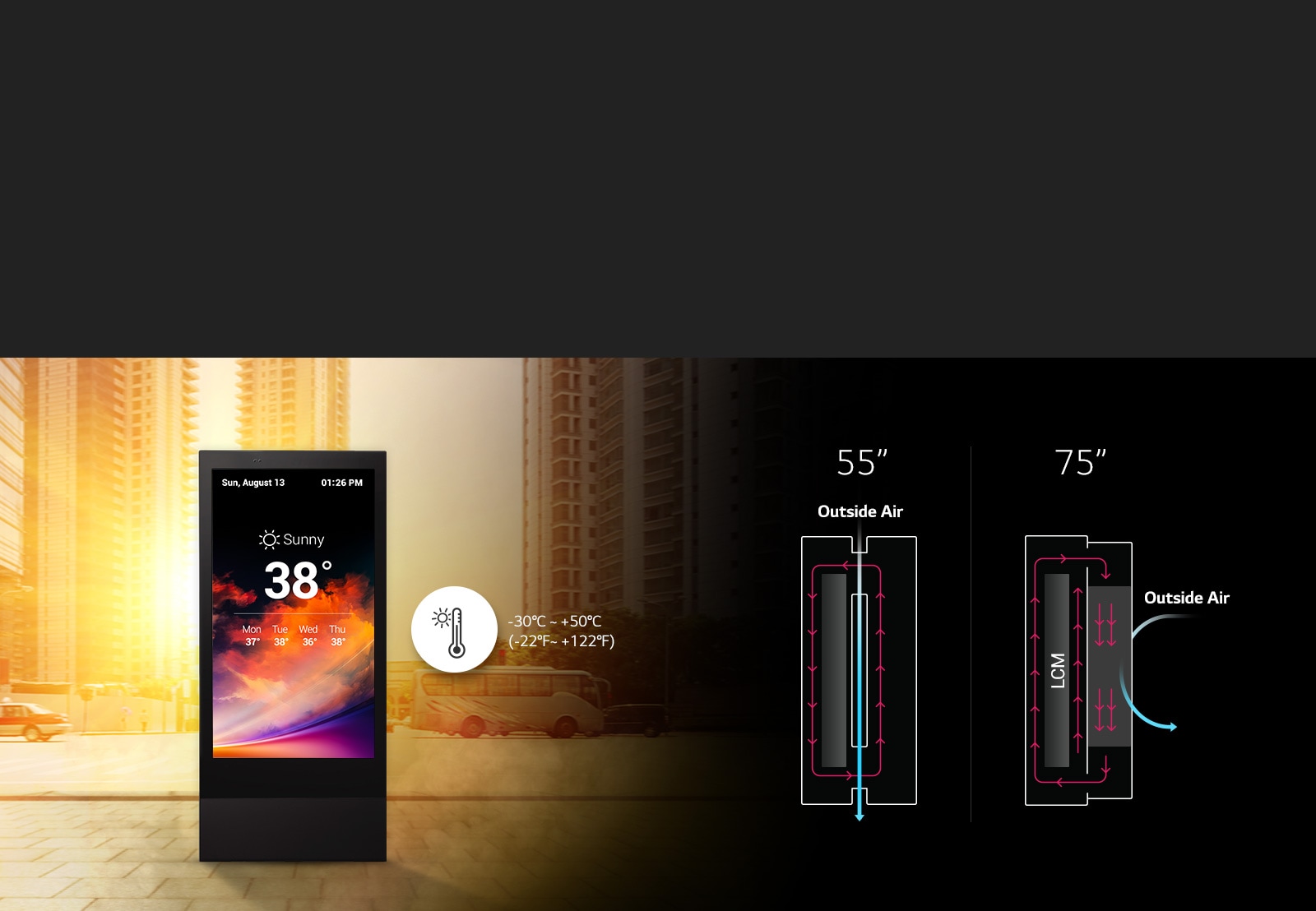

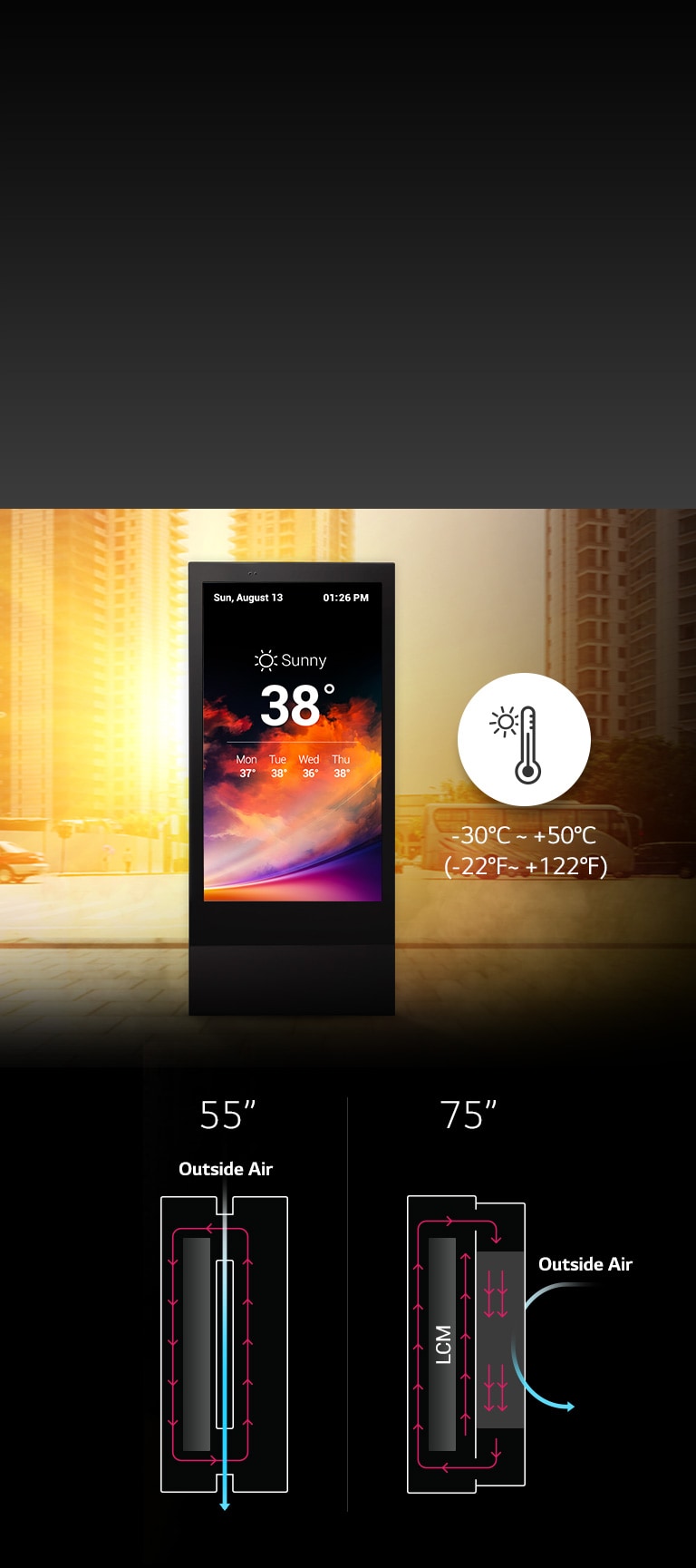

Thermal Management Solution

Efficient Air Circulation

Offers superb reliability in high temperatures. The patented thermal management technology efficiently cools down heat generated from every part of the product, preventing outside air from entering.

OCA (Optically Clear Adhesive) film

Protect against External Impact

Tempered and laminated front glass ensures optimum protection, from outdoor extremities allowing minimal to no damage from external impacts.
*9.5mm (75"), 7.5mm (55")
* Image is for illustration-purposes only.

Embedded Control Manager

Web & Mobile Monitoring

Easy to control at all times, embedded web monitoring in the panel allows a variety of parameters to be diagnosed in real time via temperature, pixel, door, ambient light and gyro sensors.

Optional Configuration

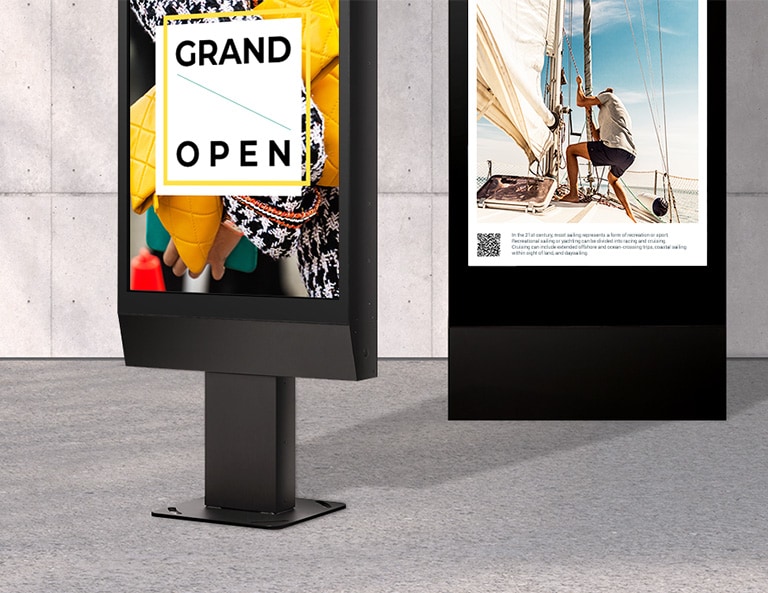

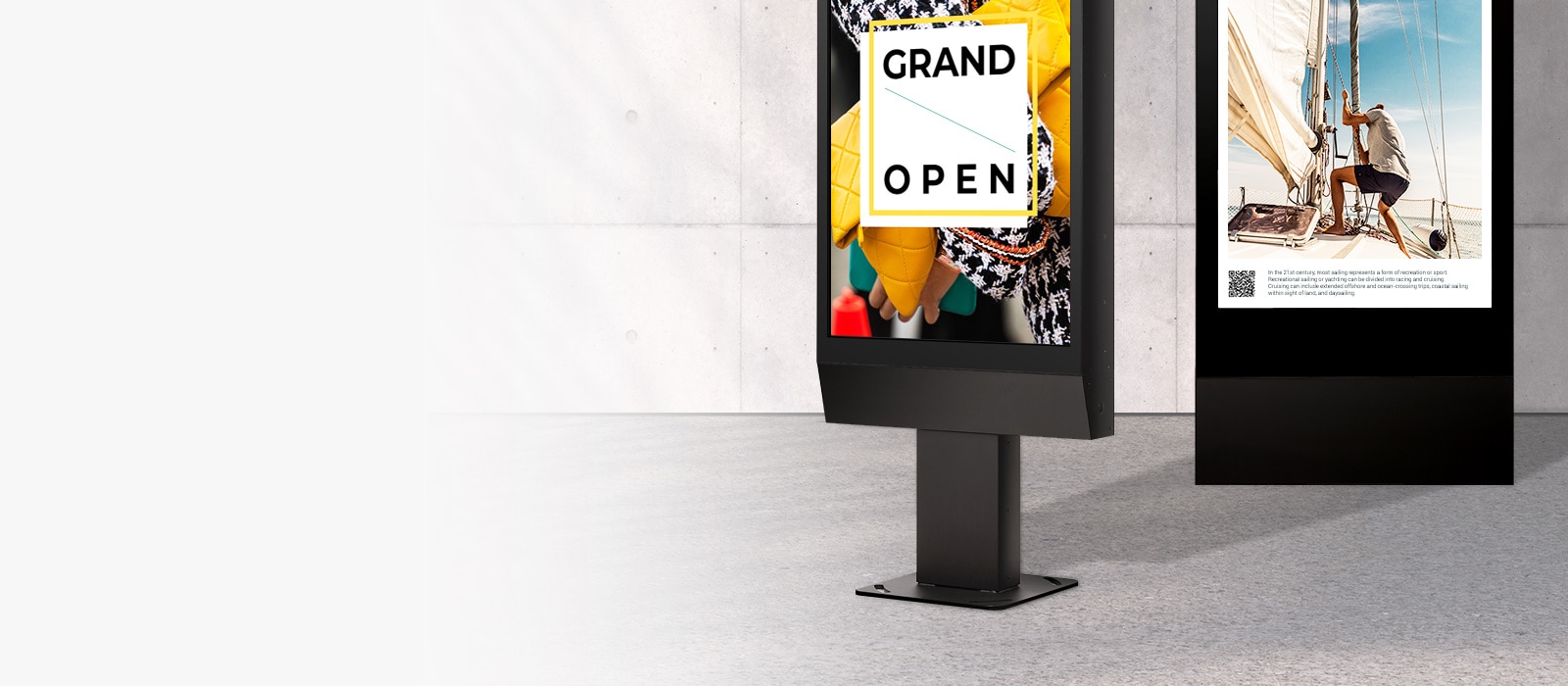

Applicable Stand Accessories

Optional stand to allow panel to stand freely and facilitate easy cable management.

Panel

Screen Size

55" Class (54.64" measured diagonal)

Native Resolution

1,920 x 1,080 (FHD), M+
Brightness(Typ., with Protective Glass, cd/m²)

3000

Connectivity

Input

HDMI, DP, DVI-D, Audio In, USB 3.0, SD Card

Output

DP, External Speaker
External Control

RS232C In/out, RJ45 In

Physical Specification

Bezel Width

66.4 mm (T/B), 31.0 mm (L/R)

Monitor Dimension (W x H x D)

745.3 x 1,345.4 x 160.0 mm
Weight (Head)

70 kg

Environment Conditions

Operation Temperature

-30 °C to 50 °C

Operation Humidity

5 % to 100 %

Power

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

Power Consumption

Typ. / Max.

350 W / 500 W

Smart Energy Saving

178 W

Standard(Certification)

Safety

UL / cUL / CB

EMC

FCC Class "A" / CE / KC
ErP / Energy Star

Yes (EU Only) / No

Media Player Compatibility

OPS type compatible

No

External Media player Attatchable

Yes (Available space for media player installation inside the product)

Software Compatibility

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign C

Accessory

Basic

Remote controller, EIG, ESG, Regulation book, Phone to RS232C gender, USB cable, HDMI cable

Optional

Enclosure Stand (ST-550X)

Dimension
- 55XE3C.dwg
- 55XE3C.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
