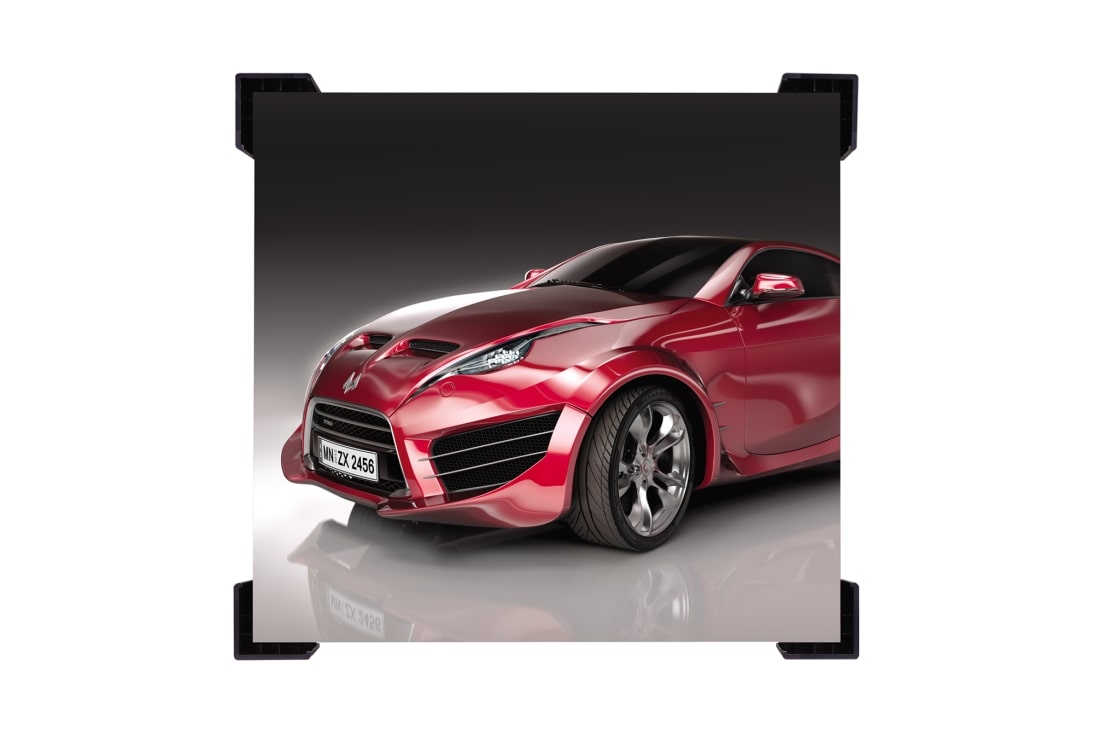

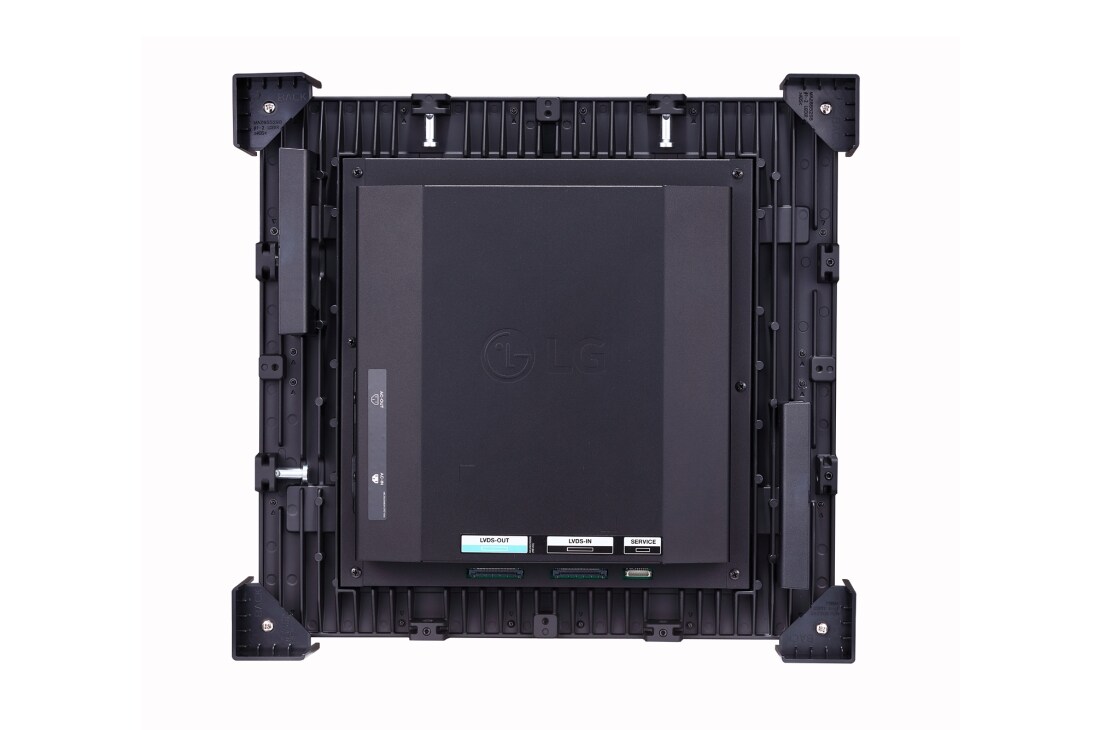

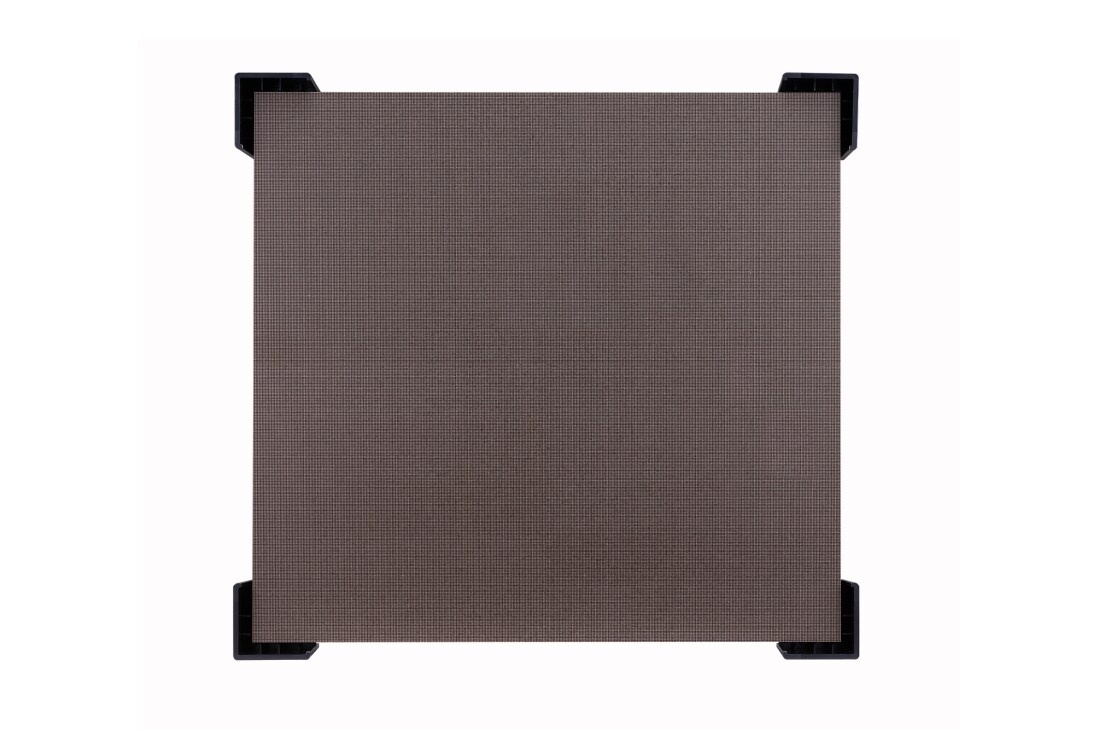

LAP015BL2
LAP Series
  • Pixel Pitch: 1.5mm
  • Brightness: 1,200 cd/m²
  • Refresh Rate: 1,920 Hz

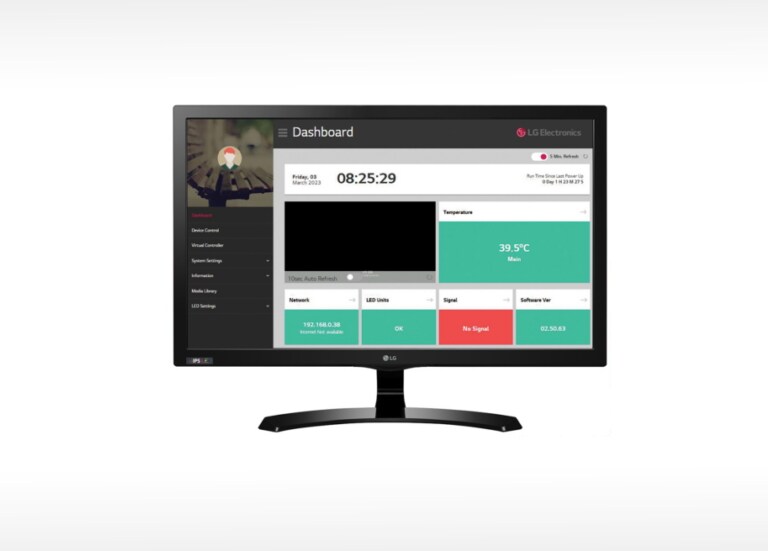

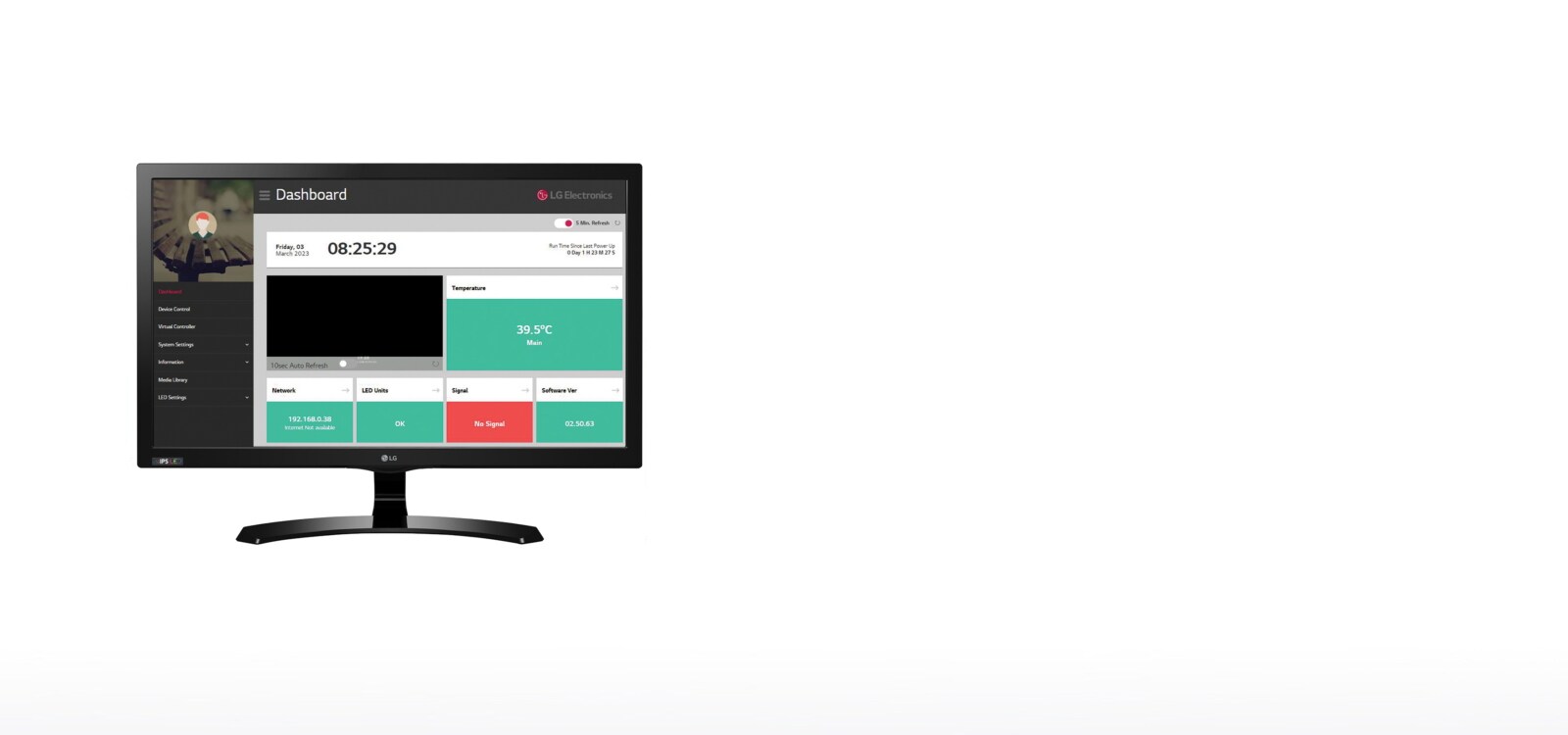

  • Web Based Control S/W

component-OBScountrySelectDesc

LAP Series

Physical Parameters

  • Pitch Name
    P1.5
    Pixel Configuration
    3 in 1 SMD
  • Pixel Pitch (mm)
    1.50
    Module Resolution (W x H)
    128 x 120
  • Module Dimensions (W x H, mm)
    192 x 180
    Weight per Module (kg)
    -
  • No. of Modules per Unit Case (W x H)
    2 x 2

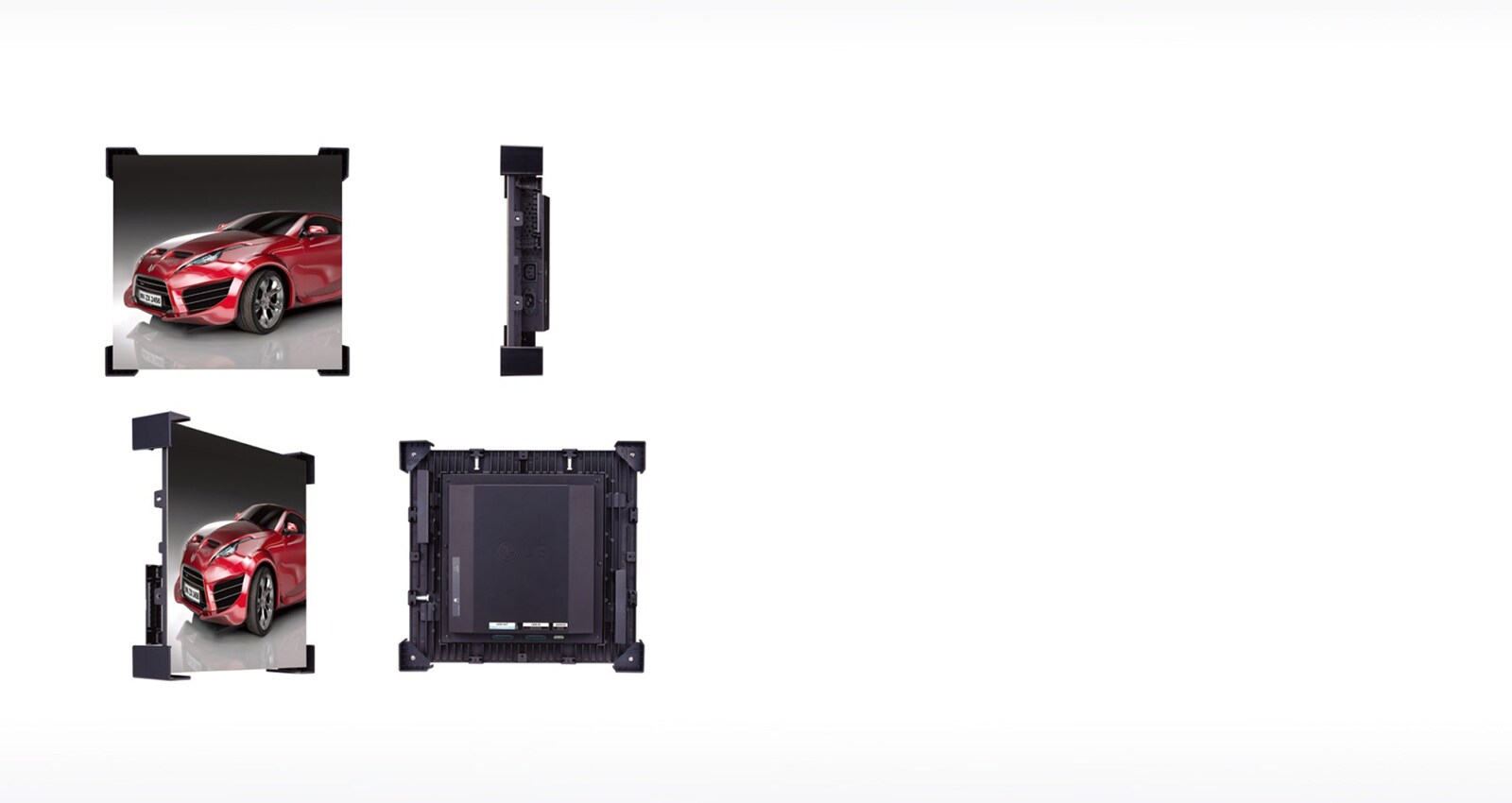

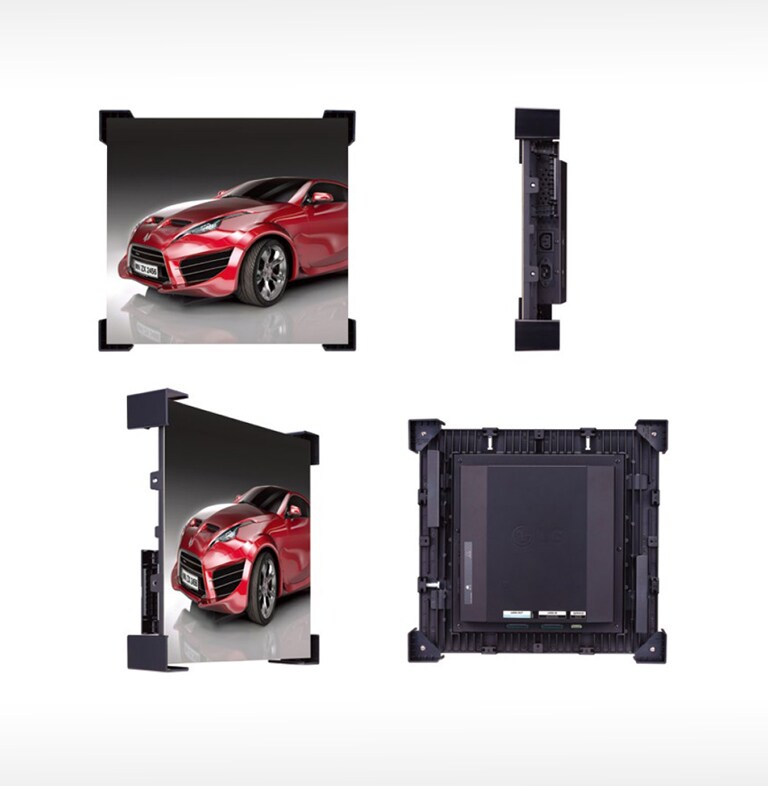

    Unit Case Resolution (W x H)
    256 x 240

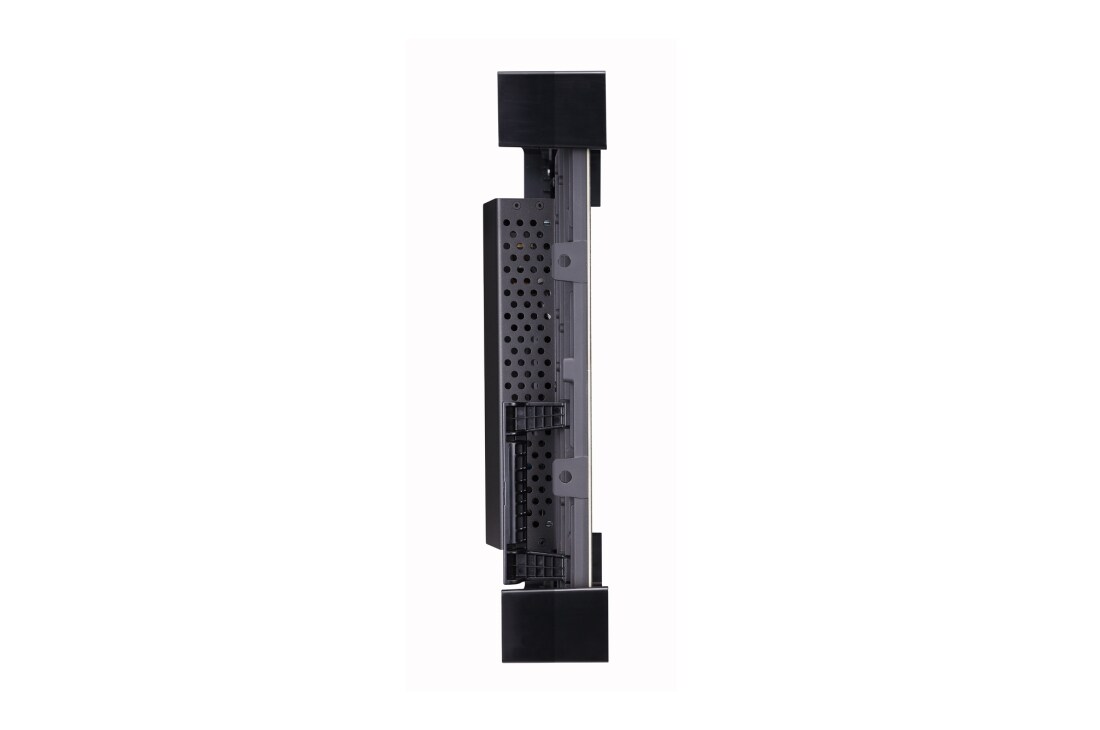

  • Unit Case Dimensions (W x H x D, mm)
    384 x 360 x 77
    Unit Case Surface Area (m²)
    0.138
  • Weight per Unit Case (kg/unit)
    5.0
    Weight per Square Meter (kg/m²)
    36.2
  • Physical Pixel Density (pixels/m²)
    444,444
    Flatness of Unit Case (mm)
    ± 0.2
  • Unit Case Material
    Die Casting Alluminum
    Service Access
    Rear

OPTICAL SPECIFICATIONS

  • Min. Brightness (After Calibration)
    1,200
    Color Temperature
    3,200 - 9,300
  • Visual Viewing Angle (Horizontal)
    160°
    Visual Viewing Angle (Vertical)
    140°
  • Brightness Uniformity
    ≥ 97%
    Color Uniformity
    ± 0.015Cx,Cy
  • Contrast Ratio
    6,000
    Processing Depth (bit)
    16

ELECTRICAL SPECIFICATIONS

  • Power Consumption (W/Unit, Max.)
    160
    Power Consumption (W/Unit, Avg.)
    75
  • Power Consumption (W/m², Max.)
    1,158 (700@800nit)
    Power Supply (V)
    100 to 240
  • Frame Rate (Hz)
    50 / 60
    Refresh Rate (Hz)
    1,920

OPERATION SPECIFICATIONS

  • Lifetime (Half brightness)
    100,000
    Operating Temperature (°C)
    0 to +40
  • Operating Humidity
    10-80%RH
    IP Rating Front
    -
  • IP Rating Rear
    -

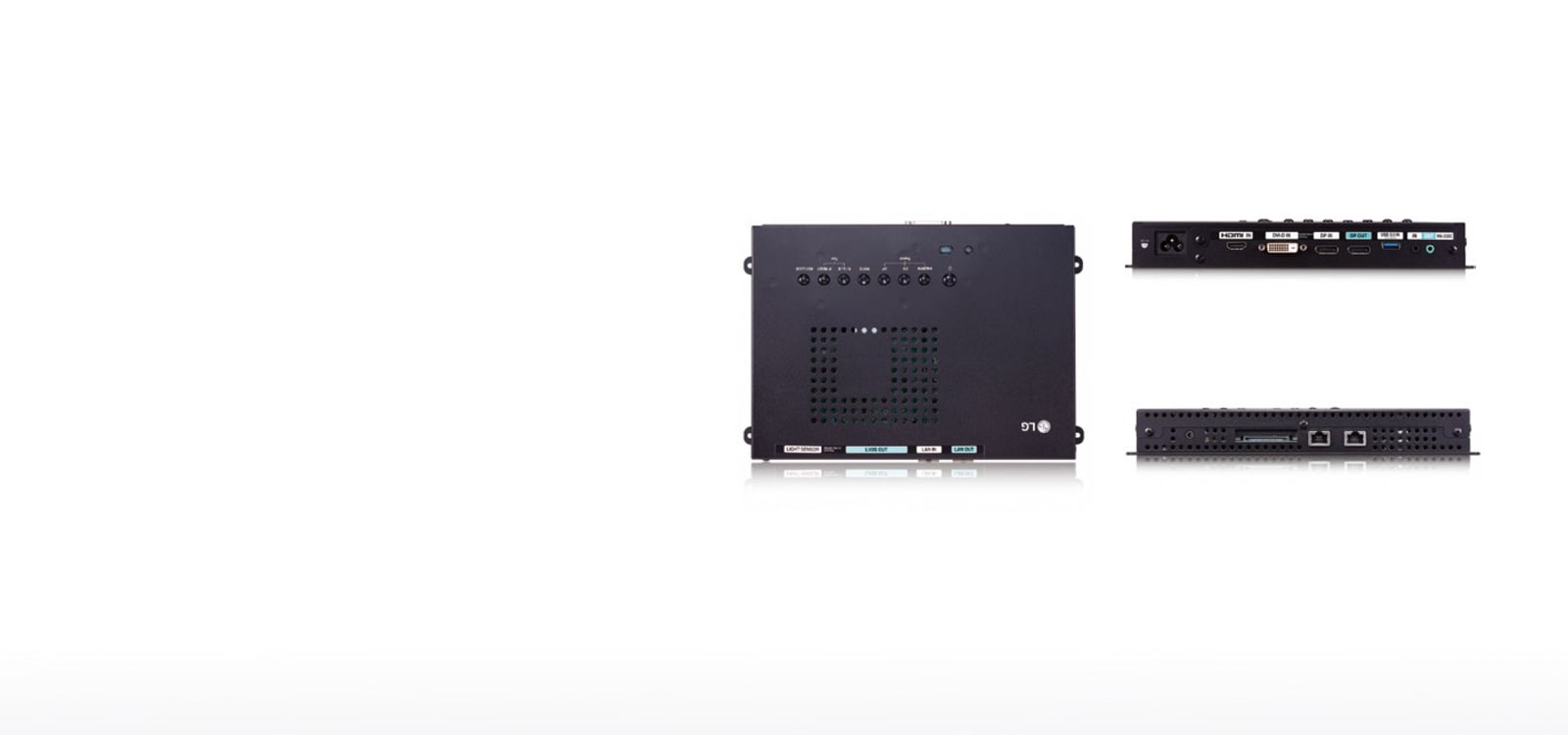

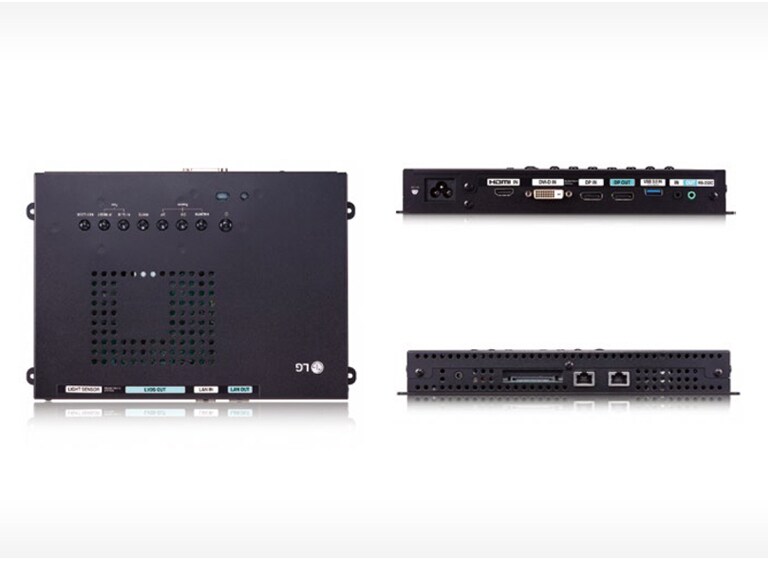

Controller

  • Controller
    LCLG001

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
