21HK512D

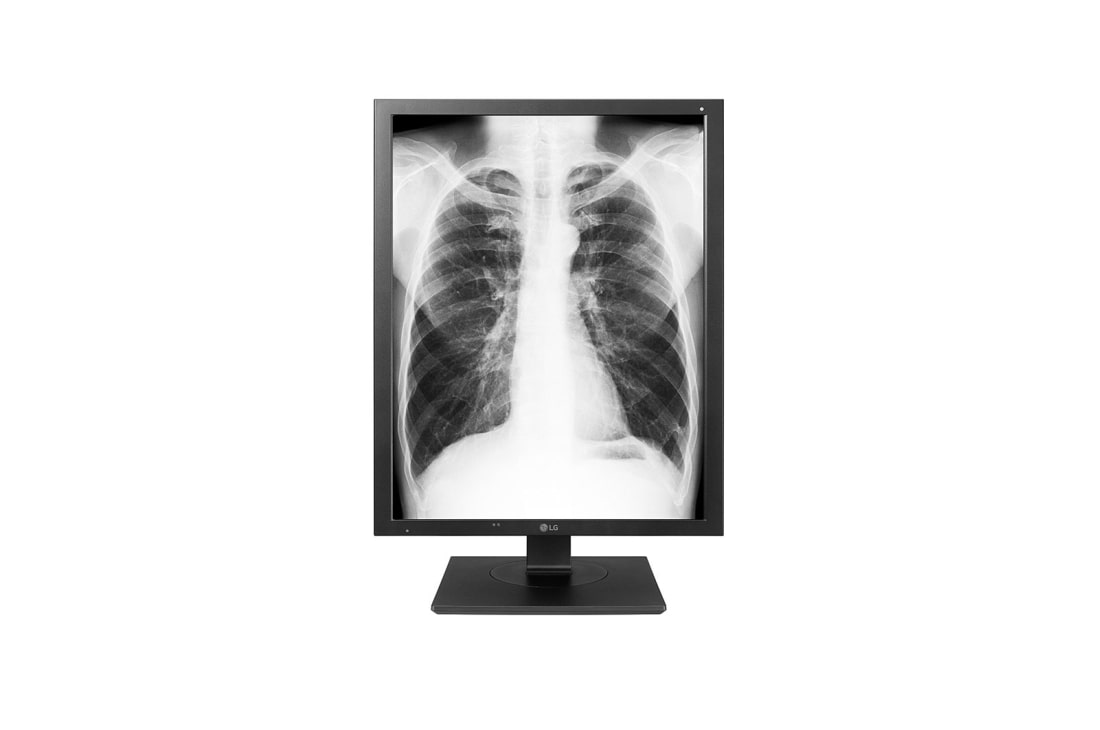

LG 21.3'' 3MP IPS Diagnostic Monitor
  • 21.3” IPS 3MP
  • DICOM Part 14
  • Auto Luminance Sensor
  • Remote & Self Calibration
  • Pivot

component-OBScountrySelectDesc

LG 21.3'' 3MP IPS Diagnostic Monitor

Optimized Image Quality for Diagnostic Review

Display

  • Aspect Ratio
    4:3
    Brightness (Typ.)
    1000 cd/m²
  • Color Bit
    10bit
    Color Gamut (Typ.)
    NTSC 72% (CIE1931)
  • Contrast Ratio (Typ.)
    1400:1
    Panel Type
    IPS
  • Resolution
    2048x1536
    Response Time (GTG)
    On/Off 30ms(Typ.)
  • Size (Inch)
    21.3
    Surface Treatment
    Anti-Glare
  • Viewing Angle (CR≥10)
    178° (Right/Left), 178° (Up/Down)

Feature

  • Brightness stabilization
    Yes
    Auto Luminance sensor
    Yes
  • Presence sensor
    Yes
    Front Sensor
    Yes
  • HW Calibration
    Yes(PerfectLum)
    DICOM Compliant
    Yes
  • Color Temperature
    6500K / 7500K / 9300K

SW Application

  • True Color Pro
    Yes

Connectivity

  • DisplayPort
    Yes(1ea)
    DVI
    Yes(1ea)
  • USB Downstream Port
    Yes(2ea/ver2.0)
    USB Upstream Port
    Yes(1ea/ver2.0)
  • HDMI
    Yes (1ea)
    RS-232
    Yes (1ea)

Power

  • AC Input
    100-240Vac, 50/60Hz
    DC Output
    24V, 4.17A
  • Power Consumption (DC Off)
    Less than 6.5W
    Power Consumption (Max.)
    85W
  • Type
    Internal Power(PSU)

Mechanical

  • Borderless Design
    Normal
    Display Position Adjustments
    Tilt/Height/Pivot/Swivel
  • Height Range
    150 mm
    Machanical Power Switch
    Yes
  • Pivot
    Yes(±90°)
    Swivel
    Yes(±45°)
  • Tilt
    Yes(-5~25˚)
    Wall Mount Size
    100x100mm

Dimensions/Weight

  • Dimension in Shiping (W x H x D)
    502 x 701 x 348mm
    Dimension with Stand (W x H x D)
    377 x 606 x 248.2mm
  • Dimension without Stand (W x H x D)
    377 x 473 x 89.6mm
    Pallet Stuffing (20ft/40ft/40ft HC)
    180/396/396
    Air 12set/Pallet
  • Weight in Shipping
    12.8kg(28.2lb)
    Weight with Stand
    9.8kg(21.6lb)
  • Weight without Stand
    7kg(15.4lb)

Standard

  • IEC (IEC 60601-1 / IEC 60601-1-2)
    Yes
    EN (EN 60601-1 / EN 60601-1-2)
    Yes
  • IEC (IEC 60950-1 / IEC 55032, 55024)
    Yes
    EN (EN 60950-1 / EN 55032, 55024)
    Yes
  • cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)
    Yes
    FCC (FCC part 15 Class A)
    Yes
  • FDA
    510(k) (Class II)
    ISO13485
    Yes
  • GMP
    Yes
    KGMP
    Yes
  • RoHS
    Yes
    REACH
    Yes
  • WEEE
    Yes
    MFDS
    Yes

Accessory

  • Calibration Report (Paper)
    Yes
    DVI-D
    Yes
  • Display Port
    Yes
    Power Cord
    Yes

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
