Discontinued
55EF5DE component-copyModelName

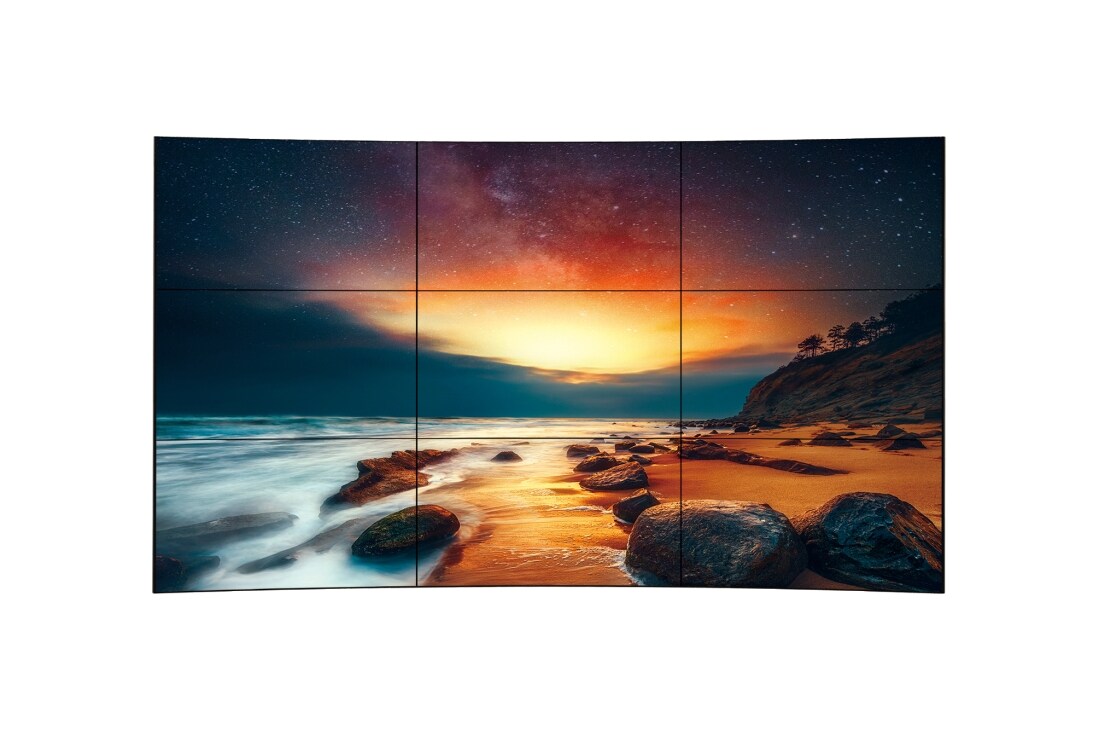

Fixed Curved Open Frame

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

Fixed Curved Open Frame
Inquiry to Buy
Close
Panel
  • Screen Size
    55"
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness (APL25%, Typ., cd/m²)
    400
    Brightness (APL100%, Typ., cd/m²)
    150
Connectivity
  • Input
    HDMI, DP, USB 3.0
    Output
    DP, Audio
  • External Control
    RS232C In/out, RJ45 In/out, IR In
Physical Specification
  • Bezel Width
    0.6 / 0.6 / 6.7 / 6.7mm (T/B/L/R, Flat, Off-bezel)
    Landscape: 5.0 / 10.6 / 7.6 / 7.6mm (T/B/L/R, Flat, On-bezel)
    Portrait: 5.0 / 5.0 / 7.8 / 13.2mm (T/B/L/R, Flat, On-bezel)
    Monitor Dimension (W x H x D)
    Landscape:
    1,224.9 x 696.2 x 31.5 mm (0R, Flat, Display Only)
    1,224.9 x 696.2 x 93.1 mm (0R Flat, Set**)
    1,209.5 x 696.2 x 196.5 mm (2,000R Concave, Set)
    1,209.7 x 696.2 x 157.8 mm (2,000R Convex, Set)
    Portrait:
    701.4 x 1,219.7 x 31.5 mm (0R Flat, Display Only)
    701.4 x 1,219.7 x 93.1 mm (0R Flat, Set)
    697.8 x 1,219.7 x 134 mm (1,500R Concave, Set)
    698 x 1,219.7 x 92 mm (1,500R Concave, Set)
    ** The set is composed of display, signage box and T-con box.
  • Weight
    Landscape / Portrait: 14 kg (Set)
    Carton Dimensions (W x H x D)
    1,350 x 837 x 250 mm
  • Packed Weight
    Landscape / Portrait: 21 kg (Set)
Environment Conditions
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
  • Power Consumption (Typ. / Max.)
    230 W / 260 W
Standard(Certification)
  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class "A" / CE / KCC
  • ErP / Energy Star
    Yes / N/A
Media Player Compatibility
  • OPS type compatible
    Yes
    External Media player Attatchable
    Yes
Software Compatibility
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Link
Accessory
  • Basic
    Remote Controller (2ea Batteries Included), Power Cord, QSG, HDMI Cable (1M x 1ea for Connection Between T-con Box and Signage Box), Power Hanness Cable (1M x 1ea for Connection Between T-con Box and Signage Box), IR Receiver, Regulation Book, Phone to RS232C Gender, Jack Cover, Signage Box Mounting Bracket, FFC Cables (350mm x 4ea for Connection Between Panel and T-con Box), DP Cable, LAN Cable, LC (VLC Cable)
    Optional
    Accesory Type1 (CaseTop / Bar): A3L****EF5E, A3P****EF5E Accesory Type2 (Jig): A2L****EF5C, A2P****EF5C, OPS Kit (KT-OPSA)
  • Dimension
    • [Dimension]55EF5DE(※ Actual dimensions may vary depending on the curvature of the display.).dwg
    • [Dimension]55EF5DE(※ Actual dimensions may vary depending on the curvature of the display.).pdf
  • Datasheet
    • 55EF5DE Leaflet (online)_11804.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
