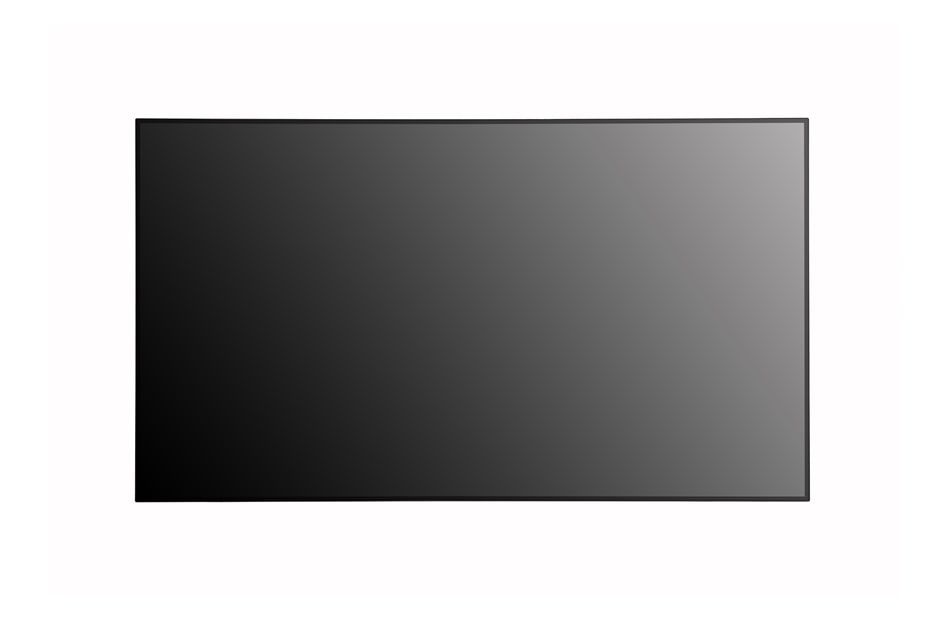

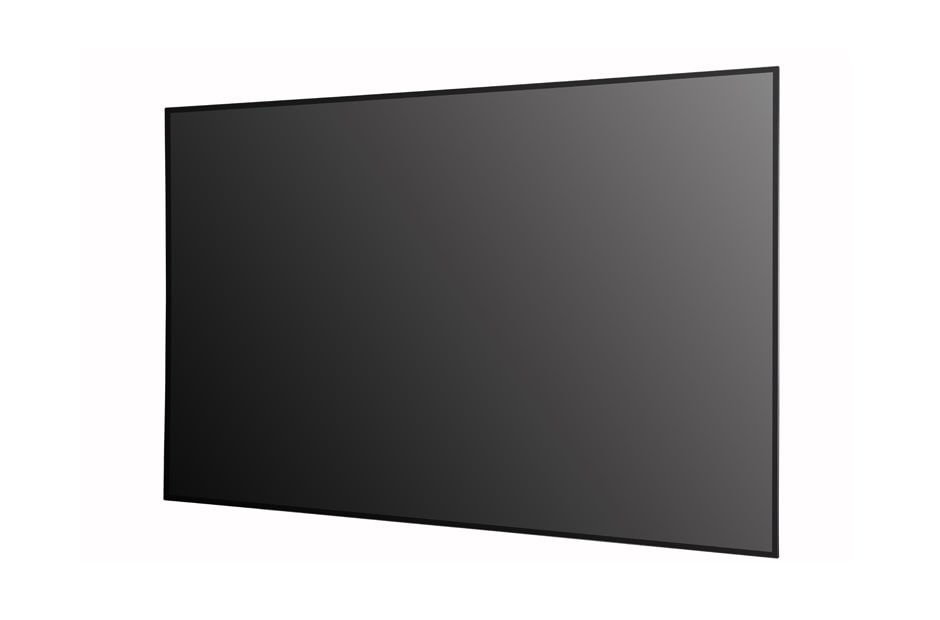

55EJ5D
Artistic Space Beyond Display
  • Brightness(Typ.): 400 cd/m² (APL 25%)
  • Bezel: 1.2 mm (Off bezel)

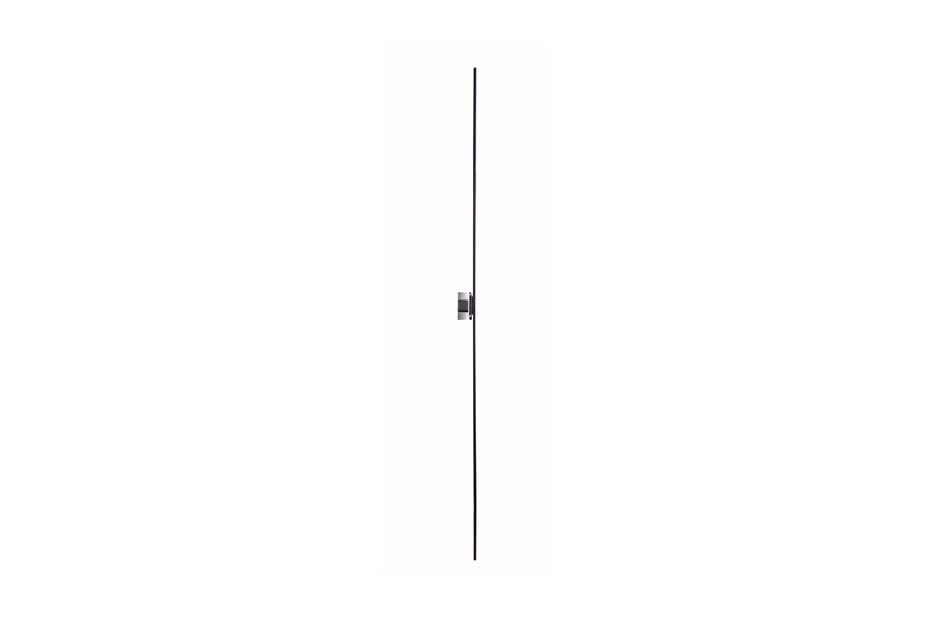

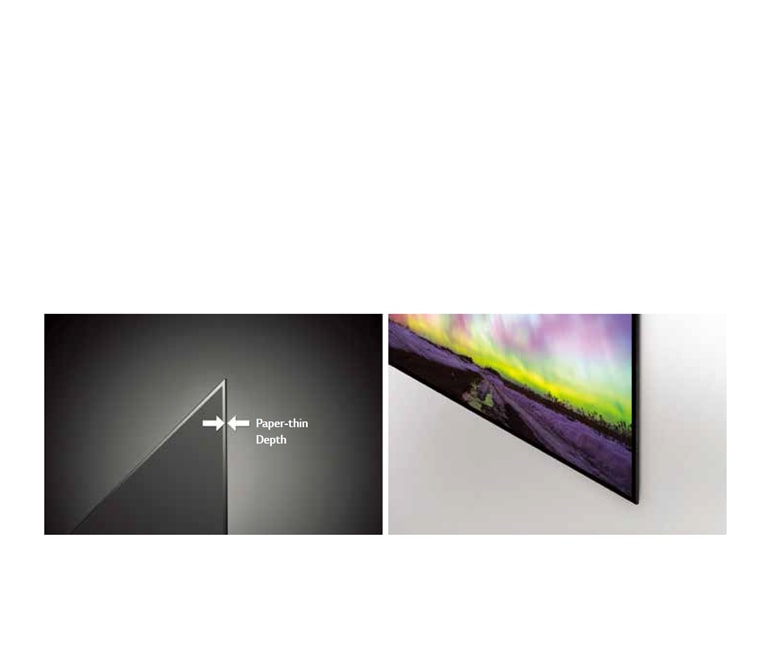

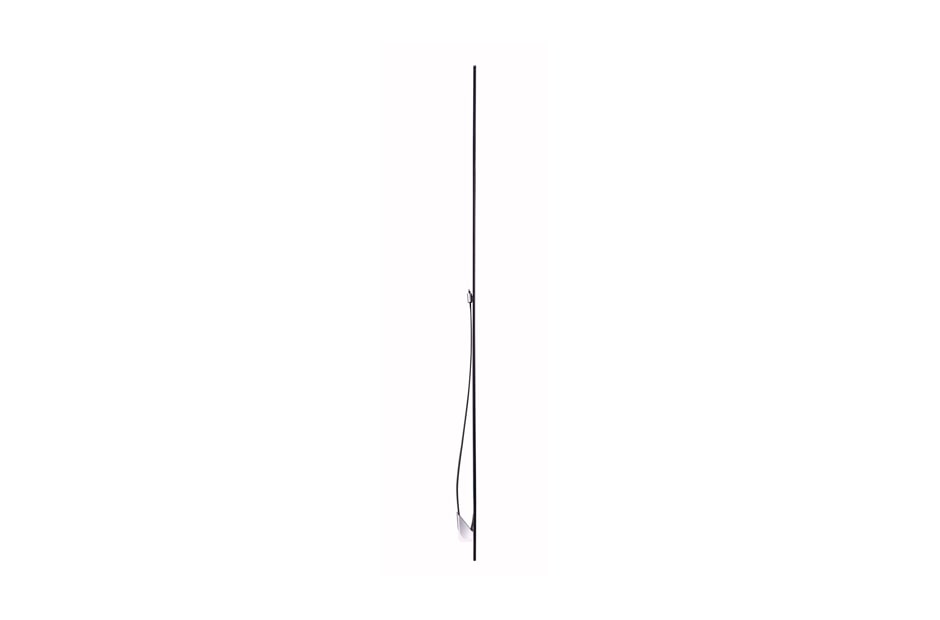

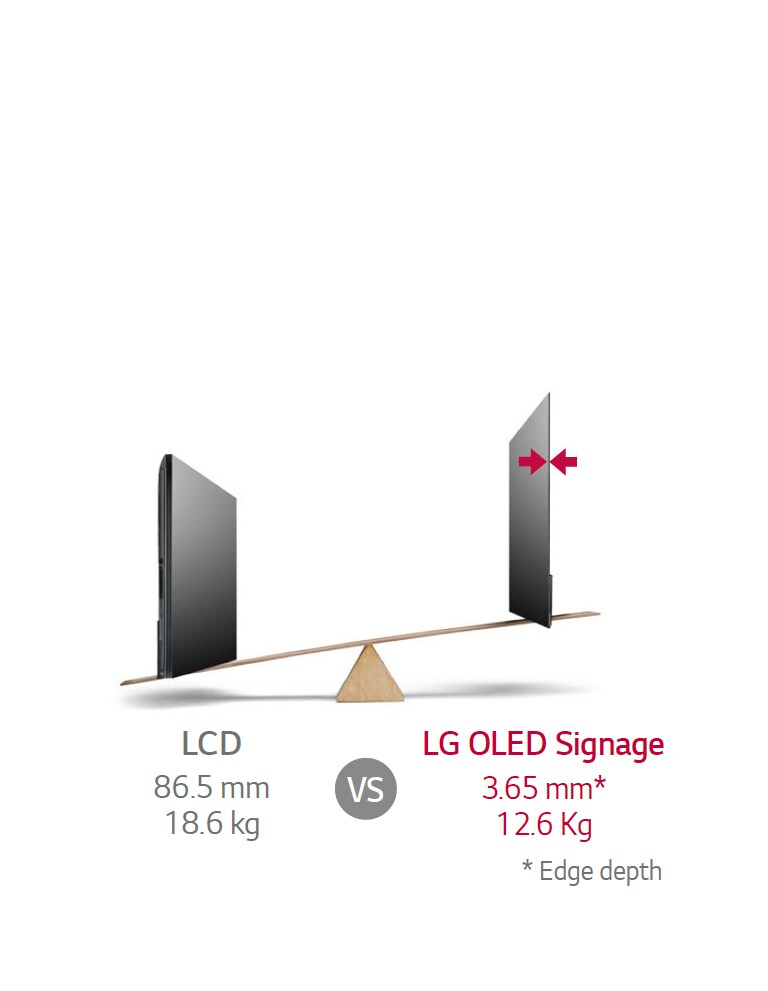

  • Depth: 3.65 mm (Module)
  • Interface: HDMI, DP, RS232C, RJ45, IR In, USB 3.0, USB 2.0
  • SuperSign CMS / Link

component-OBScountrySelectDesc

Artistic Space Beyond Display

Panel

  • Screen Size
    55"
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness (APL25%, Typ., cd/m²)
    400

Connectivity

  • Input
    HDMI, DP, USB 2.0, USB 3.0
    Output
    DP, Audio (Off/Fixed/Variable)
  • External Control
    RS232C in/out, RJ in/out, IR (Shared w/ RS232C Out Port)

Physical Specification

  • Bezel Width
    1.2 / 1.2 / 1.2 / 1.2 mm (T/B/L/R, Off-bezel)
    9.3 / 12.4 / 8.7 / 8.7 mm (T/B/L/R, On-bezel)
    Dimension (W x H x D)
    Head: 1,227 x 702.1 x 3.65 mm, Signage Box: 420 x 230 x 75 mm
  • Weight
    Head: 5.5 kg, Signage Box: 5.3 kg, Wall Bracket: 1.8 kg
    Carton Dimensions (W x H x D)
    1,383 x 834 x 252 mm

Environment Conditions

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %

Power

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power

Power Consumption

  • Typ.
    190 W
    DPM
    Less than 3 W
  • Power off
    Less than 0.5 W

Standard(Certification)

  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class "A" / CE / KCC
  • ErP / Energy Star
    Yes / NA

Media Player Compatibility

  • OPS type compatible
    Yes
    External Media player Attatchable
    Yes

Software Compatibility

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Link

Accessory

  • Basic

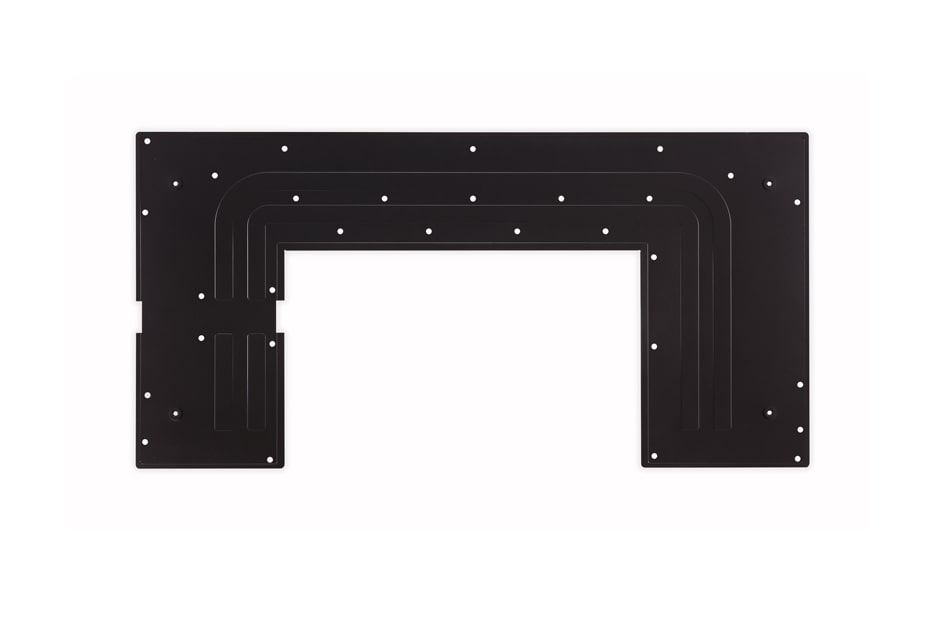

    Remote controller (includes 2 batteries), FPC Extension cable (connection between screen and signage box), Power cord, DP cable, RS-232C cable, RS-232C gender, LAN cable, IR receiver, Manual (ESG, EIG), Wall-mount plate (includes screws), Harness locking cover, Set install guide, Signage box bracket (U-Leg), FPC cable cover
    Optional
    OPS Kit (KT-OPSA)
