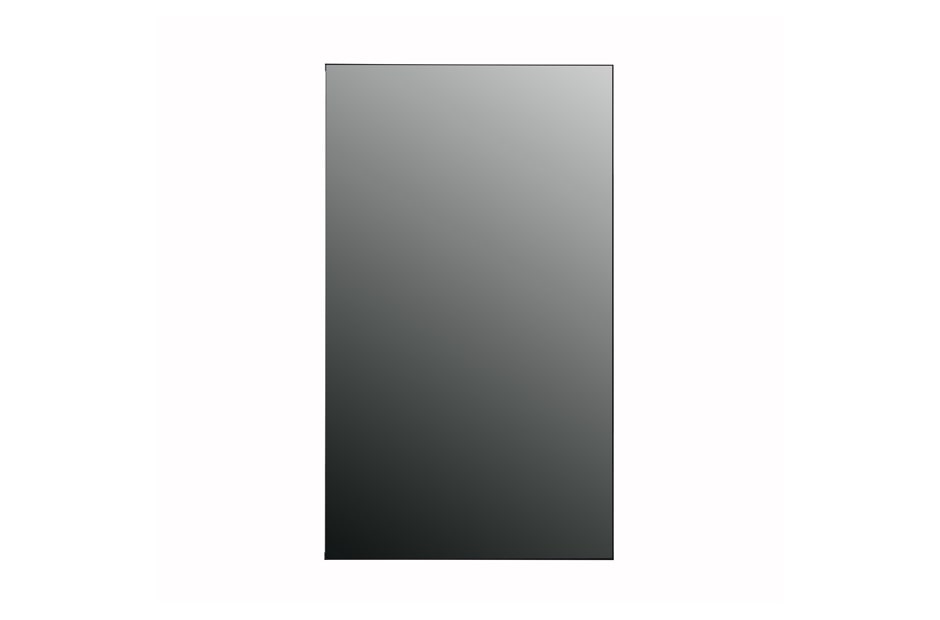

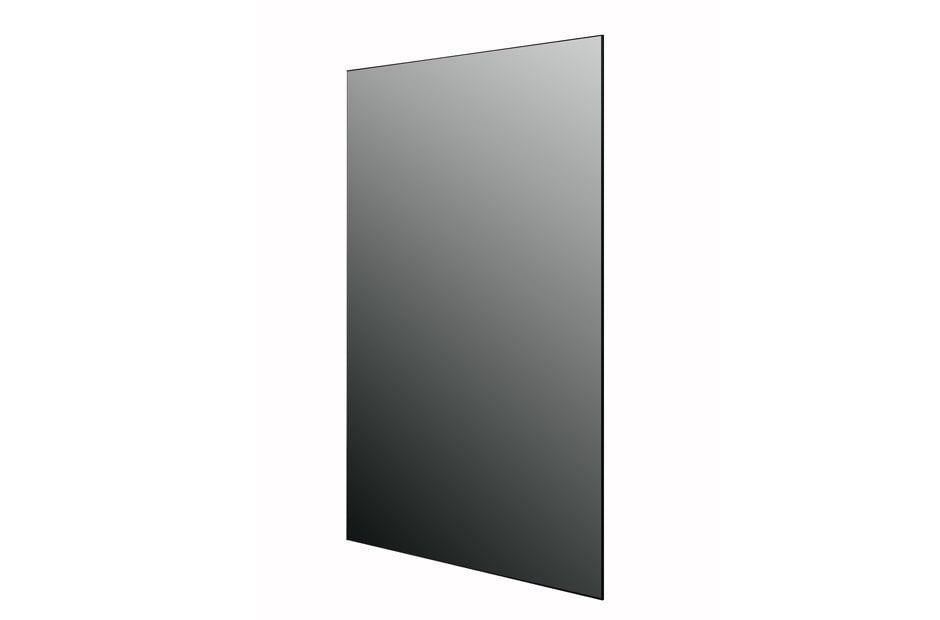

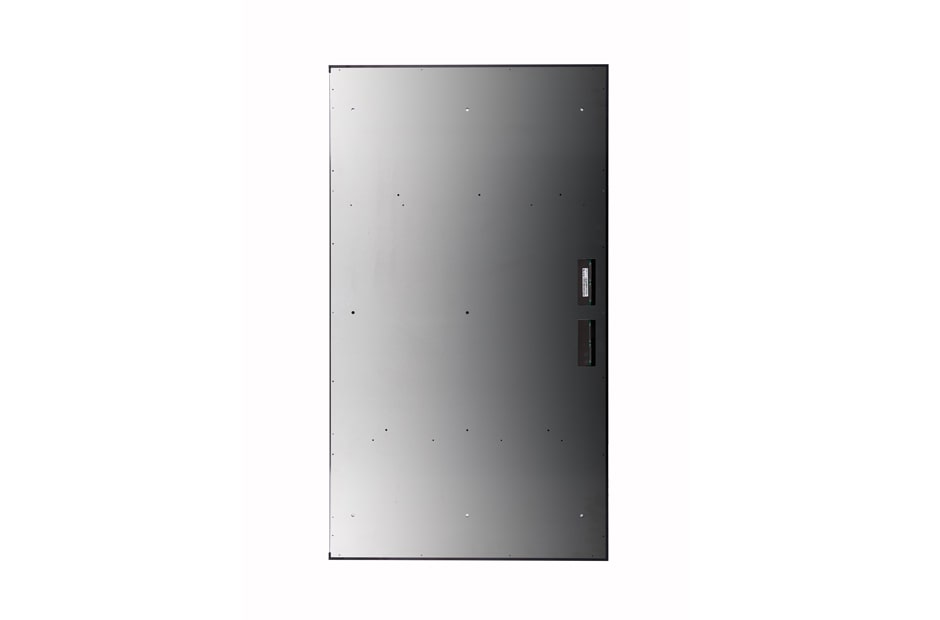

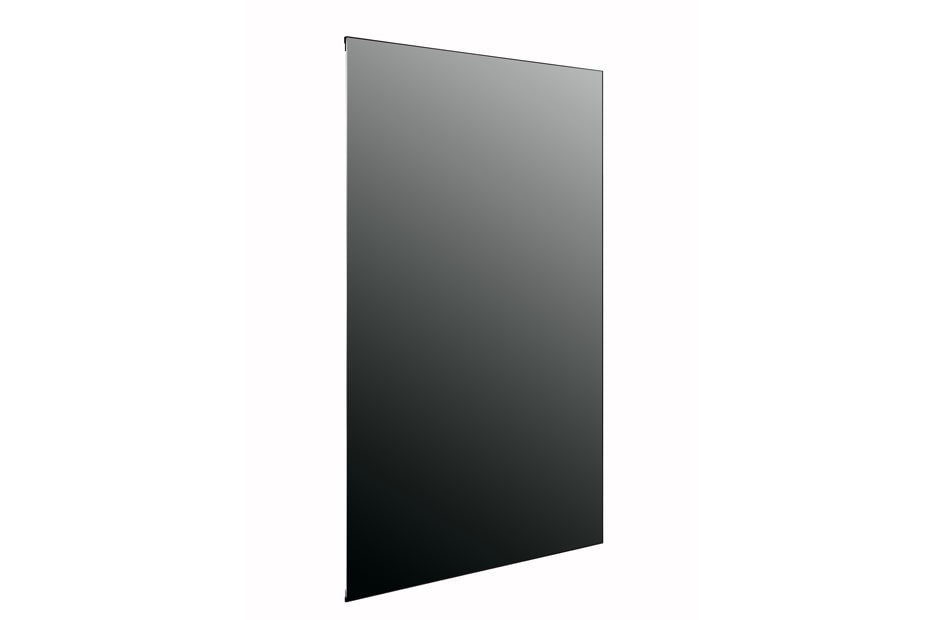

55EV5D
Video Wall OLED Signage
55"
  • Brightness(Typ.) : 400 cd/m² (Average Picture Level 25%)
  • Depth : 7.9 mm (Display Only)
  • Orientation : Portrait
  • Interface : HDMI, DP, USB, Audio, RS232C, RJ45, IR Reciever
Video Wall OLED Signage
MSRP $

Panel

  • Screen Size
    55"
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness (APL25%, Typ., cd/m²)
    400

Connectivity

  • Input
    HDMI, DP, USB
    Output
    DP, Audio
  • External Control
    RS232C in/out, IR out, RJ45 in/out, IR receiver

Physical Specification

  • Bezel Width
    (Off-bezel) 1.2 / 1.2 / 1.2 / 1.2 mm (U/B/L/R)
    (On-bezel) 5.6 / 5.6 / 5.6 / 11.0 mm (U/B/L/R)

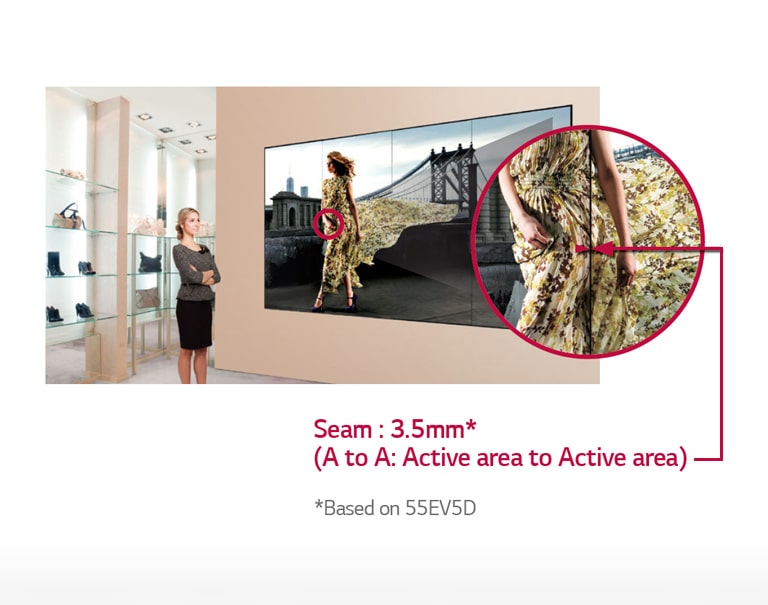

    (Seam) 3.5 mm
    Dimension (W x H x D)
    (Head)

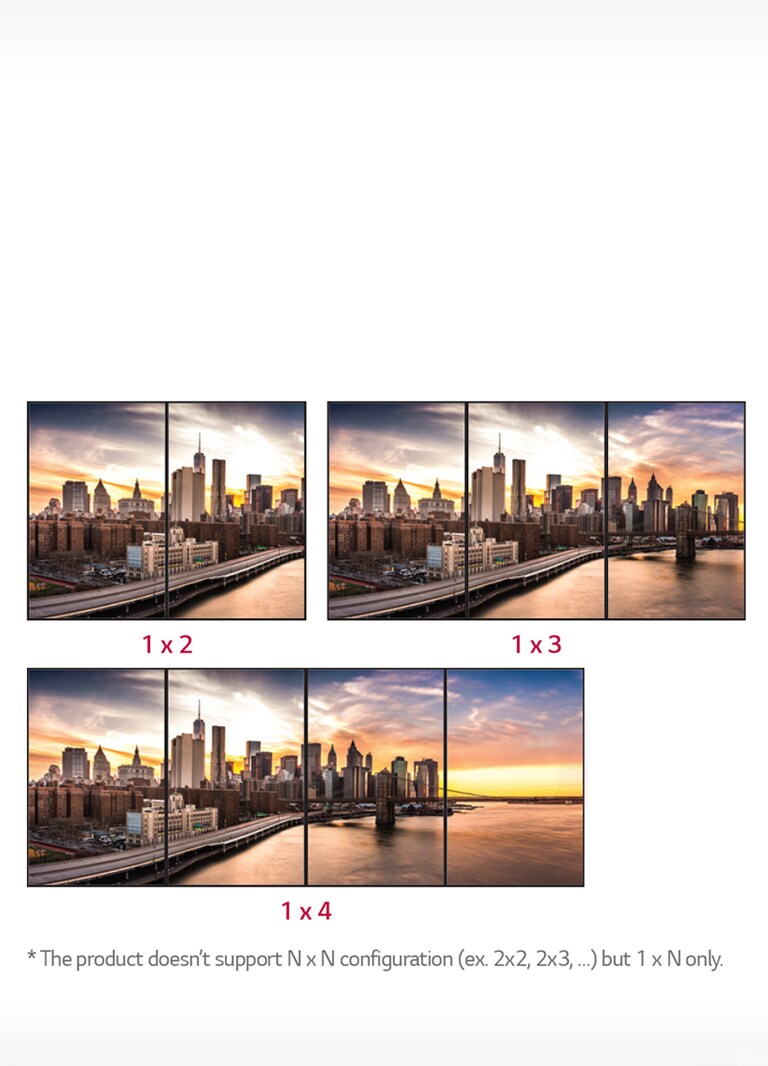

    1×2: 1,382 x 1,220.9 x 7.9 mm
    1×3: 2,066.3 x 1,220.9 x 7.9 mm
    (T-Con Box) 312.2 x 213.4 x 16 mm
    (Signage Box) 412.6 x 222.4 x 64.3 mm
  • Weight
    (Head)
    1x2: 18.4 kg, 1x3: 27.4 kg
    (T-Con Box) 1.6 kg / ea
    (Signage Box) 4.3 kg / ea
    Packaged Weight(Set)
    1x2: 78.2 kg, 1x3: 93.7 kg

Environment Conditions

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %

Power

  • Power Supply
    100-240 V~, 50/60 Hz
    Power Type
    Built-In Power

Standard (Certification)

  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes (EU Only) / NA

Media Player Compatibility

  • OPS type compatible
    Yes
    External Media player Attatchable
    Yes

Software Compatibility

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Link

Accessory

  • Basic
    Remote Controller (2 Batteries Included), Power Cord, QSG, HDMI Cable (3M x 1ea for Connection between T-Con Box and Signage Box), Power Hanness Cable (3M x 1ea for Connection between T-Con Box and Signage Box), IR Receiver, Regulation Book, Phone to RS232C Gender, Signage Box Jack Cover, T-Con Box Jack Cover, Signage Box Mounting Bracket, T-Con Box Mounting Bracket, FFC Cables (350mm x 4ea, 1600mm x 4ea for Connection between Panel and T-Con Box), Phone
    Optional
    OPS Kit (KT-OPSA)
